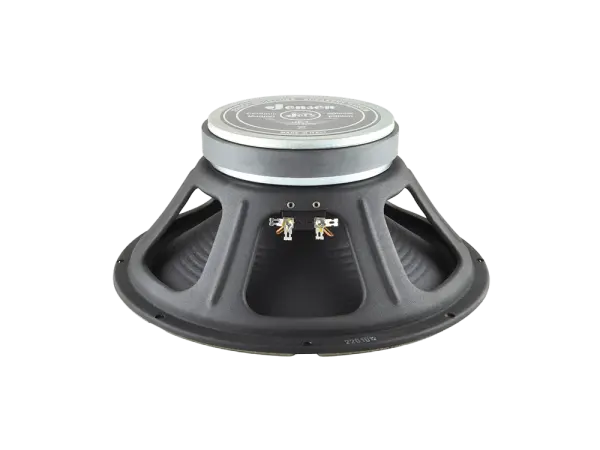

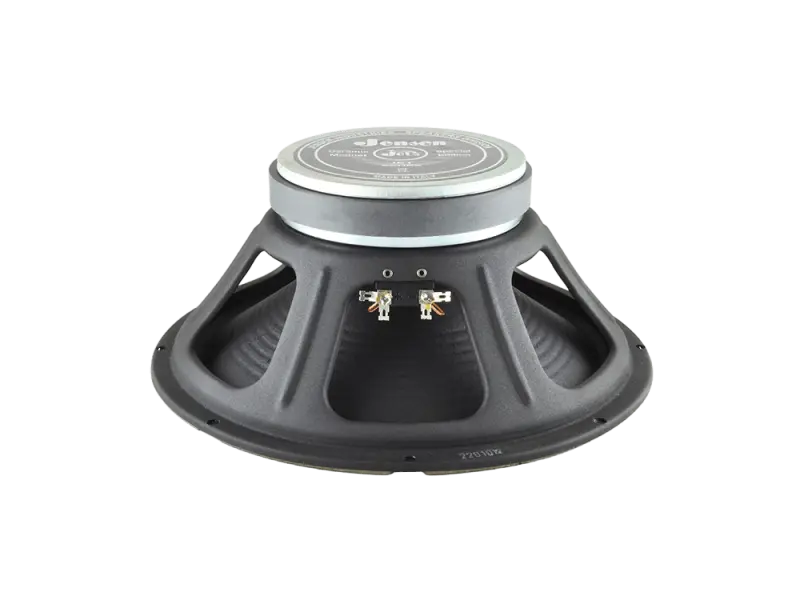

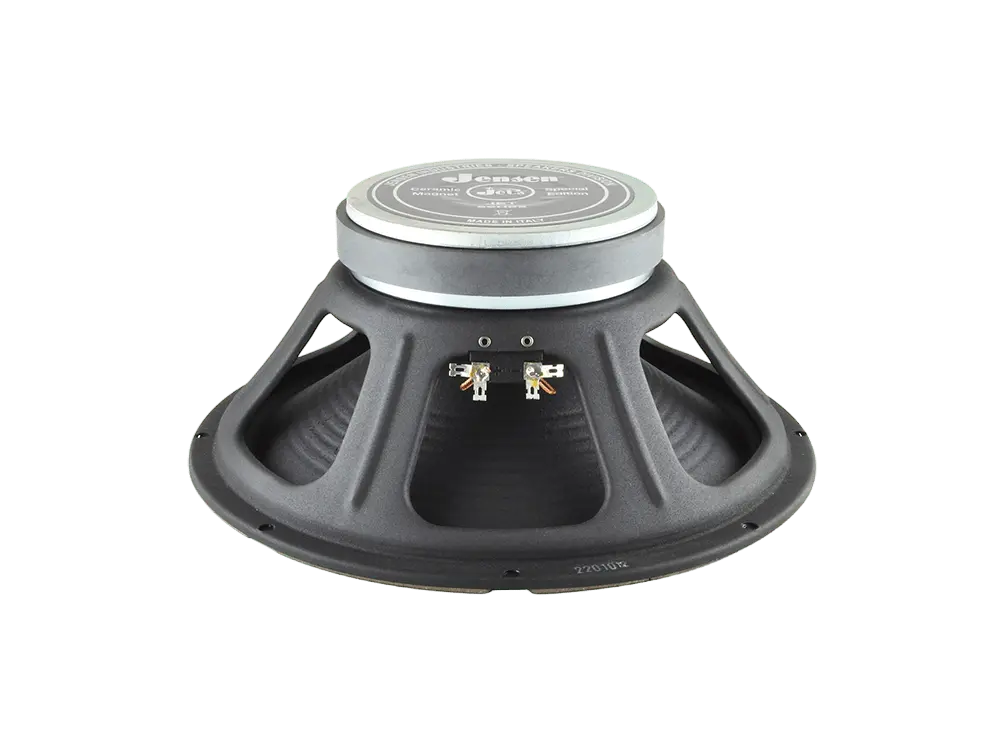

Jensen C12 Nighthawk 12" / 75 W / 16 Ohm

Universal size for 12" speakers
Dome diameter: 80 mm - recommended for most of the guitar loudspeaker with average beaming

As the frequency increases, the radiation of a loudspeaker is increasingly focused on its center. If the listener is in this beam, the sound is extremely harsh and biting; if one moves to the side of it, the sound becomes significantly darker and treble components are partially missing.
To reduce this behavior, a diffuser is used. This sits directly in the beam of the speaker and deflects the high frequencies very strongly, it breaks the "beam". This makes the sound much fuller and more balanced.

Hear the Diffusor in action on ->YouTube (made by one of our customers, Thanks !)

• Wiring harness for internal speaker connection
• Number of speakers: 1
• Type: Mono
• Wire: 2 x 1,5 mm² red - black
• Jack socket / speaker crimps
• Length: ca. 55 cm

• Length: 0,5 m
• Color: grey
• 1st Jack: Mono 6,3 mm
• 2nd Jack: Mono 6,3 mm
• Cable type: Sommer Cable Typ SC-MERIDIAN SP215 2 x 1,5 mm², grey (#so415-0056)

Speaker Break-In / Agin Service for Guitar Speakers.
Corresponds to a continuous operation of 24 hours.
Many new and unused loudspeakers sound harsh and must be used for a certain time to develop their sound. This ageing process can be accelerates with this service which "wears" different parts of the speaker, so it will sound softer and smoother, in particular the top end.

• Wire Set for internal speaker connection
• Number of speakers: 2
• Type: Mono, parallel and serial
• Wire: 2 x 1,5 mm² red - black
• Jack socket / speaker crimps
• Length each ca. 55 cm

• Length: 3 m
• Color: grey
• 1st Jack: Mono 6,3 mm
• 2nd Jack: Mono 6,3 mm
• Cable type: Sommer Cable Typ SC-MERIDIAN SP215 2 x 1,5 mm², grau (#so415-0056)

• 4 x Screw M5x20mm
• 4 x Washer M5
• 4 x T-Nut M5

• Wiring Harness, mono, speaker crimps
• Wire: 2 x 1,5 mm² red - black
• Speaker Crimps on both sides
• Length: ca. 55 cm

• Primary: 120, 230 & 240 V @ 50 Hz
• Sec. 1: 720 V C.T. @ 400 mA, 60 V Bias Tap
• Sec. 2: 6,3 V C.T. @ 7,5 A
• Sec. 3: 6,3 V C.T. @ 3 A

• Datasheet

• Twin 5F8A with 5AR4
• Twin Reverb AB763 (2-Way Rectifier)
• Twin Reverb Reissue (4-Way Rectifier)

• Pri: 0-120V / 0-110V-120V @ 50Hz
• Bias: 55V @ 500 mA
• Heater 1: 5V @ 6 A
• Heater 2: 3,2 - 0 - 3,2 V @ 8 A
• Sec 1: 330V @ 300 mA
• Sec 2: 330V @ 300 mA
• ( Half-Wave: 330 V - 0 - 330 V )
• ( Full-Wave: 330 V - 0 V )
• Made in Europe

• Datasheet

Fender-Style Outputtransformer for Twin

• Pri.: 2200 Ohm C.T.
• Sec.: 0-2-4-8-16 Ohm
• Power: 140 Watt (25 Hz -3dB)
• Made in Europe

Files:

• Datasheet

• Pri.: 2200 Ohm C.T.
• Sec.: 4-8-16 Ohm
• Power: 100 W (27Hz -3dB)

Files:

• Datasheet

Impedance Matching Transformer

• Pri: 4 - 8 - 16 Ohm
• Sec: 4 - 8 - 16 Ohm
• Power: 100 W
• Size: d = 90 mm, h = 40 mm

• Choke for Fender 125C1A & 022699
• Bandmaster, Dual Showman, Pro Reverb, Twin Super
• 4 H

Files:

• Datasheet

Width ca. 135 cm
Price per linear meter.
Actual shades may vary.
We ship the tolex as one piece if you order more than 1 meter.

Material:
80% PVC Film
20% Poly-Cotton Fibre

REACH compliant

Please note !
when you order more than 1 m and select Deutsche Post / DHL Parcel (Not DHL Express) we need to cut the width of the tolex to ca. 115 cm. Otherwise it is not possible to ship the tolex with DHL because the parcel length would exceed the maximum parcel length.

Width ca. 135 cm
Price per linear meter.
Actual shades may vary.
We ship the tolex as one piece if you order more than 1 meter.

Material:
80% PVC Film
20% Poly-Cotton Fibre

REACH compliant

Please note !
when you order more than 1 m and select Deutsche Post / DHL Parcel (Not DHL Express)
we need to cut the width of the tolex to ca. 115 cm. Otherwise it is not
possible to ship the tolex with DHL because the parcel length would
exceed the maximum parcel length.
