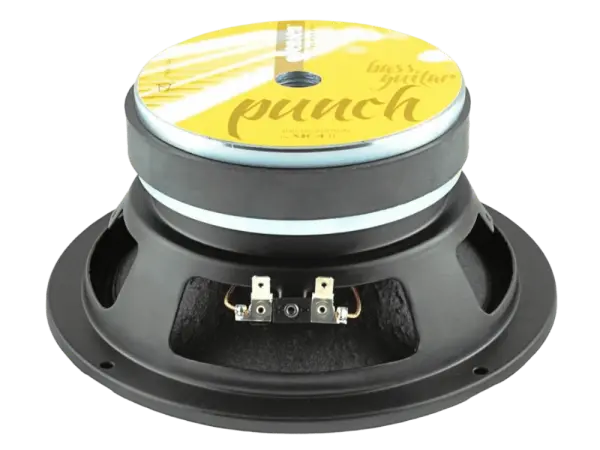

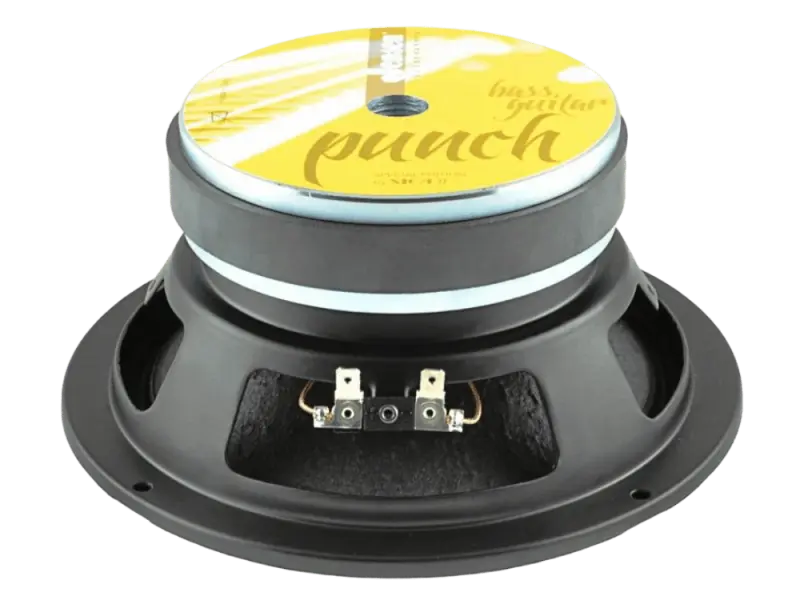

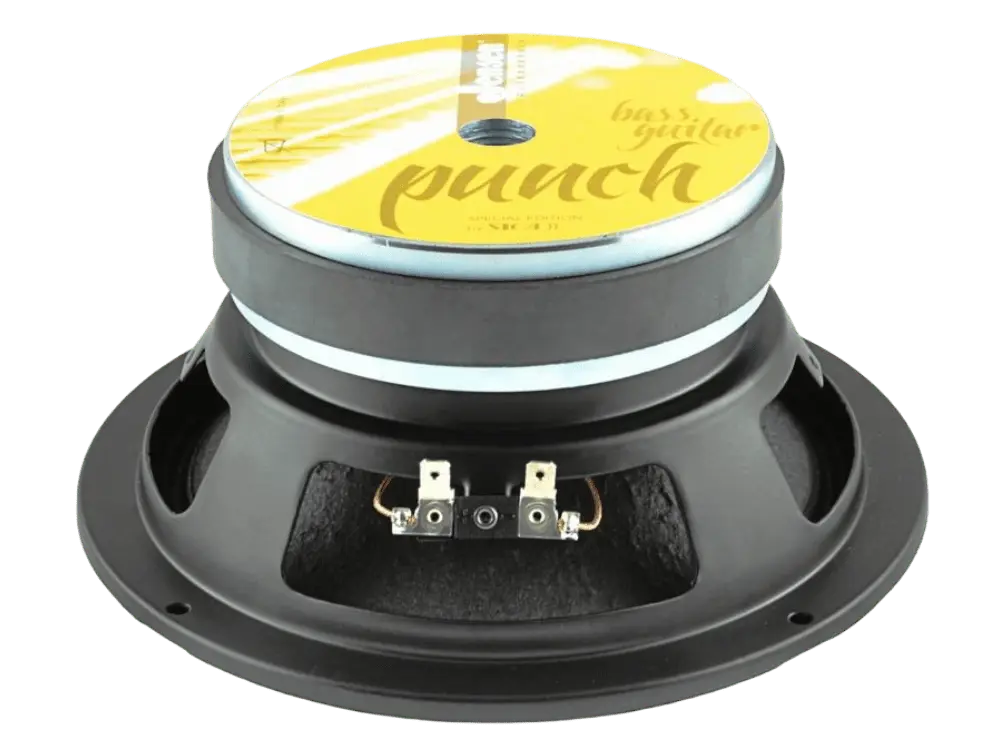

Punch Sound speakers offer great dynamics and super-fast response, giving the player an extremely solid bass sound.
Equipped with ferrite magnets and steel baskets, they are ideal for classic styles where a clean, tight and bright sound is required.
Specifications
- Nominal Diameter: 209 mm / 8 in
- Nominal Impedance: 8 Ω
- Rated Power AES: 150 W
- Continuos Program Power: 300 W
- Sensitivity @ 1W/1m: 95.0 dB
- Voice Coil Diameter: 50 mm (2")
- Voice Coil Winding Depth: 11 mm
- Magnetic Gap Depth: 8 mm
- Flux Density: 1.10 T
- Magnet Weight: 1100 g
- Net Weight: 3.1 Kg
- Magnet Type: Ferrite
- Basket Material: Pressed Sheet Steel
- Voice Coil Winding Material: Copper
- Voice Coil Former Material: Kapton
- Cone Material: Paper
- Cone Treatment: No
- Surround Material: Treated Cloth
- Dust Dome Material: Solid Paper
Thiele & Small Parameters
- Re: 6.08 Ω
- Qms: 3.61
- Qts: 0.33
- Cms: 203 µm/N
- Vas: 13.1 l
- X max: +/- 3.1 mm
- N: 1.45 %
- Fs: 74.7 Hz
- Qes: 0.36
- Mms: 22.4 g
- Bxl: 13.29 Tm
- Sd: 213.8 cm²
- X var: +/- 6.6 mm
- Le (1KHz): 0.71 mH
