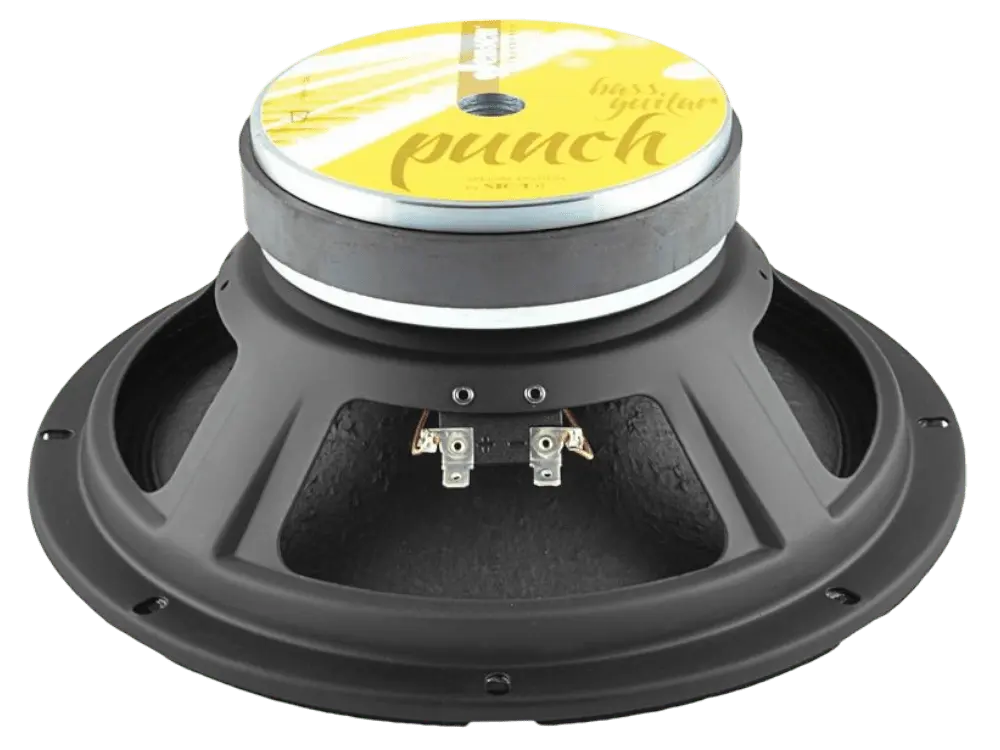

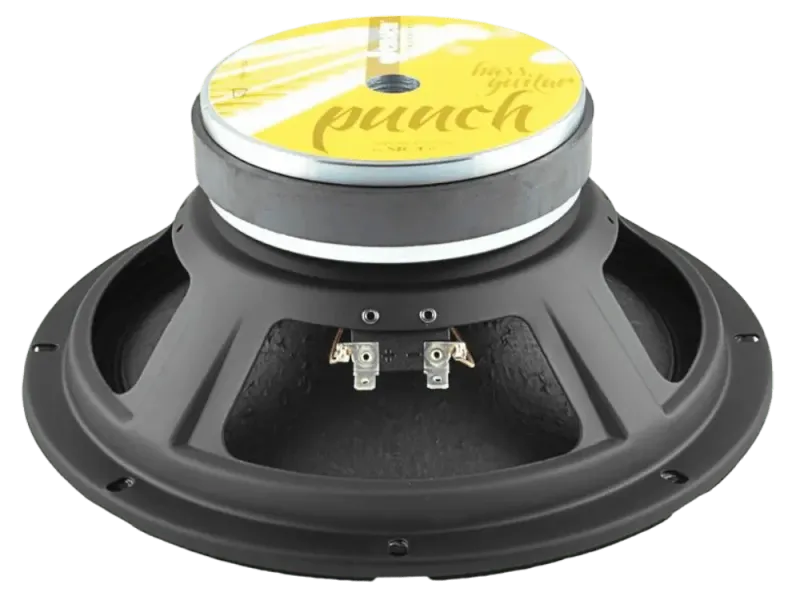

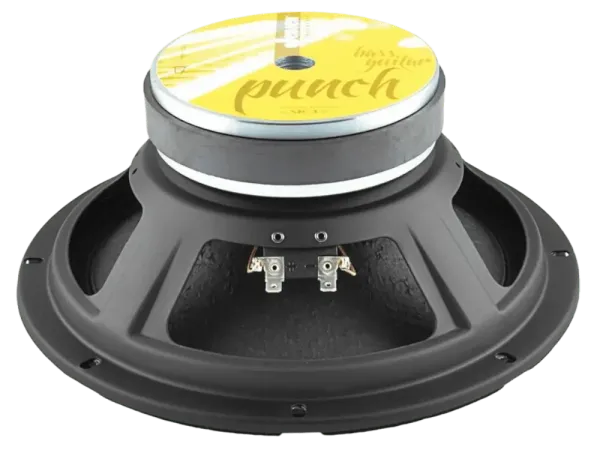

Jensen Bass Punch BP10/150 - 10" / 150 W / 8 Ohm

Punch Sound speakers offer great dynamics and super-fast response, giving the player an extremely solid bass sound.
Equipped with ferrite magnets and steel baskets, they are ideal for classic styles where a clean, tight and bright sound is required.

Specifications

• Nominal Diameter 266mm (10")
• Nominal Impedance 8Ω
• Rated Power AES 150W
• Continuous Program Power 300W
• Sensitivity @ 1W/1m 96.0dB
• Voice Coil Diameter 50mm (2")
• Voice Coil Winding Depth 11mm
• Magnetic Gap Depth 8mm
• Flux Density 1.20T
• Magnet Weight 1100g
• Net Weight 3.5kg

Thiele & Small Parameters

• Re 6.10Ω
• Fs 55.0Hz
• Qms 5.93
• Qes 0.35
• Qts 0.33
• Mms 30.7g
• Cms 276μm/N
• Bxl 13.48Tm
• Vas 42.6l
• Sd 330.1cm2
• X max +/-2.4mm
• X var +/-3.5mm
• η0 1.87%
• Le (1kHz) 0.85mH
