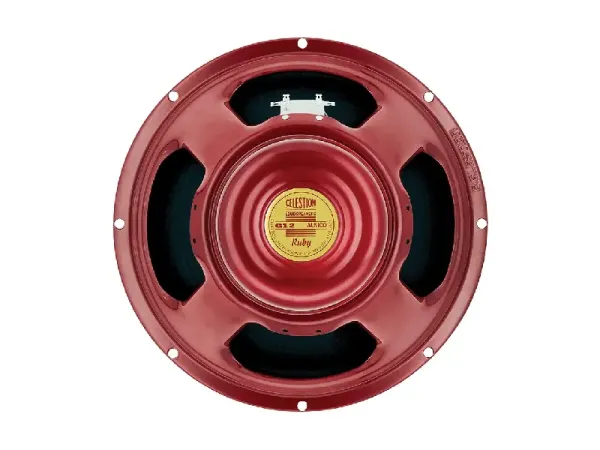

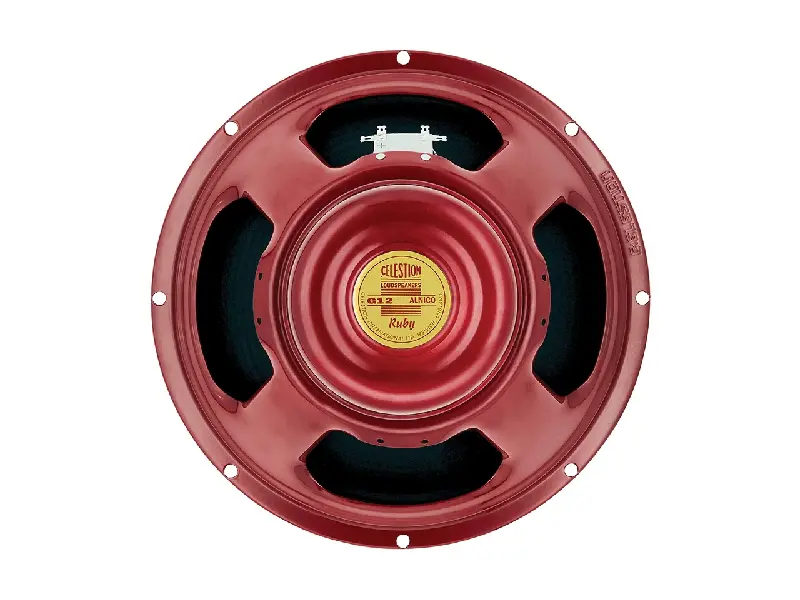

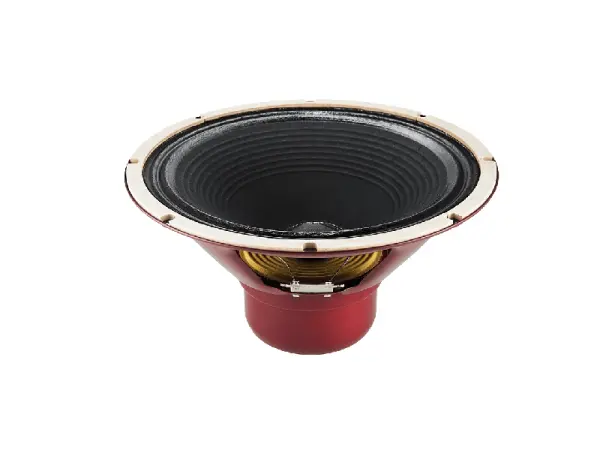

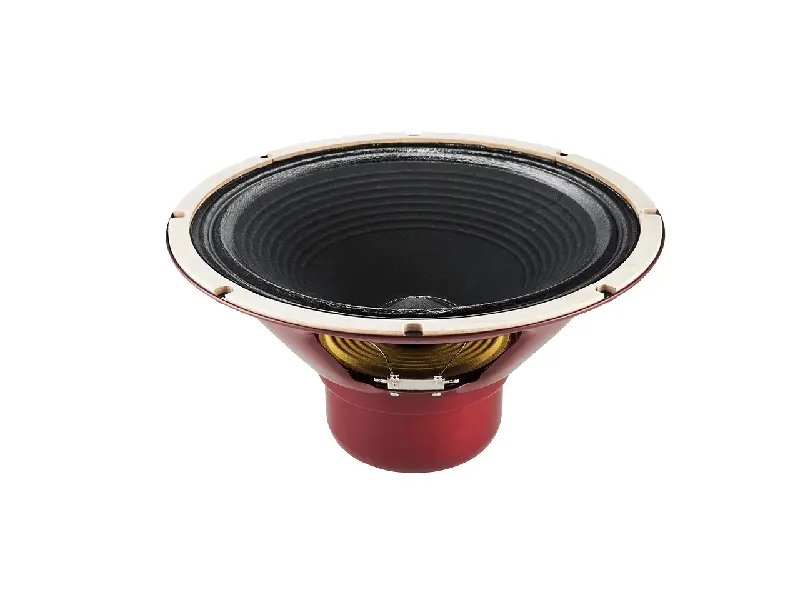

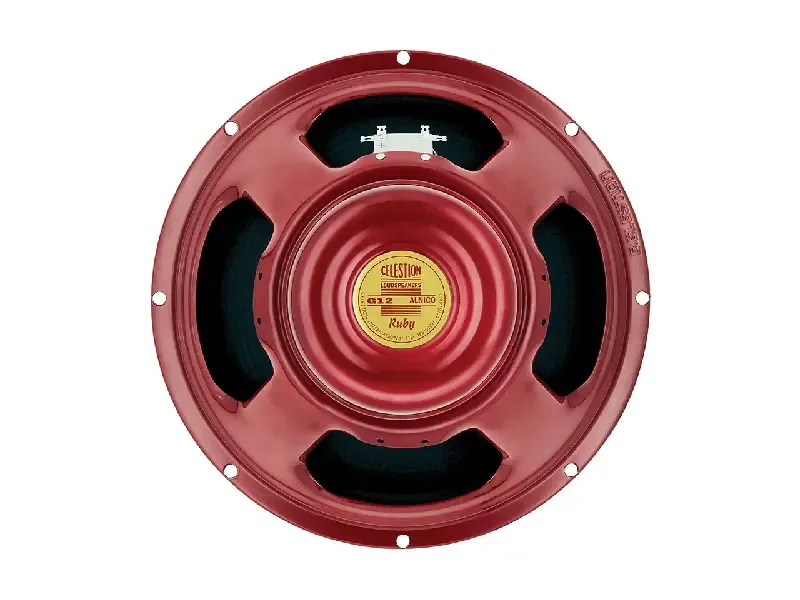

Celestion Ruby 12" / 35 W / 16 Ohm - MADE IN UK

The Ruby is an alnico-magnet guitar speaker that’s purpose-built to create vintage tones – and at 35-watts power handling it’s ideal for use with mid-powered amps and combos.
Bringing the instantly familiar Celestion alnico vibe with its glorious dampened attack; the Ruby oozes a richly musical vintage warmth with mellow highs and a smooth sophisticated midrange.

Specifications

• Nominal diameter 305mm / 12in
• Power rating 35W
• Rated impedance 8Ω or 16Ω
• Sensitivity 100dB
• Chassis type Pressed steel
• Magnet type Alnico
• Voice coil diameter 1.75in / 44mm
• Voice coil material Round copper

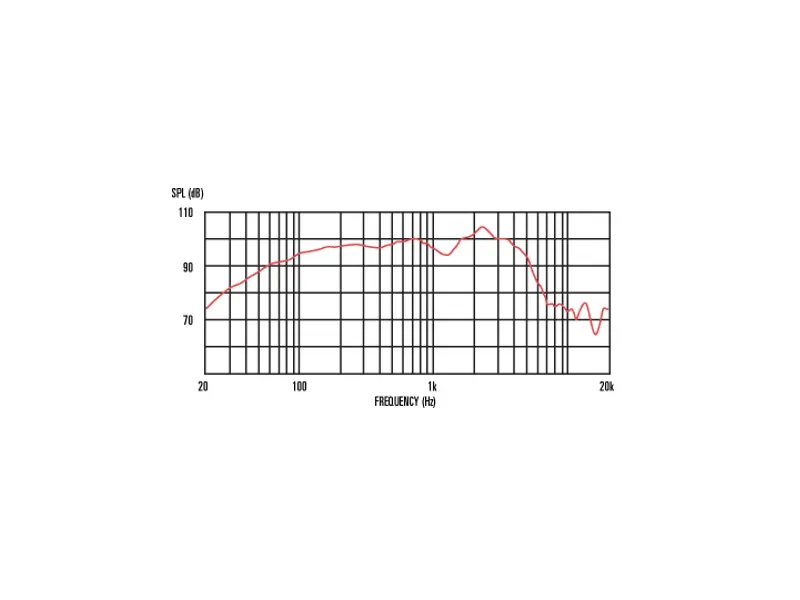

• Frequency range 75-5000Hz
• Resonance frequency, Fs 75Hz
• DC resistance, Re 6.7Ω or 13.1Ω

Mounting Information

• Cut-out diameter 283mm / 11.1in
• Diameter 309mm / 12.2in
• Magnet structure diameter 128mm / 5.0in
• Mounting hole dimensions 7.9mm / 0.31in Ø
• Mounting hole PCD 297mm / 11.7in
• Number of mounting holes 8
• Chassis depth (inc gasket) 92mm / 3.63in
• Magnet depth 73mm / 2.87in
• Overall depth 165mm / 6.5in
• Unit weight 4.2kg / 9.3lb
