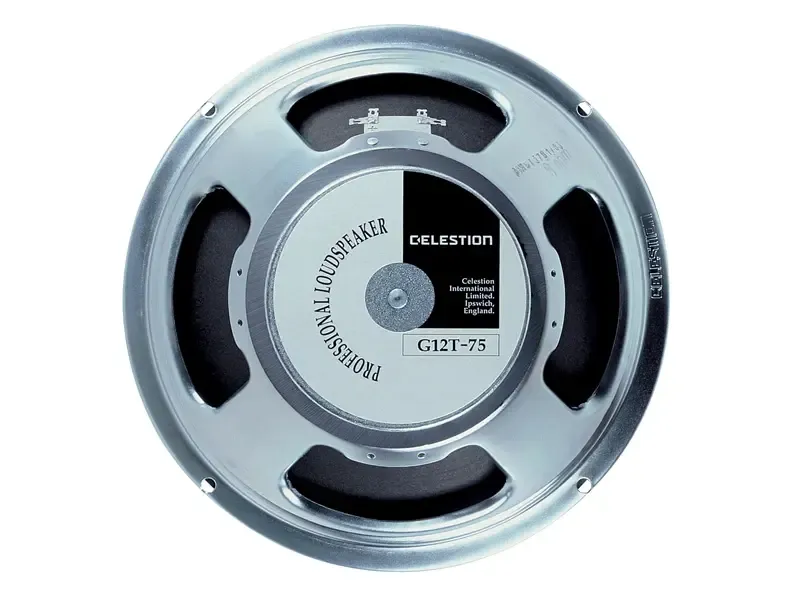

Celestion G12T-75 12" / 75 W / 8 Ohm

Featured in the world's top selling 4x12 cabinet, the G12T-75 is a high powered rock player's dream.

Built to meet the demands of high gain amplifiers, the G12T-75 combines a huge, tightly controlled low-end and aggressive mid-range with a softened top-end that adds a welcome sweetness to overdrive, distortion and aggressive upper harmonics. These are the characteristics that make the G12T-75 the weapon of choice for Yngwie Malmsteen.

General Specifications

• Nominal diameter: 12", 305mm
• Power rating: 75Wrms
• Nominal impedance: Available 8Ω or 16Ω
• Sensitivity: 97dB
• Chassis type: Pressed steel
• Voice coil diameter: 1.75", 44.5mm
• Voice coil material: Round copper
• Magnet type: Ceramic
• Magnet weight: 35oz, 0.99kg

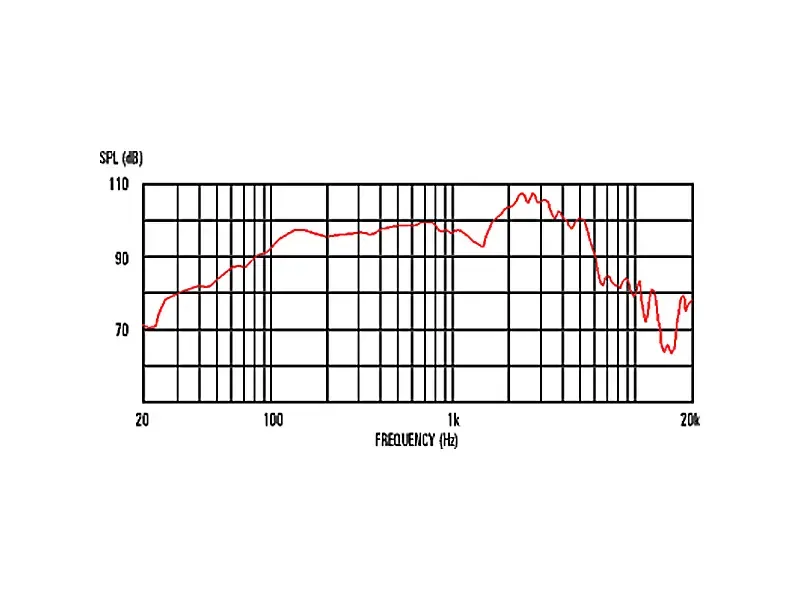

• Frequency range: 80-5000Hz
• Resonance frequency, Fs: 85Hz
• DC resistance, Re: Available 6.77Ω or 12.9Ω

Mounting Information

• Cut-out diameter: 11.1", 283mm
• Diameter: 12.2", 309mm
• Magnet structure diameter: 5.7", 145mm
• Mounting slot dimensions: 0.31", 7.9mm Ø
• Mounting slot PCD: 11.7", 297mm
• Number of mounting slots: 4
• Overall depth: 5.0", 127mm
• Unit weight: 7.7lb, 3.5k
