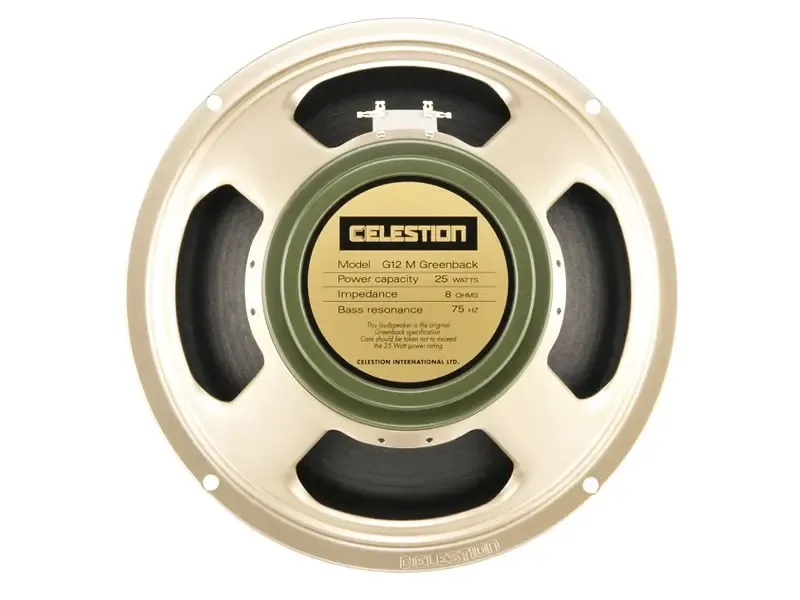

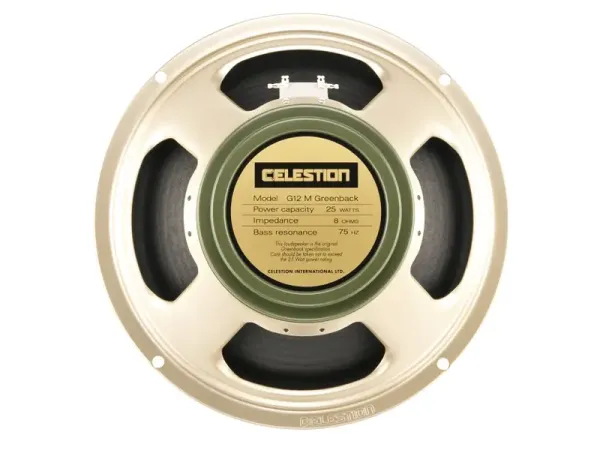

The original G12M of the 1960s was Celestion's first guitar speaker to use a ceramic magnet and paved the way for high power guitar amplifiers. The G12M uses a medium weight magnet to produce a sound that is smooth and warm but bright enough to hold its own against any rock backline.Known simply these days as the 'Greenback', the G12M's fabled 'brown tone' is characterised by a warm, controlled low-end, a rich, vocal mid-range and a delicate, detailed top-end. Loaded into a 4x12 and driven hard, these speakers exude warm, crunchy chords and sweet searing single-notes
General Specifications
- Nominal diameter: 12", 305mm
- Power rating:20Wrms
- Nominal impedance: 8Ω and 15Ω
- Sensitivity: 96dB
- Chassis type: Pressed steel
- Voice coil diameter: 1.75", 44.5mm
- Voice coil material: Round copper
- Magnet type: Ceramic
- Magnet weight: 35oz, 0.99kg

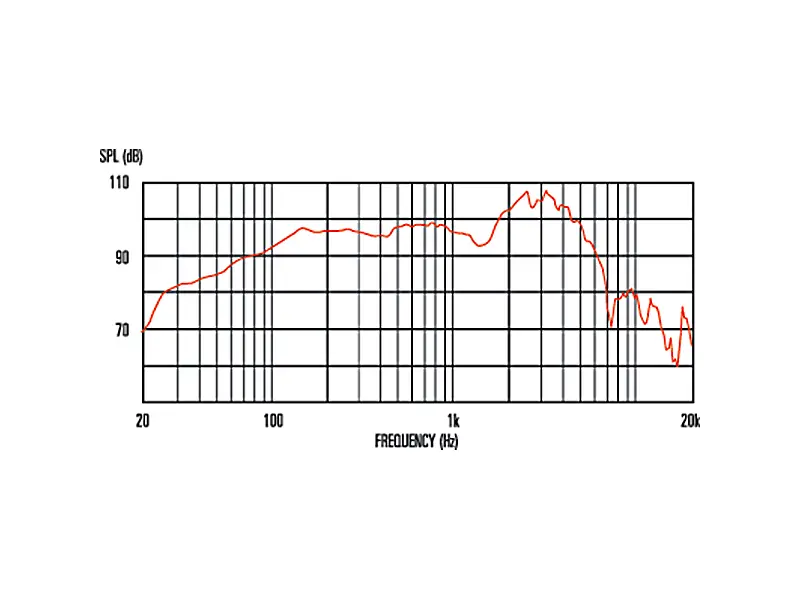

- Frequency range: 75-5000Hz
- Resonance frequency, Fs: 75Hz
- DC resistance, Re: 6.57Ω and 12.13Ω
Mounting Information
- Cut-out diameter: 11.1", 283mm
- Diameter: 12.2", 309mm
- Magnet structure diameter: 5.9", 150mm
- Mounting slot PCD: 11.7", 297mm
- Number of mounting slots: 4
- Overall depth: 5.1", 130mm
- Unit weight: 7.9lb, 3.6kg
