Celestion G12-65 Heritage 12" / 65 W / 8 Ohm - MADE IN UK

Mobile Preview: Celestion G12-65 Heritage 12" / 65 W / 8 Ohm - MADE IN UK

Celestion G12-65 Heritage 12" / 65 W / 8 Ohm - MADE IN UK

Product No.:: ce-t3053
: In stock for immediate delivery. Delivery time depends on the destination country*
Stock:: 5 piece
RoHs:: conform
Weight:: 5 kg per piece

169,00 €

incl. VAT excl. Shipping costs

piece:

Quantity

Bookmark

Ask Question

Description

Originally created in the late 70s using more modern materials and techniques for a higher power handling, the G12-65 is widely regarded as one of the best speakers ever produced for use in a 4x12 cabinet.With its fast attack and tightly controlled low- end, the G12-65 had become a firm favourite with hard rock players by the early 80s. The precisely tuned mid-range and crisp defined top-end contribute to an aggressive crunch sound that punches through the mix while the mid-range warmth and detail give weight and depth to single notes.

General Specifications

Nominal diameter: 12", 305mm
Power rating: 65Wrms
Nominal impedance :Available 8Ω or 15Ω
Sensitivity: 97dB
Chassis type: Pressed steel
Voice coil diameter: 1.75", 44.5mm
Voice coil material: Round copper
Magnet type: Ceramic
Magnet weight: 35oz, 0.99kg

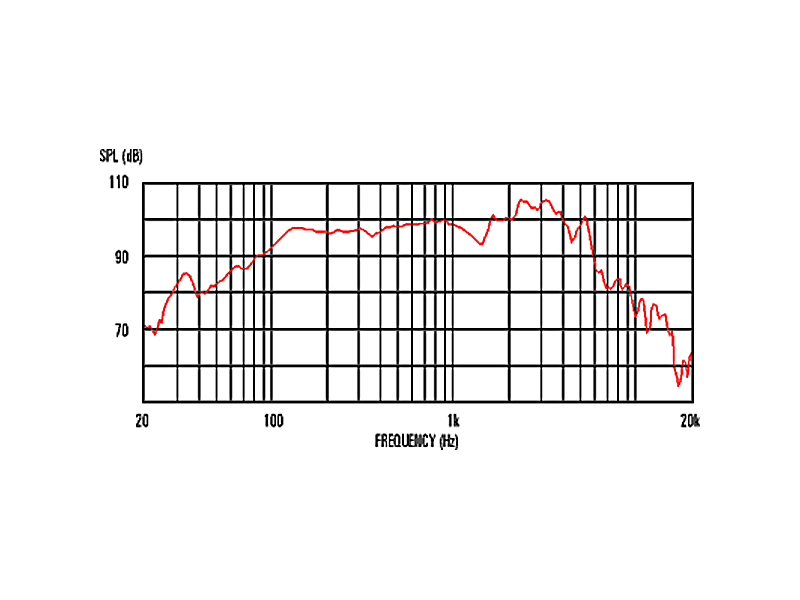

Frequency range:80-5000Hz
Resonance frequency, Fs: 85Hz
DC resistance, Re: Available 6.9Ω or 11.8Ω

Mounting Information

Cut-out diameter: 11.1", 283mm
Diameter: 12.2", 309mm
Magnet structure diameter: 5.7", 145mm
Mounting slot dimensions: 0.31", 7.9mm Ø
Mounting slot PCD: 11.7", 297mm
Number of mounting slots: 4
Overall depth: 5.0", 128mm
Unit weight: 7.7lb, 3.5kg

Safety Information

Safety Instructions according to the Product Safety Act (ProdSG)

General Information

CE conformity is only guaranteed if the product is installed properly.
Warranty becomes void in case of improper use.
The operator is responsible for proper installation and safe operation.
Do not exceed the specified rated power.

Hazard Warnings

Risk of high sound levels: Prolonged exposure may cause permanent hearing damage.
Risk of overheating: Insufficient ventilation may lead to fire or product failure.
Risk of magnetic fields: May affect medical implants and electronic data carriers.

Manufacturer

Herstellerinformationen | Manufacturer Information

Celestion Professional Division
Unit 111 Claydon Business Park
IP6 0NL Great Blakenham ,Ipswich
United Kingdom
https://celestion.com/

EU-Wirtschaftsakteur | EU Economic Operator
Tube-Town GmbH, Rumbergring 37, 66969 Lemberg, Germany, info@tube-town.de
