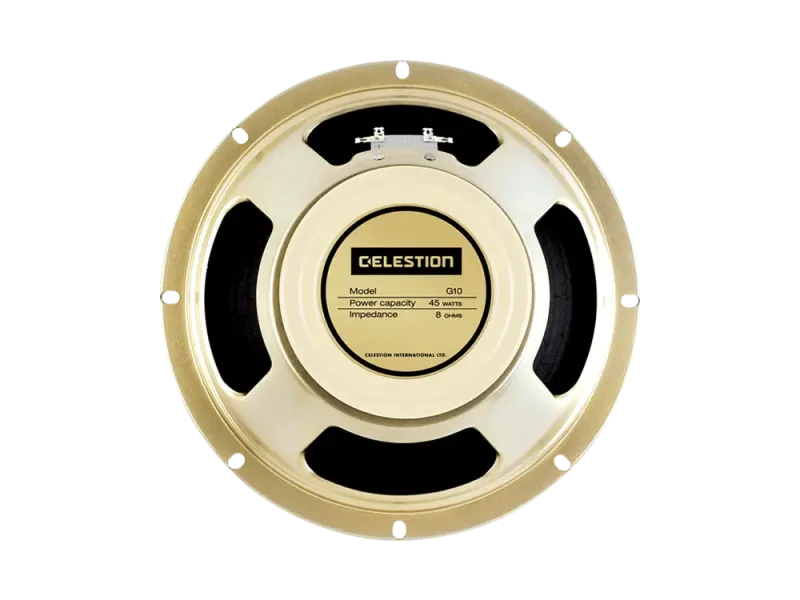

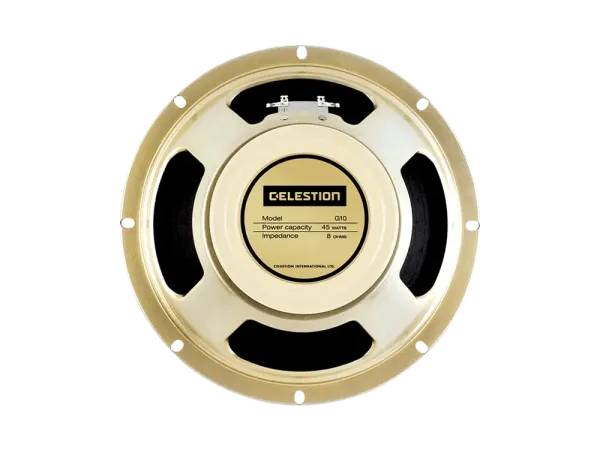

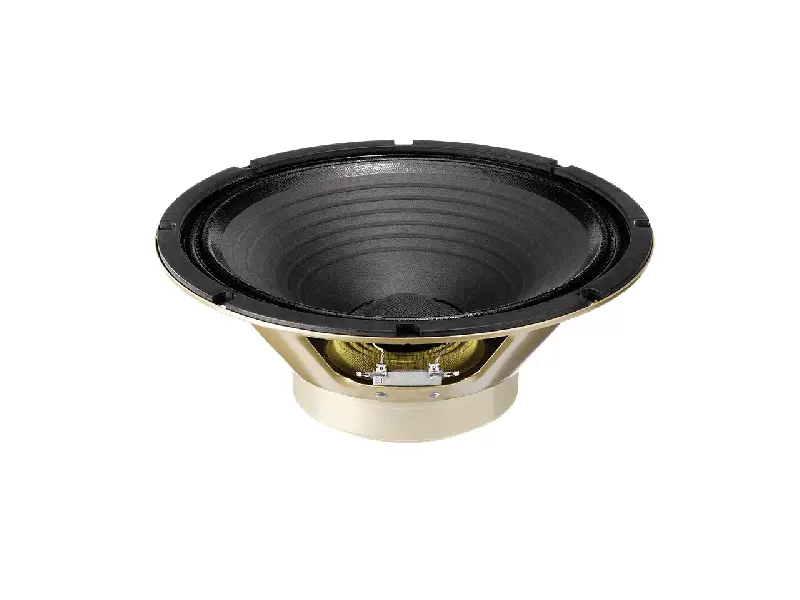

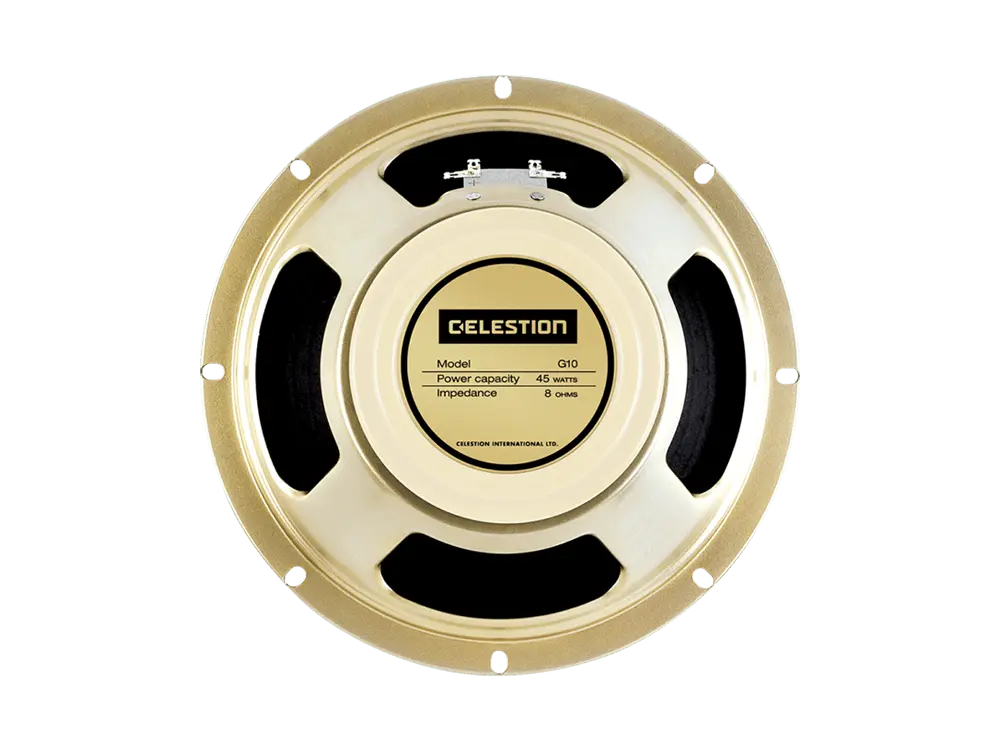

The new G10 Creamback packs everything guitar players love about Creamback speakers into a 10-inch format. Hand-built in the UK using the same production methods and materials developed for the 12-inch models, the G10 Creamback uses a ceramic magnet and a 1.75-inch voice coil to deliver 45-watt power handling. With all the punch and dynamics typical of a 10, its overall tone is warm, expressive, detailed and well-balanced.
General Specifications
- Nominal diameter: 10", 254mm
- Power rating: 45W Nominal
- Impedance: 8Ω
- Sensitivity: 96dB
- Chassis type: Pressed steel
- Voice coil diameter: 1.75", 44.5mm
- Voice coil material: Round copper
- Magnet type: Ceramic
- Magnet weight: 14oz

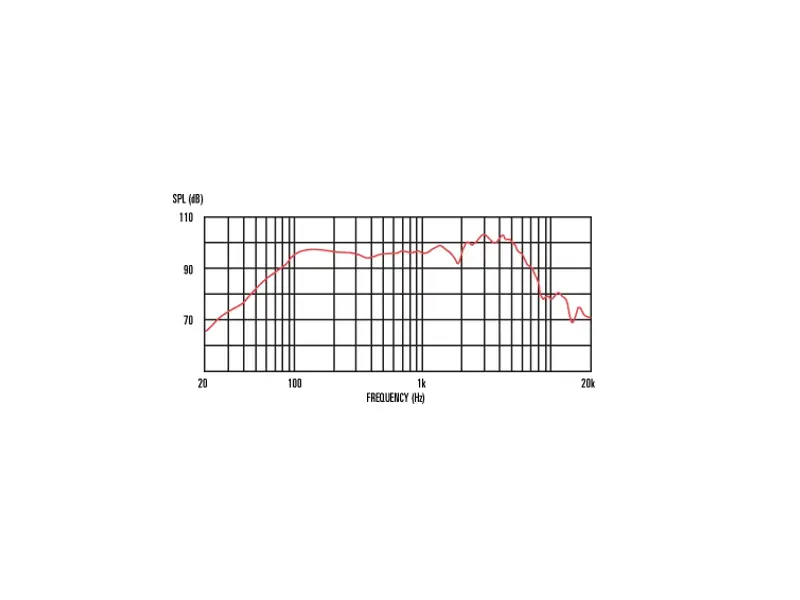

- Frequency range: 95-5500Hz
- Resonance frequency, Fs: 98Hz
- DC resistance, Re: 6.4Ω
Mounting Information
- Cut-out diameter: 9.0", 229mm
- Diameter: 10.0", 254mm
- Magnet structure diameter: 4.9", 124mm
- Mounting slot dimensions: 0.25 x 0.43", 6.5 x 11mm Ø
- Mounting slot PCD: 9.6", 245mm
- Number of mounting slots: 8
- Overall depth: 4.0", 102mm
- Unit weight: 3.5lb, 1.6kg
