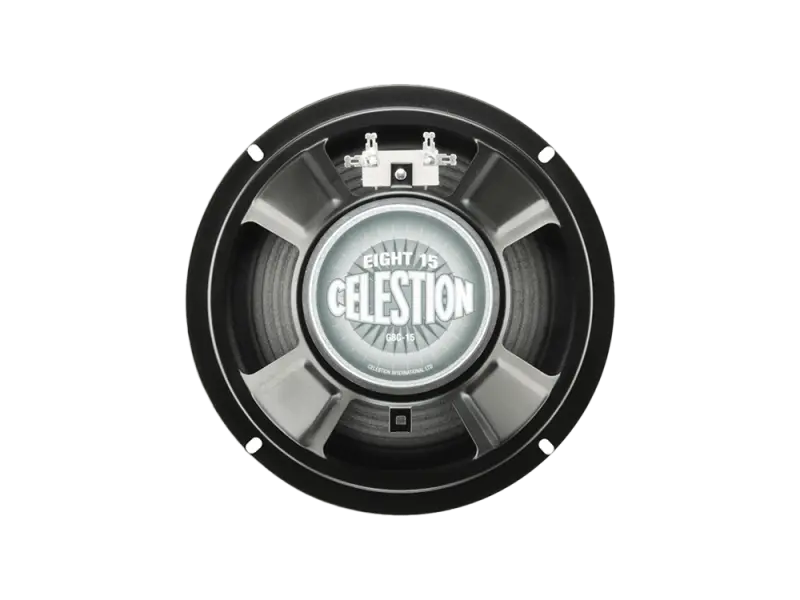

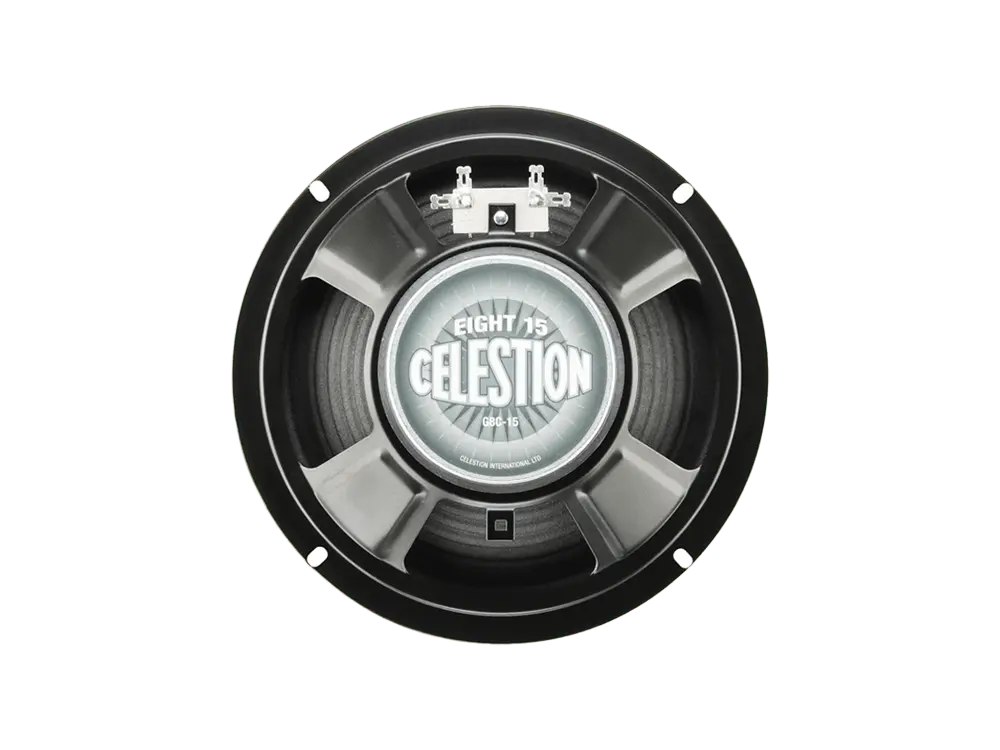

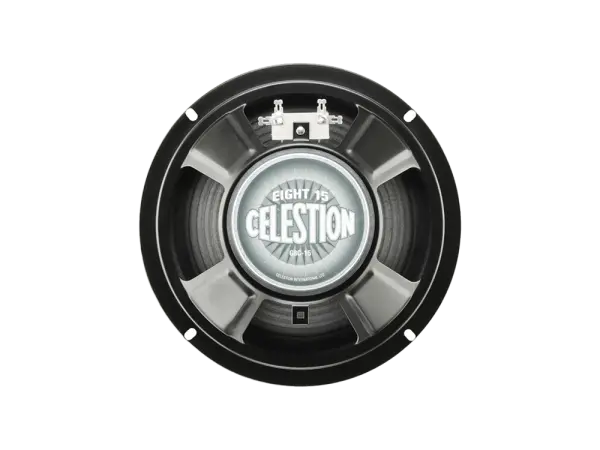

Celestion Eight 15 - G8C-15 / 8" / 15W / 8 Ohm

Universal size for 12" speakers
Dome diameter: 80 mm - recommended for most of the guitar loudspeaker with average beaming

As the frequency increases, the radiation of a loudspeaker is increasingly focused on its center. If the listener is in this beam, the sound is extremely harsh and biting; if one moves to the side of it, the sound becomes significantly darker and treble components are partially missing.
To reduce this behavior, a diffuser is used. This sits directly in the beam of the speaker and deflects the high frequencies very strongly, it breaks the "beam". This makes the sound much fuller and more balanced.

Hear the Diffusor in action on ->YouTube (made by one of our customers, Thanks !)

• Wiring harness for internal speaker connection
• Number of speakers: 1
• Type: Mono
• Wire: 2 x 1,5 mm² red - black
• Jack socket / speaker crimps
• Length: ca. 55 cm

• Length: 0,5 m
• Color: grey
• 1st Jack: Mono 6,3 mm
• 2nd Jack: Mono 6,3 mm
• Cable type: Sommer Cable Typ SC-MERIDIAN SP215 2 x 1,5 mm², grey (#so415-0056)

Speaker Break-In / Agin Service for Guitar Speakers.
Corresponds to a continuous operation of 24 hours.
Many new and unused loudspeakers sound harsh and must be used for a certain time to develop their sound. This ageing process can be accelerates with this service which "wears" different parts of the speaker, so it will sound softer and smoother, in particular the top end.

• Wire Set for internal speaker connection
• Number of speakers: 2
• Type: Mono, parallel and serial
• Wire: 2 x 1,5 mm² red - black
• Jack socket / speaker crimps
• Length each ca. 55 cm

• Length: 3 m
• Color: grey
• 1st Jack: Mono 6,3 mm
• 2nd Jack: Mono 6,3 mm
• Cable type: Sommer Cable Typ SC-MERIDIAN SP215 2 x 1,5 mm², grau (#so415-0056)

• 4 x Screw M5x20mm
• 4 x Washer M5
• 4 x T-Nut M5

• Wiring Harness, mono, speaker crimps
• Wire: 2 x 1,5 mm² red - black
• Speaker Crimps on both sides
• Length: ca. 55 cm

Speaker Break-In / Agin Service for Guitar Speakers.
Corresponds to a continuous operation of 24 hours.
Many new and unused loudspeakers sound harsh and must be used for a certain time to develop their sound. This ageing process can be accelerates with this service which "wears" different parts of the speaker, so it will sound softer and smoother, in particular the top end.

• Pri: 5k Ohm
• Sec: 4-8-16 Ohm
• Power: 5 Watt
• Re (a-a) 150 Ohm +/- 5%
• Inductance Pri: 5,15 H @240V/50 Hz, open circuit
• Easy connection
• Large sheet metal package
• Tight bass, balanced mid - treble ratio

• Datasheet

Replacment for Fender Amps

• Chassis Hole: 17,5 mm
• Threading: 9/16 - 24

• Threading: 9/16 - 24

for Fender Pilot-Light

• BA9s
• #47
• 6,3 V @ 0,15 A

Drill Ø: 12 mm
Rated voltage: 250 VAC
Rated current: 10 A (VDE), 16 A (UL/CSA)

• Epoxy end fill meets UL94V-0
• Non inductively wound
• Flame retardant outer wrap meets UL510
• Non polar

• Operating Tempeature Range: –55 ºC to +125 ºC (derate linearly to 50% rated voltage at 125 ºC)
• Dielectric Withstand Voltage: .6 x rated voltage for 2 s @ +25 ºC ±5 ºC
• Dissipation Factor (DF): tgd x 10–4 at +25 ºC ±5 ºC
• Insulation Resistance: 10,000 MO x µF, 30,000 MO Min.
• Self Inductance: 1 nH max. per 1 mm lead and body length
• Life Test: 1000 hrs @ 85 ºC 1.25 x Vn
• Damp Heat Test: 95% RH @ +45 ºC for 21 days
• Soldering: 260 ºC ±5 ºC for 10 s ±1 s
• Long Term Storage Stability: ?C/C = ±3% after 2 years

• Specification: ½ Watt, axial
• Temperature Range: -55°C to +125°C
• Tolerance: 10%
• Max. Operating Voltage: 350 V
• Size: l=9.5 mm, d=3.6 mm
