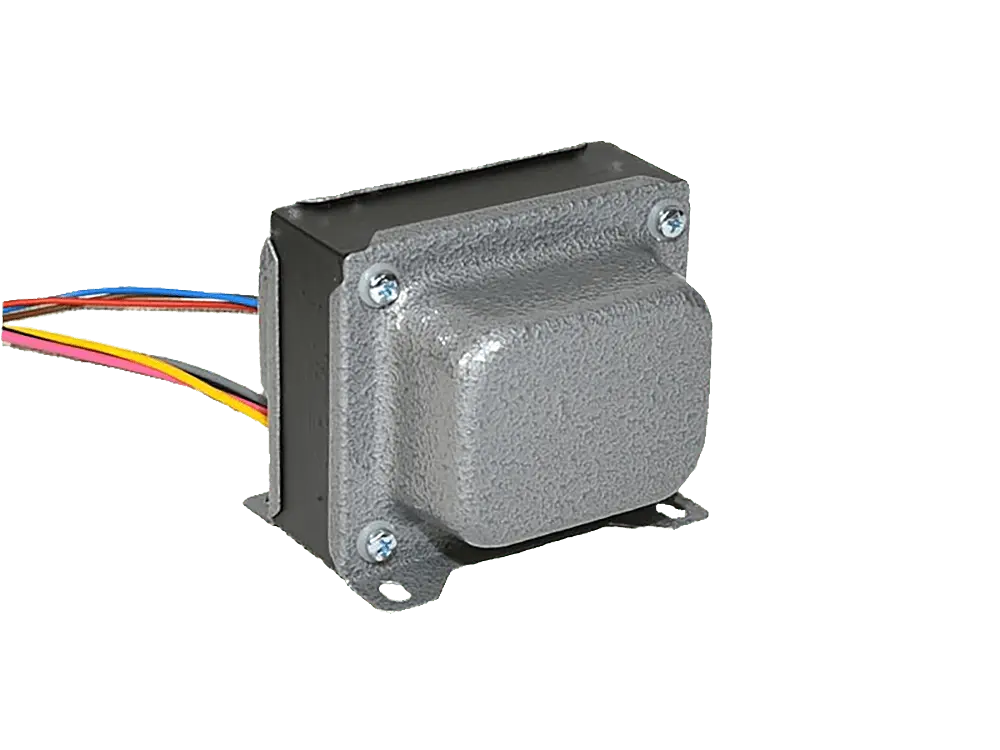

TT Fender® Style 5F6 Output Transformer 50 W / 4-8-16 Ohm

TT 5F6 V2 Classic Amp Kit

Set of componentes for building the TT 5F6 V2 Guitar Amp.
Please visit the >>Project page for more infos about the amp, schematics and layout.

INCLUDED:

• Transformers (Power, Choke and Output)
• Resistors
• Capacitors
• Jacks
• Light
• Wires
• Board
• Switches
• Tubes
• Fuses & Fuesholder

NOT INCLUDED:

• Chassis ( see "Accessories" tab for matching chassis )
• Knobs
• Faceplate

To build this project knowledge in electric engeneering, experience with high voltage, and the reading and understanding of schematics and dealing with measurement device is highly recommended .
There is NO step-by-step guide for beginners. The circuit and layout plan includes all relevant information. If you don't understand it then don't build it.
THIS IS NOT A BEGINNERS PROJECT !

Tube-Town 5F6A Fender-Style Chassis

• Size: 508 x 126 x 67 mm
• Material: 1,5 mm Steel, hot-dip galvanized
• without silkscreen printing
• including capacitor cover
• cornerd welded
• Made in Germany

Files:

• Datasheet

• Fender Style Powertransformer for (Bandmaster 6G7A, AA763, AB763, AC568, AD1269, Blackface, Blonde, Silverface) (Bassman AA165, AA270, AA864, AB165, Blackface, Silverface) (Concert 6G12A, AA763, Blackface, Brownface)
• Fender* No: 125P7D, 125P7DX, 022814, 67233

Files:

• Datasheet

• RCA Phono socket gold plated with Teflon insulation
• 1 x black
• 1 x red
• 1 x white
• 1 x yellow
• Installation diameter: 6 mm

• Choke for Fender 125C1A & 022699
• Bandmaster, Dual Showman, Pro Reverb, Twin Super
• 4 H

Files:

• Datasheet

Resistor Metaloxide 2 Watts

• +/- 5% tolerance
• -55° C to 240° C operating range
• Max 500 V
• Excellent flame retardant coating
• Different manufacturers
• Pack of 5

Please note:
These resistors have a very small form factor:
red: l = 10 mm, d = 3.9 mm
green: l = 11.5 mm, d = 4.5 mm

ORANGE DROP®, 716 P Series

• Polypropylene Film Capacitors, extended foil
• Voltage Rating: 600 V
• Operating Temperature Range: - 55°C / + 85 °C
• Termination Style: radial, copper leads

ORANGE DROP®, 716 P Series

• Polypropylene Film Capacitors, extended foil
• Voltage Rating: 600 V
• Operating Temperature Range: - 55°C / + 85 °C
• Termination Style: radial, copper leads

• Type: Electrolytic capacitor
• Capacitance: 2,2 µF
• Voltage Rating: 63 V
• Tolerance: - 10 % / +30 %
• Operating Temperature Range: - 40°C / + 85 °C
• Dimensions: Ø 4,5 mm x 11 mm
• Termination Style: axial

Images are for reference only. See Product Specifications

• Type: Electrolytic capacitor
• Capacitance: 1 µF
• Voltage Rating: 100 V
• Tolerance: - 10 % / +30 %
• Operating Temperature Range: - 40°C / + 85 °C
• Dimensions: Ø 4,5 mm x 11 mm
• Termination Style: axial

Images are for reference only. See Product Specifications

• Type: Electrolytic capacitor
• Capacitance: 470 µF
• Voltage Rating: 63 V
• Tolerance: - 10 % / +30 %
• Operating Temperature Range: - 40°C / + 85 °C
• Dimensions: Ø 12 mm x 30 mm
• Termination Style: axial

Images are for reference only. See Product Specifications

Mica Capacitors

• Voltage Rating:    500 V
• Tolerance: 5%
• Operating Temperature Range: - 50°C / + 150°C
• Termination Style: radial
