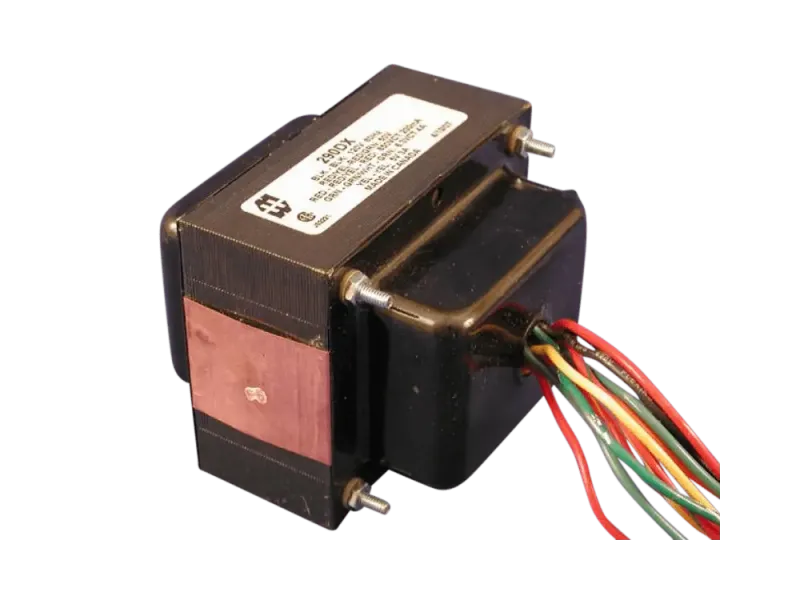

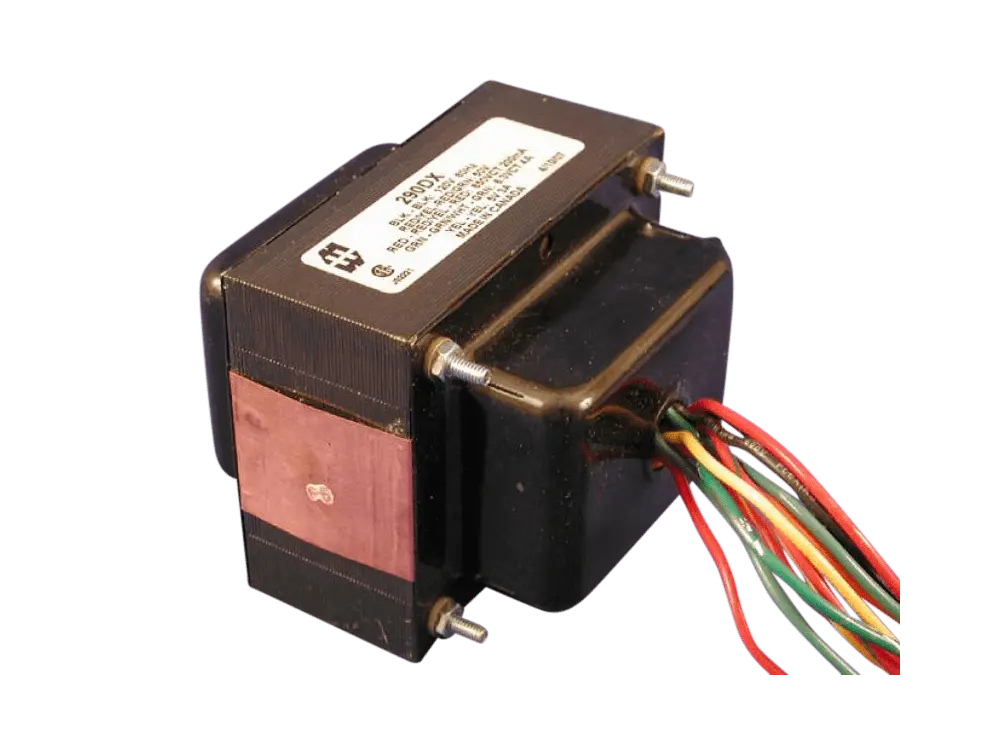

Hammond 290DEX Spare for Fender 125P5D Super Reverb

Description

Powertransformer for (Bandmaster Tweed, Bandmaster Reverb AA1069, AA270, AA763, Silverface, Blackface, Tweed) (Baseman Combos, Baseman Tweed, Baseman 5F6, 5F6A, Baseman 59) (Pro Tweed, Pro, Pro Blackface, AB763, Pro Reverb AA1069, AA270, AB668, Silverface) (Super Tweed, Super Brownface, 5F4, 6G4, 6G4A, Super Reverb AA270, AA763, AB568, AB763, Blackface, Silverface) (Vibroverb 6G16, AA763, Blackface)
Fender Part Number 125P5D and 022798
