Faceplate for TT Chassis-039 - 5F1
Faceplate for TT Chassis-039 - 5F1
Faceplate for TT Chassis-039 - 5F1

Faceplate for TT Chassis-039 - 5F1

Product No.:
lab-5f1
In stock. Delivery time depends on the destination country* In stock. Delivery time depends on the destination country*
Stock:
5 piece
RoHs:
conform
Weight:
0.047 kg per piece
22,90 €

incl. VAT excl. Shipping costs

Bookmark
Ask Question
Description

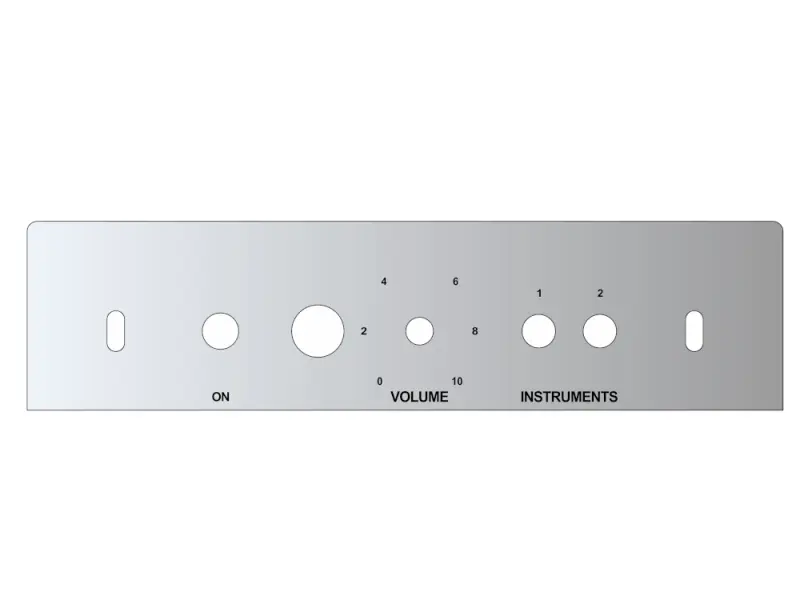

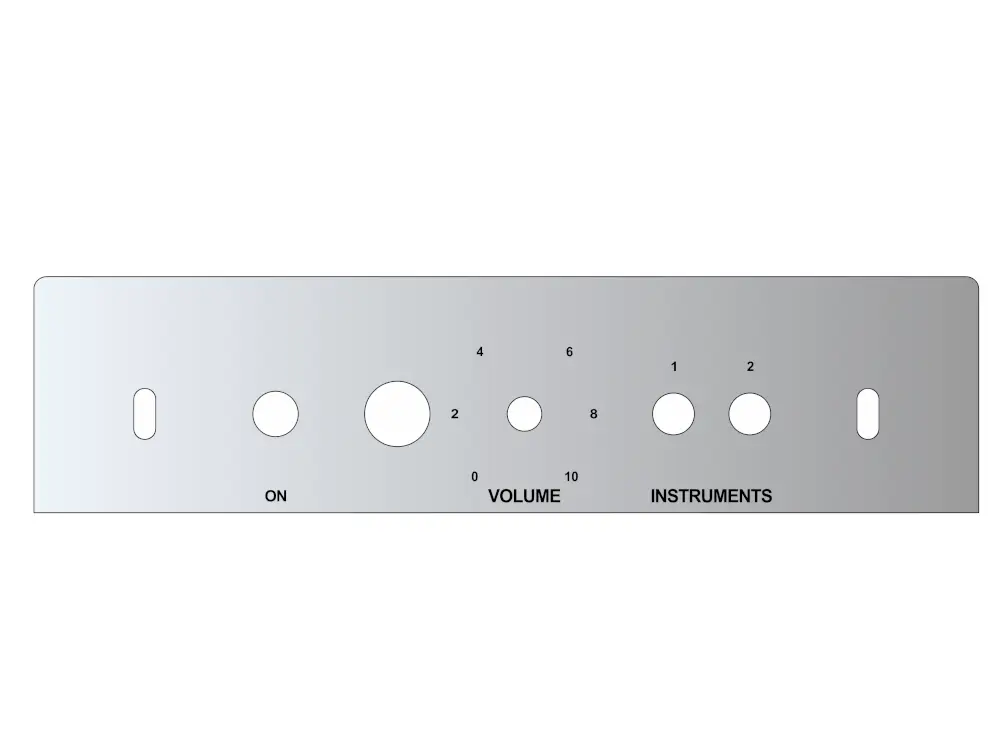

Faceplate for TT Chassis-039 - 5F1 - Version 2024 new Material
  • Color #C14 silver brushed / black
  • Material: 1,6 mm Transply
Files:
Manufacturer
Herstellerinformationen | Manufacturer Information

Tube-Town GmbH
Rumbergring 37
D-66969 Lemberg
eMail: info@tube-town.de
