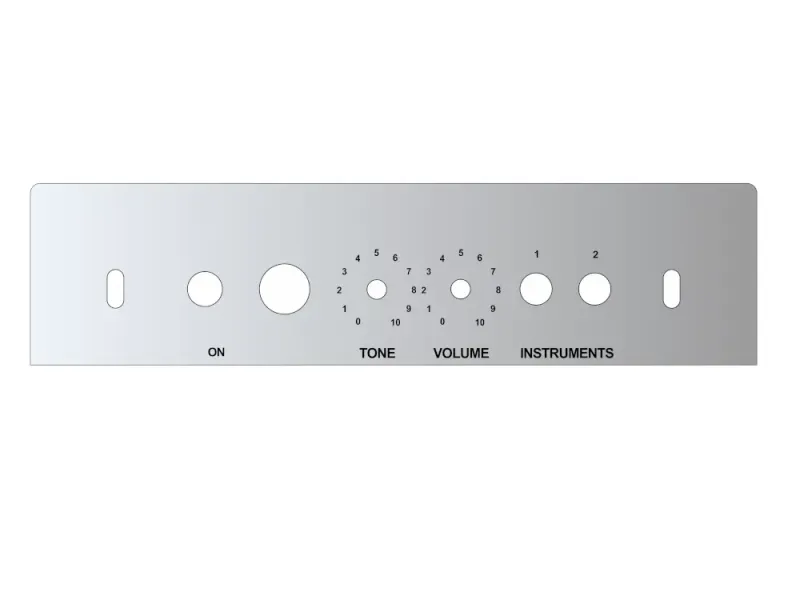

Faceplate for TT Chassis-069 - 5F2

TT-Chassis Fender Style 5F1 Tweed Champ
Optimized version of the 5F1 chassis for use with a separate power switch, isolated input and output jacks to prevent ground loops, Belton socket, replaceable power cord. Furthermore, this chassis is slightly longer than the original, which makes the work "inside" the chassis easier. Made of aluminum.

• Dimensions: 260 x  65 x 105 mm (W x H x D)
• Material: 2 mm Aluminium

Files

• Datasheet(PDF)

• Outside dimensions
  • Width: 345 mm
  • Height: 310 mm
  • Depth: 190 mm (bottom)
• Chassis cutout: 162 x 55 mm
• Tweed / Oxblood Style Gold
• Speaker cutout: 8"
• Loudspeaker: without
• Wood: 18 mm plywood
• TTC foreign product, Made in Asia

TT-Chassis Fender 5F2 Style
Optimized version of the 5F2 chassis for use with a separate power switch, isolated input and output jacks to prevent ground loops, Belton socket, replaceable power cord. Furthermore, this chassis is slightly longer than the original, which makes the work "inside" the chassis easier. Made of aluminum.

• Dimensions: 260 x  65 x 105 mm (W x H x D)
• Material: 2 mm Aluminium

• Datasheet

• 6,3 mm jack
• mono
• Installation diameter: 10 mm

Files:

• Datasheet

Black Speaker Grille with Lightweight Welded PVC Surround
8 mm Square Hole on 11.5mm Pitch Mesh

• Material: Steel
• Material Thickness: 0.7mm
• Weight: 252 g
• Diameter: 260 mm
• mounting brackets NOT included

• Plastic speaker clamp
• for speaker mounting
