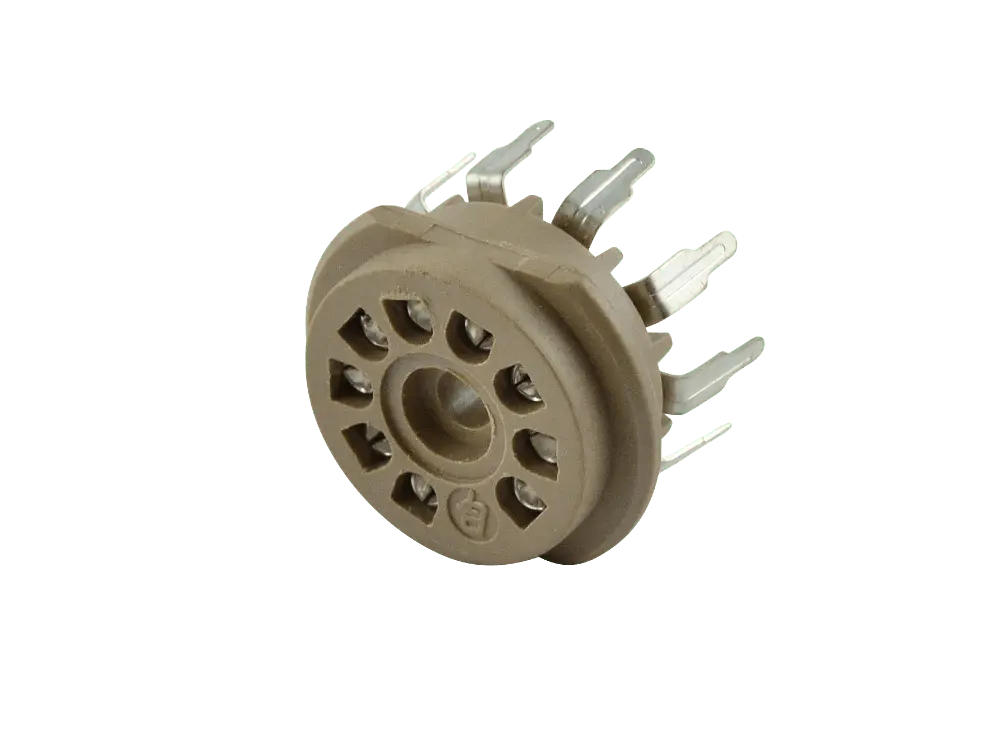

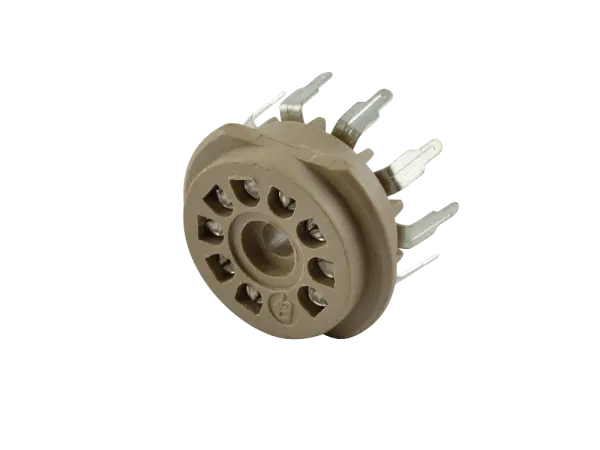

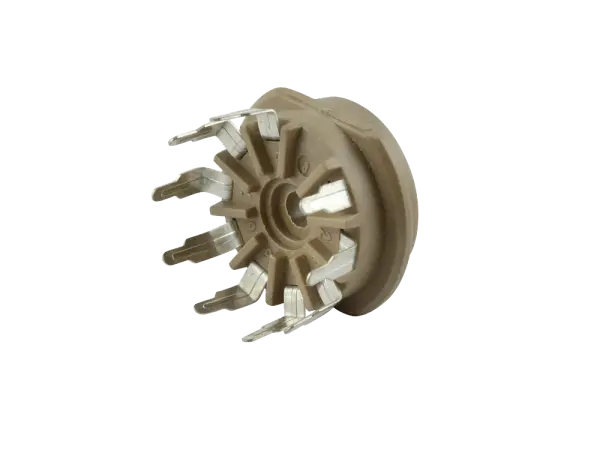

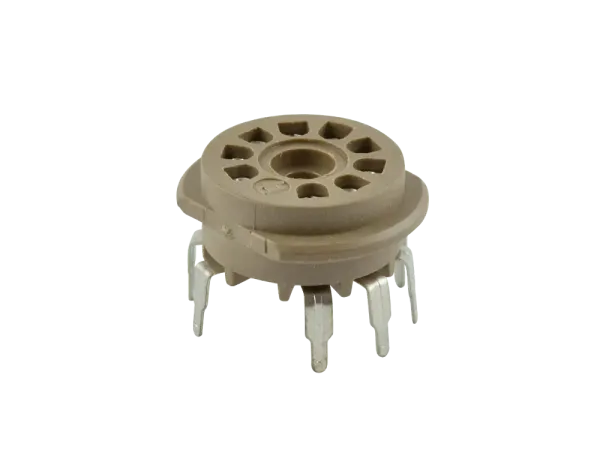

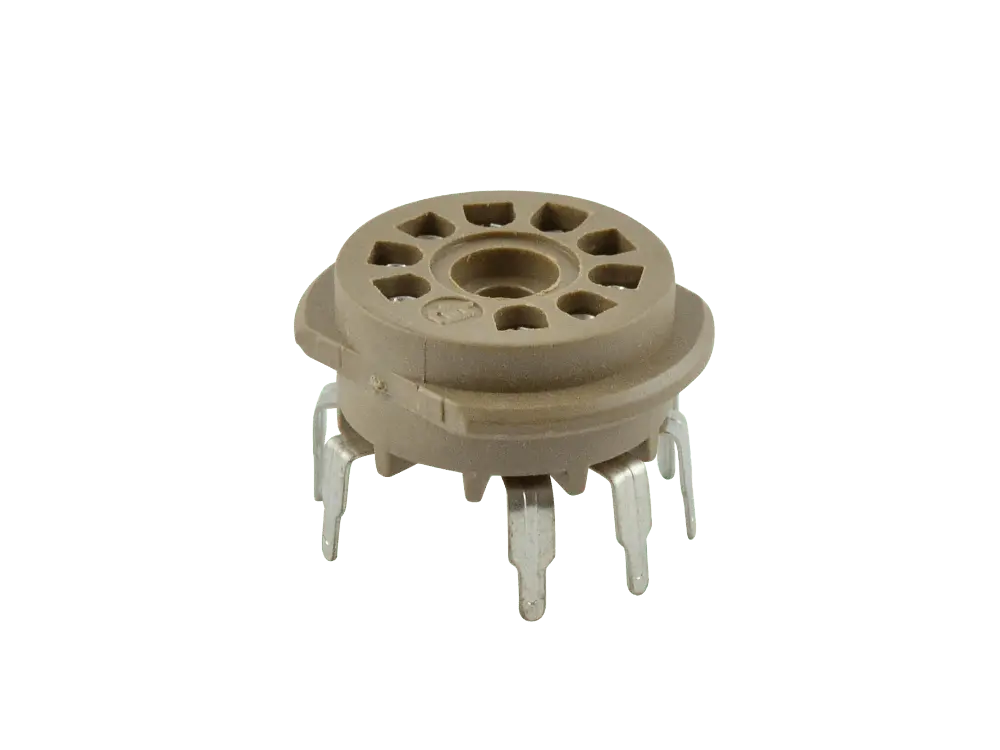

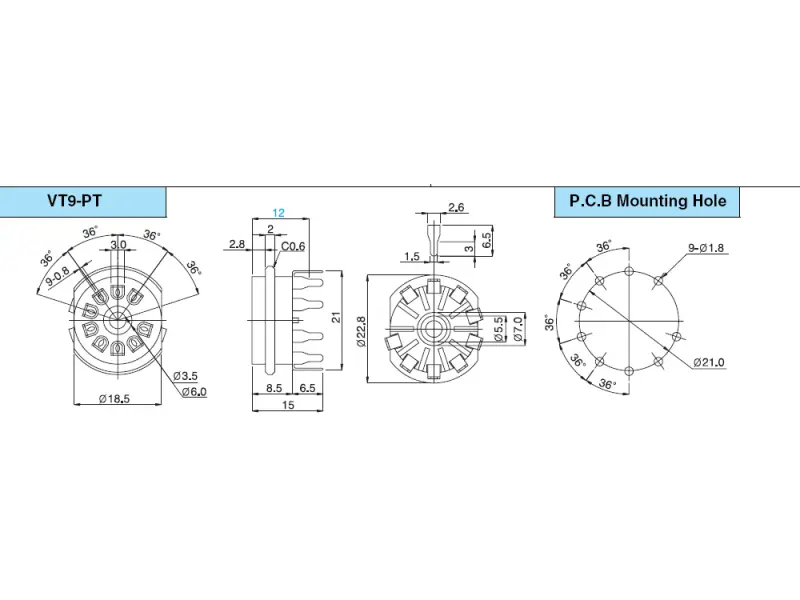

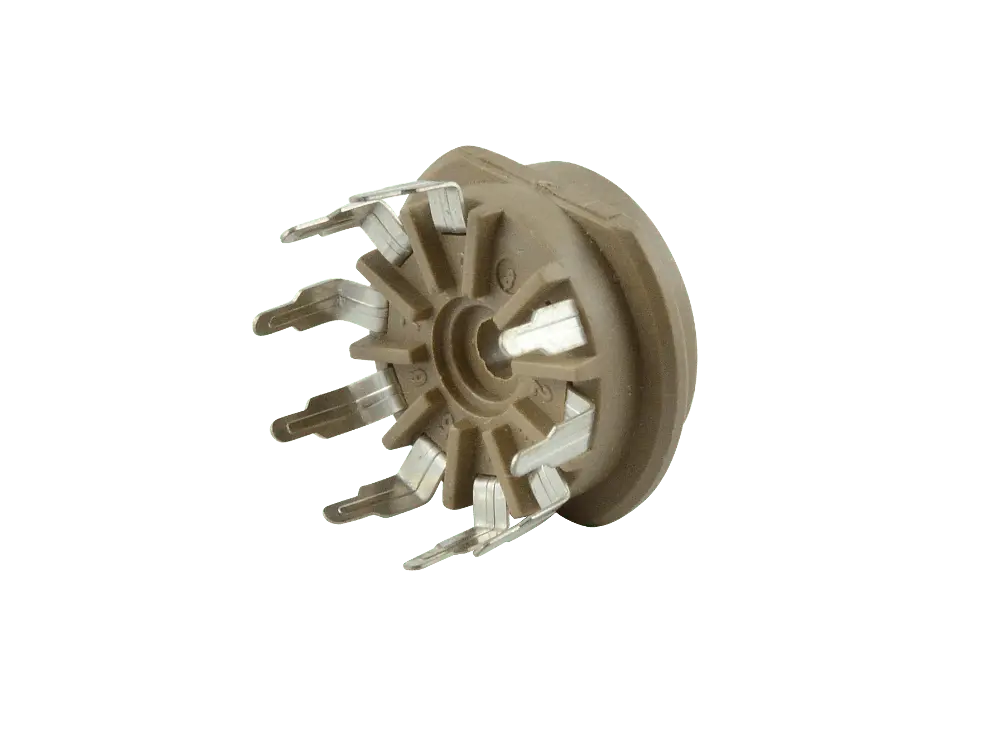

Socket Noval Belton, Print VT9

• Primary: 8 kOhm
• Secondary: 4, 8 and 16 Ohm
• Power: 18 Watt
• Made in Europe

Files:

• Datasheet

2 tubes, matched as pair

Military version of the EL84 / 6BQ5 with extended voltage tolerance, as well as a more robust construction and improved anode cooling.
We highly recommend this EL84 for amplifiers where the anode voltage significantly exceeds 300 V.

Size of sample ca: 9 x 9 cm
Actual shades may vary.

Material:
80% PVC Film
20% Poly-Cotton Fibre

REACH compliant

Socket converter to mount Belton noval sockets in cutouts made for octal sockets
Material: 2 mm Aluminium

• Type: Metalized Polyester Film Capacitors (PET)
• Voltage Rating: 630 VDC / 220 VAC
• Tolerance: +/- 10%
• Operating Temperature Range: - 55°C / + 100 °C
• Termination Style: axial

• Type: Metalized Polyester Film Capacitors (PET)
• Voltage Rating: 630 VDC / 220 VAC
• Tolerance: +/- 10%
• Operating Temperature Range: - 55°C / + 100 °C
• Termination Style: axial

ORANGE DROP®, 716 P Series

• Polypropylene Film Capacitors, extended foil
• Voltage Rating: 600 V
• Operating Temperature Range: - 55°C / + 85 °C
• Termination Style: radial, copper leads

• Size: 6.3 mm 1/4"
• Poles: 2-pole, mono
• Design: open, chassis-mount
• Connection type: solder connections
• Housing: metal
• Manufacturer: Rean (by Neutrik)

Files:

• Datasheet

• Type: Cancap
• Capacitance: 100 µF
• Voltage Rating: 500 V
• Tolerance: -10 % / +30 %
• Operating Temperature Range: - 25°C / + 70 °C
• Dimensions: Ø 25 mm x 40 mm
• Termination Style: radial, Snap-In mount
