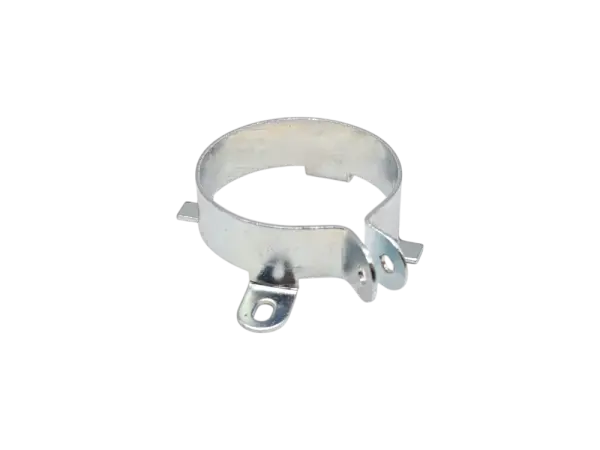

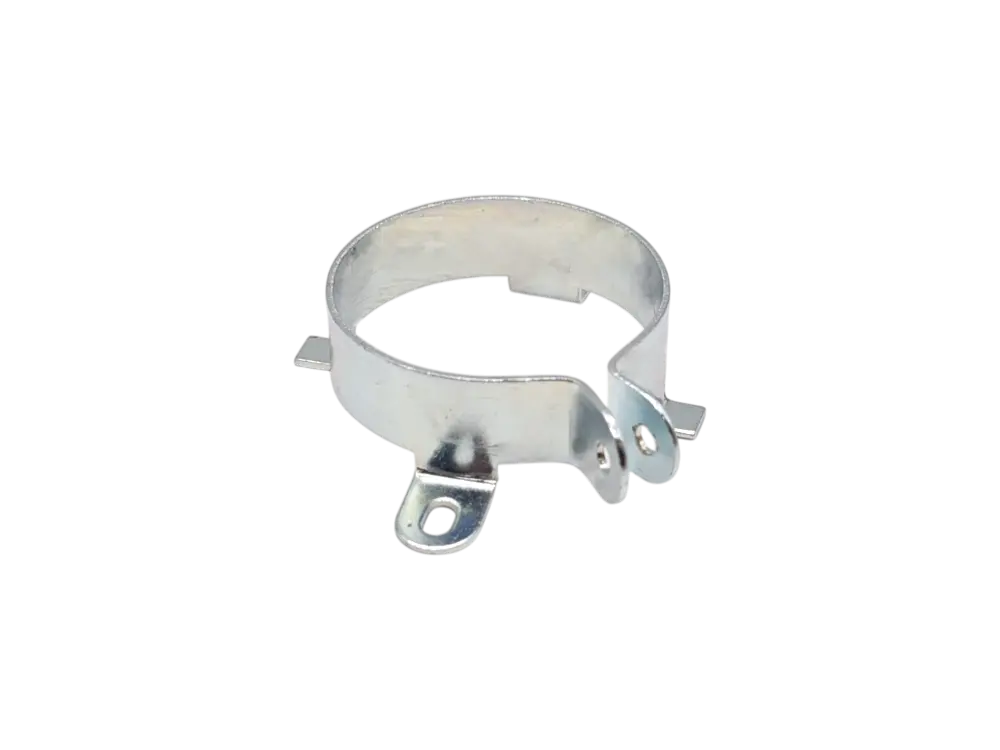

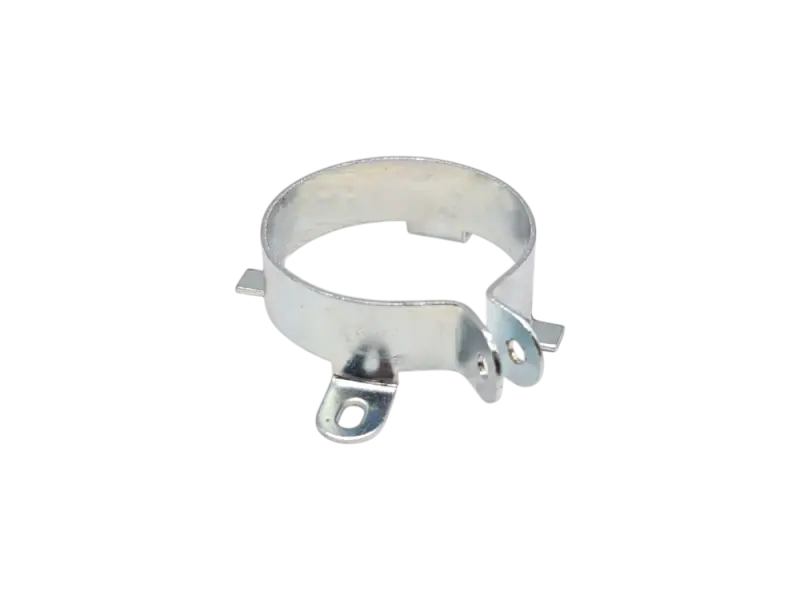

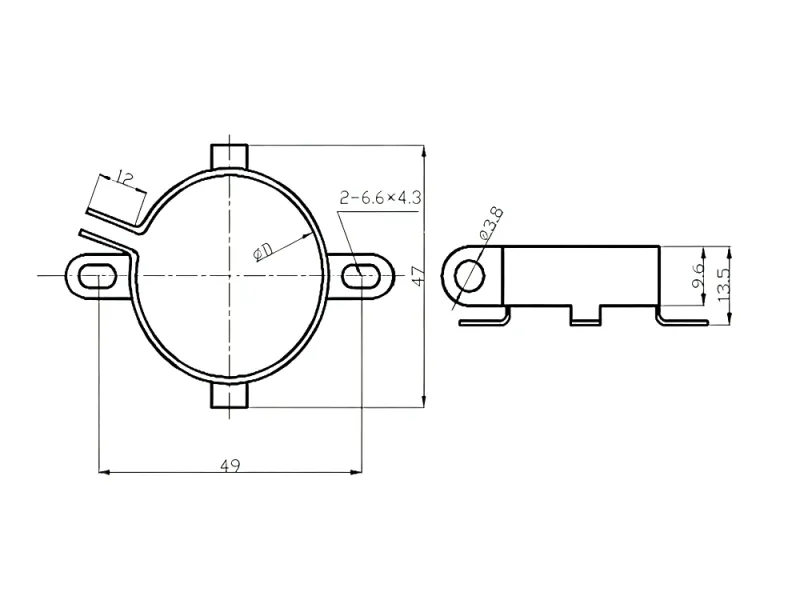

Capacitor Clamp 35 mm

Same as the Chassis 040 - PX18 but with with octal sockets for the powertubes, fits in all of our Standard Smallhead and 18W Headcabs and Combos

• Size : 432 x 170 x 65 mm
• Material: 2 mm Aluminium
• Mounting: with cage nuts (not included)

• Datasheet

• Extended JTM45 Chassis
• Size: (WxHxD) 432 x 65 x 170 mm
• PT cut-out: 70 x 69 mm
• Material: 2 mm Aluminium (AllMg3)
• Made in Germany

• Datasheet

Aluminium chassis based on the YAH100 chassis, but without cut-outs, drillings etc.

• Size: 483 x 238 x 70 mm
• Material: 2 mm AlMg3
• Reinforced corner joints
• Net Weight ca. 1,4 kg
• Mounting: with cage nuts (not included)
• Made in Germany

• Faceplate Template

TT-Chassis Aluminium - Typ 042

Chassis for the JC18 kit, fits in all of our Standard Smallhead and 18W Headcabs and Combos and of course the JC18 headshell

• Size : 432 x 170 x 65 mm
• Material: 2 mm Aluminium

• Datasheet

TT-Chassis Aluminium - Typ 040

Chassis for the PX18/PI18 kit, fits in all of our Standard Smallhead and 18W Headcabs and Combos

• Size : 430 x 170 x 65 mm
• Material: 2 mm Aluminium
• Made in Germany
• fits Alpha 3/8" Potentiometer (Intemnumber p38-*)
• Mounting: with cage nuts (not included)

• Datasheet

This chassis is based on a regular HiWatt chassis which was used for amplifiers up to 100 Watt. The chassis was adapted and optimized for the YAH100 kit but get used for other HiWatt Clones too.

• Size: 483 x 238 x 70 mm
• Material: 1,5 mm Steel
• hot zinc dipped
• Reinforced corner joints
• Made in Germany
• Mounting: with cage nuts (not included)

• Faceplate Template

Set of metal corners for housing consisting of:

• 8 x Cabinet corner w/ cutaway 2 leg, silver (ah4023b)
• Powder Coated black
• Internal radius: 12 mm
• 16 x Screws, flat head, black

• Wide body and extremely durable contacts
• Mates with all stereo A-gauge plugs acc. EIA RS-453 standard

Files:

• Datasheet

Kit of a bias probe for indirect measurement of the quiescent bias current of a tube. The adapter is placed between the tube and the socket and is connected to a standard voltmeter (not included). Pay attention to the quality of the meter and to sufficiently charged batteries!

The quiescent current is measured indirectly via a precision resistor built into the adapter. The advantages of this measuring method are harmless voltages in the mV range at the measuring plugs as well as short ways for the current, since it does not have to be led through the measuring device (common practice with many measuring adapters of Far Eastern production). As a result, there is no risk of oscillation of the amplifier, which could damage the tubes or the amplifier itself.

Note: This adapter cannot be used when additional tube brackets are installed. These must be removed before using the measurement adapter and reattached after the measurement is complete.

Measurement procedure
Determine the resistance of the adapter, including the test leads. Connect the adapter to the meter, but do not connect it between the tubes and the amplifier. Select the ohms range on the meter and note the reading, e.g. 1.1 ohms.
For the final measurement, insert the adapter between the tube and the de-energized amplifier, connect it to the meter, select the mV range and switch on the amplifier. When the amplifier has reached a stable operating condition, read the value in mV from the meter and calculate the quiescent current using Ohm's law.

Example
Measured voltage = 47 mV, adapter resistance = 1.1 ohms.
Formula (I = V / R) or in this case
Bias Current (in A) = Measured Value (Voltage in V) / Measured Value (Resistance in Ohm)
0.047V / 1.1 Ohm = 0.042A or 42mA

For the calculation of the correct bias current as well as further information on bias measurement please refer to further documents or the bias setting instructions in the info section as well as the manual of the amplifier itself.
This adapter is suitable for all EL34, 6L6, 6550, KT88, 6V6, 6CA7 and other tubes with the same pinout.

Attention HIGH VOLTAGE ! Measurements and work on tube amplifiers should only be done by qualified personnel.

Files:

• Datasheet

Dish - Punched for two universal XLR or Neutrik 4 pole Speakon.
Material: 1 mm Steel, black powder coated.
Cutout 65 x 115 mm. Fixing holes Ø 5 mm.

Set of 4 pcs w/ screws
Internal radius: 12 mm

Set of 4 pcs w/ screws
Internal radius: 12 mm

• d = 24 mm
• h = 8 mm

• Fender #0990947000
• Plastic covered with steel inner core
• End plates: Steel, nickel plated
• Color: Black
• Mounting hardware: Screws and t-nuts included

Push In 50 mm / 2" Castor w. Metal Socket
Carry Weight per wheel: 20 kg / 44lb
