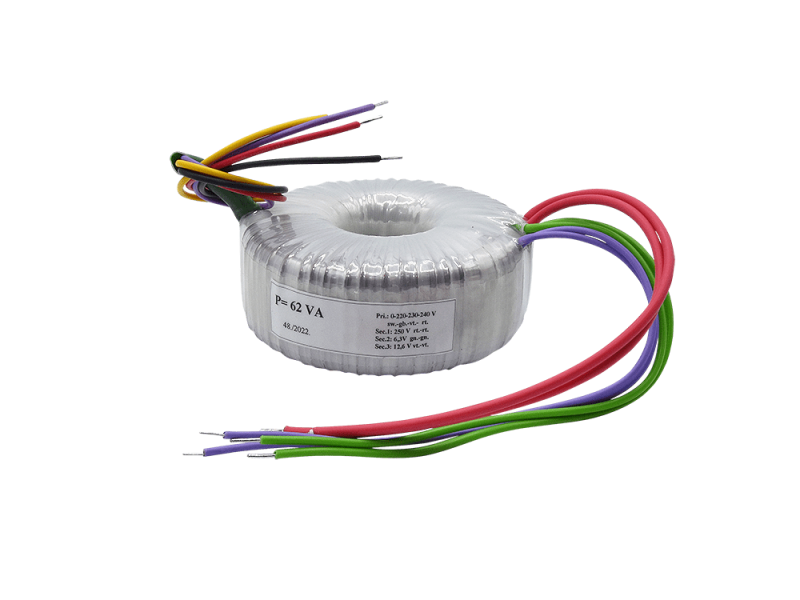

Toroidal 62VA
Toroidal 62VA
Toroidal 62VA

Toroidal 62VA

Product No.:
tt-t62
In stock for immediate delivery. Delivery time depends on the destination country* In stock for immediate delivery. Delivery time depends on the destination country*
RoHs:
conform
Weight:
1.06 kg per piece
48,90 €

incl. VAT excl. Shipping costs

Bookmark
Ask Question
Description
  • Pri: 0-220-230-240 V (schwarz-gelb-lila-rot / black-yellow-purple-red)
  • Sec 1: 250 V @ 0,12 A (red / rot)
  • Sec 2: 6,3 V @ 3 A (green / grün)
  • Sec 3: 12,6 V @ 1 A (purple / lila)
  • freie Enden / long leads ca 200 mm
  • h= ca.52 mm d= ca.102 mm
  • 50/60 Hz EN 61558
Manufacturer
Herstellerinformationen | Manufacturer Information

Tube-Town GmbH
Rumbergring 37
D-66969 Lemberg
eMail: info@tube-town.de
