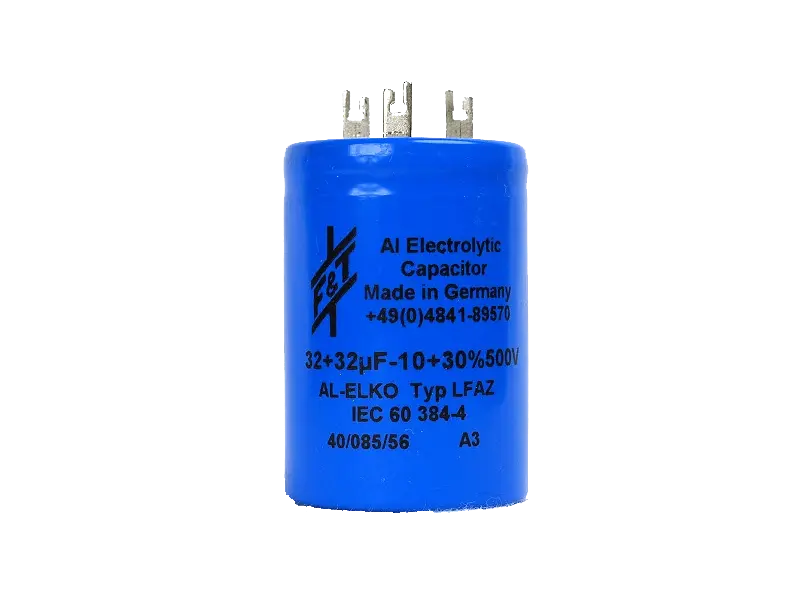

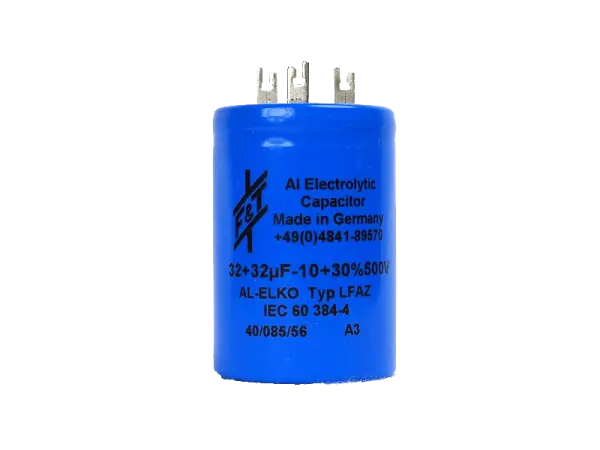

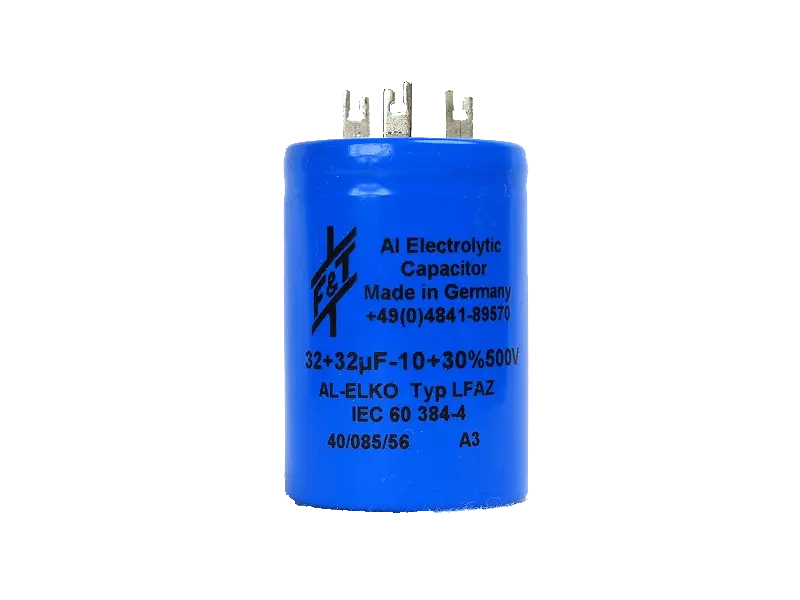

F+T 32 + 32 µF / 500 V Multisection

Description

Type: Multisection Capacitor
Capacitance: 32 + 32 µF
Voltage Rating: 500 V
Tolerance: - 10% / +30 %
Operating Temperature Range: - 40°C / + 85 °C
Dimensions: Ø 35 mm x 50 mm
Termination Style: radial, solder lugs

Safety Information

Safety Information for Electrical Components, Especially for Tube Amplifiers

For all electrical, electromechanical, and mechanical components, the specifications and operating parameters defined by the respective type standards generally apply.
Further information, where available, can be found in the respective data sheets and product descriptions included with the product.

General Information

NOT SUITABLE FOR CHILDREN – choking hazard due to small parts
NOT SUITABLE FOR UNTRAINED PERSONS – danger to life due to high voltages
The safety and processing requirements applicable to the component must be observed
CE conformity applies only when installed professionally
Warranty becomes void in case of improper handling
The operator is responsible for proper installation
