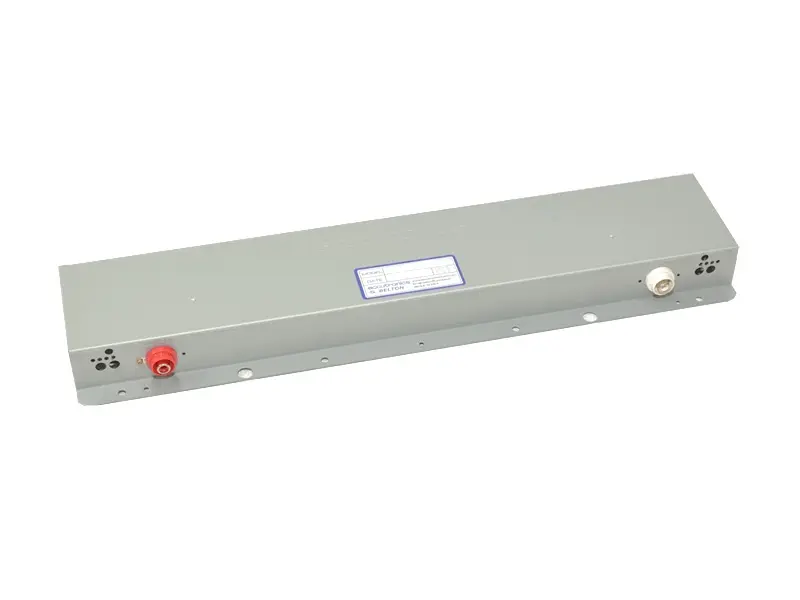

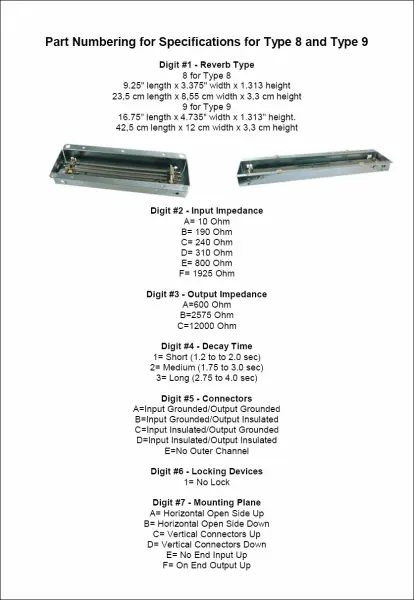

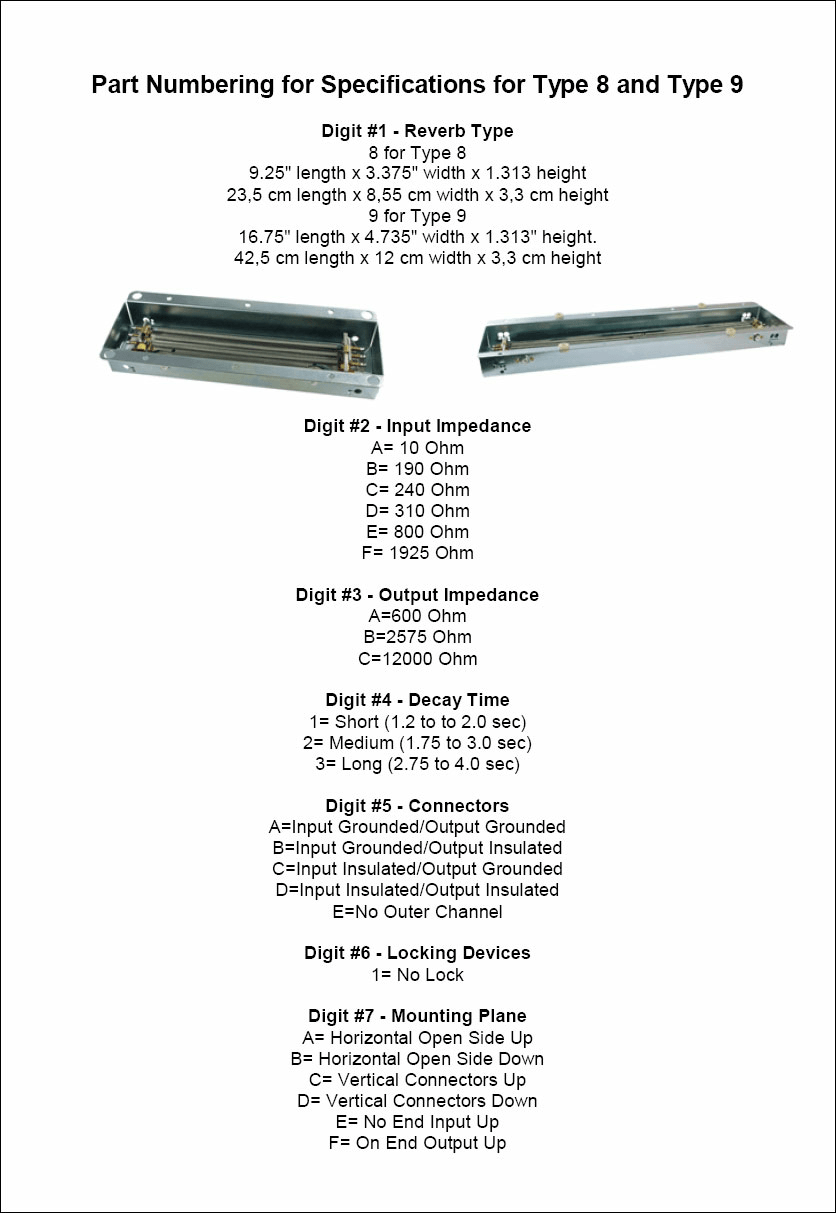

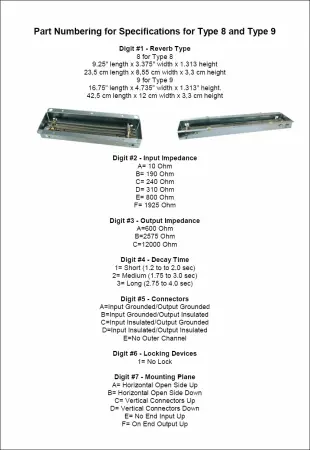

Accutronics Reverb Tank 9AB3C1B

• Rubber grommets for reverb tanks, package of four.
• Mounting Hole Diameter = 3/8"
• Outer Diameter = 1/2"

• 30/30/30/10 μF 525VDC.
• FP / Twist Lock Style. Solder Tabs.
• -10%, +50% Tolerance, 65°C Temperature Rating.
• 1 ⅜"D X 2 ½"H.


Files:

• Datasheet

COMBINATED DOUBLE TRIODE
ECC832 is 12DW7 pre-amplifying double triode. It combines 12AX7 and 12AU7, where the 12AX7 is used as 1st stage and the 12AU7 as 2nd stage.

Files:

• Datasheet

TT-Chassis Aluminium - Typ 008 Standard, Dumble-Size (V2020

• Size: 490 x 200 x 65 mm (Dumble size)
• Material: 2 mm Aluminium
• Mounting: with cage nuts (not included)
• reinforced Corners
• With two cut-outs for power jacks
• Made in Germany

Files:

• Datasheet V2020
• Datasheet V2017 (old)

• Fender Choke 125C3A & 022707
• Deluxe, Deluxe Reverb, Vibrolux, Vibrolux Reverb
• 4 H

Files:

• Datasheet

• Powertransformer for (Deluxe, 5A3, 5B3, 5C3, 6G3, AB763) (Deluxe Reverb, A1172, A1270, AA763, AB763, AB868, Blackface, Silverface, W/Volume Boost, Tweed Tremolux)
• Fender Part Number 125P23D and 041316
• needed chassis cut-out around 68x54 mm
• Pri: 240V 50 Hz
• Sec.1: 660 VCT @ 138mA
• Sec.2: 6.3 V @ 3 A
• Sec.3: 5 V @ 3 A

Files:

• Datasheet

• Twin 5F8A with 5AR4
• Twin Reverb AB763 (2-Way Rectifier)
• Twin Reverb Reissue (4-Way Rectifier)

• Pri: 0-120V / 0-110V-120V @ 50Hz
• Bias: 55V @ 500 mA
• Heater 1: 5V @ 6 A
• Heater 2: 3,2 - 0 - 3,2 V @ 8 A
• Sec 1: 330V @ 300 mA
• Sec 2: 330V @ 300 mA
• ( Half-Wave: 330 V - 0 - 330 V )
• ( Full-Wave: 330 V - 0 V )
• Made in Europe

• Datasheet

• Power: 3,5 W
• 4 Ohm @ 14k5
• 8 Ohm @ 29k

Fender-Style Outputtransformer for Twin

• Pri.: 2200 Ohm C.T.
• Sec.: 0-2-4-8-16 Ohm
• Power: 140 Watt (25 Hz -3dB)
• Made in Europe

Files:

• Datasheet

• Type: Polyester Film Capacitor
• Voltage Rating: 600 V
• Operating Temperature Range: - 55°C / + 85 °C
• Termination Style: radial, copper leads

• Type: Polyester Film Capacitor
• Voltage Rating: 600 V
• Operating Temperature Range: - 55°C / + 85 °C
• Termination Style: radial, copper leads

• Voltage Rating: 630 V
• Tolerance: +/- 10%
• Operating Temperature Range:c- 55°C / + 125 °C
• Termination Style: radial
