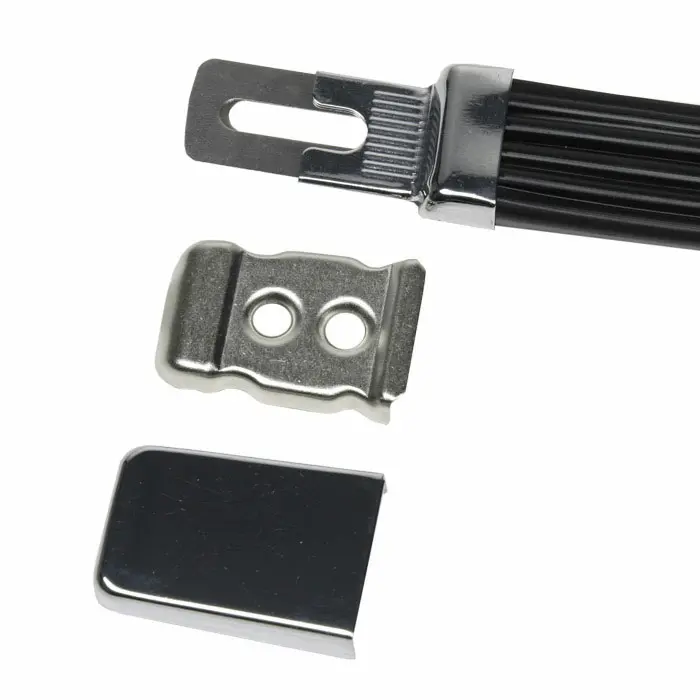

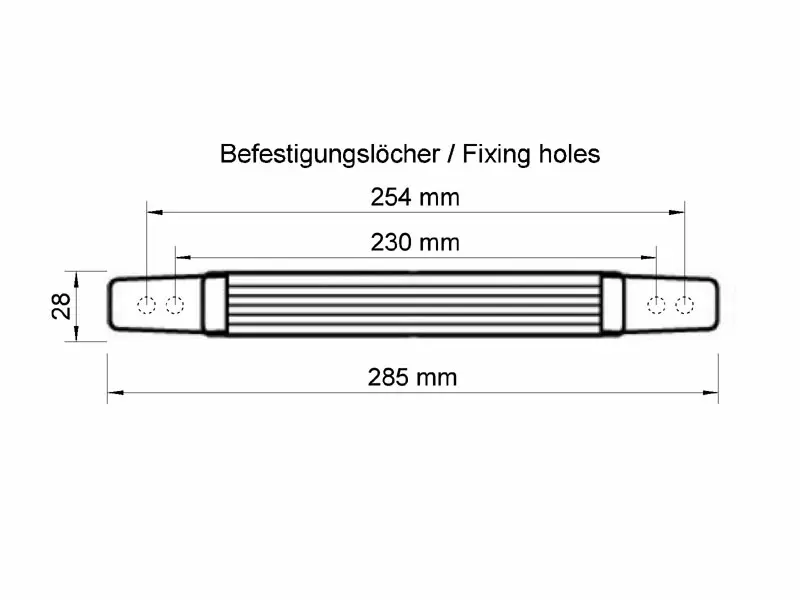

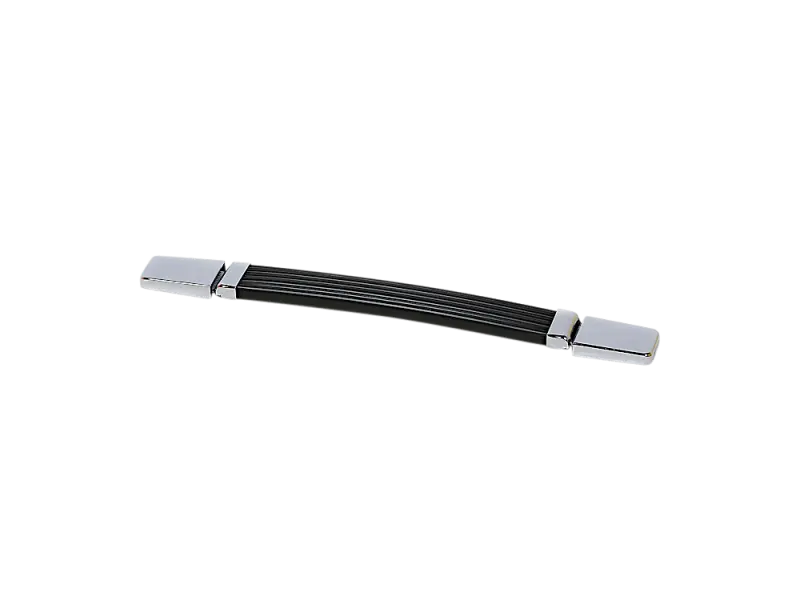

Strap Handle large, black, Marshall-Style

TT-Cabs Headshell HiWatt Style, just like the original Hiwatt Headshell with white Piping, black mesh and handle with silver endcaps.

Specifications

• Size: ca. 635 x 270 x 285 mm
• Chassis Cut Out: ca. 475 x 64 mm
• Tolex: customer preference
• Hardware: Silber
• Piping: customer preference
• Weight: ca. 8 kg
• Wood: 18 mm Poplar

Power Jack, Chassis mount

• Schurter 6162.0046
• Ratings IEC: 10 A / 250 VAC; 50 Hz
• Ratings UL/CSA: 15 A / 250 VAC; 60 Hz
• Dielectric Strength:
  • > 3 kVAC between L-N
  • > 1.5 kVAC between L/N-PE (1 min/50 Hz)
• Allowable Operation Temp.:-25 °C to 70 °C
• Degree of Protection: from front side IP 20 acc. to IEC 60529
• Protection Class:Suitable for appliances with protection class 1 acc. to IEC 61140
• Material: Housing PA6, black, UL 94V-0

• Type: Footswitch
• Version: 3PDT Latching
• for True Bypass
• Rating: 1A/9VDC
• Contact resistance: <30mΩ
• Insulation resistance: 500VDC-100MΩ min.
• Dielectric strength: 500VAC for 1 minute
• Operating Life: 30.000 cycles
• Termination Style: solder-lugs

Files:

• Datasheet

Were raw force reigns...

the sound technicians are at work and do not have the time to handle cables with tender love and care. This robust cable is especially intended for speakers and satifies all special technical demands. The oxygen-free copper strand provides better sound and more durability.
All PVC-versions are easy to wind. Versions SP215 and SP225 are now available with highly flexible 0.15 mm copper stranding!
New are the versions in FRNC and E30 (IEC 228, IEC 332-/1, IEC 332-3 Cat C, IEC 60331, IEC 61034-1/2, IEC 60754-2)

THE ADVANTAGES:

• Flexible and easily windable
• Small diameter
• Great durability through the use of a special jacket mixture
• Very affordable

THE APPLICATION:

• All types of sound systems
• For fixed installation
• Wiring of HiFi-systems

• Construction (2LIY1.50mm²)Y
• Diameter 6,8 mm
• AWG 16
• No. of conductors 2 x 1,5 mm²
• Jacket material, insulation PVC
• Copper strand per conductor 84 x 0,15 mm
• Conductor insulation, diameter 2,62 mm
• Temperature range min. -30 °C
• Temperature range max. 70 °C
• Fire load per m 0,28 kWh
• Weight per 1 m 78 g
• Color black

• Capac. cond./cond. per 1 m 150 pF
• Cond. resistance per 1 km < 13 Ohm
• Insulat. resistance per 1 km > 5 MOhm

• Angled
• Extra flat housing
• 6.3 mm (1/4")
• 2-pin male

• for 4.0 mm laboratory plugs
• Connection Type: solder connection
• Mounting hole diameter: 8.3 mm
• Contact material: nickel-plated brass
• Rated voltage: 30 VAC / 60 VDC
• Rated current: max. 25 A

• Wide body and extremely durable contacts
• Mates with all mono A-gauge plugs acc. EIA RS-453 standard

Files:

• Datasheet

• Power Rating: 0,25 W
• Voltage Rating: 250 V AC
• Tolerance: 20%
• Shaft: 6,35 mm, Solid Shaft
• Shaft length: 15 mm
• Drill Ø: M8 (7,8 mm)
• Termination: Solder lugs
• Dimension: 24 mm

• Fuseholder, Chassismount, 5x20 mm
• IP 40
• Rated voltage: 250 VAC
• Rated current: 10 A (VDE), 16 A (UL/CSA)

Files:

• Datasheet

• Power Rating: 0,25 W
• Voltage Rating: 250 V AC
• Tolerance: 20%
• Shaft: 6,35 mm, Solid Shaft
• Shaft length: 15 mm
• Drill Ø: M8 (7,8 mm)
• Termination: Solder lugs
• Dimension: 24 mm

• Type: Chickenhead
• Material: Phenolic
• Shaft Size: 6 - 6,3 mm
• Size: 32 x 13,7 mm
• Mounting: Set-Screw

• Power Rating: 0,25 W
• Voltage Rating: 250 V AC
• Tolerance: 20%
• Shaft: 6,35 mm, Solid Shaft
• Shaft length: 15 mm
• Drill Ø: M8 (7,8 mm)
• Termination: Solder lugs
• Dimension: 24 mm

• Type: Toggle Switch
• Version:DPST, ON - OFF
• Rating: 15A / 250VAC, 10A / 400VAC
• Contact resistance: 10 mΩ max. at 1A 2VDC
• Insulation resistance: 1.000 MΩ min. at 500VDC
• Dielectric strength: 2.000 Vrms 50 Hz min.
• Operating Life:    10.000 cycles at full load
• Termination Style: solder lug / quick-connect terminals

• Datasheet

Set of metal corners for housing consisting of:

• 8 x Cabinet corner w/ cutaway 2 leg - Dumble Style, silver
• Steel nickel plated
• Internal radius: 11 mm
• 16 x Screws with extra flat head, silver
