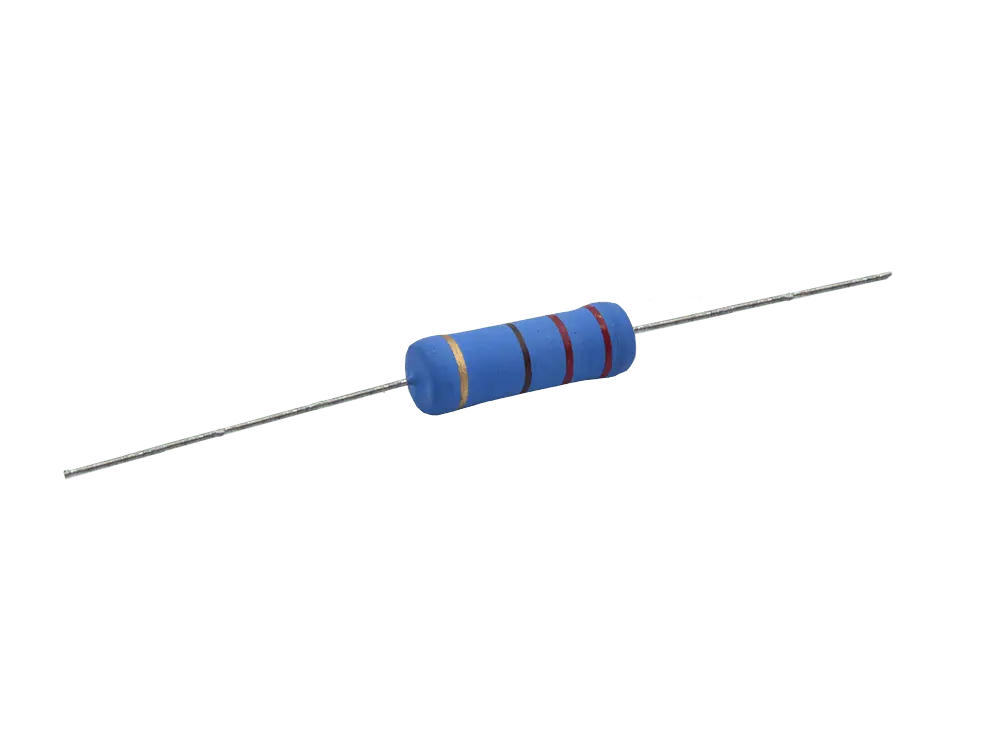

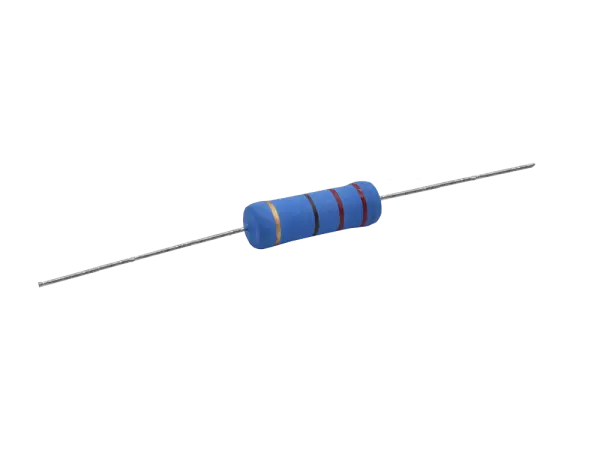

Resistor Metaloxide 5 Watts / 150 Ohms / Small Size

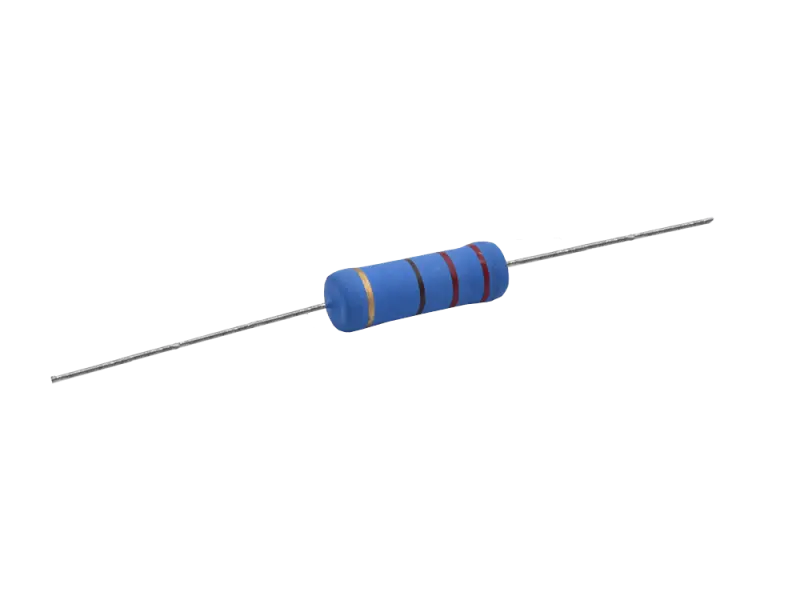

Mobile Preview: Resistor Metaloxide 5 Watts / 150 Ohms / Small Size

Description

Metal Oxide Film Resistors

Termination Style: Axial
Power Rating: 5 W
Tolerance: 5 %
Temperature Coefficient: 350 PPM / C
Operating Temperature min/max: - 55 C / + 155 C
Voltage Rating: 500 V
Diameter: 8,5 mm
Length: 25 mm
Lead Diameter: 0.75 mm
