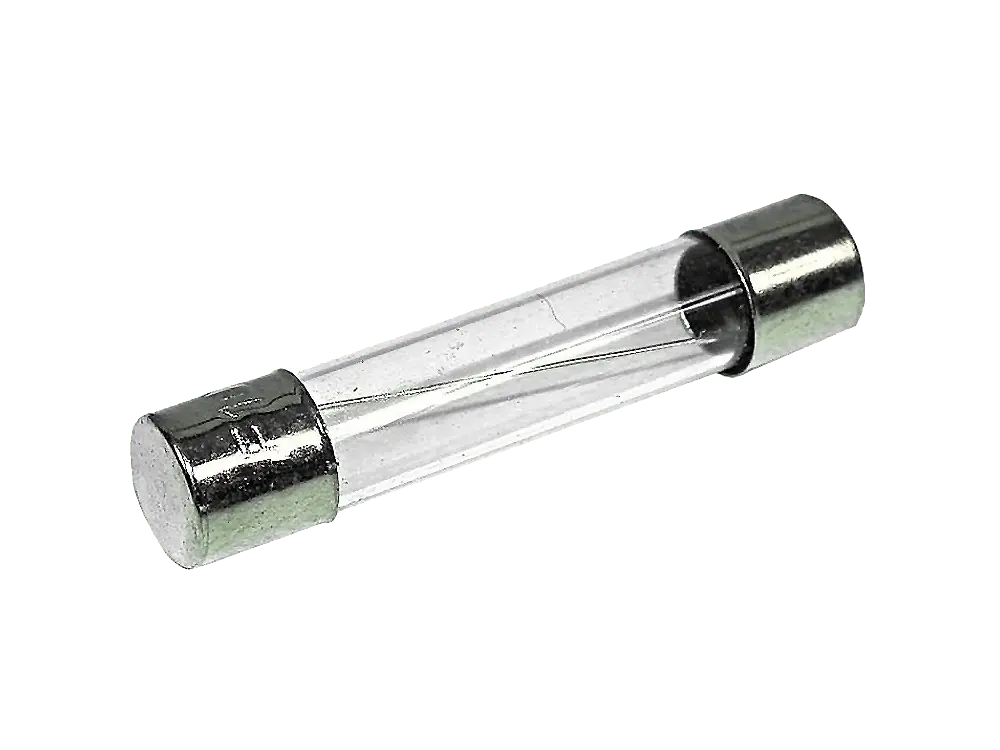

Fuse 1 A fast blow

• Type: HV ceramic disk capacitor
• Epoxy resin molding
• (insulating and flame retardant)
• Voltage Rating: 2 kV
• Tolerance: - 10 %
• Operating Temperature Range: - 30°C / + 85 °C
• Grid: 7,5

• Type: Film capacitor
• Dielectric: polypropylene film
• Coating: plastic foil, metalized on both sides
• Capacitance: 0,1 µF
• Voltage Rating: 400 VDC / 250 VAC
• Tolerance: ±10 %
• IEC climate category: 55/100/56
• Operating Temperature Range: - 55°C / + 100 °C
• Dimensions: 7 x 14 x 18 mm
• Termination Style: radial
• Grid: 15

• Type: Multisection Capacitor
• Capacitance: 50 + 50 µF
• Voltage Rating: 500 V
• Tolerance: - 10% / +30 %
• Operating Temperature Range: - 40°C / + 85 °C
• Dimensions: Ø 35 mm x 50 mm
• Termination Style: radial, solder lugs

Reverb Driver, Fender Style, direct replacement for item 125A20B

• Power: 3,5 W
• 4 Ohm @ 14k5
• 8 Ohm @ 29k

TT Potentiometer Made by Alpha

Electrical Characteristics

• Total Resistance Tolerance: +/- 20%
• Rated Power
  • B/Lin Taper: 0,125 W
  • A/Log Taper: 0,1 W
• Max. Operating Voltage
  • B/Lin Taper: 150 V AC
  • A/Log Taper: 150V AC
• Noise: 47 mV max.
• Insulation Resistance: 500 V DC 1000MOhm
• Withstand Voltage: 1 minute 500 V AC
• Rotational Life: 15000 Cycles

Mechanical Characteristics

• Shaft Diameter 6 mm
• Shaft Type: Split Shaft
• Shaft Length: ca. 9 mm
• Bushing Length: 6,5 mm
• Body Diameter: 16 mm
• Connectors: Solder Lugs
• Total Rotational Angle: 300° +/- 5°
• Rotational Torque: 30~200gf.cm
• Solder Heat Resistance: 300°C, 3 S

Material

• Shaft: Cast Iron (Aluminium Zinc)
• Bushing Material: Cast Iron

Resistor Metaloxide 2 Watts

• +/- 5% tolerance
• -55° C to 240° C operating range
• Max 500 V
• Excellent flame retardant coating
• Different manufacturers

Please note:
These resistors have a very small form factor:
red: l = 10 mm, d = 3.9 mm
green: l = 11.5 mm, d = 4.5 mm

• Type: Electrolytic can capacitor
• Capacitance: 47 µF
• Voltage Rating: 450 V
• Tolerance: - 20 % / +20 %
• Operating Temperature Range: - 25°C / + 105 °C
• Dimensions: Ø 16 mm x 25 mm
• Termination Style: radial
• Grid: 7,5

Images are for reference only. See Product Specifications

Resistor Metaloxide 2 Watts

• +/- 5% tolerance
• -55° C to 240° C operating range
• Max 500 V
• Excellent flame retardant coating
• Different manufacturers

Please note:
These resistors have a very small form factor:
red: l = 10 mm, d = 3.9 mm
green: l = 11.5 mm, d = 4.5 mm

2 tubes, matched as pair

In 1959 Tung-Sol developed a premium, up-rated version of the 6BQ5/EL84 for use in industrial and military circuits. This tube was designated 7189. Due to its higher plate voltage rating and increased clean headroom, it became a favorite power tube for use in medium power stereo amplifiers and receivers made by H. H. Scott, Sherwood, Fisher, Lafayette, and many other hi-fi manufacturers. It was also used in high-end guitar amplifiers manufactured by Magnatone. Due to its increased ratings, it was considered as an upgrade for 6BQ5/EL84 amplifiers for increased performance and reliability.

The original 7189 tube production ceased in the early 1980s and vintage 7189 tubes have become expensive and hard to find. In order to allow these fine vintage 7189 amplifiers and receivers to continue be used, the Tung-Sol 7189 tube has been reissued. The 7189 Tung-Sol® reissue is built to the same specifications as the original 7189 Tung-Sol for the high fidelity and performance expected from the vintage 7189 amplifiers and receivers produced in the 1960s and 1970s.

Strongly committed to quality manufacturing, Tung-Sol tubes have always been known for their reliability and great tone. Today's new production Tung-Sol tubes are constructed with the same commitment to quality and reliability. Tung-Sol tubes reflect the best in vintage Tung-Sol construction with unsurpassed tone and reliability.

Files

• Datasheet

Mica Capacitors

• Voltage Rating:    500 V
• Tolerance: 5%
• Operating Temperature Range: - 50°C / + 150°C
• Termination Style: radial
