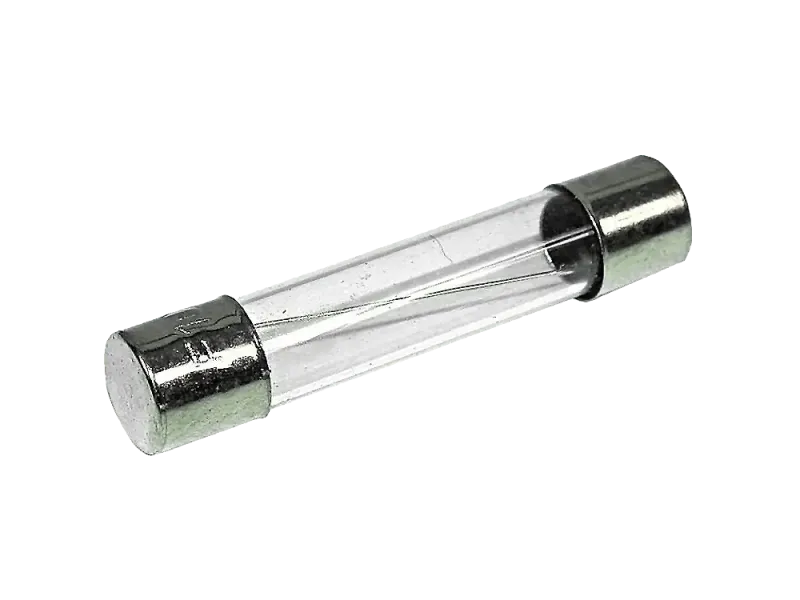

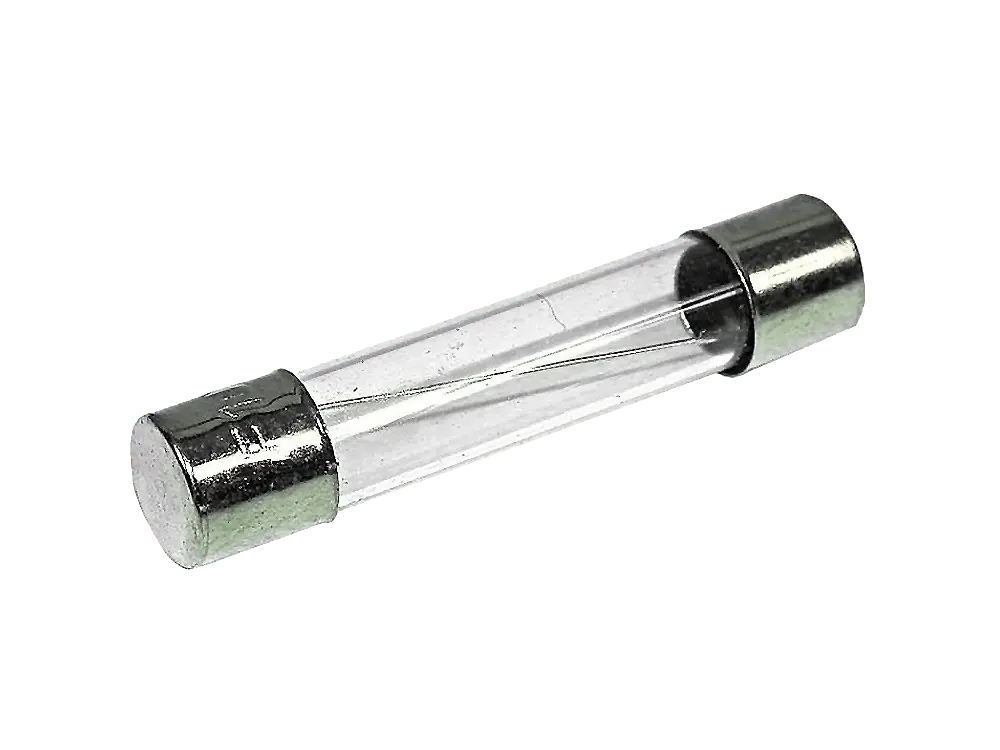

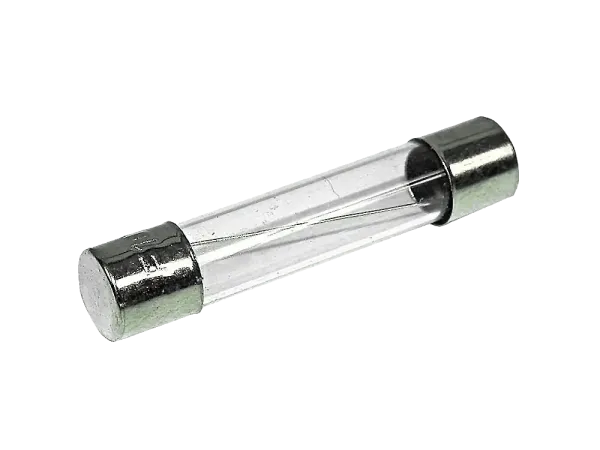

Fuse 0.630 A slow blow

• Rated Voltage: 250 VAC
• Contact caps: nickel-plated brass
• Size: Ø 5 mm x 20 mm
• Pack of 10

• Rated Voltage: 250 VAC
• Contact caps: nickel-plated brass
• Size: Ø 5 mm x 20 mm
• Pack of 10

Electro-Harmonix has released a low noise, low microphonic version of the 12AX7 that meets all specifications required for the tube to be designated 7025. The original 7025 tube was a 12AX7 that was tested and selected for the lowest noise and microphonics for use in the critical first preamp stages of amplifiers where noise and microphonics could be an issue. In order to ensure that the 7025 specification is consistently met, Electro-Harmonix has redesigned the structure of the 12AX7 and has implemented construction techniques to ensure the absolute lowest noise and microphonics possible. In all samples tested, noise and microphonics could not be detected.

The Electro-Harmonix 7025EH has a mid-range that gives clarity and definition to the sound and a smooth top end for warmth and balance. With these characteristics, along with the exceptionally low noise and low microphonics, the Electro-Harmonix 7025EH will work equally well in vintage and modern high-gain guitar amplifiers, as well as sensitive phono preamps.

4 tubes, matched as quad

The high-quality TTEL84/6BQ5 tube with 12 watts of power is perfect for guitar, bass, and audio amplifiers. Inspired by classic NOS EL84 models, this tube is manufactured using modern production methods to ensure consistent high quality.

It offers an ideal combination of sound and reliability and is a direct replacement for all EL84 or 6BQ5 tubes.

Electrical Specifications

• Type: Pentode
• Base: Noval (B9A)
• Heater Voltage: 6.3 V (min 5.8 V / max 7.7 V)
• Heater Current: approx. 0.76 A
• Anode Dissipation: 12 W
• Screen Grid Dissipation: 2 W

Operating Conditions

• Anode Voltage (Va): max. 300 V
• Screen Grid Voltage (Vg2): max. 300 V
• Grid Bias Voltage (Vg1): -7.3 V (typical for Class-A operation)
• Anode Current (Ia): 48 mA (at -7.3 V grid bias)
• Screen Grid Current (Ig2): 5 mA

Characteristic Curves

• Amplification Factor (μ): approx. 20
• Internal Resistance (Ra): approx. 38 kΩ
• Transconductance (S): 11 mA/V

Usage Notes

• Operating Temperature: Should be operated in a well-ventilated enclosure to prevent overheating.
• Interchangeability: EL84 can be replaced by the Russian 6П14П or American 7189, taking into account different specifications.

• Rated Voltage: 250 VAC
• Contact caps: nickel-plated brass
• Size: Ø 5 mm x 20 mm
• Pack of 10
