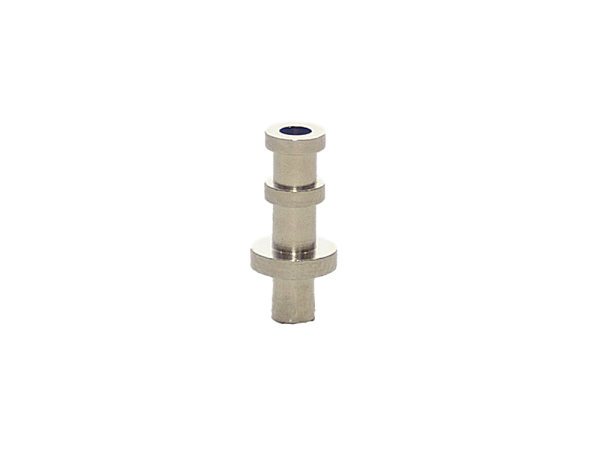

Turret Tube-Town Type 32 - 25 pcs

TT PI18 - An All-Tube 18 Watt Guitar Amp Kit, based on the Pink Taco.
Version 2020, Turretboard Version 2020, with the following additions and extensions compared to the previous version:

• The kit contains components for two different tone controls: Tight (British Voicing) and FAT (Original Voicing).
• Optimizations in the area of master potentiometers and the circuit design of the first gain stage
• Optimizations of the boost function
• Noise-Reduction for Higain & Hum Suppression
• Easier to build then the previos kit

Set of componentes for building the TT PI18 Guitar Amp.
Please visit the >>Project page for more infos about the amp.
We will send the circuit and layout plan of the kit together with the invoice by email after the delivery.

INCLUDED:

• Outputtransformer Tube-Town tt-ma18-ot
• Powertransformer Tube-Town 18W, 0-120-230-240V @ 50/60 Hz (since 25. Oct. 2019)
• FX-Loop
• Resistors
• Capacitors
• Jacks
• Light
• Wires
• Board
• Switches
• Tubes
• Fuses & Fuesholder

NOT INCLUDED:

• Chassis
• Turrets ( you need 4 x 25 pcs. )
• Knobs
• Faceplate
• Headshell

To build this project knowledge in electric engeneering, experience with high voltage, and the reading and understanding of schematics and dealing with measurement device is highly recommended .
There is NO step-by-step guide for beginners. The circuit and layout plan includes all relevant information. If you don't understand it then don't build it.
THIS IS NOT A BEGINNERS PROJECT !

Files:

• Application Notes Turret-PCB

Supporting PCB to build a turret socket, components can be mounted directly at the socket.

• Version 2024
• 1,6 mm, red solder mask
• can be used directly as "eylet board"
• turrets for 2mm boards can also be used
• the pin distance is more than 2,5 mm
• conform with actual VDE regulations
• operating voltage 500 V DC
• designed for Belton noval and octal sockets
• with tabs at the side for mounting on an octal socket, these can be snapped off if not needed
• recommended spacer bolts: 30 - 40 mm, M3
• check "accesories" for recommended and fitting parts

Note: The easiest way to assemble the components is when no turrets are used.

Files:

• Application Notes Turret-PCB

• Size: 37 x 143 mm
• Holes: 4 x 15 for turret tur-tt32-25
• Material: FR4 2 mm
• Solder stop: black
• Position print: white
• 2-layer, plated through

Tube-Town EZ-Board #080

• Drills: 6 x 30
• Size: 60 x 300 mm
• Diameter drill: 2,8 mm
• Material: 2 mm
• No drilling needed! Ready for use.

The EZ-Board an be used as an Eyelett-Board without the need to install any Eyeletts or it can be used with Turrets type 1509-4 or TT Type 32.

Files:

• Application Notes Turret-PCB

Supporting PCB to build a turret socket, components can be mounted directly at the socket.

• Version 2024
• 1,6 mm, black solder mask
• can be used directly as "eylet board"
• turrets for 2mm boards can also be used
• the pin distance is more than 2,5 mm
• conform with actual VDE regulations
• operating voltage 500 V DC
• designed for Belton noval and octal sockets
• with tabs at the side for mounting on an octal socket, these can be snapped off if not needed
• recommended spacer bolts: 30 - 40 mm, M3
• check "accesories" for recommended and fitting parts

Note: The easiest way to assemble the components is when no turrets are used.

Files:

• Application Notes Turret-PCB

Tube-Town EZ-Board #081

• Drills: 2 x 30
• Size: 20 x 300 mm
• Diameter drill: 2,65 mm
• Material: 2 mm
• No drilling needed! Ready for use.

The EZ-Board an be used as an Eyelett-Board without the need to install any Eyeletts or it can be used with Turrets type 1509-4 or TT Type 32.

Files:

• Application Notes Turret-PCB

Tube-Town EZ-Board #085

• Drills: 8 x 46
• Size: 80 x 460 mm
• Diameter drill: 2,8 mm
• Material: 2 mm
• No drilling needed! Ready for use.

The EZ-Board an be used as an Eyelett-Board without the need to install any Eyeletts or it can be used with Turrets type 1509-4 or TT Type 32.

Files:

• Application Notes Turret-PCB

• Turrets, forked
• for 3 mm Boards
• nickel-plated

TT PI18 - An All-Tube 18 Watt Guitar Amp Kit, based on the Pink Taco.
Version 2020, Turretboard Version 2020, with the following additions and extensions compared to the previous version:

• The kit contains components for two different tone controls: Tight (British Voicing) and FAT (Original Voicing).
• Optimizations in the area of master potentiometers and the circuit design of the first gain stage
• Optimizations of the boost function
• Noise-Reduction for Higain & Hum Suppression
• Easier to build then the previos kit

Set of componentes for building the TT PI18 Guitar Amp.
Please visit the >>Project page for more infos about the amp.
We will send the circuit and layout plan of the kit together with the invoice by email after the delivery.

INCLUDED:

• Outputtransformer Tube-Town tt-ma18-ot
• Powertransformer Tube-Town 18W, 0-120-230-240V @ 50/60 Hz (since 25. Oct. 2019)
• FX-Loop
• Resistors
• Capacitors
• Jacks
• Light
• Wires
• Board
• Switches
• Tubes
• Fuses & Fuesholder

NOT INCLUDED:

• Chassis
• Turrets ( you need 4 x 25 pcs. )
• Knobs
• Faceplate
• Headshell

To build this project knowledge in electric engeneering, experience with high voltage, and the reading and understanding of schematics and dealing with measurement device is highly recommended .
There is NO step-by-step guide for beginners. The circuit and layout plan includes all relevant information. If you don't understand it then don't build it.
THIS IS NOT A BEGINNERS PROJECT !

Files:

• Application Notes Turret-PCB

TT-Chassis Aluminium - Typ 040

Chassis for the PX18/PI18 kit, fits in all of our Standard Smallhead and 18W Headcabs and Combos

• Size : 430 x 170 x 65 mm
• Material: 2 mm Aluminium
• Made in Germany
• fits Alpha 3/8" Potentiometer (Intemnumber p38-*)
• Mounting: with cage nuts (not included)

Files:

• Datasheet

 Pointer Knob "Classic"

• Material: Phenolic
• Shaft Size: 6 - 6,3 mm
• Size: 19 x 14,5 mm
• Mounting: Hexagon Set Screw

Panel Mount Potentiometer

• Power Rating: 0,25 W
• Voltage Rating: 250 V AC
• Tolerance: 20%
• Shaft: 6,35 mm, Solid Shaft
• Shaft length: 15 mm
• Drill Ø: M8 (7,8 mm)
• Termination: Solder lugs
• Dimension: 24 mm

TT-Chassis Aluminium - Typ 001 - Basic

• Size (Marshall Small Size):
  • Width: 430 mm
  • Depth: 170 mm
  • Height: 65 mm
• Material: 2 mm Aluminium
• Mounting: with cage nuts (not included)
• WITHOUT CUTOUTS
• Made in Germany

Files

• Datasheet Drawing Version 2019 (PDF)
• Tamplate for Faceplate

Panel Mount Potentiometer - 3/8"

• Power Rating: 0,25 W
• Voltage Rating: 250 V AC
• Tolerance: 20%
• Shaft: 6,35 mm, Solid Shaft
• Shaft length: 15 mm
• Drill Ø: 3/8-32 (9,45 mm)
• Termination: Solder lugs
• Dimension: 24 mm

Fender Style Pilot Light Set

• Chassis Hole: 15,5 mm
• Threading: 9/16 - 24
• Jewel red

• Carbonfilm Resistor
• Low noise, small size, high power rating
• Power: 1 Watt
• Voltag: 500 V working / 1000 V overload
• Axial Leads
• -55° C - 155° C
• 12 * 5 mm
• RoHS
