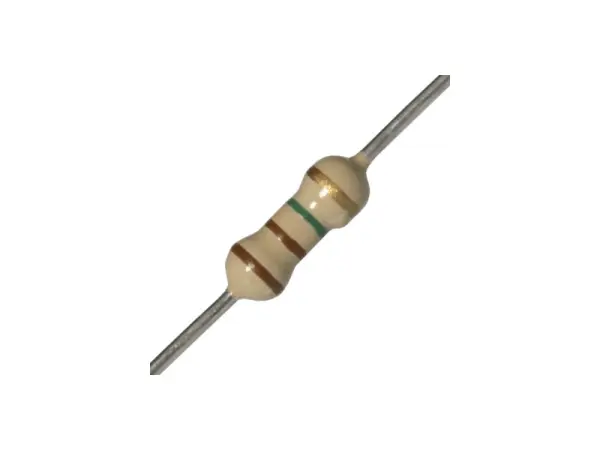

Carbonfilm Resistor 220k / 1 Watt, Pack of 5

EH 12AX7 / ECC83

• The 12AX7EH provides high gain with ultra low noise and detailed, musical tone that rivals the most desirable NOS types.

Files:

• Datasheet

Empty Eyeletboard, Fender Style

• Size: 380 x 76 x 1,6 mm
• gray

• Rated Voltage: 250 VAC
• Contact caps: nickel-plated brass
• Size: Ø 6,3 mm x 32 mm
• Pack of 10

Resistor Metaloxide 2 Watts

• +/- 5% tolerance
• -55° C to 240° C operating range
• Max 500 V
• Excellent flame retardant coating
• Different manufacturers

Please note:
These resistors have a very small form factor:
red: l = 10 mm, d = 3.9 mm
green: l = 11.5 mm, d = 4.5 mm

• Chassis Straps large size
• Mounting hole distance around 128 mm
• one piece

Resistor Metaloxide 2 Watts

• +/- 5% tolerance
• -55° C to 240° C operating range
• Max 500 V
• Excellent flame retardant coating
• Different manufacturers

Please note:
These resistors have a very small form factor:
red: l = 10 mm, d = 3.9 mm
green: l = 11.5 mm, d = 4.5 mm

ORANGE DROP®, Low Loss

• Type:  Polypropylene Film Capacitors
• Voltage Rating: 600 V
• Tolerance: - 10 % / +10 %
• Operating Temperature Range: - 55°C / + 85 °C
• Termination Style: radial

Resistor Metaloxide 2 Watts

• +/- 5% tolerance
• -55° C to 240° C operating range
• Max 500 V
• Excellent flame retardant coating
• Different manufacturers

Please note:
These resistors have a very small form factor:
red: l = 10 mm, d = 3.9 mm
green: l = 11.5 mm, d = 4.5 mm

Panel Mount Potentiometer

• Power Rating: 0,3 W
• Tolerance: 20%
• Shaft: 6 mm, 24 teeth slot and knurled shaft
• Shaft length: 6 mm
• Drill Ø: 9,5 mm
• Termination: Solder lugs
• Dimension: 24 mm

Files

• Datasheet

Wall thickness max: 2,5 mm
Cable diameter: 6,4 - 7,4 mm
Material: PA 6.6, UL 94 V-2
Color: black
Operating temperatures: –35 to +105 °C

• Type: Electrolytic can capacitor
• Capacitance: 47 µF
• Voltage Rating: 63 V
• Tolerance: - 20 % / +20 %
• Operating Temperature Range: - 40°C / + 105 °C
• Dimensions: Ø 8 mm x 11 mm
• Termination Style: radial
• Grid: 3,5

Images are for reference only. See Product Specifications

ECC82 / 12AU7 medium gain pre-amplifying double triode.
Provides a very smooth sound with well-defined tones suitable for audio and guitar amplifiers.

Files:

• Datasheet
