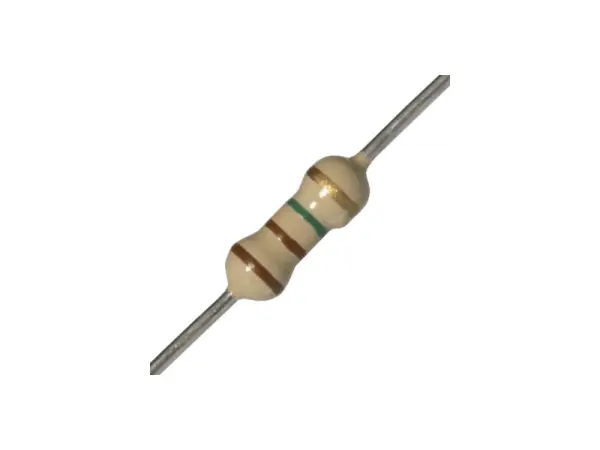

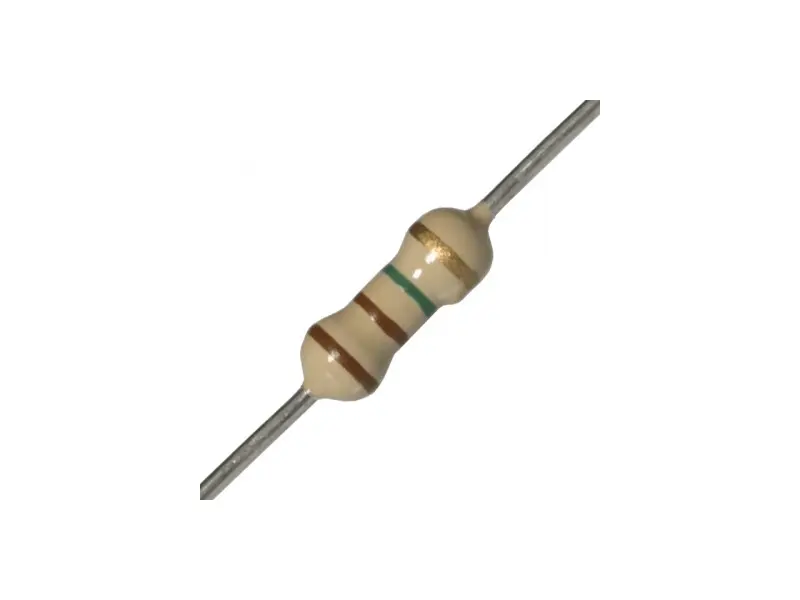

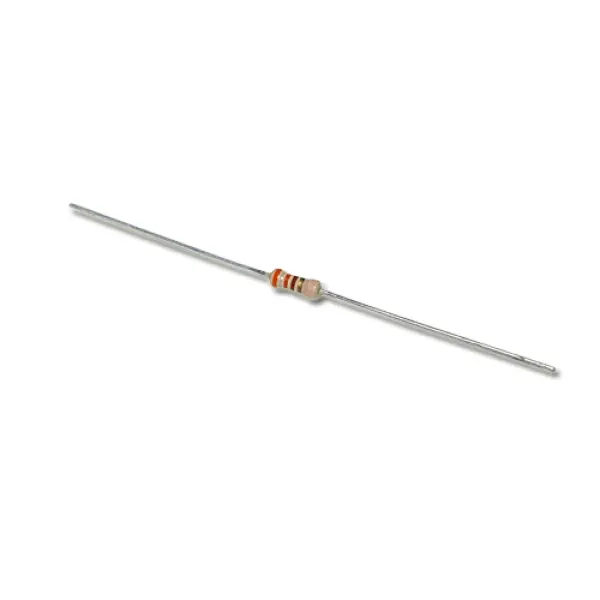

Carbonfilm Resistor 100k / 1 Watt, Pack of 5

Jack 6,3 mm, Mono, Chassis-Mount

• LED 3,0 mm
• Color: blue
• Lense: blue
• forward voltage: 2,9 V

• Angle of radiation: 40 °
• Current: 2 mA
• Luminous intensity: 0.002 cd
• Wavelength: 568 nm
• Size: 3 mm
• Color: green

2 Tubes, matched as Pair

The high-quality TTEL84/6BQ5 tube with 12 watts of power is perfect for guitar, bass, and audio amplifiers. Inspired by classic NOS EL84 models, this tube is manufactured using modern production methods to ensure consistent high quality.

It offers an ideal combination of sound and reliability and is a direct replacement for all EL84 or 6BQ5 tubes.

Specifications

Electrical Specifications

• Type: Pentode
• Base: Noval (B9A)
• Heater Voltage: 6.3 V (min 5.8 V / max 7.7 V)
• Heater Current: approx. 0.76 A
• Anode Dissipation: 12 W
• Screen Grid Dissipation: 2 W

Operating Conditions

• Anode Voltage (Va): max. 300 V
• Screen Grid Voltage (Vg2): max. 300 V
• Grid Bias Voltage (Vg1): -7.3 V (typical for Class-A operation)
• Anode Current (Ia): 48 mA (at -7.3 V grid bias)
• Screen Grid Current (Ig2): 5 mA

Characteristic Curves

• Amplification Factor (μ): approx. 20
• Internal Resistance (Ra): approx. 38 kΩ
• Transconductance (S): 11 mA/V

Usage Notes

• Operating Temperature: Should be operated in a well-ventilated enclosure to prevent overheating.
• Interchangeability: EL84 can be replaced by the Russian 6П14П or American 7189, taking into account different specifications.

Fender® style lamp jewels

• Threading: 9/16 - 24

ORANGE DROP®, Low Loss

• Type:  Polypropylene Film Capacitors
• Voltage Rating: 600 V
• Tolerance: - 10 % / +10 %
• Operating Temperature Range: - 55°C / + 85 °C
• Termination Style: radial

ORANGE DROP®, PS Series

• Type: Polyester Film Capacitor
• Voltage Rating: 600 V
• Operating Temperature Range: - 55°C / + 85 °C
• Termination Style: radial, copper leads

• High Power Resistor
• 5W 5% High Ohm Cement Power Resistors
• Size: 22 x 10 x 9 mm
• RoHS Compliant

EH 12AX7 / ECC83

• The 12AX7EH provides high gain with ultra low noise and detailed, musical tone that rivals the most desirable NOS types.

Files:

• Datasheet

Metal Oxide Film Resistors

• Termination Style: Axial
• Resistance: 100 Ohms
• Power Rating: 5 W
• Tolerance: 5 %
• Temperature Coefficient: 350 PPM / C
• Operating Temperature min/max: - 55 C / + 155 C
• Voltage Rating: 500 V
• Diameter: 8,5 mm
• Length: 25 mm
• Lead Diameter:  0.75 mm

Resistor Metaloxide 2 Watts

• +/- 5% tolerance
• -55° C to 240° C operating range
• Max 500 V
• Excellent flame retardant coating
• Different manufacturers

Please note:
These resistors have a very small form factor:
red: l = 10 mm, d = 3.9 mm
green: l = 11.5 mm, d = 4.5 mm
