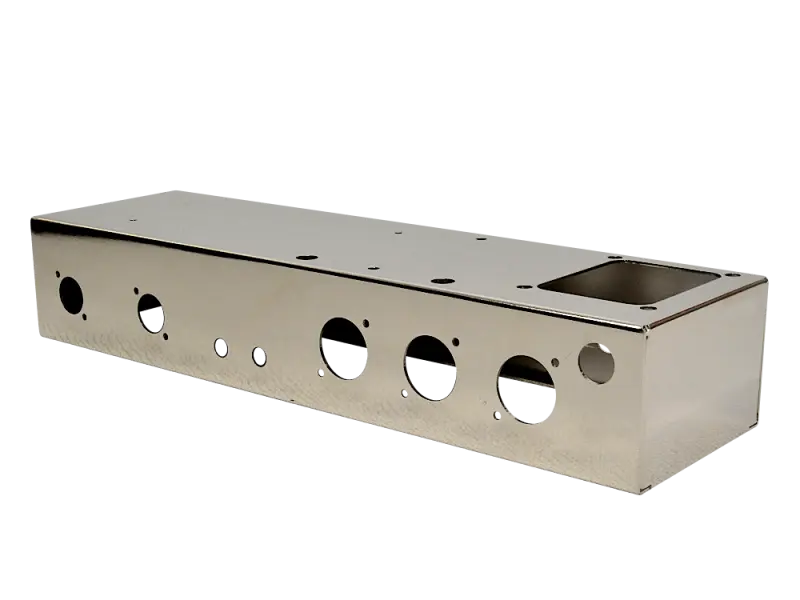

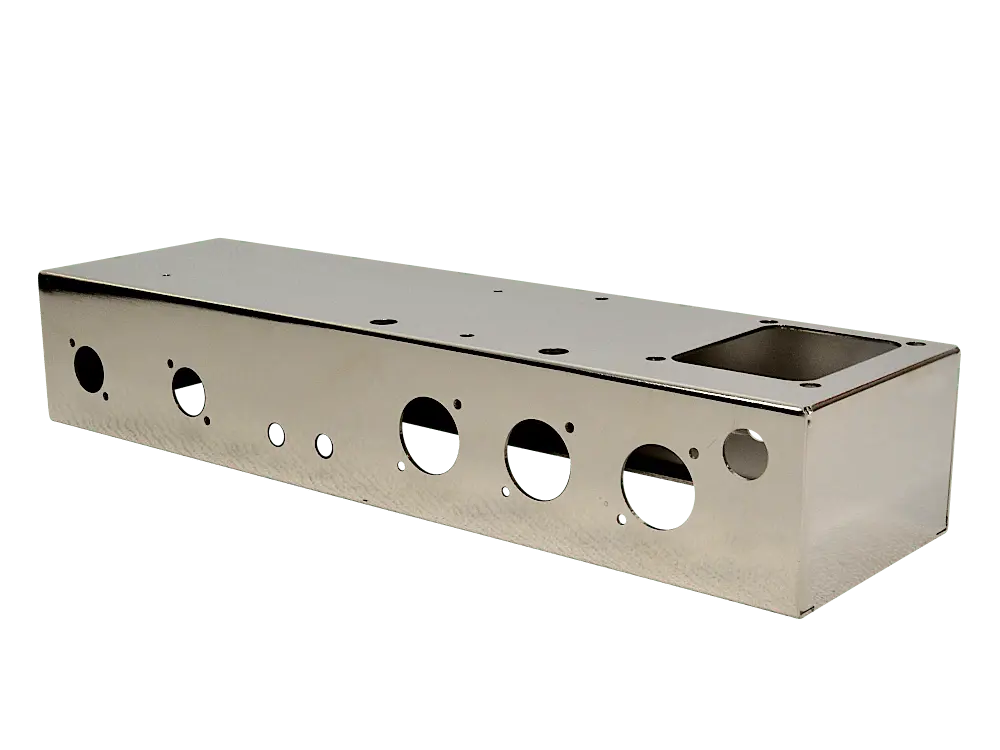

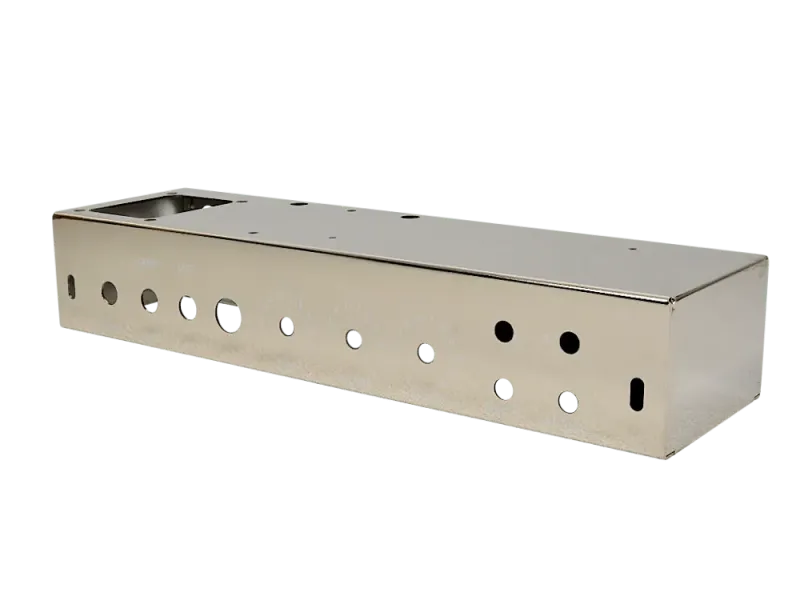

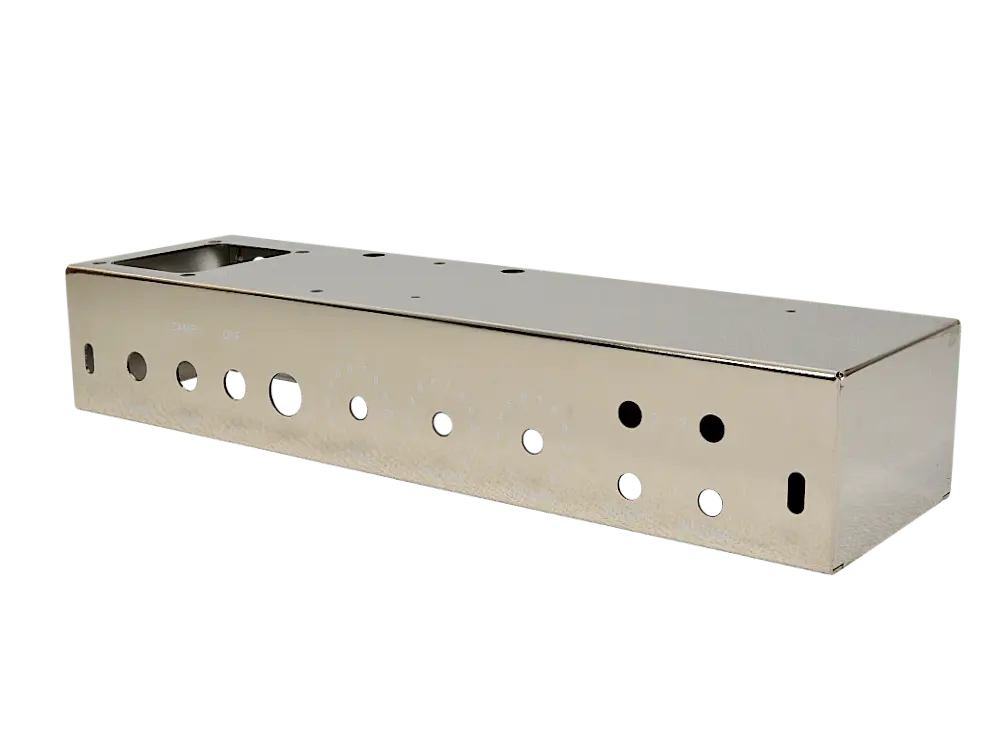

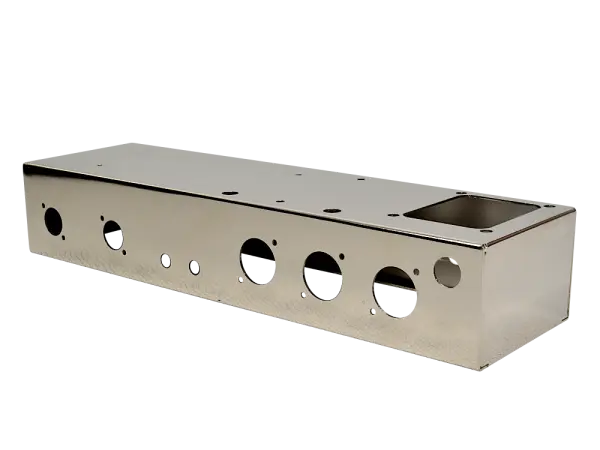

TT-Chassis Fender Style 5E3

Replacment for Fender Amps

• Chassis Hole: 17,5 mm
• Threading: 9/16 - 24

High-Power 5E3 transformer for the use of 6L6 tubes (or similar) with a 5E3

• Pri.: 0 - 230 - 240 V (50Hz)
• Sec.1: 320 - 0 - 320 V @ 300 mA DC
• Sec.2: 3,15 - 0 - 3,15 @ 5A
• Sec.3: 0 - 5V @ 3A
• Made in Europe

Files:

• Datasheet

Fender-Style Outputtransformer for 5E3, vertical mounting

• Pri.: 8000 Ohm C.T.
• Sec.: COM-4-8-16 Ohm
• Power: 25 Watt

Files:

• Datasheet

Drill Ø: 12 mm
Rated voltage: 250 VAC
Rated current: 10 A (VDE), 16 A (UL/CSA)

Tube-Shield for Belton socket VT9-ST-C

• Color: silver
• Length: 50 mm
• Including Base and Shield

• Powertransformer for (Deluxe, 5A3, 5B3, 5C3, 6G3, AB763) (Deluxe Reverb, A1172, A1270, AA763, AB763, AB868, Blackface, Silverface, W/Volume Boost, Tweed Tremolux)
• Fender Part Number 125P23D and 041316
• needed chassis cut-out around 68x54 mm
• Pri: 240V 50 Hz
• Sec.1: 660 VCT @ 138mA
• Sec.2: 6.3 V @ 3 A
• Sec.3: 5 V @ 3 A

Files:

• Datasheet

• Tube-Town EZ-Board 5E3
• Size: 230 x 71 mm
• Material: 2 mm FR, black
• Can be used as an eyelet board or can be equipped with turrets and used as turret board
• On-board connections already available
• Same board used for the TT-5E3 kits

High-Power 5E3 transformer for the use of 6L6 tubes (or similar) with a 5E3

• Pri.: 0 - 230 - 240 V (50Hz)
• Sec.1: 320 - 0 - 320 V @ 300 mA DC
• Sec.2: 3,15 - 0 - 3,15 @ 5A
• Sec.3: 0 - 5V @ 3A
• Made in Europe

Files:

• Datasheet

• Type: Aluminum Electrolytic Capacitors
• Capacitance: 22 µF
• Voltage Rating: 450 V
• Tolerance: +/- 20%
• Operating Temperature Range: - 40°C / + 85 °C
• Dimensions: Ø 16 mm x 30 mm
• Termination Style: axial

Wire Silicon, SiAF

• Insulation: Silicon
• Operation Voltage: 500 V
• Test Voltage: 2000 V
• Operating temperatures: –50 bis +180 °C
• Packing: 5 m
• Cross-Section: 0,75 mm²
• Outer Diameter: 2,25 mm
• Stranded wire structure: 24 x 0,20 mm, tinned copper

• Type: Electrolytic capacitor
• Capacitance: 22 µF
• Voltage Rating: 100 V
• Tolerance: - 20 % / +20 %
• Operating Temperature Range: - 40°C / + 85 °C
• Dimensions: Ø 7 mm x 11 mm
• Termination Style: axial

Images are for reference only. See Product Specifications

JJ5Y3S rectifier tube with directly heated cathode. Robust and durable.

Files:

• Datasheet

• Type: Metalized Polyester Film Capacitors (PET)
• Voltage Rating: 630 VDC / 220 VAC
• Tolerance: +/- 10%
• Operating Temperature Range: - 55°C / + 100 °C
• Termination Style: axial

Mallory Type 150 is a general purpose capacitor for use in blocking, bypass, decoupling, smoothing and some timing applications.

• Epoxy end fill meets UL94V-0
• Non inductively wound
• Flame retardant outer wrap meets UL510
• Non polar

Specifications:

• Operating Tempeature Range: –55 ºC to +125 ºC (derate linearly to 50% rated voltage at 125 ºC)
• Dielectric Withstand Voltage: .6 x rated voltage for 2 s @ +25 ºC ±5 ºC
• Dissipation Factor (DF): tgd x 10–4 at +25 ºC ±5 ºC
• Insulation Resistance: 10,000 MO x µF, 30,000 MO Min.
• Self Inductance: 1 nH max. per 1 mm lead and body length
• Life Test: 1000 hrs @ 85 ºC 1.25 x Vn
• Damp Heat Test: 95% RH @ +45 ºC for 21 days
• Soldering: 260 ºC ±5 ºC for 10 s ±1 s
• Long Term Storage Stability: ?C/C = ±3% after 2 years

• Type: Aluminum Electrolytic Capacitors
• Capacitance: 15 µF
• Voltage Rating: 450 V
• Tolerance: +/- 20%
• Operating Temperature Range: - 40°C / + 85 °C
• Dimensions: Ø 14 mm x 30 mm
• Termination Style: axial

Wire Silicon, SiAF

• Insulation: Silicon
• Operation Voltage: 500 V
• Test Voltage: 2000 V
• Operating temperatures: –50 bis +180 °C
• Packing: 5 m
• Cross-Section: 0,75 mm²
• Outer Diameter: 2,25 mm
• Stranded wire structure: 24 x 0,20 mm, tinned copper

• Tube-Town EZ-Board 5E3
• Size: 230 x 71 mm
• Material: 2 mm FR, black
• Can be used as an eyelet board or can be equipped with turrets and used as turret board
• On-board connections already available
• Same board used for the TT-5E3 kits

Wire Silicon, SiAF

• Insulation: Silicon
• Operation Voltage: 500 V
• Test Voltage: 2000 V
• Operating temperatures: –50 bis +180 °C
• Packing: 5 m
• Cross-Section: 0,75 mm²
• Outer Diameter: 2,25 mm
• Stranded wire structure: 24 x 0,20 mm, tinned copper

Replacment for Fender Amps

• Chassis Hole: 17,5 mm
• Threading: 9/16 - 24

Fender® style lamp jewels

• Threading: 9/16 - 24
