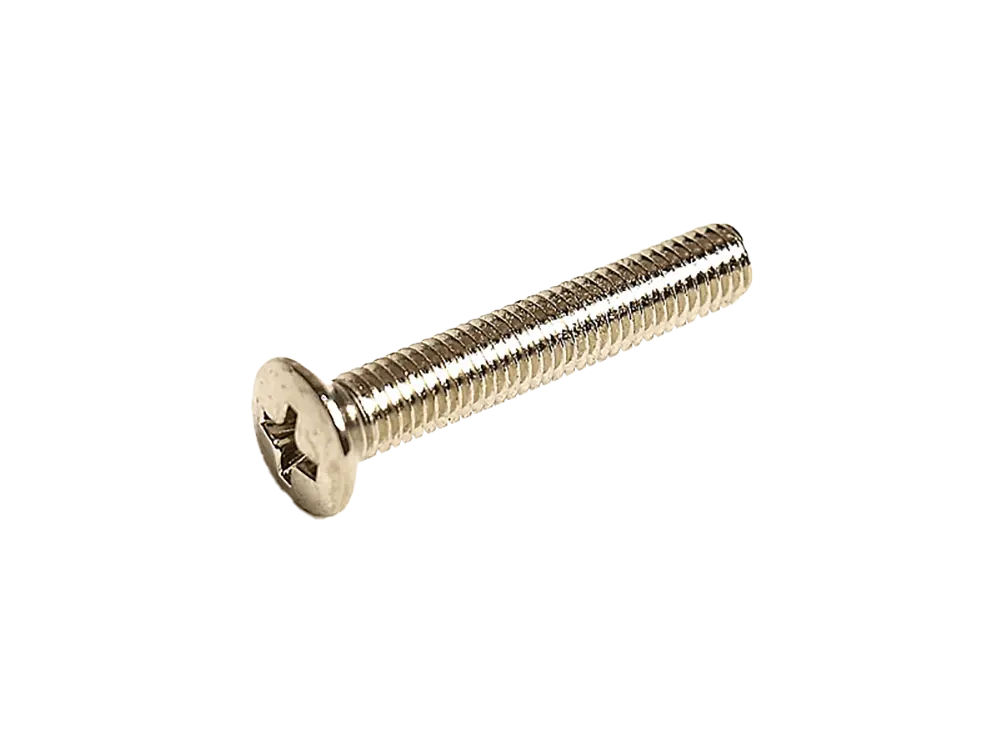

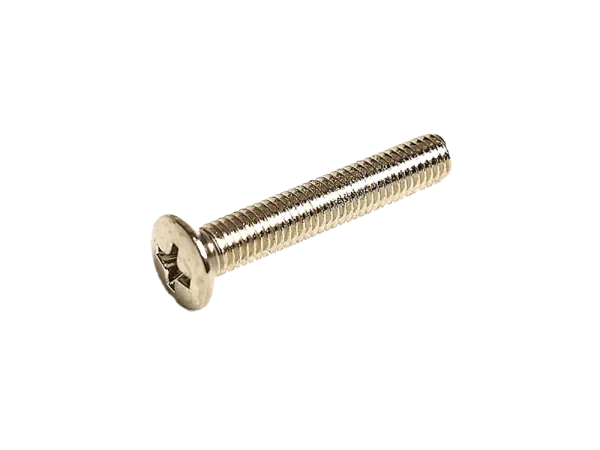

Countersunk raised head screw M5 x 30 mm, DIN 966 / ISO 7047

5E3 Hi-Power Aluminium Chassis

• Size: 400 x 110 x 67 mm
• Material: 2 mm Aluminium (AlMg3)
• Lettering: none
• Fits TT-XT5-PW and similar PTs
• Made in Germany

• Datasheet

TT-Chassis Fender Style 5E3
Dimensions: 369 x  67 x 106 mm (W x H x D)
Lettering: Standby - Fuse - ON - Tone - Volume - Bright - Normal

Attention:
The Hammond Powertransformer 290AEX / 291AEX does not fit onto this chassis. Please use
290BEX/291BEX instead. The platevoltage of the 290BEX is 10V higher and it has a bias tap too, but that is
no problem!

5E3 Generic Aluminium Chassis

• Size: 370 x 105 x 68 mm
• Version 2020, improved construktion
• Material: 2 mm Aluminium (AlMg3)
• Lettering: none
• Fits Hammond 290/291BEX and similar PTs
• Made in Germany

• Datasheet
• Datasheet (3D)

• Fender Item number #0990943000
• Mounting fittings: Steel, nickel plated
• black
• Screws and t-nuts included

• Type: Countersunk raised head with cross recess
• Material: Steel
• Strength class: 4.8
• Surface: Zinc-plated
• DIN: 966
• ISO: 7047
• Price: per pcs.

• Outside Diameter: 13,50 mm
• Inside Diameter: 5,30 mm
• Pack with 12 pcs.

Carbonfilm Resistor
Low noise, small size, high power rating
Power: 1 Watt
Voltag: 500 V working / 1000 V overload
Axial Leads
-55° C - 155° C
12 * 5 mm
RoHS

Carbonfilm Resistor
Low noise, small size, high power rating
Power: 1 Watt
Voltag: 500 V working / 1000 V overload
Axial Leads
-55° C - 155° C
12 * 5 mm
RoHS

Metaloxide film resistor

• Nominal Power: 1 Watt
• Max. cont. Working Voltage:: 500 V RMS
• Tolerance: +/- 1%
• Temperature range: -55° C...200° C
• Flame retardant
• Very Small Size
• Size: 6,3 x 2,4 mm
