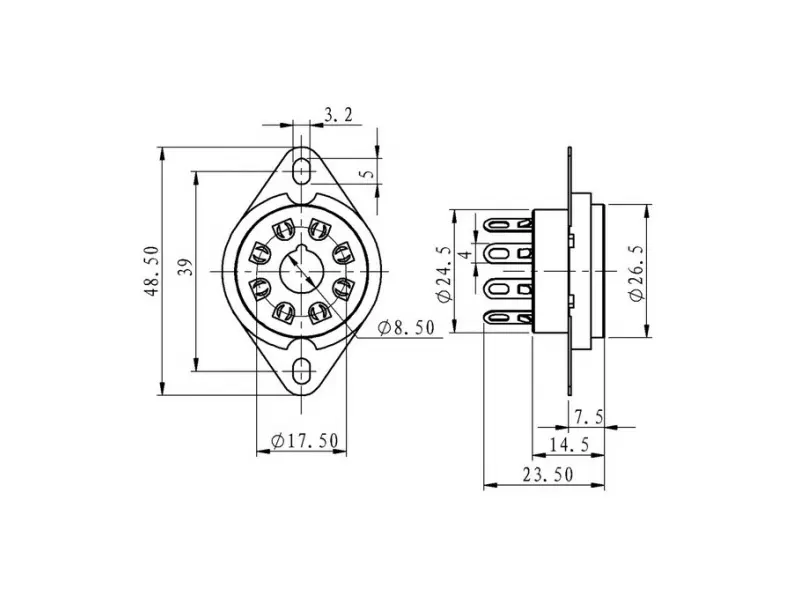

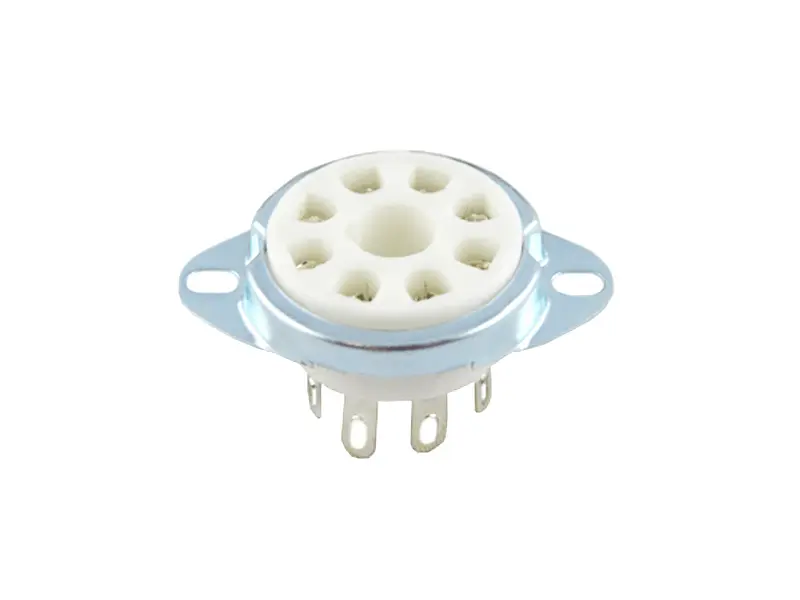

Socket Octal Ceramic Fender Style, Chassis

Aluminium Chassis Low XL

• 2 mm Aluminium
• predrilled
• made for the LoW-Kits
• 3 sockets for use with noval OR octal sockets
• Mounting: with cage nuts (not included)

Files:

• Datasheet
• Template Faceplates

Mica Capacitors

• Voltage Rating:    500 V
• Tolerance: 5%
• Operating Temperature Range: - 50°C / + 150°C
• Termination Style: radial

Resistor Metaloxide 2 Watts

• +/- 5% tolerance
• -55° C to 240° C operating range
• Max 500 V
• Excellent flame retardant coating
• Different manufacturers

Please note:
These resistors have a very small form factor:
red: l = 10 mm, d = 3.9 mm
green: l = 11.5 mm, d = 4.5 mm

This tube is recommend to tame the gain of an amp and make it sound "sweeter". The 5751 has only a gain of 70 instead of 100 like the typical 12AX7/ECC83 tube type and can be used as a drop in replacement for 12AX7 / ECC83 tubes.

Files:

• Datasheet



TT-Chassis Aluminium - Typ 008 Standard, Dumble-Size (V2020

• Size: 490 x 200 x 65 mm (Dumble size)
• Material: 2 mm Aluminium
• Mounting: with cage nuts (not included)
• reinforced Corners
• With two cut-outs for power jacks
• Made in Germany

Files:

• Datasheet V2020
• Datasheet V2017 (old)

2 Tubes matched as pair
The JJ 6L6 is very popular because of its warm sound.

Files:

• Datasheet

NLJ2MD-V

2 pole combination of speakON socket and 1/4" jack receptacle, vertical pcb mount, same pcb footprint and panel cut out as NL4MD-H

First speakON / jack hybrid panel mount connector combining the speakON chassis connector with a 1/4" 2 pole jack socket permitting connection using either type of plug. The speakON Combo mates with all 2- and 4-pole speakON cable connectors and 1/4" jack plugs utilizing 2 contacts.

Features & Benefits

• Combine Speakon D size receptacle and 1/4" jack
• Save rack space and costs by combining 2 connectors in one housing
• Mates with two types of connectors offering greater flexibility of interconnections
• Rear panel mount
• PA-wiring: 1+ is connected to Tip, 1- to Sleeve

Files:

• Datasheet

• Single Relais PCB for channel switching etc..
• Size: 41 x 35 mm
• For the use with Finder Relais type 30.22.9xx  (or relais with similar pin layout).

Miniature Signal Relays

• Dimensions: 20.2 x 9.8 x 12.5 mm
• Function: 2 x changeover contacts, DPDT
• Nominal voltage: 5 V/DC
• Nominal load: 1 A - 24 V/DC, 0.5 A - 120 V/AC
• Max. switching voltage: 60 V/DC / 120 V/AC

Files:

• Datasheet

• Type: Multisection Capacitor
• Capacitance: 100 + 100 µF
• Voltage Rating: 500 V
• Tolerance: - 10% / +30 %
• Operating Temperature Range: - 40°C / + 85 °C
• Dimensions: Ø 35 mm x 67 mm
• Termination Style: radial, solder lugs

Capacitor Clamp

d = 35 mm

ORANGE DROP®, Low Loss

• Type:  Polypropylene Film Capacitors
• Voltage Rating: 600 V
• Tolerance: - 10 % / +10 %
• Operating Temperature Range: - 55°C / + 85 °C
• Termination Style: radial

ORANGE DROP®, 716 P Series

• Polypropylene Film Capacitors, extended foil
• Voltage Rating: 600 V
• Operating Temperature Range: - 55°C / + 85 °C
• Termination Style: radial, copper leads
