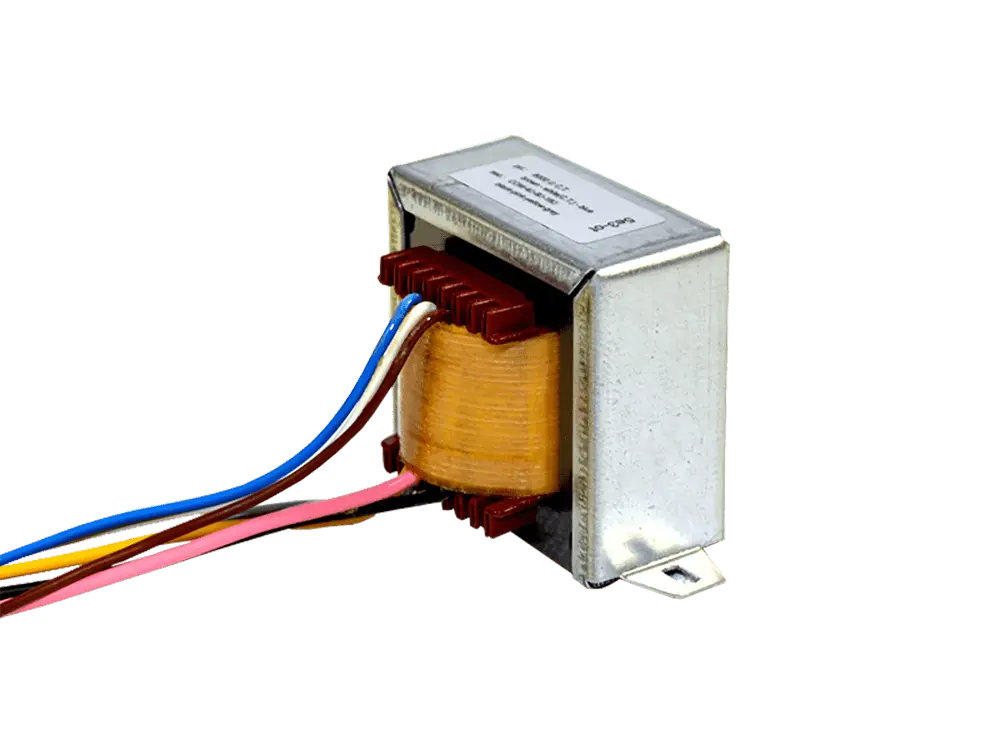

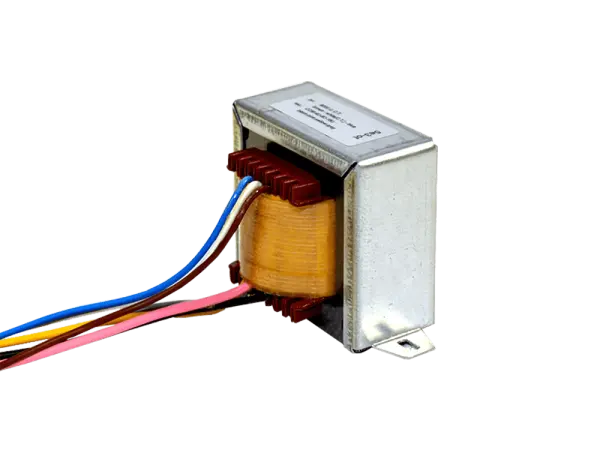

TT Fender® Style 5E3 Output Transformer 25 W / 4-8-16 Ohm
TT Fender® Style 5E3 Output Transformer 25 W / 4-8-16 Ohm
TT Fender® Style 5E3 Output Transformer 25 W / 4-8-16 Ohm

TT Fender® Style 5E3 Output Transformer 25 W / 4-8-16 Ohm

Product No.:
tt-5e3-ot
<font color=green><b>In stock for immediate delivery.</b></font> </br>Delivery time depends on the destination country* In stock for immediate delivery.
Delivery time depends on the destination country*
RoHs:
conform
Weight:
1.1 kg per piece
49,80 €

incl. VAT excl. Shipping costs

Bookmark
Ask Question
Description

Fender-Style Outputtransformer for 5E3, vertical mounting

  • Pri.: 8000 Ohm C.T.
  • Sec.: COM-4-8-16 Ohm
  • Power: 25 Watt

Files:

Information about the manufacturer
Herstellerinformationen | Manufacturer Information

Tube-Town GmbH
Rumbergring 37
D-66969 Lemberg
eMail: info@tube-town.de
Customer reviews (2)

Essential information about customer reviews We do not verify that the published reviews come from such consumers who have actually used or purchased the rated goods or services. All reviews, i.e. positive and negative, are published. No reviews that are unobjective, offensive or unrelated to the product will be published.

Unfortunately there are no review yet. Be the first who rate this product.

Needed for:

TT-Chassis Fender Style 5E3
TT-Chassis Fender Style 5E3

TT-Chassis Fender Style 5E3
Dimensions: 369 x  67 x 106 mm (W x H x D)
Lettering: Standby - Fuse - ON - Tone - Volume - Bright - Normal

Attention:
The Hammond Powertransformer 290AEX / 291AEX does not fit onto this chassis. Please use
290BEX/291BEX instead. The platevoltage of the 290BEX is 10V higher and it has a bias tap too, but that is
no problem!
