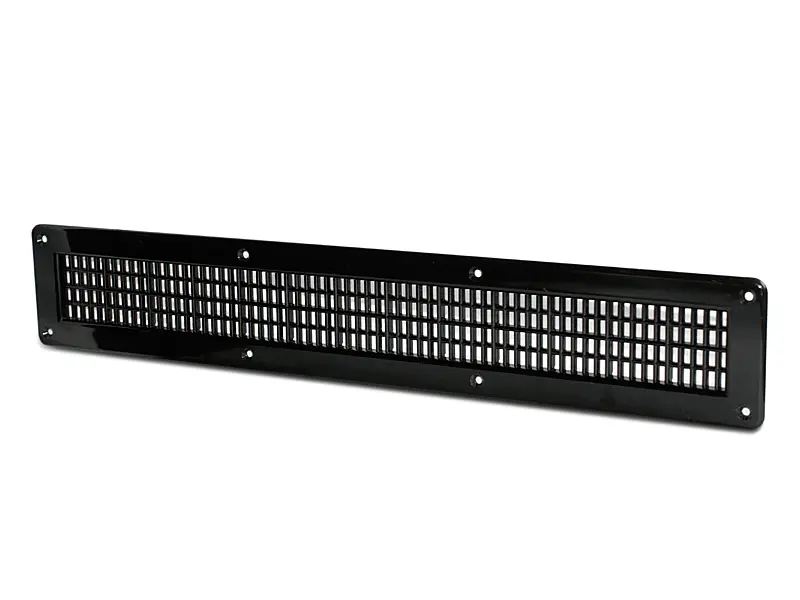

Marshall vent, plastic black, JCM800

Mallory Type 150 is a general purpose capacitor for use in blocking, bypass, decoupling, smoothing and some timing applications.

• Epoxy end fill meets UL94V-0
• Non inductively wound
• Flame retardant outer wrap meets UL510
• Non polar

Specifications:

• Operating Tempeature Range: –55 ºC to +125 ºC (derate linearly to 50% rated voltage at 125 ºC)
• Dielectric Withstand Voltage: .6 x rated voltage for 2 s @ +25 ºC ±5 ºC
• Dissipation Factor (DF): tgd x 10–4 at +25 ºC ±5 ºC
• Insulation Resistance: 10,000 MO x µF, 30,000 MO Min.
• Self Inductance: 1 nH max. per 1 mm lead and body length
• Life Test: 1000 hrs @ 85 ºC 1.25 x Vn
• Damp Heat Test: 95% RH @ +45 ºC for 21 days
• Soldering: 260 ºC ±5 ºC for 10 s ±1 s
• Long Term Storage Stability: ?C/C = ±3% after 2 years

• Bridge Rectifier
• Average Rectified Output Current Io (@TA = 50°C): 1,5A
• Forward Voltage Vfm(@IF = 1.5A): 1,0 V
• Peak reverse Voltage: 200 V

• Type: Aluminum Electrolytic Capacitors
• Capacitance: 22 µF
• Voltage Rating: 350 V
• Tolerance: +/- 20%
• Operating Temperature Range: - 40°C / + 85 °C
• Dimensions: Ø 12 mm x 30 mm
• Termination Style: axial

• Electrolytic capacitors, insulated aluminum can
• Capacitance: 22 µF
• Voltage Rating: 63 V
• Tolerance: - 10 % / +30 %
• Operating Temperature Range: - 40°C / + 85 °C
• Dimensions: Ø 6 mm x 10 mm
• Termination Style: axial
• Mallory Vishay

Images are for reference only. See Product Specifications

T-Nut M5
Pack with 8 pcs.

• Standard Recovery Rectifier
• Voltage max: 1000V
• Current Rating: 1A
• Forward Current: 1A
• Forward Current Avg Rectified, IF(AV): 1A
• Forward Surge Current Max, Ifsm: 1A
• Forward Voltage: 1 V
• Forward Voltage Max, VF:1.3V
• Pack of 10 pcs

• Eyelet 1/8"
• recommended for use with 2 mm boards
• Length under flange: 0,125" / 3,18 mm
• 50 pcs/Pack

Files:

• Datasheet

Fender Tweed Standard

• Length ca. 90 cm
• Width ca. 160 cm
• 100% cotton
• Price per pcs.
• Actual shades may vary.

FAQ: yes, it is this original Fender Tweed and no, it is not yet vanished or lacquered. If a coating is neede, then this must be done after the Tweed is applied on the speaker cab or headshell.
Other sizes are not available,

Width approx. 135 cm
Price per running meter
Color reproduction depends on the computer monitor and may vary
Supplied as one continuous piece when ordering more than 1 m

Material:

• 80% PVC film
• 20% polyester-cotton fabric
• REACH compliant

Please note!
When ordering more than 1 m of Tolex and selecting Deutsche Post / DHL Paket or Express as the shipping method, the Tolex will be cut to a width of approx. 115 cm. This is due to the maximum permitted parcel length of 120 cm for these shipping services.
To receive the full roll width, GLS or ExprexxXL must be selected as the shipping method.
