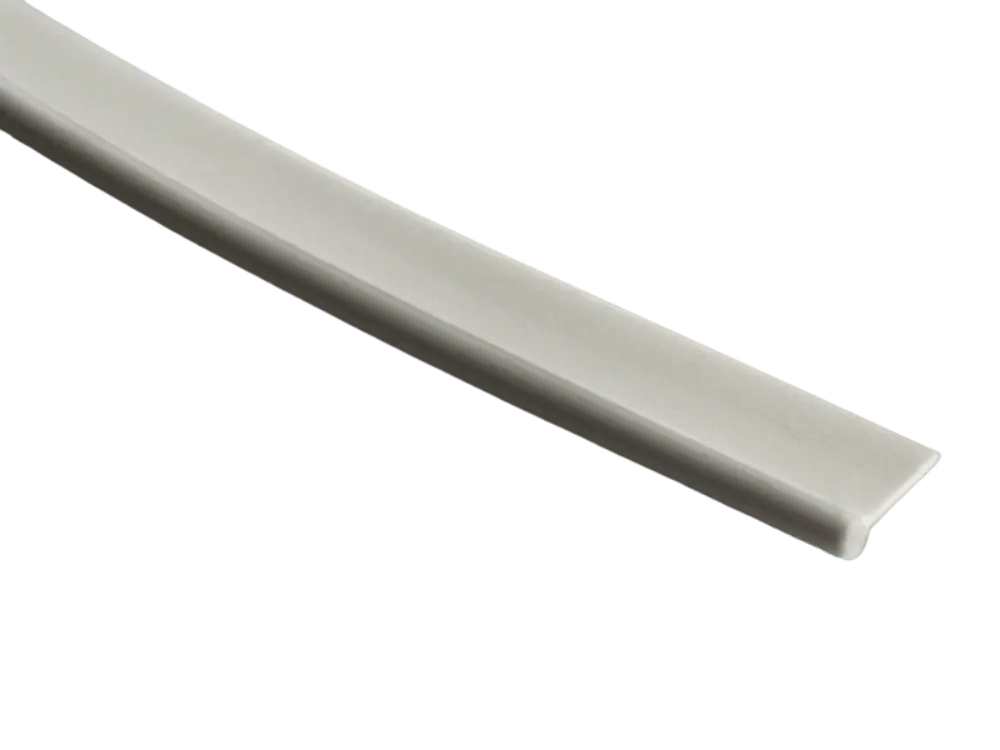

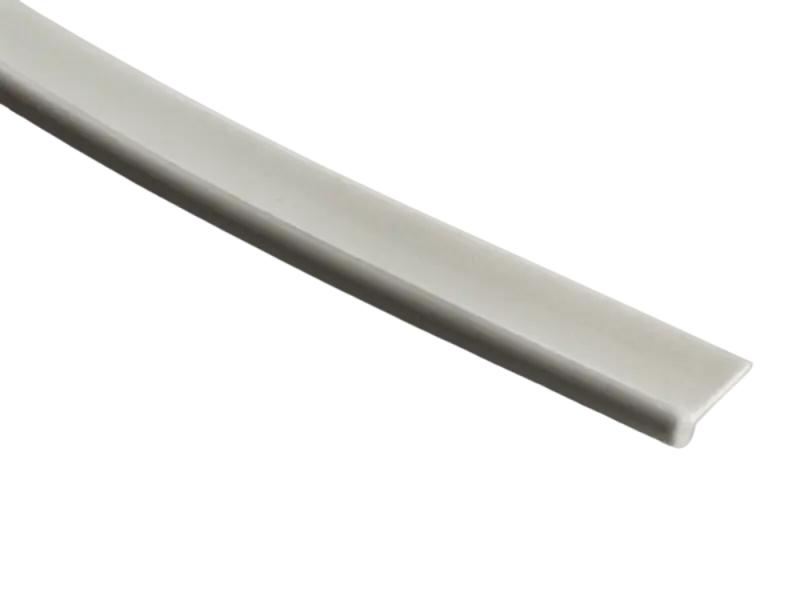

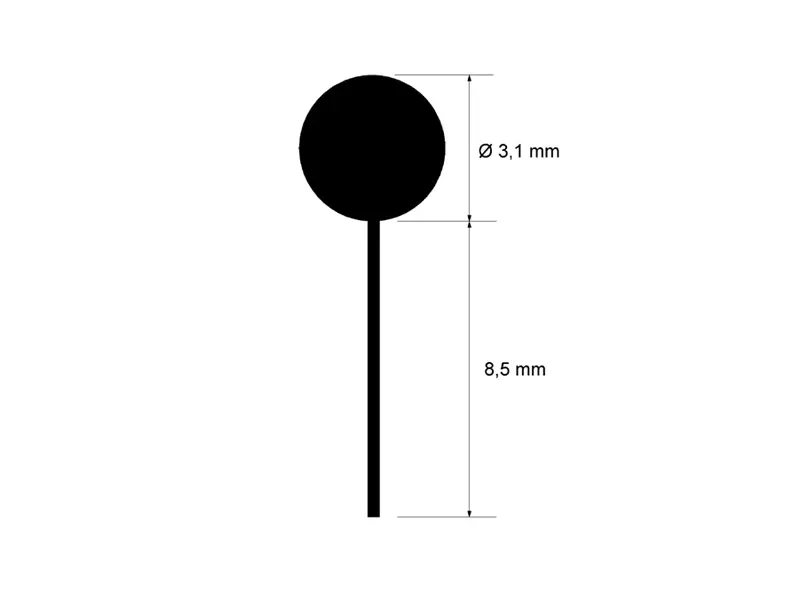

Piping medium, white - 3.1 x 8.5 mm - Pack of 4 m

Mounting kit for all TT-Chassis which are designed for mounting with cagenuts and 19" housings

Included are:

• 4 x cagenut M6
• 4 x thread screw M6 x 30

Spring Retainer EL84 / ELL844 and tubes with a similar size

An AC30 / EF86 - One Channel all tube amp

Set of componentes for building the TT Spit F. Guitar Amp.
Please visit the >>Project page for more infos about the amp, schematics and layout.
Soundclip of the AC18, made by one of our customers: https://youtu.be/eZ-6LP3p5ns

INCLUDED:

• Outputtransformer Hammond 1750PA
• Powertransformer Tube-Town 18W, 0-120-230-240V @ 50/60 Hz (since batch 26. Feb. 2020)
• Resistors
• Capacitors
• Jacks
• Light
• Wires
• Board
• Switches
• Tubes
• Fuses & Fuesholder

NOT INCLUDED:

• Chassis ( see "Accessories" tab for matching chassis )
• Knobs
• Faceplate

To build this project knowledge in electric engeneering, experience with high voltage, and the reading and understanding of schematics and dealing with measurement device is highly recommended .
There is NO step-by-step guide for beginners. The circuit and layout plan includes all relevant information. If you don't understand it then don't build it.
THIS IS NOT A BEGINNERS PROJECT !

VOX® vent small, black
Size ca. 41 x 141,5 mm

• Size (L x W): ca. 100 x 80 cm (only available in this size)
• Material: 100% treated paper
• Price per pcs.
• Actual shades may vary.

Further information and notes on Grillcloth

• FAQ Grillcloth

• Self tap screw
• flange head
• DIN 968
• 4.5 x 19 mm, black
• Extra Flat - ideal for the mounting of the corners

NL4MPR

4 pole chassis connector, black round G-size flange, countersunk thru holes, 3/16" flat tabsThe state-of-the-art chassis connector for loudspeaker / amplifier applications. They feature a unique locking system, robust plastic housing and high current silver plated contacts.

Features & Benefits

• Standard current rating 30 Amp
• High current version up to 50 Amp audio current
• Glass reinforced materials make it extremely robust and dependable
• Precise keyway for secure mating
• Accurate twist lock latching system
• Metal insert in locking area
• Airtight design - optimized for speaker applications

Files:

• Datasheet
