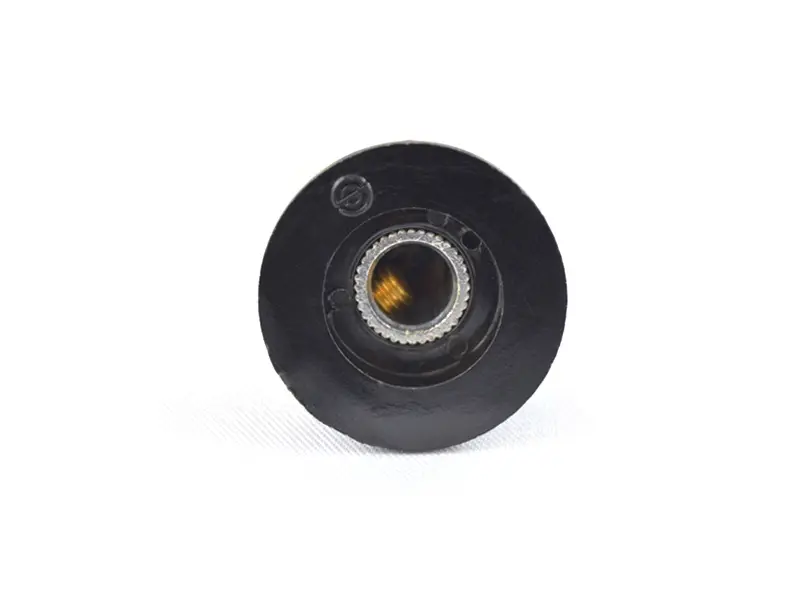

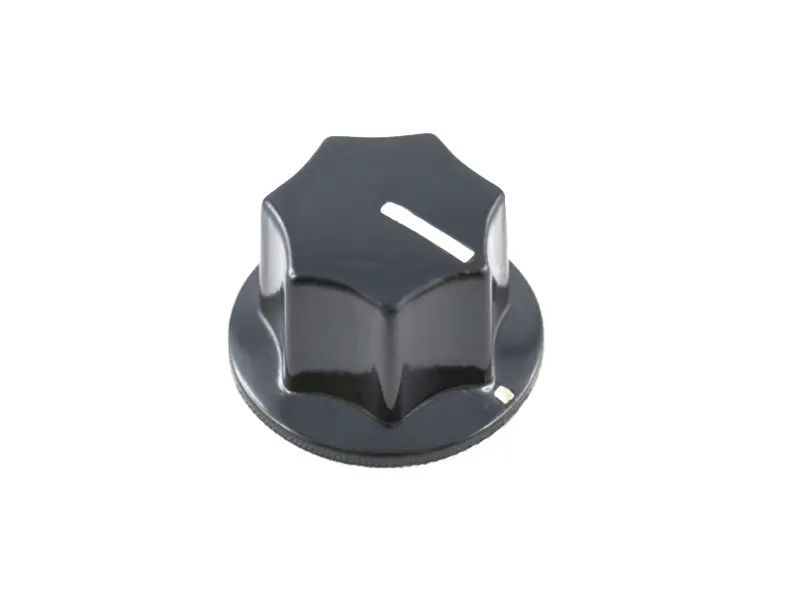

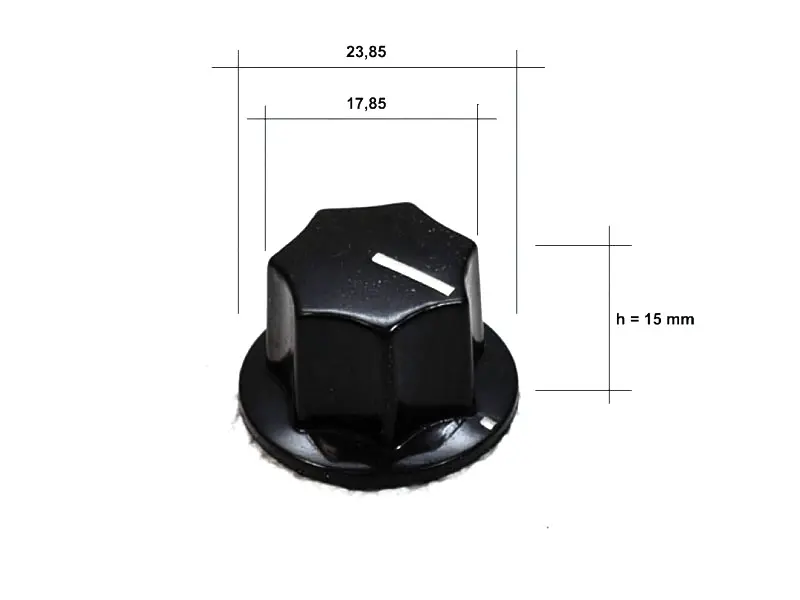

Knob Classic Black Fluted, LARGE

• Type: Toggle Switch
• Version: SPST, ON - OFF
• Rating: 15A / 250VAC, 10A / 400VAC
• Contact resistance: 10 mΩ max. at 1A 2VDC
• Insulation resistance: 1.000 MΩ min. at 500VDC
• Dielectric strength: 2.000 Vrms 50 Hz min.
• Operating Life: 10.000 cycles at full load
• Termination Style: solder lug / quick-connect terminals

Files:

• Datasheet

Power Jack, Chassis mount

• different manufacturer
• Ratings IEC: 10 A / 250 VAC; 50 Hz
• Norm IEC320 / C14
• Betriebsspannung: 10 A / 250 VAC; 50 Hz
• Material: Housing PA6, black, UL 94V-0

• Output Transformer 125A10B / 022923 Push-Pull
• for Princeton Reverb, Tweed Deluxe
• Pri: 8500 Ohm / CT
• Sec: 4, 8, 16 Ohm
• Power: 15 Watt

Files:

• Datasheet

• Material: polyamide
• Color: black
• Wall thickness: max.3.2 mm
• Mounting hole diameter: 30.1 mm
• Head diameter: 33.3 mm
• Overall covered length: 11.5 mm
• Operating temperatures: max. +105 °C

• Springs: 3
• Delay Type: medium
• Size: short
• Replacement: JC 120
• Accutronics by Accu-Bell, Made in Korea

• lighted red
• 20 A / 125 V AC
• 16 A / 250 V AC
• DPST ON-OFF
• Recess: 28.5 x 22 mm
• solder-lugs and quick connect terminals

Carbonfilm Resistor - Pack of 5

• Low noise, small size, high power rating
• Power: 1 Watt
• Voltag: 500 V working / 1000 V overload
• Axial Leads
• -55° C - 155° C
• 12 * 5 mm
• RoHS

Carbonfilm Resistor
Low noise, small size, high power rating
Power: 1 Watt
Voltag: 500 V working / 1000 V overload
Axial Leads
-55° C - 155° C
12 * 5 mm
RoHS
