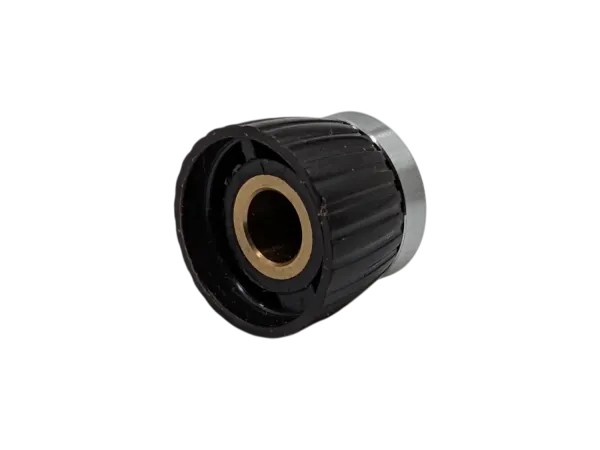

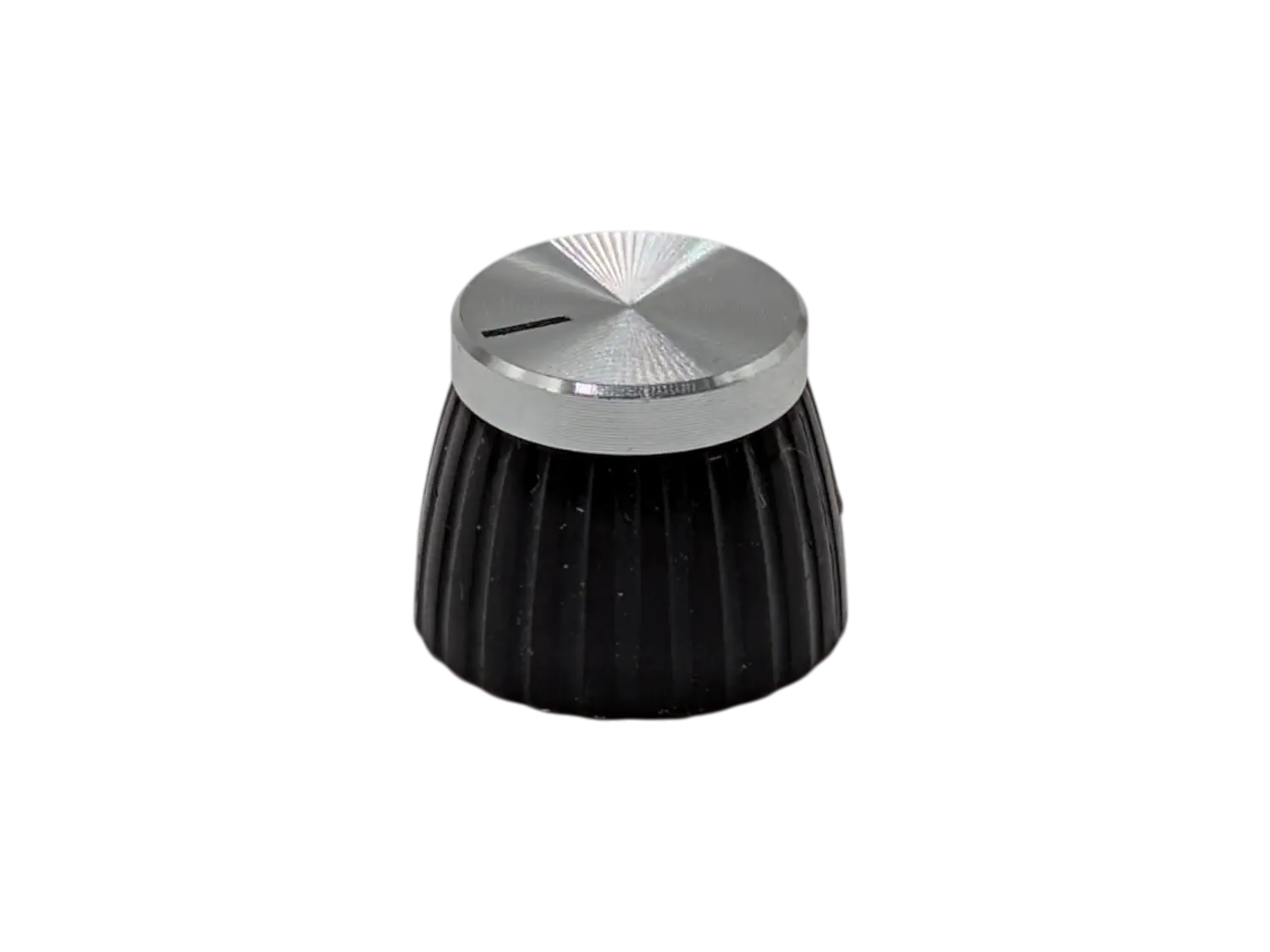

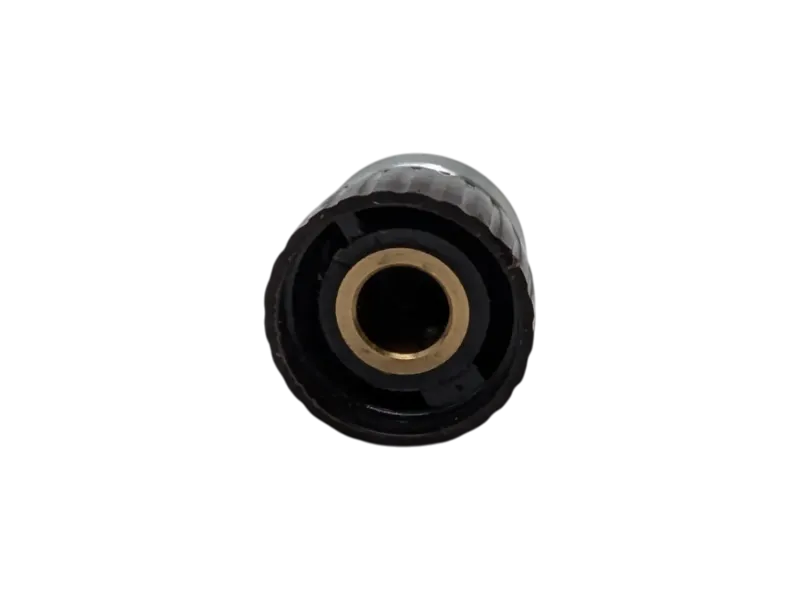

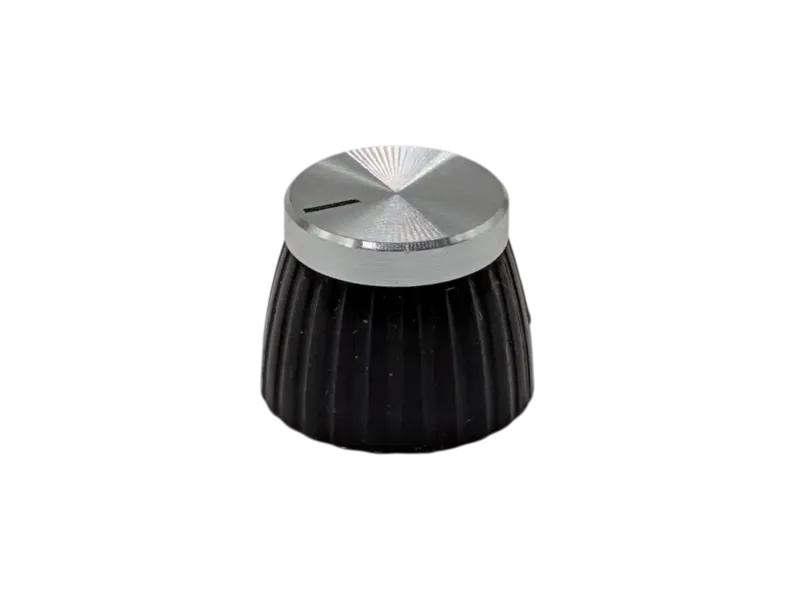

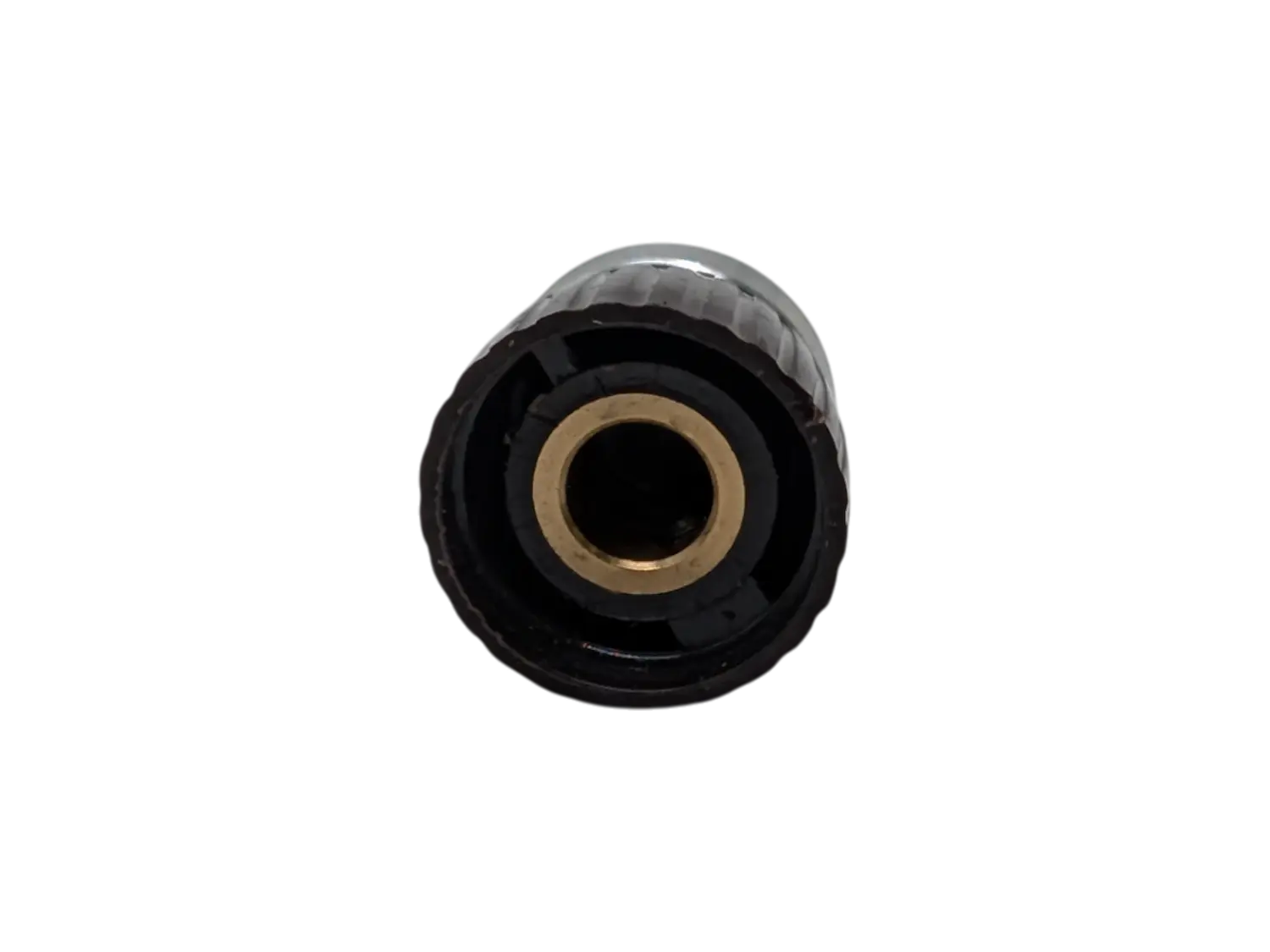

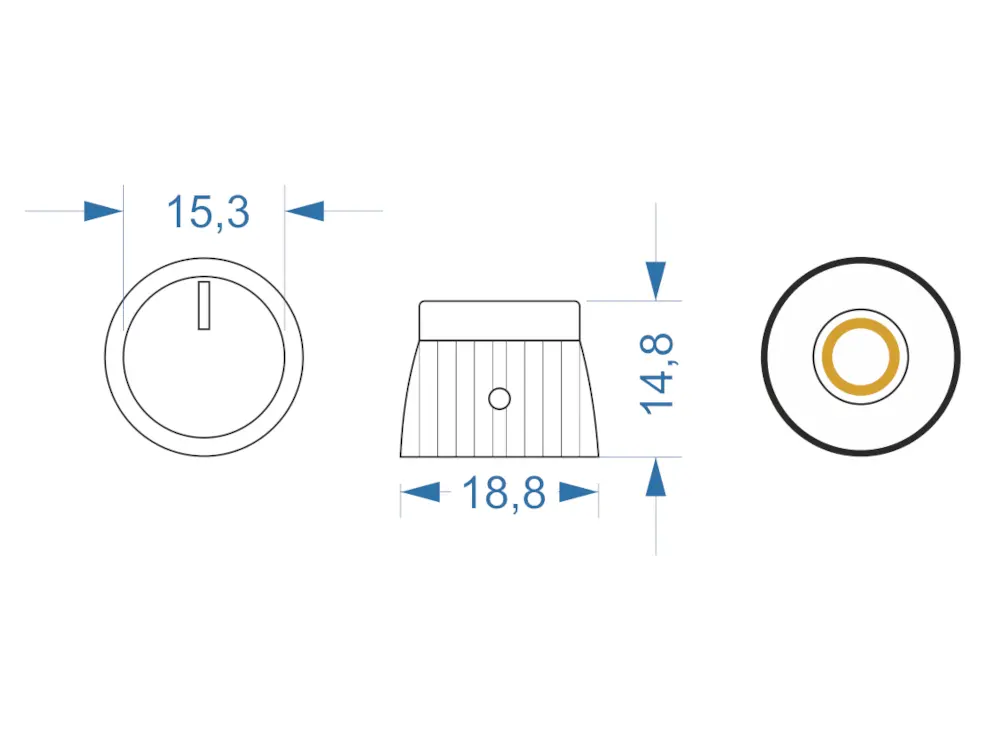

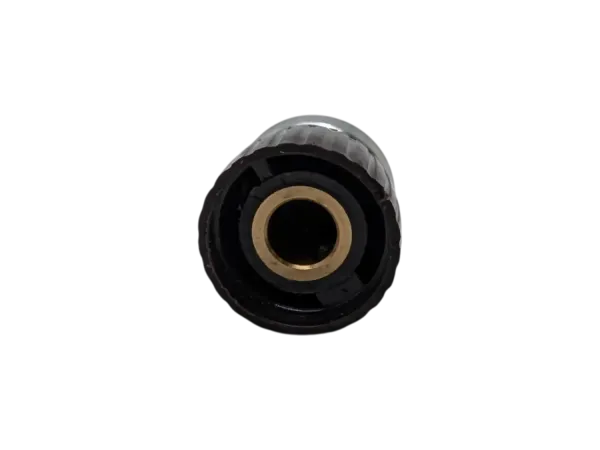

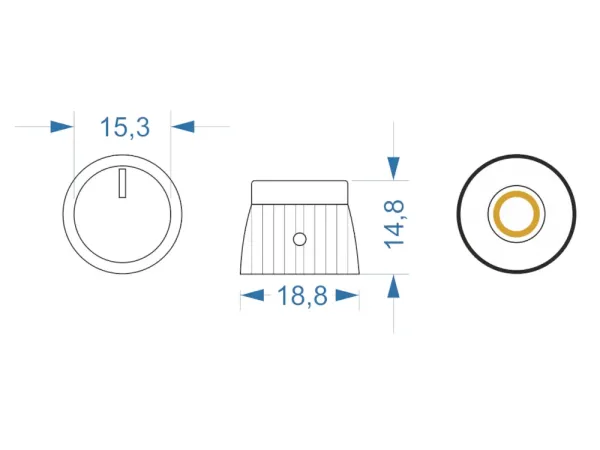

Marshall Style Knob "Silver Jubilee"

Set of componentes for building the TT Jim HP. Please visit the >>Project page for more infos about the amp.

INCLUDED:

• Transformers for 220, 230 and 240 V Mains
• Outputtransformer
• Resistors
• Capacitors
• Jacks
• Light
• Wires
• Board
• Switche
• PSU
• Tubes (2 x 12AX7, 1 x EL34)
• Fuses & Fuesholder

NOT INCLUDED:

• Knobs
• Chassis
• FX-Loop
• Faceplate

To build this project knowledge in electric engeneering, experience with high voltage, and the reading and understanding of schematics and dealing with measurement device is highly recommended .
There is NO step-by-step guide for beginners. The circuit and layout plan includes all relevant information. If you don't understand it than don't build it.

Set of componentes for building the TT LoW Jim - Version 2023. Please visit the >>Project page for more infos about the amp.

INCLUDED:

• Mains Transformer for 0-220-230-240 V mains
• Outputtransformer
• Resistors
• Capacitors
• Jacks
• Light
• Wires
• Board
• Switche
• PSU
• Tubes (2 x 12AX7, 1 x EL84)
• Fuses & Fuesholder

NOT INCLUDED:

• Knobs
• Chassis
• Faceplate

To build this project knowledge in electric engeneering, experience with high voltage, and the reading and understanding of schematics and dealing with measurement device is highly recommended .
There is NO step-by-step guide for beginners. The circuit and layout plan includes all relevant information. If you don't understand it than don't build it.

• Power Rating: 0,125 W
• Voltage Rating: 150 V AC
• Tolerance: 20%
• Shaft: 6,3 mm, Solid Shaft
• Shaft length: 15 mm
• Drill Ø: M7 (6,8 mm)
• Termination: Solder lugs
• Dimension: 16 mm

Relays, type Finder Dual-In-Line-Relais 2,0 A
for low breaking capacity

• Compact dimensions: 20.3 x 10.1 x 11.4 mm, grid according to wiring diagram
• Function: 2 x changeover contacts
• Constant/inrush current: 3.0 A/2.0 A
• Rated/switching voltage: 125 VAC/250 VAC
• Breaking capacity AC 1/AC 15 (230 V): 125 VA/25 VA
• Switching current DC 1:    2.0 A/30 V, 0.3 A/110 V
• Minimum switching load: 10 mW (0.1 V/1.0 mA)
• Contact material: AgNi+Au (5.0 µm)
• Useful mechanical life DC: 10 x 10 exp6 switching cycles
• Electrical life AC 1: 100 x 10 exp3 switching cycles
• Insulation coordination EN 61810-5: 1.2 kV/2
• Electric strength coil/contact (1.2/50 µs): 1.5 kV
• Response/release time: 6.0 ms/2.0 ms
• Ambient temperature: –40 to +85 °C
• Relay protection class: RT III
• Certifications: CSA, UL, GOST

• Datasheet

• Type: Footswitch
• Version: SPDT momentary ON - (ON)
• max. Rating: 2A / 250 VAC
• Drill Ø: 12 mm
• Termination Style: solder-lugs

EHX Oil Capacitors are oil impregnated, polyester capacitors that are enclosed in aluminum cylindrical cans and hermetically sealed for superior performance and durability. Impregnating the capacitors in oil eliminates air bubbles between the dielectric and foil that could affect their stability during operation. This enables the capacitors to operate over a wide temperature range with a very tight tolerance.
Originally, oil capacitors were only used in military and precision equipment as well as Hi-Fi audio. Due to their rich, natural tone, they are now widely used in guitars and guitar amplifiers. EHX Oil Capacitors have a balanced, detailed sound with a smooth, vintage top end. They will make any guitar or amplifier more responsive, touch sensitive, and refined.

Spezification:

• Capacitance: 0,0022 µF
• Voltage Rating: 600 V
• Dimensions:Ø 11 mm x 25 mm
• Termination Style: axial

• Power Rating: 0,125 W
• Voltage Rating: 150 V AC
• Tolerance: 20%
• Shaft: 6 mm, Splitt Shaft (knurled)
• Shaft length: 20 mm
• Drill Ø: M7 (6,8 mm)
• Termination: PCB
• Dimension: 16 mm

• Body: 24 mm
• Shaft: 6,35 mm, Split shaft
• PCB
• for JCM 800, 2205, 2210, etc.
• incl. one nut and one washer

• Size: M7 x 0,75 mm
• Price per nut

• Size (B x L) : 74 x 100 cm (only available with this size)
• Material: 94 % Polypropylen, 6 % Acrylic
• Price per pcs.
• Actual shades may vary.

• FAQ Grillcloth

Bourns PDA24 Potentiometer, SRT-Type (Standard Rotational Torque), smooth torque
This specialty potentiometer is commonly used in guitar and bass amplifiers. However, it is also suitable for use in electric guitars and basses. This product is designed with the features most widely requested by amplifier designers.

• Mounting: Panel
• Shaft Type: round, straight
• Terminal: Solder Terminal
• Power Rating:
  • Log: 250 mW (1/4W)
  • Lin: 500 mW (1/2 W)
• Max. Operation Voltage:
  • Log: 250 V
  • Lin: 500 V
• Standard Resistance Tolerance: 15%
• Operating Temperature: - 10 C bis +70 C
• Diameter Shaft:    6,35 mm
• LengthShaft: 19 mm
• Rotational Torque: Standard, 20 to 40 g-cm

• Power Rating: 0,25 W
• Voltage Rating: 250 V AC
• Tolerance: 20%
• Shaft: 6,35 mm, Solid Shaft
• Shaft length: 15 mm
• Drill Ø: M8 (7,8 mm)
• Termination: Solder lugs
• Dimension: 24 mm

Socket Clamp / Tube Retainer fits for many octal base tubes.
