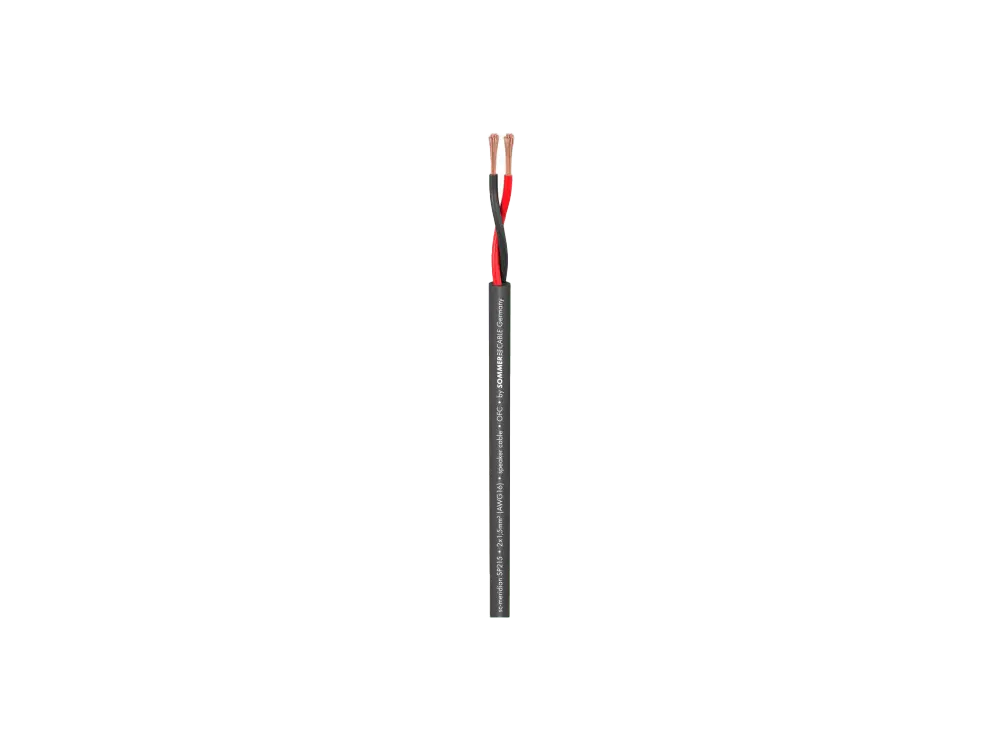

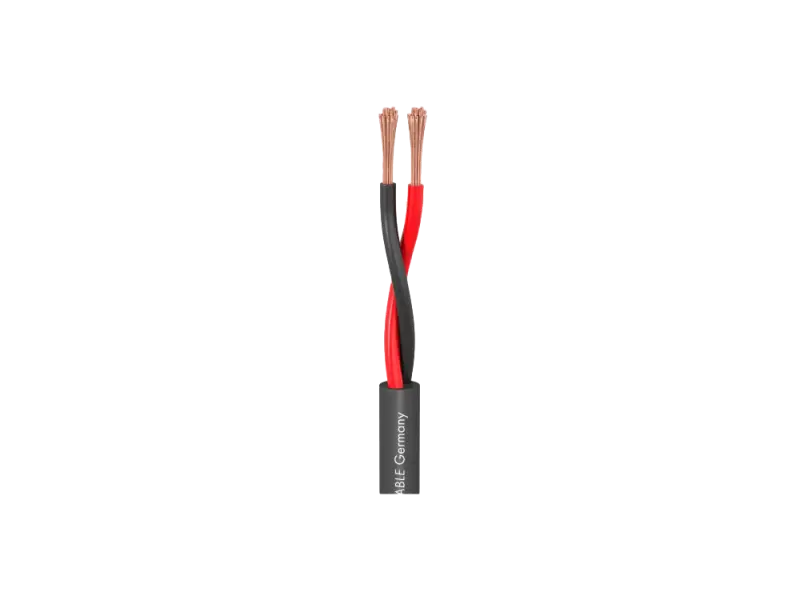

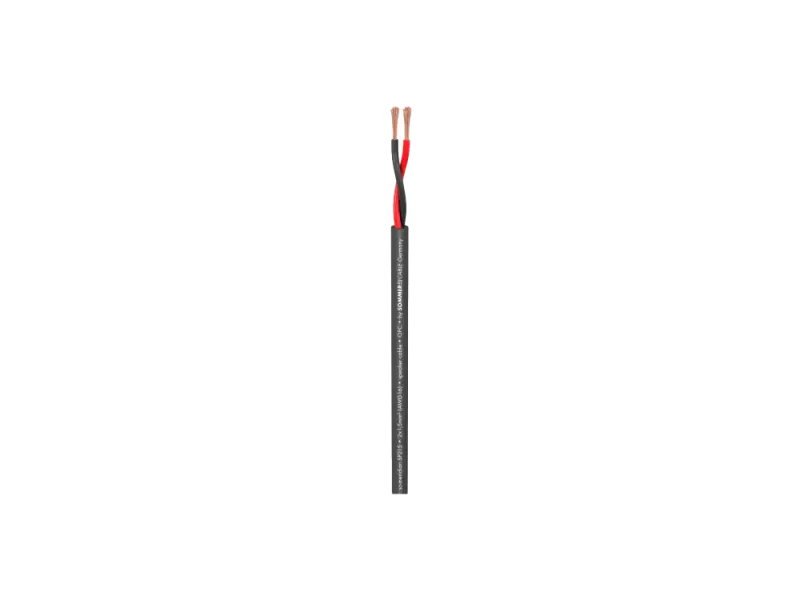

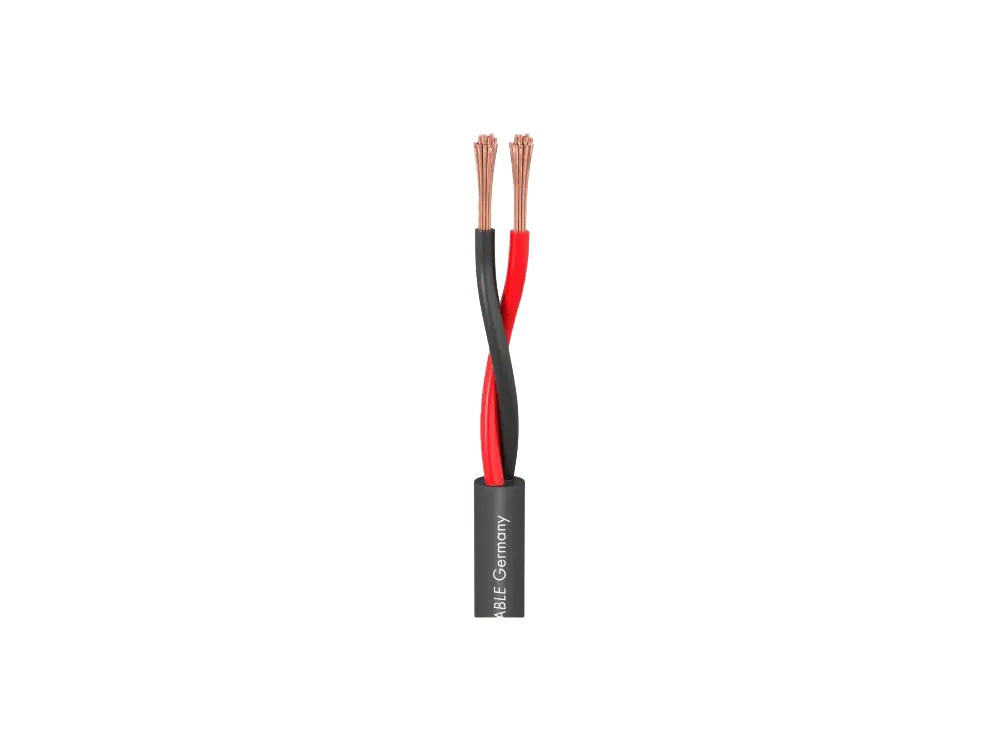

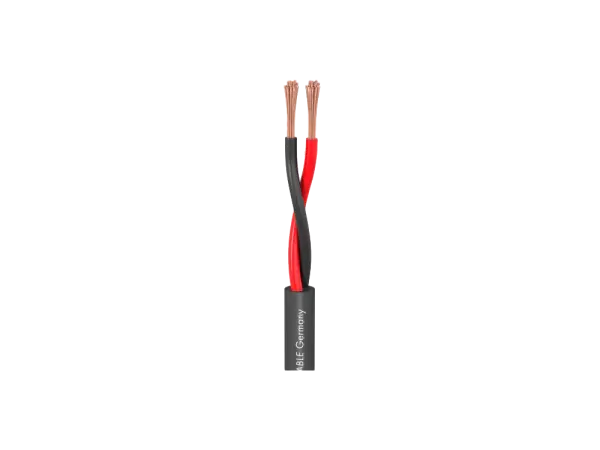

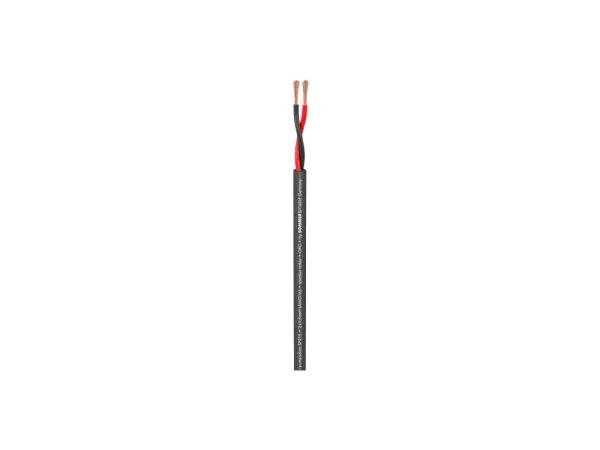

Speaker Cable MERIDIAN MOBIL SP215 - 2 x 1,5 mm², black - 2 Meter

Set of metal corners for housing consisting of:

• 8 x Cabinet corner w/ cutaway 2 leg, silver (ah4023b)
• Powder Coated black
• Internal radius: 12 mm
• 16 x Screws, flat head, black

Strap Handle Heavy Duty

• Plastic covered with steel inner core
• Steel, black plated end plates
• Black
• Screws and t-nuts included

• Size: 6.3 mm 1/4"
• Poles: 2-pole, mono
• Design: straight
• Connection type: solder terminals
• Housing: metal, large
• Color: black
• Cable outlet: max 9 mm

Files:

• Datasheet

Headroom, clarity, balanced response, power...
These terms have become synonymous with a vintage American design that is known and sought the world over.  WGS now pays tribute to this classic with our WGS12L. However like all of our designs, we didn't set out to make a clone.  With this model we paid extra special attention to the details, producing a speaker that delivers that same even response without sounding sterile and lifeless.  Boasting a cast frame, 2.5" voice coil and a 200 watt rating, and clocking in at 18 pounds, this beast is loaded for bear.  As a welcome addition to the WGS fleet, this speaker is definitely our battleship.

Note from the boss: "We compared both the EVM 12L and the WGS 12L in an 806 cabinet and it was almost impossible to tell them apart. The WGS 12L is a great alternative to the original and we recommend it without reservation as a perfect replacement for the EVM 12L."

Thiele-Small Parameters

• Resonant Frequency (Fs): 49.58 Hz
• DC Resistance (Re): 5.84 Ohm
• Coil Inductance (Le): 0.35 mH
• Mechanical Q (Qms): 7.41
• Electromagnetic Q (Qes): 0.25
• Total Q (Qts): 0.24
• Compliance Equiv. Vol. (Vas): 50.51 cu ft
• Mech. Compliance of Susp. (Cms): 0.27 mm/N
• BL Product (BL): 16.74 T-M
• Diaphragm Mass Inc. Airload (Mms): 38.77 grams
• Surface Area of Cone (Sd): 366.10 cm squared
• Sound Pressure Level (spl): 99.67 db

Cabinet corner leather black, Set of 4
100 % real letaher, vegetable tanned
Caution: natural product ! The texture and thickness may vary.

Hint: put the corners into water for a few minuties before mounting. This makes them soft and elastic and than they will fit better.
The corners on the chassis should be well rounded too in order to achieve best results.

• Size: ca. 74 x 100 cm (only available in this size)
• Material: 94 % Polypropylen, 6 % Acrylic
• Price per pcs.
• Actual shades may vary.

Further information and notes on Grillcloth

• FAQ Grillcloth

Case Handle imitation leather,Dog-Bone Style

• Mounting fittings: Steel, nickel plated
• Color: Dark brown
• WITHOUT NUTS AND SCREWS

NP2RX-BAG

The heavy duty professional phone plug series improves on the design of the existing C series by offering the thinnest available A-gauge 1/4" plug with unique Neutrik chuck type strain relief on the market. The slimline shell with a width of 14.5 mm meets the most recent requirements for highest density jackfields (15.88mm jack pitch). The precise machined one-piece tip contact without rivets makes it unique and avoids hook up in a socket or break off the tip. The Plug X Series serves all applications such as guitar applications, audio cables, snakes, speakers, amplifiers and mixing desks.
2 pole right-angle 1/4" professional phone plug, nickel contacts, black shell

Features & Benefits

• All metal housing eliminates the plastic cover of the predecessor NP*RCS and improves further durability and EMI protection
• Extra slim 1/4" plug for highest packing density
• Robust diecast shell in stylish design
• Improved chuck type strain relief for reliable cable retention
• Sleek design for best handling convenience
• Precision machined one-piece contacts - avoid hook up of tip contact

Files:

• Datasheet
• Mounting
