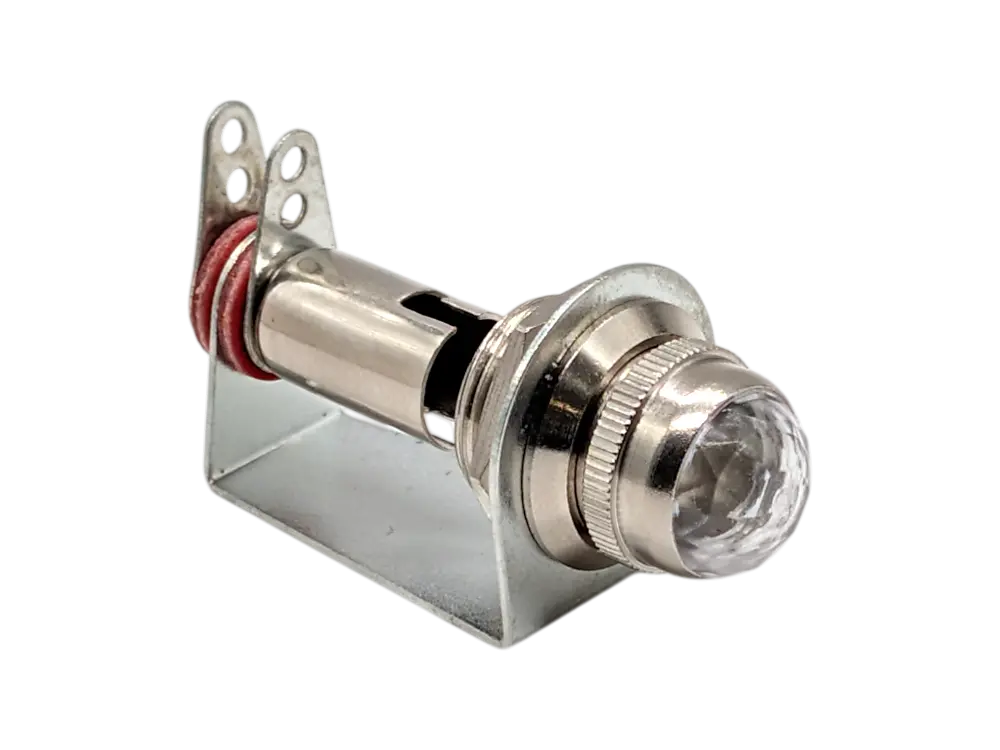

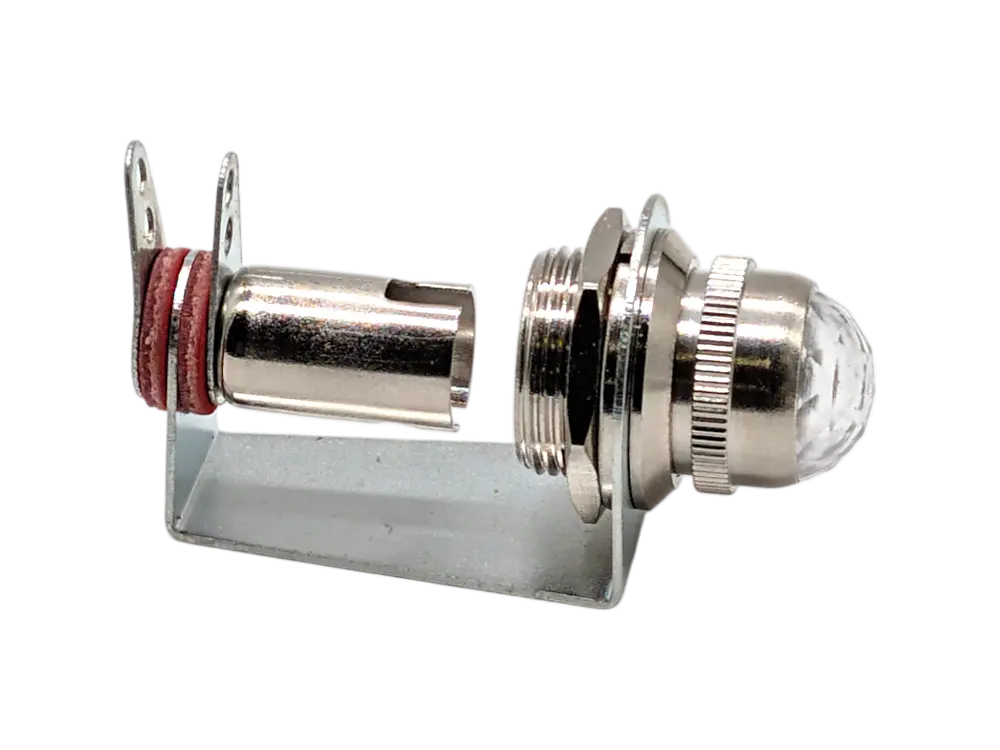

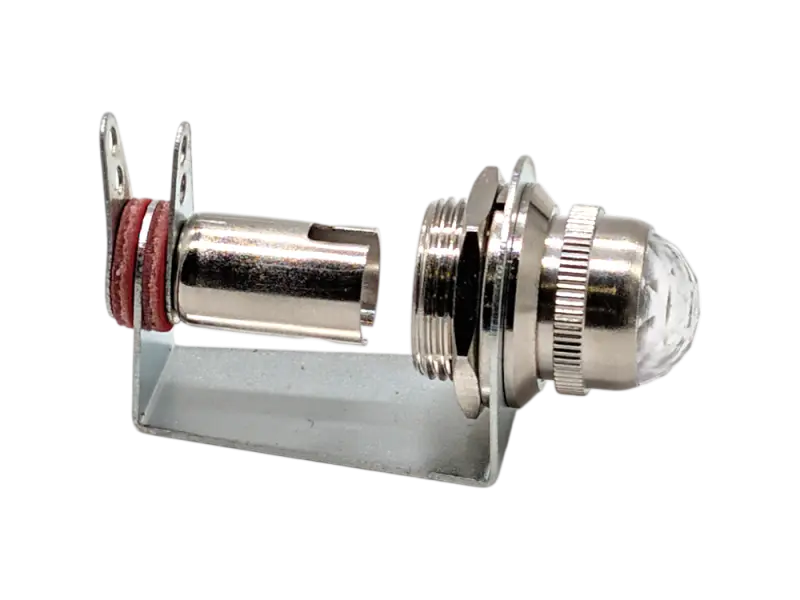

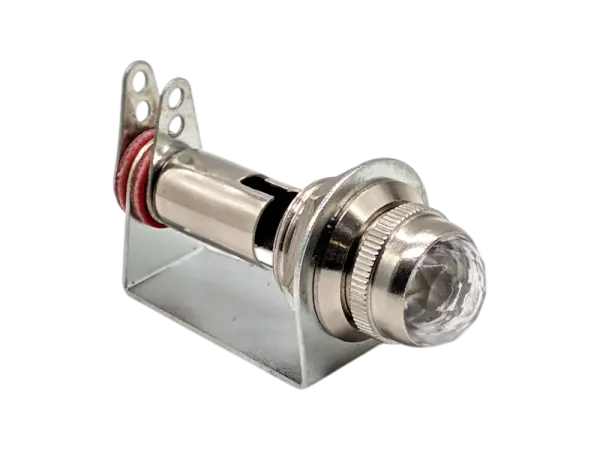

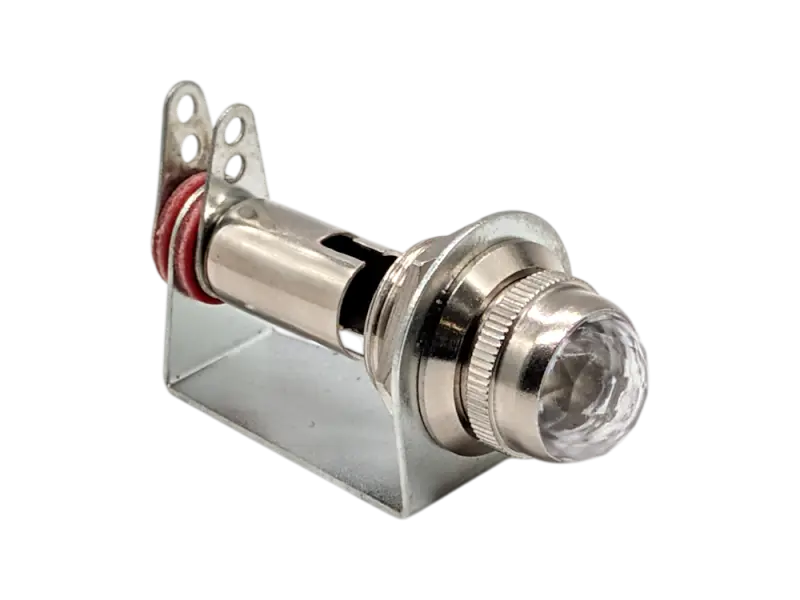

Fender Style Pilot Light Set - clear

for Fender Pilot-Light

• BA9s
• #47
• 6,3 V
• LED
• white / clear

The rosette is versatile and ideal for construction and assembly projects. Thanks to the high-quality brass material and nickel-plated surface, it is well protected against corrosion and offers a long lifespan.

Technical Data

• Inner diameter (d1): 6.4 mm
• Outer diameter (d2): 20 mm
• Height (h1): 4 mm
• Standards: DIN 17670
• Material: Brass
• Surface: Nickel-plated
• Pack of 10

• Type: Countersunk raised head with cross recess
• Material: Steel
• Strength class: 4.8
• Surface: Zinc-plated
• DIN: 966
• ISO: 7047
• Price: per pcs.

Set of metal corners for housing consisting of:

• 8 x Cabinet corner w/ cutaway 2 leg, silver (ah4023)
• Steel nickel plated
• Internal radius: 12 mm
• 16 x Screws with extra flat head, silver

Lemberg 020 Headshell Flatpack
For all chassis of the LoW-Series WITHOUT side mounting brackets.
This flatpack is made of high quality, 15 mm birch multiplex, is completely CNC milled and drilled and very easy to assemble.

For the assembly you need

• Wood drill 5 mm
• Cross-head screwdriver or cordless screwdriver (recommended)
• Wood glue (NOT included in delivery)

The surface of the assembled headshell can be treated as desired. We recommend to oil it, because this is a very simple but effective procedure. However, it can also be painted or covered with Tolex (in which case the width of the front panel may need to be reduced) or otherwise treated.
Furthermore, corners, handles and rubber feet can be added according to your taste and need. Suitable accessories are listed in the accessories list under the product description here.

Files

• Assembly Instruction

Specifications

• Size (WxHxD): 318 x 190 x 215 mm (Outside)
• Hardware: Screws are included.
• Wood: 15 mm Birch Plywood

[content:3210136]

Pointer Knob "Classic"

• Material: Phenolic
• Shaft Size: 6 - 6,3 mm
• Size: 19 x 14,5 mm
• Mounting: Hexagon Set-Screw

Set of componentes for building the TT Molly LowPower Guitar Amp.
Please visit the >>Project page for more infos about the amp.

INCLUDED:

• Mains Transformer universal for 120-230-240 V mains
• Outputtransformer
• Resistors
• Capacitors
• Jacks
• Light
• Wires
• Board
• Switche
• PSU
• Tubes (1 x EF86, 1 x 12AX7,1 x ECC99)
• Fuses & Fuesholder

NOT INCLUDED:

• Knobs
• Chassis
• Faceplate

To build this project knowledge in electric engeneering, experience with high voltage, and the reading and understanding of schematics and dealing with measurement device is highly recommended .
There is NO step-by-step guide for beginners. The circuit and layout plan includes all relevant information. If you don't understand it than don't build it.

• Mini, Layout Type B, Version 2020
• Size: 285 x 165 x 60 mm
• Mounting: with cage nuts (not included)
• Material: 2 mm Aluminium (AlMg3)
• Made in Germany
• Mounting: with cage nuts (not included)

Please note: The chassis may show traces and marks due to production.

Files:

• Datasheet V2020
• Datasheet V2013 (discontinued)
