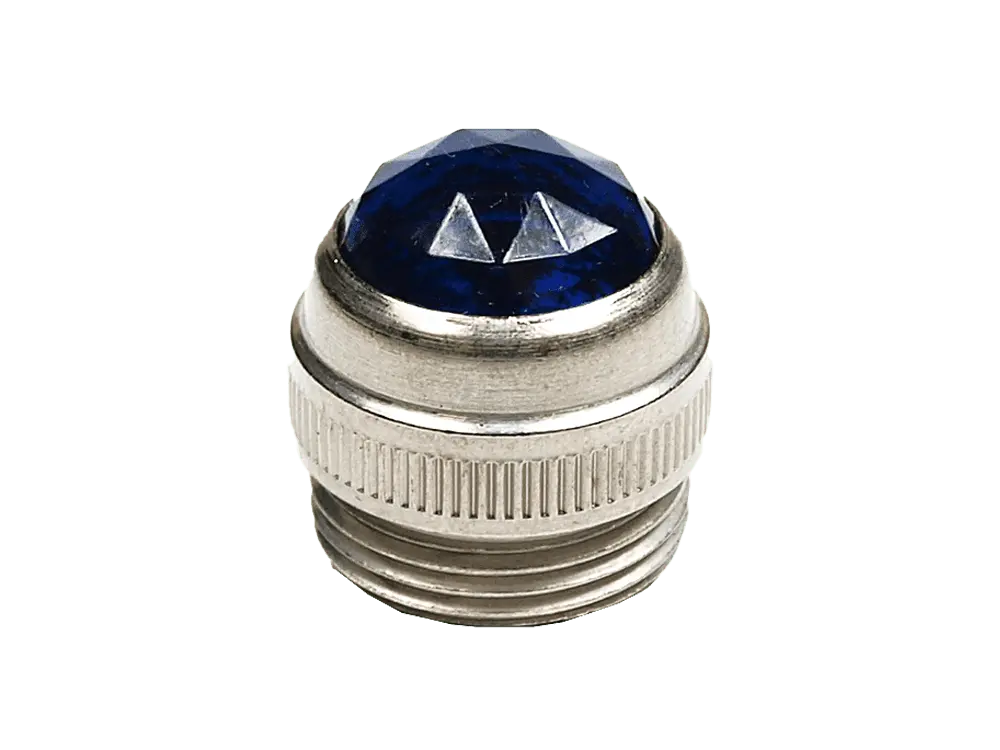

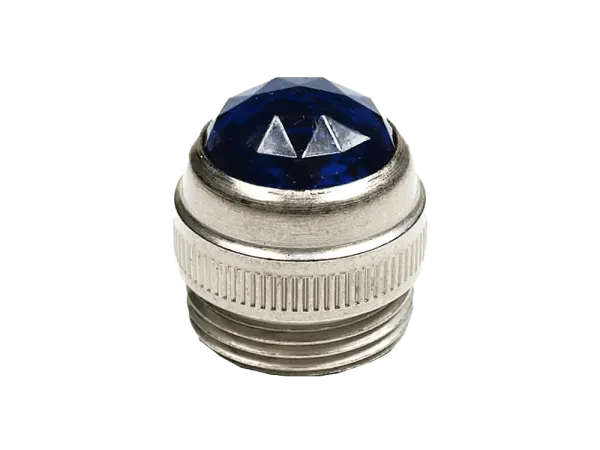

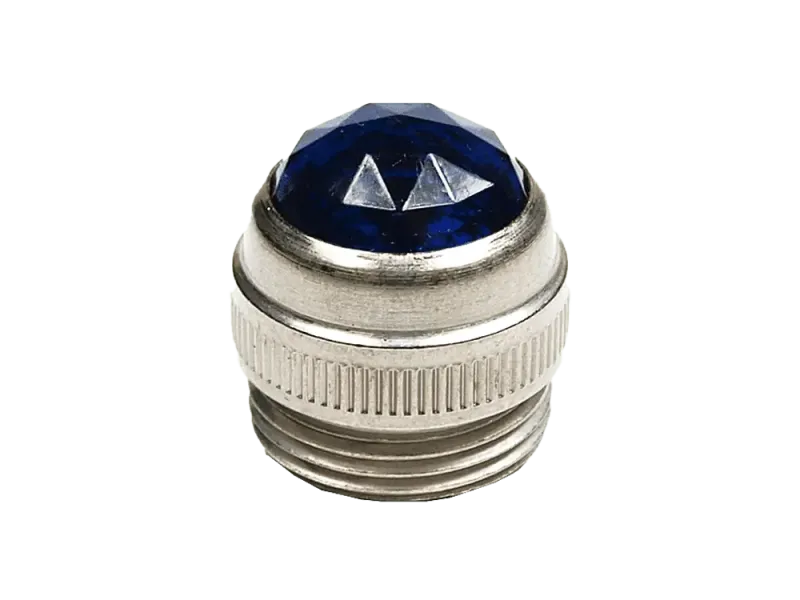

Fender Jewel purple

Fender Style Pilot Light Set

• Chassis Hole: 15,5 mm
• Threading: 9/16 - 24
• Jewel clear

Fender Style Pilot Light Set

• Chassis Hole: 15,5 mm
• Threading: 9/16 - 24
• Jewel blue

Fender Style Pilot Light Set

• Chassis Hole: 15,5 mm
• Threading: 9/16 - 24
• Jewel red

Fender Pilot Light Set- red

• Chassis Hole: 15,5 mm
• Threading: 9/16 - 24
• Jewel green

Fender Style Pilot Light Set

• Chassis Hole: 15,5 mm
• Threading: 9/16 - 24
• Jewel amber

The rosette is versatile and ideal for construction and assembly projects. Thanks to the high-quality brass material and nickel-plated surface, it is well protected against corrosion and offers a long lifespan.

Technical Data

• Inner diameter (d1): 6.4 mm
• Outer diameter (d2): 20 mm
• Height (h1): 4 mm
• Standards: DIN 17670
• Material: Brass
• Surface: Nickel-plated
• Pack of 10

Noval Socket Belton VTB9-PT

• Version: High quality Micalex socket
• Glassfiber filled PPS black body
• Termination Style: print / pcb mount
• for Tube Type: 12AX7, 12AT7, 12AU7, EL84, EZ81, EL844 etc.

The 12” Retro 30™ speaker is a brighter and more articulate version of the WGS Veteran 30™ speaker. The Retro 30™ also boasts deeper and tighter bottom end. This speaker is extremely versatile and comes alive on the dirty channel. For those who love to mix speakers, you should pair this with the Reaper™ or the ET65™.

Unit Weight:  10 pounds

Mounting Information

• Diameter: 12.2”
• Overall depth: 5.3”
• Cut-out diameter: 11.1”
• Mounting slot dimensions: 0.31”
• Number of mounting slots: 8

Thiele-Small Parameters

• Resonant Frequency (Fs): 103.76 Hz
• DC Resistance (Re): 8.04 Ohm
• Coil Inductance (Le): 0.33 mH
• Mechanical Q (Qms): 9.73
• Electromagnetic Q (Qes): 0.75
• Total Q (Qts): 0.70
• Compliance Equiv. Vol. (Vas): 16.28 cu ft
• Mech. Compliance of Susp. (Cms): 0.09 mm/N
• BL Product (BL): 13.85 T-M
• Diaphragm Mass Inc. Airload (Mms): 27.48 grams
• Surface Area of Cone (Sd): 366.10 cm squared
• Sound Pressure Level (spl): 99.63 db

1/4" mono jack, switched, with chrome ferrule and standard solder lugs
Mounting nut included

• Wide body and extremely durable contacts
• Mates with all mono A-gauge plugs acc. EIA RS-453 standard

Files:

• Datasheet

• up to T 70 °C
• with one fuse holders 5.0 x 20 mm
• Housing: polyamide
• UL 94 V-0, black
• for panel mounting
• Double-pole + protective ground 10 A/250 V
• single-pole fusing with bridge to the fuse holder at the L terminal
• fuse holder terminals for soldering
• Design to IEC/EN 60320-1
• fuse holder to IEC/EN 60127-6
• Certifications: ENEC, Semko, UL, CSA

• Body: 24 mm
• Shaft: 6,35 mm, Split shaft
• PCB
• for JCM 800, 2205, 2210, etc.
• incl. one nut and one washer

• Size: 6.3 mm 1/4"
• Poles: 3-pole, stereo
• Design: open, PCB-mount, switched
• Connection type: solder connections
• Housing: plastic
• Manufacturer: Rean (by Neutrik)

Files:

• Datasheet



Cliff 1160 mono jack

• Jack socket, mono
• switched
• for chassis mounting, 4 solder terminals
• for 6.3 mm jack plug
• Used by Marshall and many others

Files

• Datasheet



Cliff 1166 stereo jack

• Stereo jack, switched
• for PCB mounting
• for 6.3 mm jack plugs, stereo

Files

• Datasheet

Cliff 1160 mono jack, vintage-style

• Jack socket, mono
• switched
• for chassis mounting, 4 solder terminals
• for 6.3 mm jack plug
• Used by Marshall and many others

Files

• Datasheet
