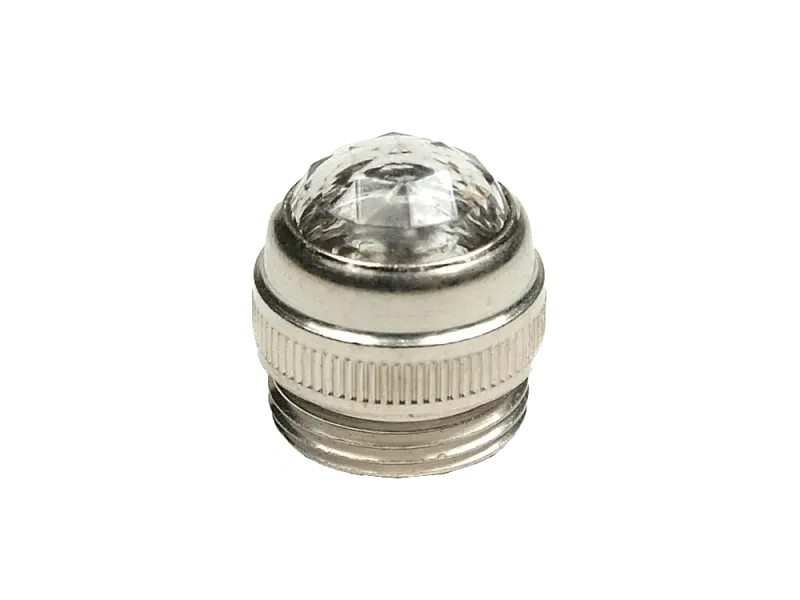

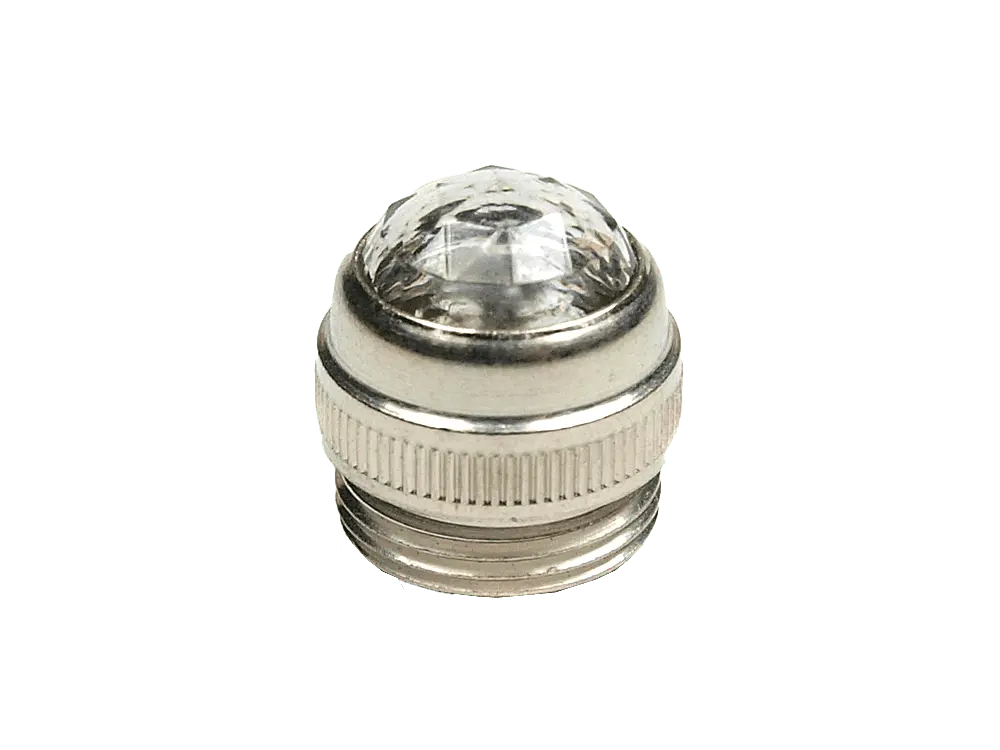

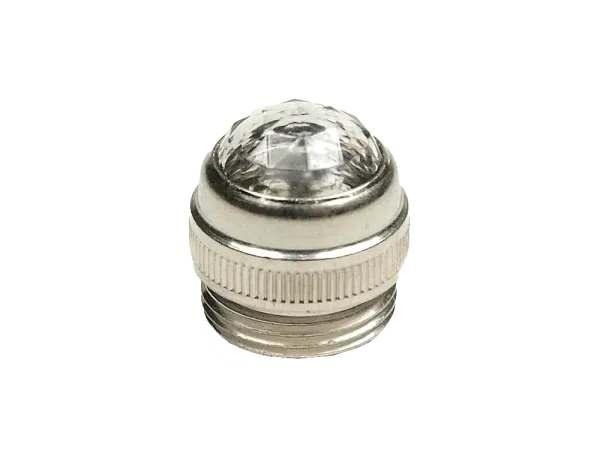

Fender Jewel clear

Fender Style Pilot Light Set

• Chassis Hole: 15,5 mm
• Threading: 9/16 - 24
• Jewel clear

Fender Style Pilot Light Set

• Chassis Hole: 15,5 mm
• Threading: 9/16 - 24
• Jewel amber

Fender Pilot Light Set- red

• Chassis Hole: 15,5 mm
• Threading: 9/16 - 24
• Jewel green

Fender Style Pilot Light Set

• Chassis Hole: 15,5 mm
• Threading: 9/16 - 24
• Jewel red

Fender Style Pilot Light Set

• Chassis Hole: 15,5 mm
• Threading: 9/16 - 24
• Jewel blue

With the Retro 10, we set out to build something with all the qualities we enjoy about our Retro 30 in a 10” speaker. It’s got a tight bottom, an articulate top end, and a nice low-midrange growl. It can be thought of as a distant cousin of the Green Beret 10, but with more low end, slightly more top end, and a shift in midrange characteristics.

Unit weight: 7.5 pounds

Thiele-Small Parameters

• Resonant Frequency (Fs): 115.58 Hz
• DC Resistance (Re): 6.27 Ohm
• Coil Inductance (Le): 0.17 mH
• Mechanical Q (Qms): 6.72
• Electromagnetic Q (Qes): 0.66
• Total Q (Qts): 0.6
• Compliance Equiv. Vol. (Vas): 16.26 cu ft
• Mech. Compliance of Susp. (Cms): 0.11 mm/N
• BL Product (BL): 10.99 T-M
• Diaphragm Mass Inc. Airload (Mms): 17.39 grams
• Surface Area of Cone (Sd): 324.29 cm squared
• Sound Pressure Level (spl): 100.62 db

The ET10 is the 10” version of one of our most popular speakers: the ET65. The ET10 boasts a tone reminiscent of its 12” counterpart, but with a bit more of a pronounced midrange. The low end from this 10 is surprisingly heady, but remains tight in all situations. Top it off with a smooth but articulate top end, and you have one of the most highly anticipated ten inch speakers to date.

Unit Weight: 6 lbs

Thiele-Small Parameters

• Resonant Frequency (Fs): 113.32 Hz
• DC Resistance (Re): 6.626 Ohm
• Coil Inductance (Le): 0.16 mH
• Mechanical Q (Qms): 6.72
• Electromagnetic Q (Qes): 0.72
• Total Q (Qts): 0.65
• Compliance Equiv. Vol. (Vas): 17.06 cu ft
• Mech. Compliance of Susp. (Cms): 0.11 mm/N
• BL Product (BL): 10.63 T-M
• Diaphragm Mass Inc. Airload (Mms): 17.25 grams
• Surface Area of Cone (Sd): 324.29 cm squared
• Sound Pressure Level (spl): 100.17 db

We have created a truly awesome 15" speaker with the G15! Now you can play a 15" with quick, articulate response, aggressive mid-range, & fat low end.

Thiele-Small Parameters

• Resonant Frequency (Fs): 100.45 Hz
• DC Resistance (Re): 6.4 Ohm
• Coil Inductance (Le): 8 mH
• Mechanical Q (Qms): 12.3144
• Electromagnetic Q (Qes): 1.188
• Total Q (Qts): 1.0835
• Compliance Equiv. Vol. (Vas): 2.165 cu ft
• Mech. Compliance of Susp. (Cms): 50.169 mm/N
• BL Product (BL): 11.64 T-M
• Diaphragm Mass Inc. Airload (Mms): 50.0389 grams
• Surface Area of Cone (Sd): 923.4744 cm squared
• Sound Pressure Level (spl): 99.03 db

The G10C is a 10" ceramic speaker with a 30 oz motor and seamed cone.

Unit Weight: 7 pounds

Thiele-Small Parameters

• Resonant Frequency (Fs): 79.61 Hz
• DC Resistance (Re): 6.3 Ohm
• Coil Inductance (Le): 8 mH
• Mechanical Q (Qms): 7.7956
• Electromagnetic Q (Qes): 0.6822
• Total Q (Qts): 0.6273
• Compliance Equiv. Vol. (Vas): 1.349 cu ft
• Mech. Compliance of Susp. (Cms): 198.897 mm/N
• BL Product (BL): 9.92 T-M
• Diaphragm Mass Inc. Airload (Mms): 20.0945 grams
• Surface Area of Cone (Sd): 366.0962 cm squared
• Sound Pressure Level (spl): 96.35 db

Power Supply chassis Socket,  with break contact and solder eyes, for front side mounting

• Diameter opening: 6,3 mm
• Diameter center pin: 1,9 mm
• Rated current: 0,5 A @ 12 V DC
• Isulation resistance: > 100 M Ohm

• 1x internal and 1x external thread
• Thread size: M3
• External thread: 6.0 mm
• Internal thread: 7.0 mm
• Material: galvanised steel
• Length: 20 mm

• 1x internal and 1x external thread
• Thread size: M3
• External thread: 6.0 mm
• Internal thread: 7.0 mm
• Material: galvanised steel
• Length: 30 mm

• Type: Toggle Switch
• Version: SPDT, ON-ON
• Rating: 3 A / 250VAC, 6 A / 125VAC
• Drill Ø: 6 mm
• Termination Style: solder-lugs

High Power Rotary Switch

• Can be used as Voltage or Impedance selector
• 1 pole / 3 position
• 3 A @ 250 VAC
• 6 A @ 125 VAC
• Solder lugs
• Size: 28 mm x 39,5 mm
• Frontpanel drill: 10,5 mm
• Shaft Diameter 6 mm, D-Shaft

• Type: Toggle Switch
• Version: DPDT, ON-ON
• Rating: 3 A / 250VAC, 6 A / 125VAC
• Drill Ø: 6 mm
• Termination Style: solder-lugs
