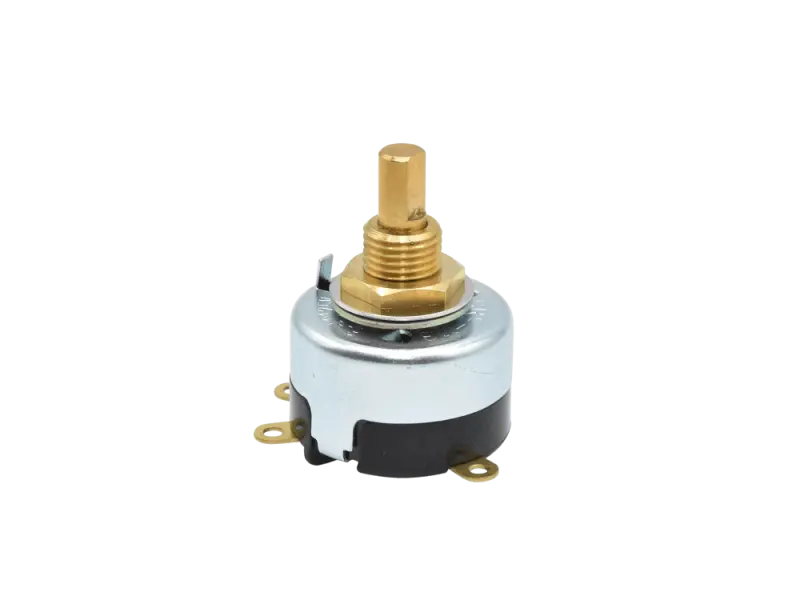

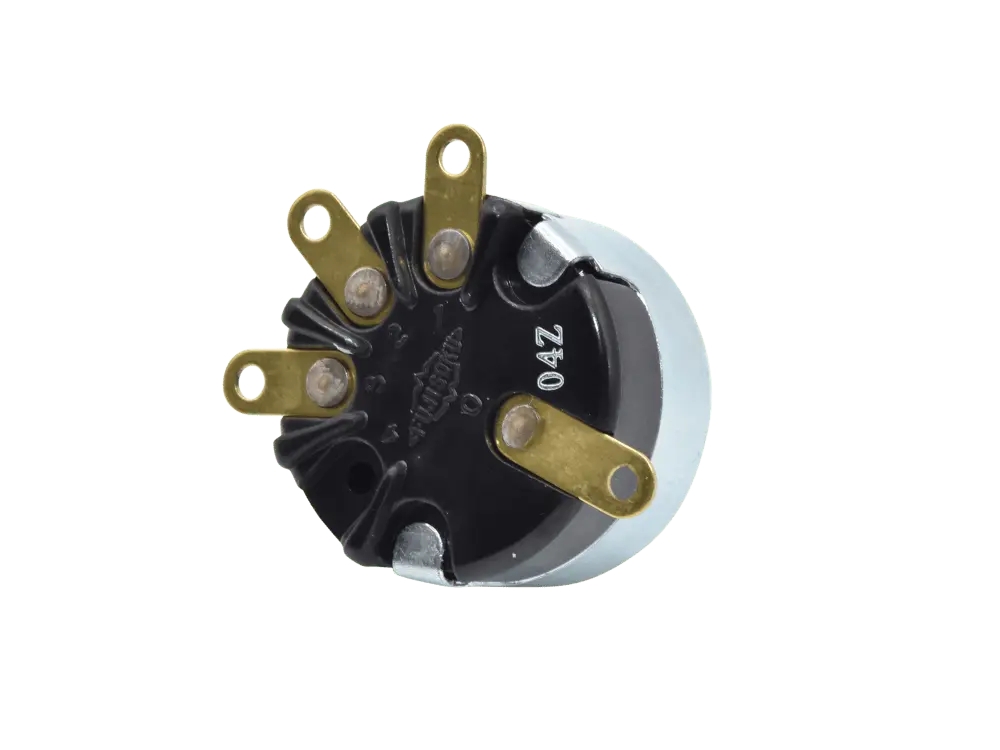

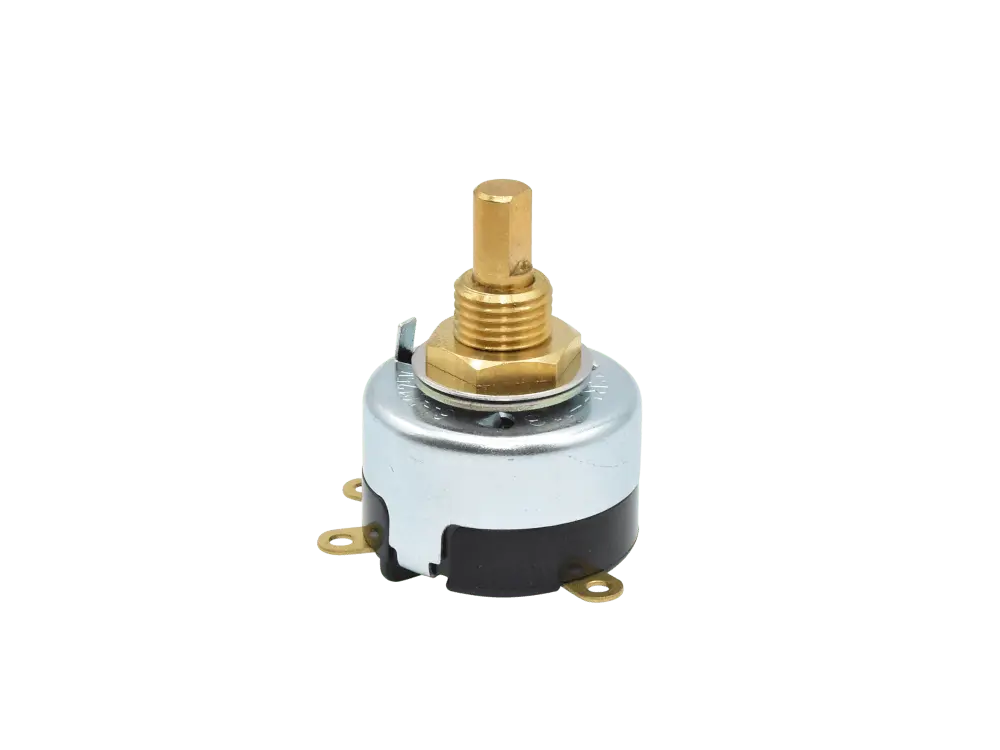

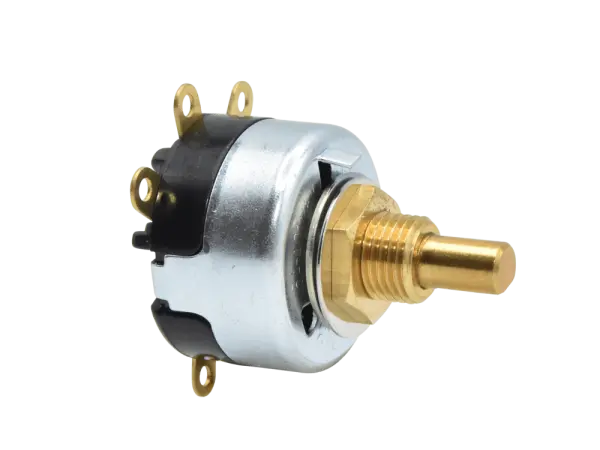

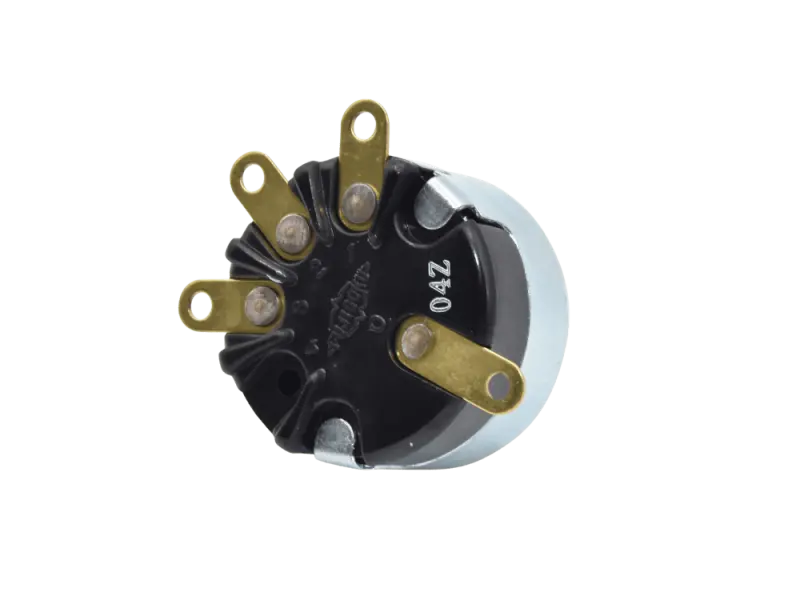

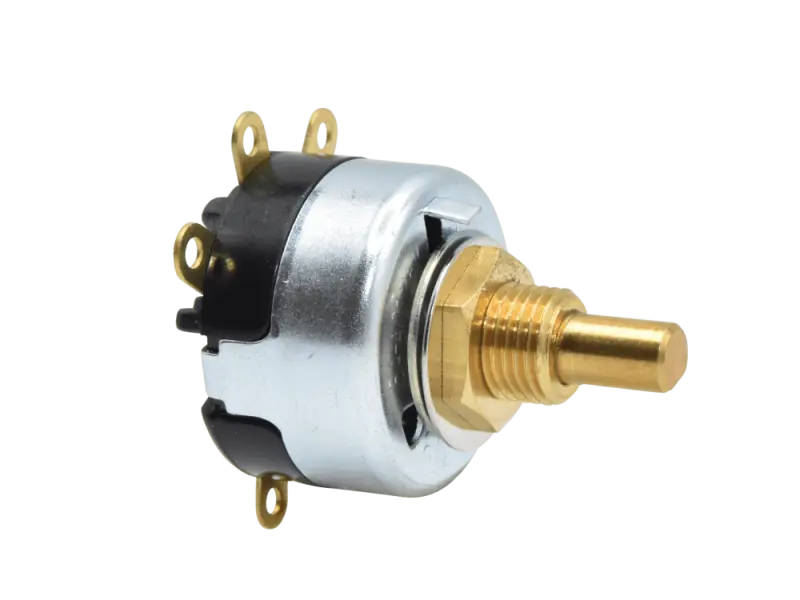

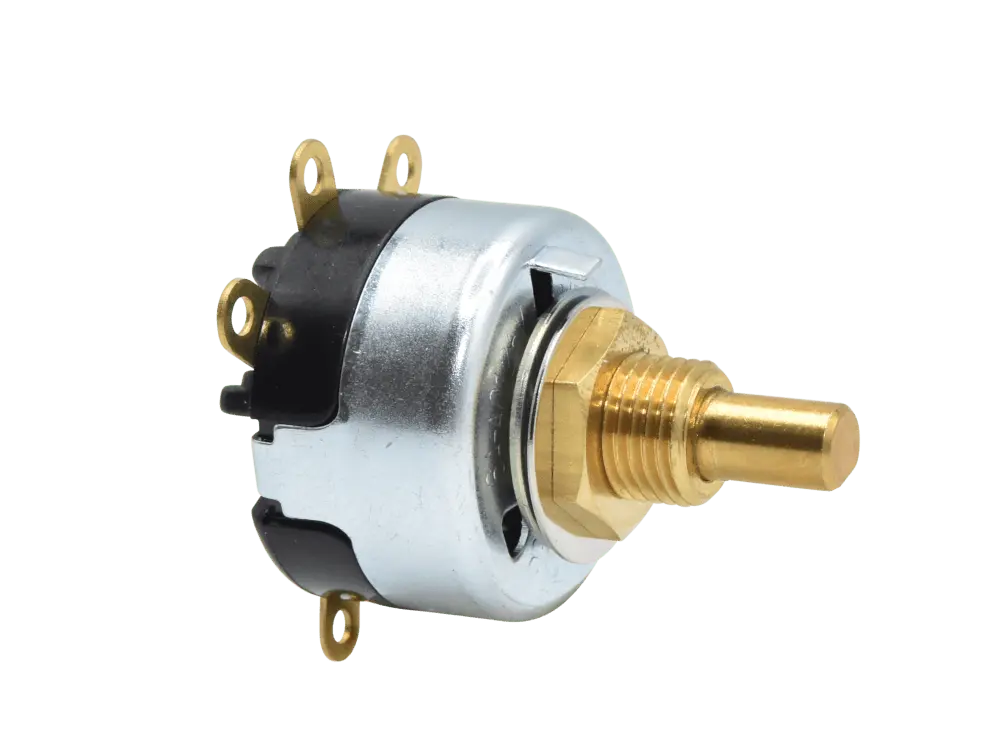

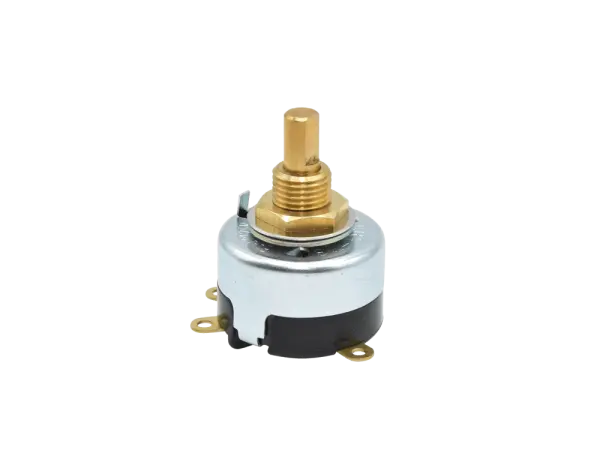

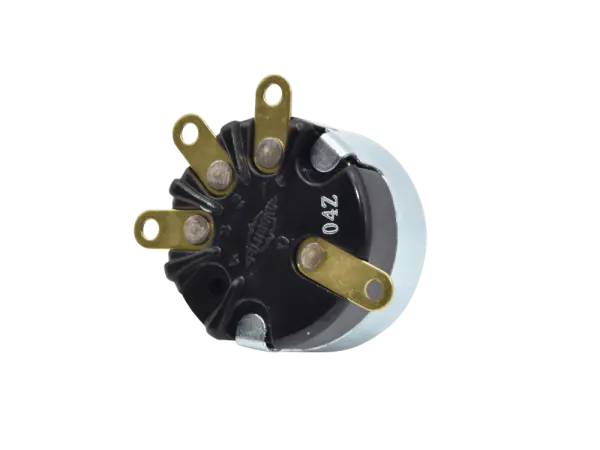

Rotary Switch 1 Pol / 3 Pos - 3A@250VAC - Impedance / Voltage Selector

Mobile Preview: Rotary Switch 1 Pol / 3 Pos - 3A@250VAC - Impedance / Voltage Selector

Description

High Power Rotary Switch

Can be used as Voltage or Impedance selector
1 pole / 3 position
3 A @ 250 VAC
6 A @ 125 VAC
Solder lugs

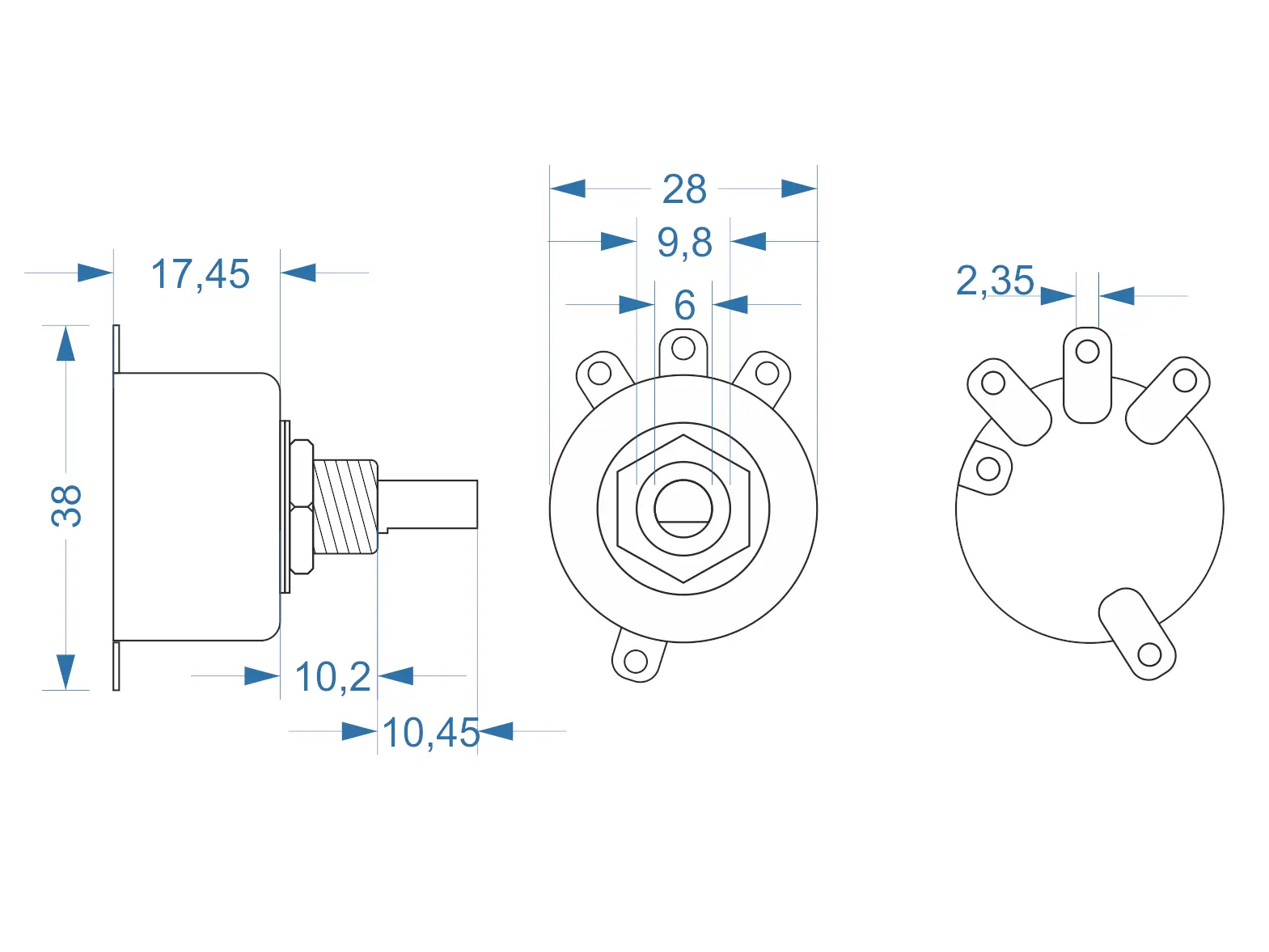

Size: 28 mm x 39,5 mm
Frontpanel drill: 10,5 mm
Shaft Diameter 6 mm, D-Shaft
