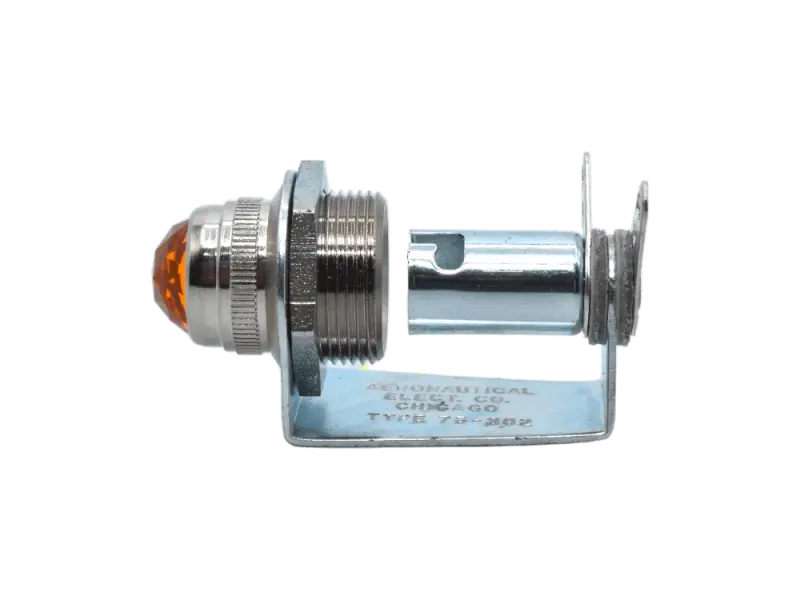

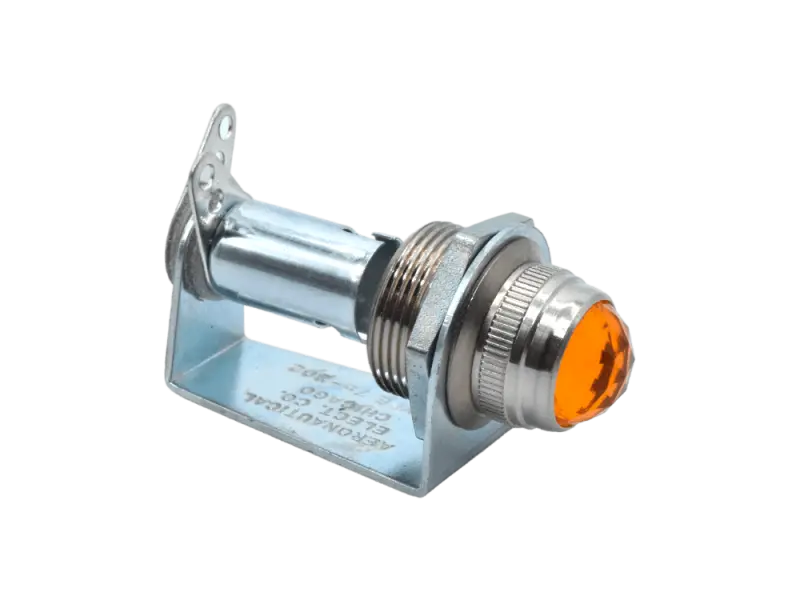

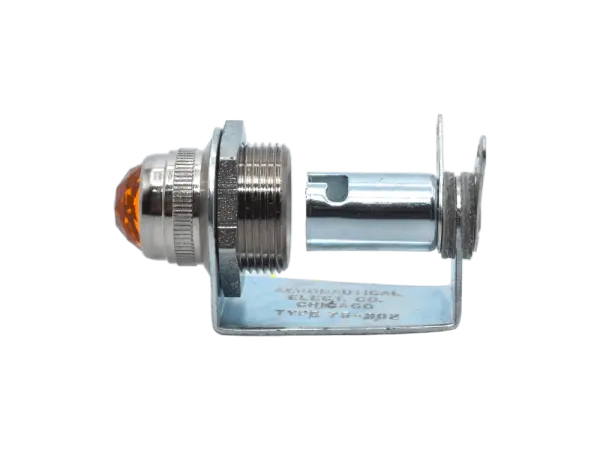

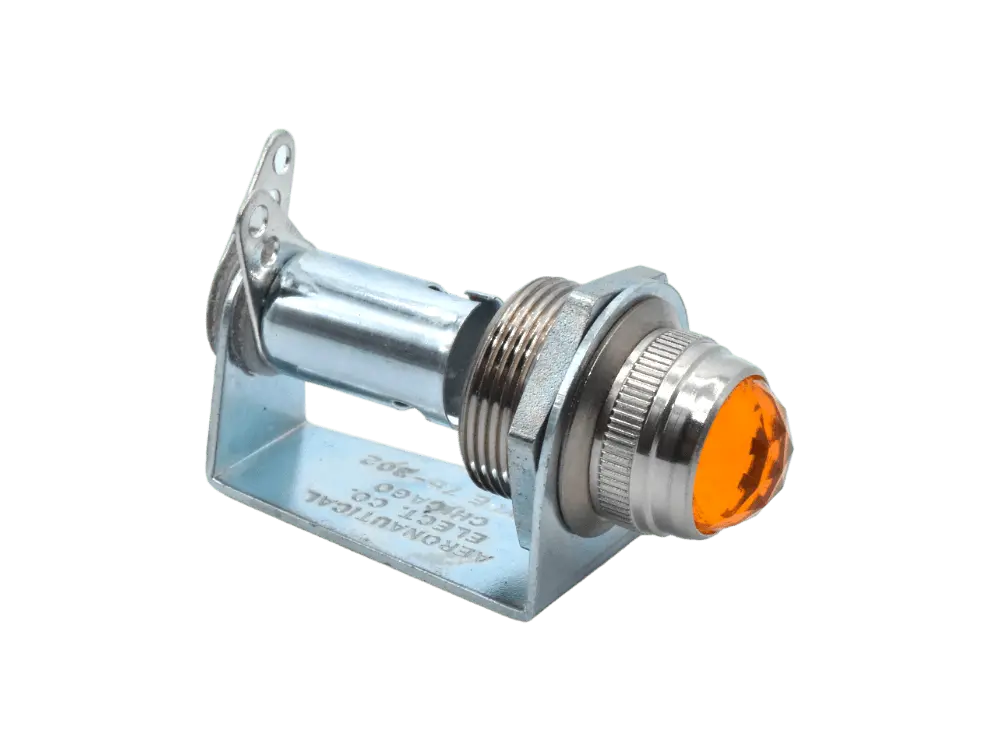

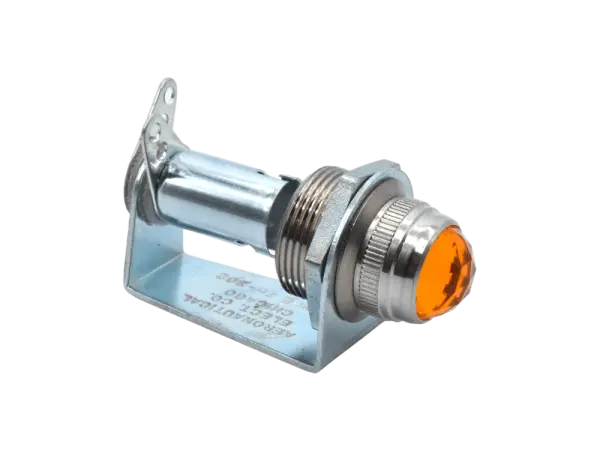

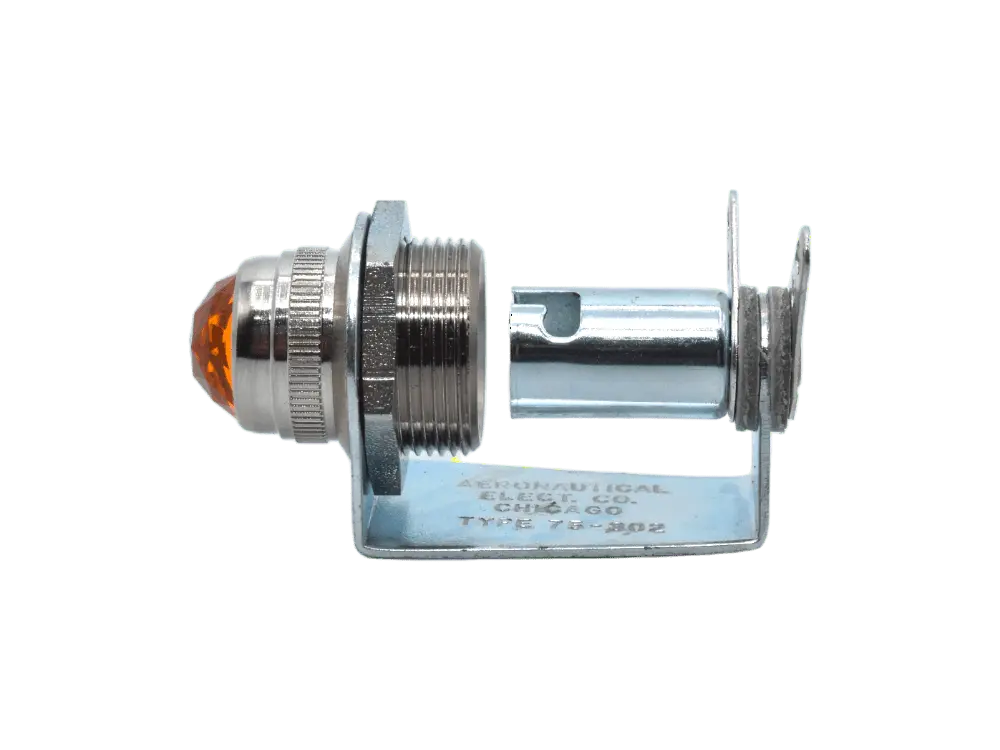

Fender Style Pilot Light Set- amber

• Threading: 9/16 - 24

• Threading: 9/16 - 24

• Threading: 9/16 - 24

• Threading: 9/16 - 24

• Threading: 9/16 - 24

for Fender Pilot-Light

• BA9s
• #47
• 6,3 V @ 0,15 A

• Threading: 9/16 - 24

• Threading: 9/16 - 24

• Type: Aluminum Electrolytic Capacitors
• Capacitance: 47 µF
• Voltage Rating: 500 V
• Tolerance: +/- 20%
• Operating Temperature Range: - 40°C / + 85 °C
• Dimensions: Ø 21 mm x 37 mm
• Termination Style: axial

• Eyelet 1/8"
• recommended for use with 3 mm boards
• Length under flange: 0,156" / 3,96 mm
• 50 pcs/Pack

Files:

• Datasheet

• 4 x Screw M5x20mm
• 4 x Washer M5
• 4 x T-Nut M5

• Universal Primary: 120/220/230/240V 50/60 Hz
• Powertransformer for (Bronco, AA764, AB764, Blackface, Silverface) (Champ, Tweed, 5C1, 5E1, 5F1, AA764, Blackface, Silverface, Vibro Blackface) (Harvard, 6G10) (Princeton Tweed, 5B2, 5C2, 5D2, 5E2, 5F2, 5F2A) (Princeton, Brown, AA964, Blackface, Silverface) (Princeton Reverb, AA1164, AA764, B1270, Blackface, Silverface)
• Fender Part Number 125P1B and 022772
• 291AEX uses high grade 29M6 magnetic steel laminations for reduced losses, more surge output power, cooler operation & longer life.

Files:

• Datasheet

• Primary: 120, 230 & 240 V @ 50 Hz
• Sec. 1: 720 V C.T. @ 400 mA, 60 V Bias Tap
• Sec. 2: 6,3 V C.T. @ 7,5 A
• Sec. 3: 6,3 V C.T. @ 3 A

• Datasheet

• Type: Aluminum Electrolytic Capacitors
• Capacitance: 22 µF
• Voltage Rating: 450 V
• Tolerance: +/- 20%
• Operating Temperature Range: - 40°C / + 85 °C
• Dimensions: Ø 16 mm x 30 mm
• Termination Style: axial

• Type: Electrolytic can capacitor
• Capacitance: 47 µF
• Voltage Rating: 100 V
• Tolerance: - 20 % / +20 %
• Operating Temperature Range: - 40°C / + 105 °C
• Dimensions: Ø 10 mm x 21 mm
• Termination Style: radial
• Grid: 5,0

Images are for reference only. See Product Specifications

• Electrolytic capacitors, insulated aluminum can
• Capacitance: 1 µF
• Voltage Rating: 63 V
• Tolerance: - 10 % / +30 %
• Operating Temperature Range: - 40°C / + 85 °C
• Dimensions: Ø 5 mm x 11 mm
• Termination Style: axial
• Mallory Vishay

Images are for reference only. See Product Specifications

• Bridge Rectifier 50V / 1A
• Used for example by Soldano

Files:

• Datasheet
