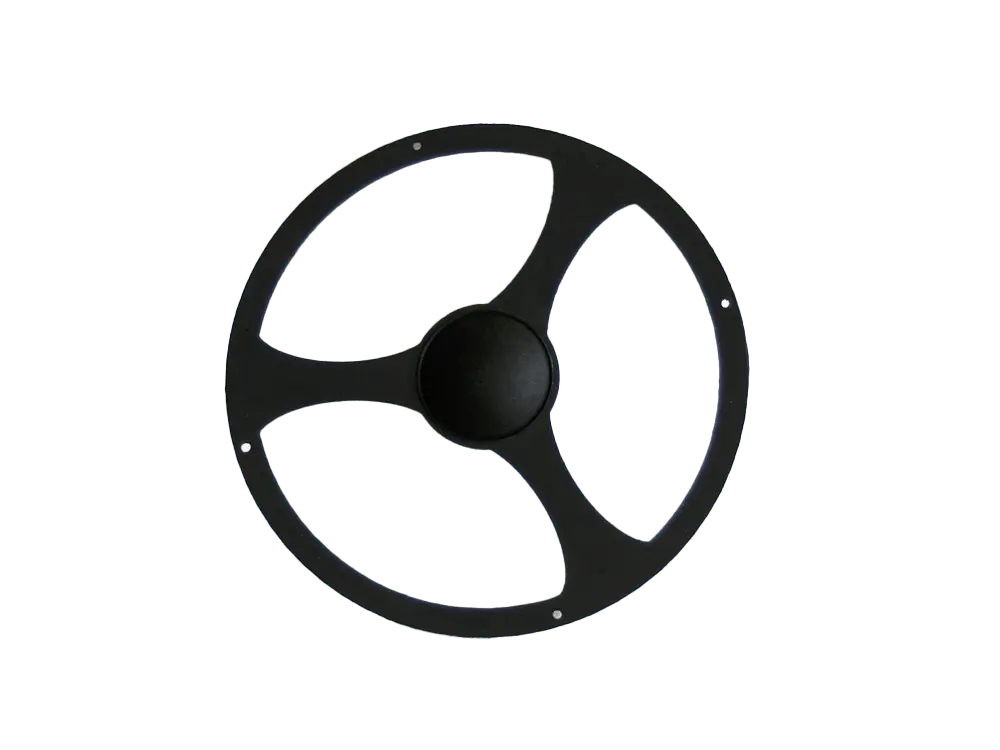

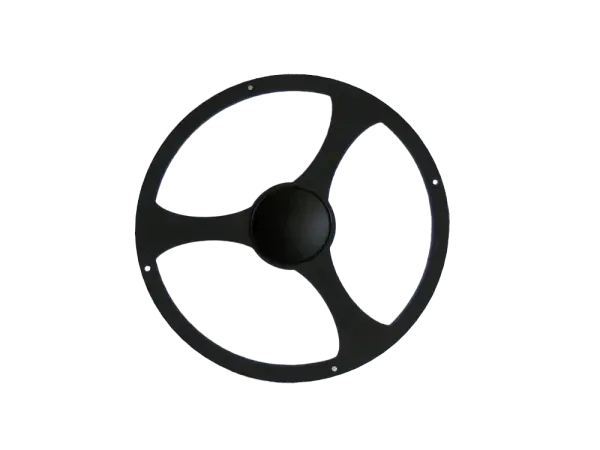

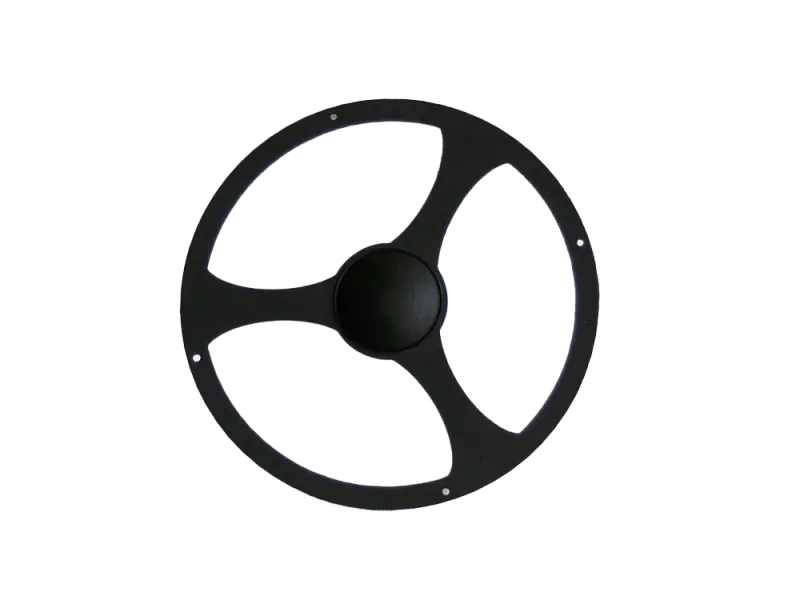

TT Diffusor 10"

Universal Mono/Stereo Terminal

for the use with two 16 Ohm speakers the following configurations are possible:

• 8 ohm mono
• 16 ohm left + 168 ohm right stereo
• 16 ohm left only mono
• 16 ohm right only mono
• 32 ohm mono

Size: ca. 110 x 103 mm
Cutout: ca. 87 x 76 mm

Colorcodes:

• black: L-
• red: L +
• green: R -
• white: R +

Files:

• Datasheet

Universal Mono/Stereo Terminal

for the use with two 8 Ohm speakers the following configurations are possible:

• 4 ohm mono
• 8 ohm left + 8 ohm right stereo
• 8 ohm left only mono
• 8 ohm right only mono
• 16 ohm mono

Size: ca. 110 x 103 mm
Cutout: ca. 87 x 76 mm

Colorcodes:

• black: L-
• red: L +
• green: R -
• white: R +

Files:

• Datasheet

• Type: Footswitch
• Version: 3PDT
• Rating: 2A / 250VAC, 4A / 125VAC
• Termination Style: solder-lugs
• LED ring
• LED colour: red
• LED: U=2,2 - 2,4V, I = ca. 7-10mA
• Mounting hole: 17,2 mm
• Lifetime: > 10000 cycles
• without cap

• anodized aluminum cap for foot switch
• with set-screws
• for all foot switches with a 10 mm head diameter

Soldering Iron Tip Cleaner Set

This soldering iron tip cleaner set includes a holder and cleaning wool, providing a convenient solution for keeping your soldering iron tips clean and in top condition. The cleaner effectively removes residue from soldering tools without damaging the tips, ensuring a longer lifespan for your equipment.

Specifications

• Includes holder and cleaning wool
• Enhanced safety and stability with 3 knobs
• Prevents rapid oxidation of the soldering iron tip
• Maintains the temperature of the soldering iron tip

B-STOCK: could have flaws in weaving

• Color and texture like the "Marshall Bluesbreaker" Grillcloth
• Size (W x L): ca. 80 x 100 cm (only available in this size)
• Material: 100% treated paper
• Price per pcs.
• Actual shades may vary.

Further information and notes on Grillcloth

• FAQ Grillcloth

Set of componentes for building the TT 5E3 / Tweed Deluxe Guitar Amp.
Please visit the >>Project page for more infos about the amp, schematics and layout.

INCLUDED:

• Transformers (Hammond 1760E und 290BEX)
• Resistors
• Capacitors
• Jacks
• Light
• Wires
• Board
• Switches
• Tubes
• Fuses & Fuesholder
• CHASSIS

NOT INCLUDED:

• Knobs
• Headshell or Combo

To build this project knowledge in electric engeneering, experience with high voltage, and the reading and understanding of schematics and dealing with measurement device is highly recommended .
There is NO step-by-step guide for beginners. The circuit and layout plan includes all relevant information. If you don't understand it then don't build it.
THIS IS NOT A BEGINNERS PROJECT !

The 10” Veteran™ speaker from WGS™ has great crunchy cone breakup and clean, warm overtones. The seamed paper cone is key to this guitar speaker's sound.

Thielle-Small Parameters

• Resonant Frequency (Fs): 110.86 Hz
• DC Resistance (Re): 6.9 Ohm
• Coil Inductance (Le): 8 mH
• Mechanical Q (Qms): 17.2304
• Electromagnetic Q (Qes): 1.9694
• Total Q (Qts): 1.7674
• Compliance Equiv. Vol. (Vas): 0.808 cu ft
• Mech. Compliance of Susp. (Cms): 119.122 mm/N
• BL Product (BL): 6.15 T-M
• Diaphragm Mass Inc. Airload (Mms): 17.3021 grams
• Surface Area of Cone (Sd): 366.0962 cm squared
• Sound Pressure Level (spl): 93.84 db

The 12” ET65™ speakers has big and creamy lows blend with tight midrange and sparkling highs for some of the best tones ever created! This speaker is for classic rock, country, and blues. Upgrade from your Celestion™ G12-65.

Unit Weight:  7.5 pounds

Thiele-Small Parameters

• Resonant Frequency (Fs): 98.69 Hz
• DC Resistance (Re): 8.05 Ohm
• Coil Inductance (Le): 0.35 mH
• Mechanical Q (Qms): 5.38
• Electromagnetic Q (Qes): 1.10
• Total Q (Qts): 0.91
• Compliance Equiv. Vol. (Vas): 16.75 cu ft
• Mech. Compliance of Susp. (Cms): 0.09 mm/N
• BL Product (BL): 11.58 T-M
• Diaphragm Mass Inc. Airload (Mms): 29.51 grams
• Surface Area of Cone (Sd): 366.10 cm squared
• Sound Pressure Level (spl): 99.45 db

Fender Strap Handle

• Fender #0990947000
• Plastic covered with steel inner core
• End plates: Steel, nickel plated
• Color: Black
• Mounting hardware: Screws and t-nuts included
