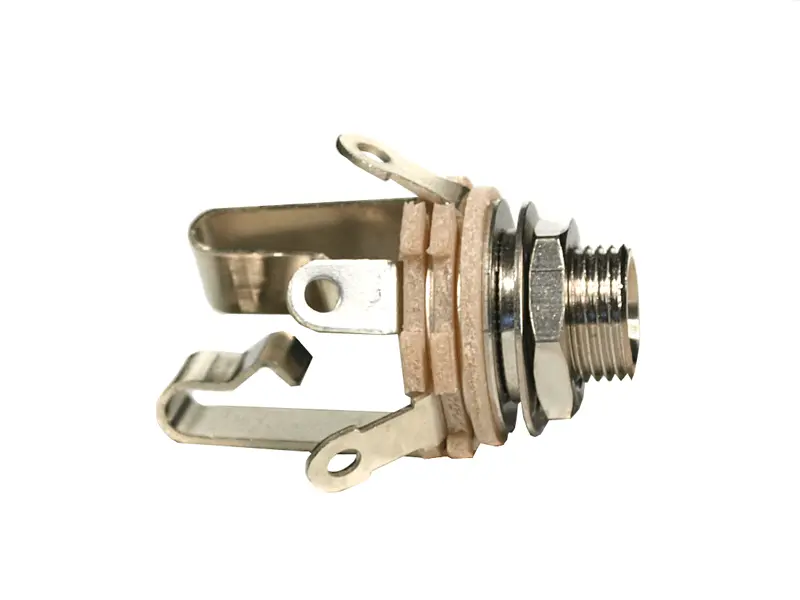

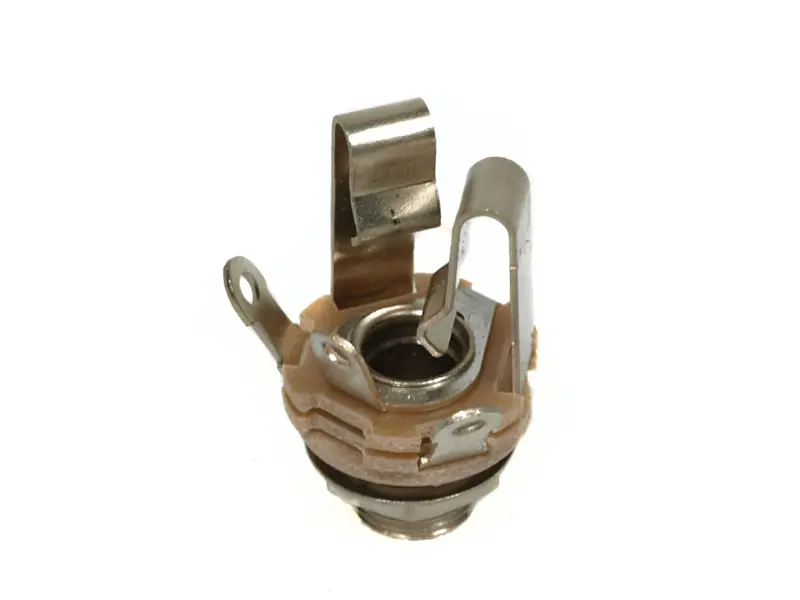

Switchcraft 12b, 6,3 mm jack stereo

Dish - Punched for 2 jacks. Material: 1.2 mm Steel, black powder coated.

Cutout 65 x 106 mm. Fixing holes Ø 5 mm. Weight: 125g

• Can be used as Voltage or Impedance selector
• 1 pole / 3 position
• 3 A @ 250 VAC
• 6 A @ 125 VAC
• Solder lugs
• Size: 28 mm x 39,5 mm
• Frontpanel drill: 10,5 mm
• Shaft Diameter 6 mm, D-Shaft

• anodized aluminum cap for foot switch
• with set-screws
• for all foot switches with a 10 mm head diameter

• Type: Footswitch
• Version: DPDT Latching ON - ON
• Rating: 3A / 250VAC
•   6A / 125VAC
• Termination Style: solder-lugs

Files:

• Datasheet

Heatsinks with perforation for SOT 32, black
for upright mounting. Made of black anodized aluminum.

Material: aluminium
for transistor: SOT 32
width: 18.5 mm
heigth: 15 mm
lengths: 32 mm
Rth: 16 K/W
surface: black anodised
version: with solder lug for vertical installation

The TT VPUMP kit is a very effective working voltage converter which generates an output voltage of 90 V DC to 220 V DC  from a 12V DC input voltage.
The circuit is in use for many years now and it is proven. In this kit the circuit has been adapted to a compact size and optimized for use in small preamplifier chassis. So it is an ideal HV power supply for tube stompboxes and preamps without the need of additional transformers and HV filter capacitors.

The VPump can be operated with a standard 12V DC switching power supply.
The switching power supply is not included in the kit.

Specification:
Input Voltage: 12 V DC @ min 4 VA
Output Voltage: 90 - 220 V DC, adjustable
Output Current: 15 mA @ 220 V DC max

Files:

• Layout PCB V1.4
• Layout PCB V1.5
• Layout PCB V1.6

• 6,3 mm jack
• mono
• Installation diameter: 10 mm

Files:

• Datasheet
