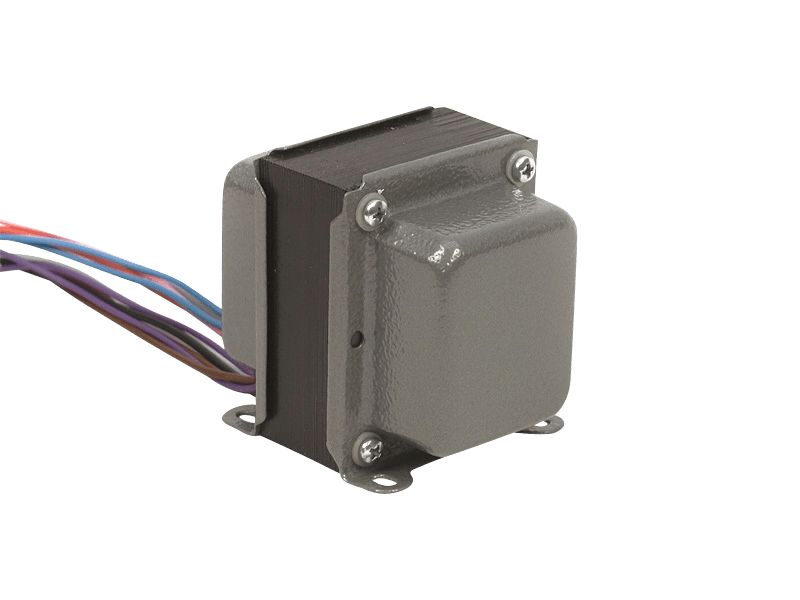

TT Powertransformer 18 Watt, universal

Turret Stacking Tool for TT Turrets #tur-tt32-25

Active, serial FX-Loop for a subsequent installation in an existing tube amplifier
The FX-Loop works with  two LND150 in the send and in the return stage. The send and return level can be adjusted to their optimal value with two potentiometers. The Loop works with the present high voltage of the amplifier.
It has two inputs for low and high signal levels.

Input Levels:
InA: 30 - 60 Vpp, max. 65 Vpp
InB: 10 - 15 Vpp, max. 18 Vpp

The FX-Loop utilize POTENTIALLY FATAL HIGH VOLTAGES.
Seek help from a competent technician if you are in any way unfamiliar with high voltage circuits.
Use at your own risk.

Files:

• Documentation

This tube is recommend to tame the gain of an amp and make it sound "sweeter". The 5751 has only a gain of 70 instead of 100 like the typical 12AX7/ECC83 tube type and can be used as a drop in replacement for 12AX7 / ECC83 tubes.

Files:

• Datasheet

• The 12AX7EH provides high gain with ultra low noise and detailed, musical tone that rivals the most desirable NOS types.

Files:

• Datasheet

NP2X-BAG

The heavy duty professional phone plug series improves on the design of the existing C series by offering the thinnest available A-gauge 1/4" plug with unique Neutrik chuck type strain relief on the market. The slimline shell with a width of 14.5 mm meets the most recent requirements for highest density jackfields (15.88mm jack pitch). The precise machined one-piece tip contact without rivets makes it unique and avoids hook up in a socket or break off the tip. The Plug X Series serves all applications such as guitar applications, audio cables, snakes, speakers, amplifiers and mixing desks.
2 pole 1/4" professional phone plug, nickel contacts, black shell

Features & Benefits

• Extra slim 1/4" plug for highest packing density
• Robust diecast shell in stylish design
• Improved chuck type strain relief for reliable cable retention
• Sleek design for best handling convenience
• Precision machined one-piece contacts - avoid hook up of tip contact

Files:

• Datasheet
• Mounting

• Type: Panel Mount Potentiometer - Push / Pull
• Power Rating: 0,125 W log / 0,2 W linear
• Voltage Rating: 150 V DC Audio / 200 V DC linear
• Tolerance: 20%
• Shaft: 6,35 mm, Solid Shaft
• Shaft length: 15 mm
• Drill Ø: M7 (6,8 mm)
• Termination: Solder Lugs
• Dimension: 16 mm
• Switch: DPDT

• Primary: 8 kOhm
• Secondary: 4, 8 and 16 Ohm
• Power: 18 Watt
• Made in Europe

Files:

• Datasheet

ORANGE DROP®, 716 P Series

• Polypropylene Film Capacitors, extended foil
• Voltage Rating: 600 V
• Operating Temperature Range: - 55°C / + 85 °C
• Termination Style: radial, copper leads
