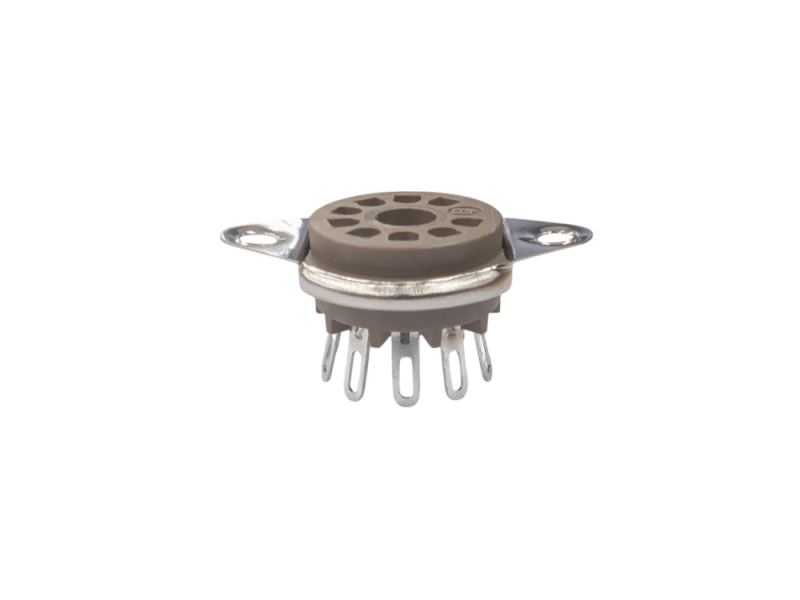

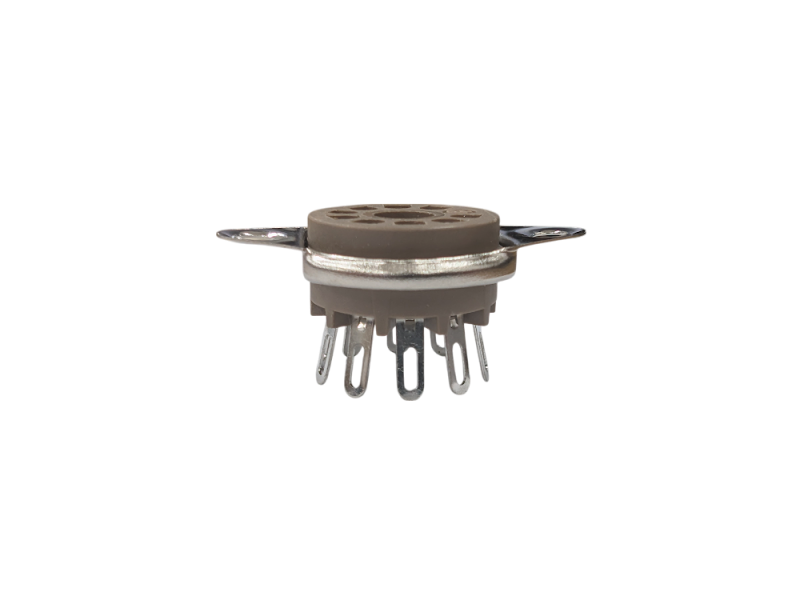

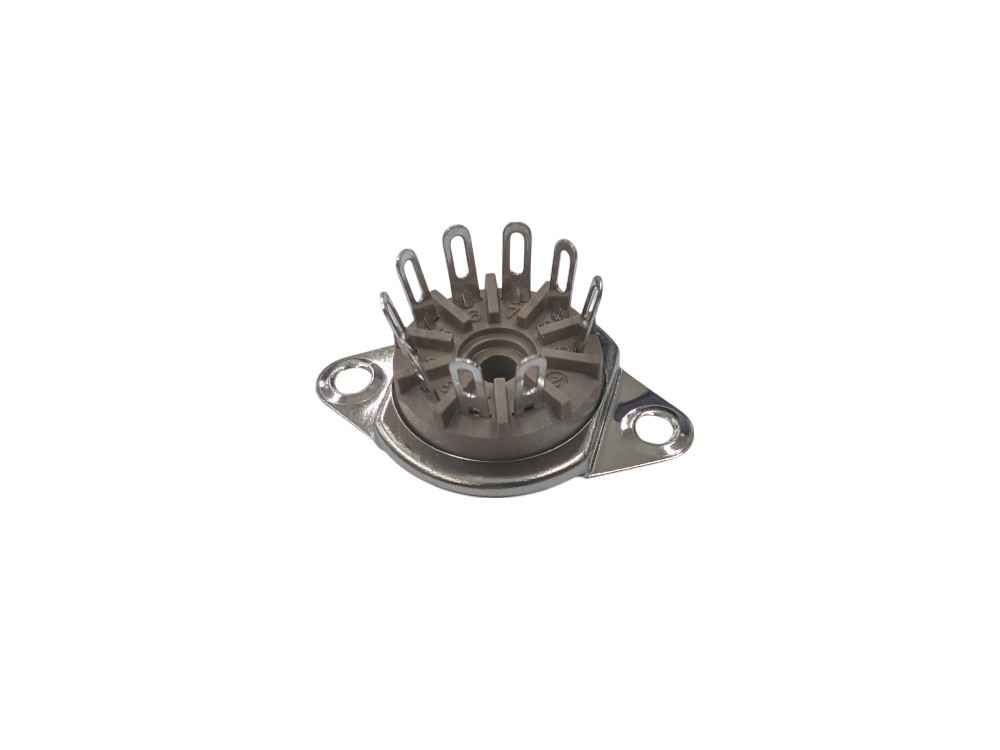

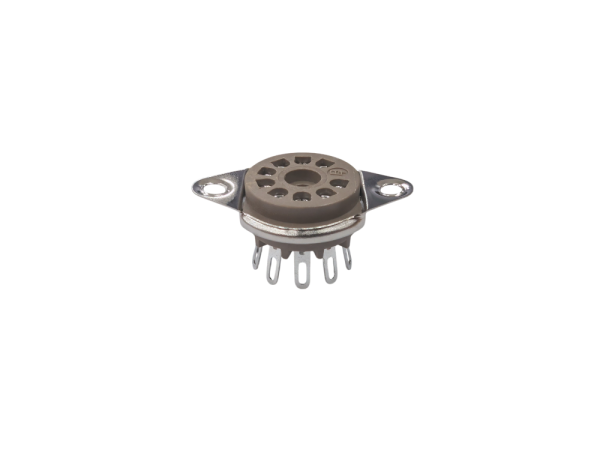

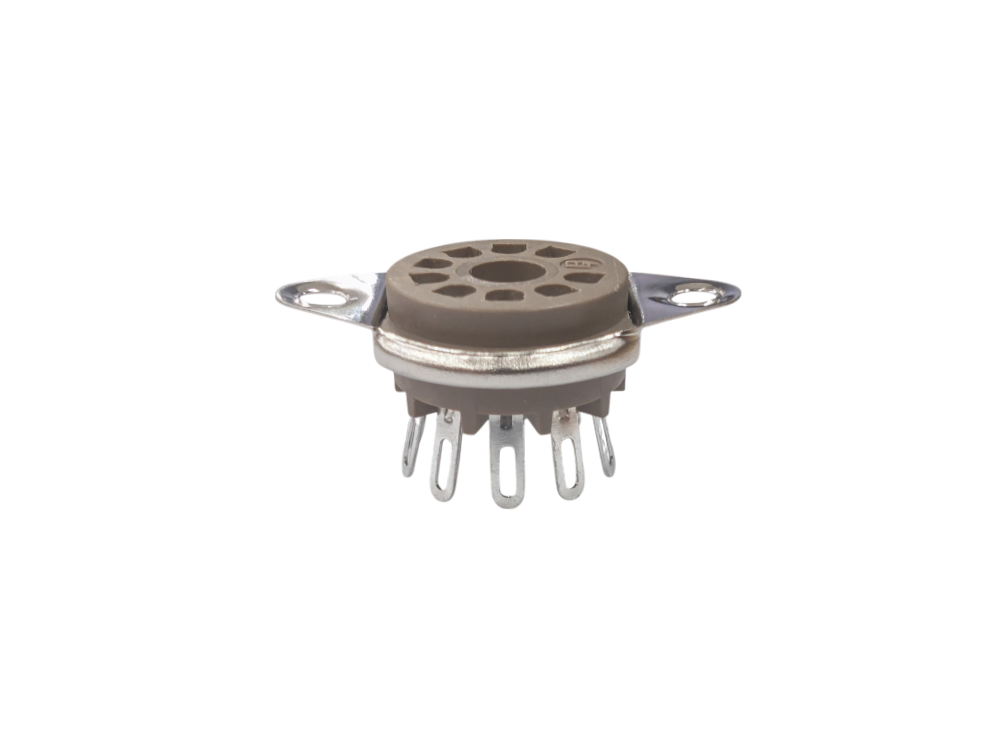

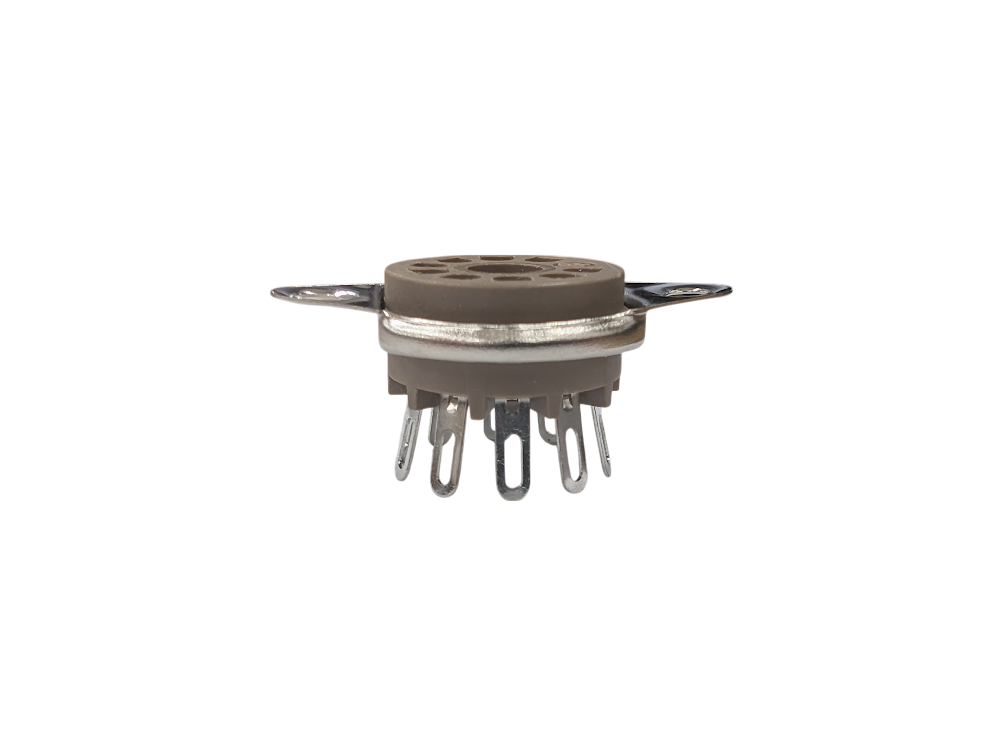

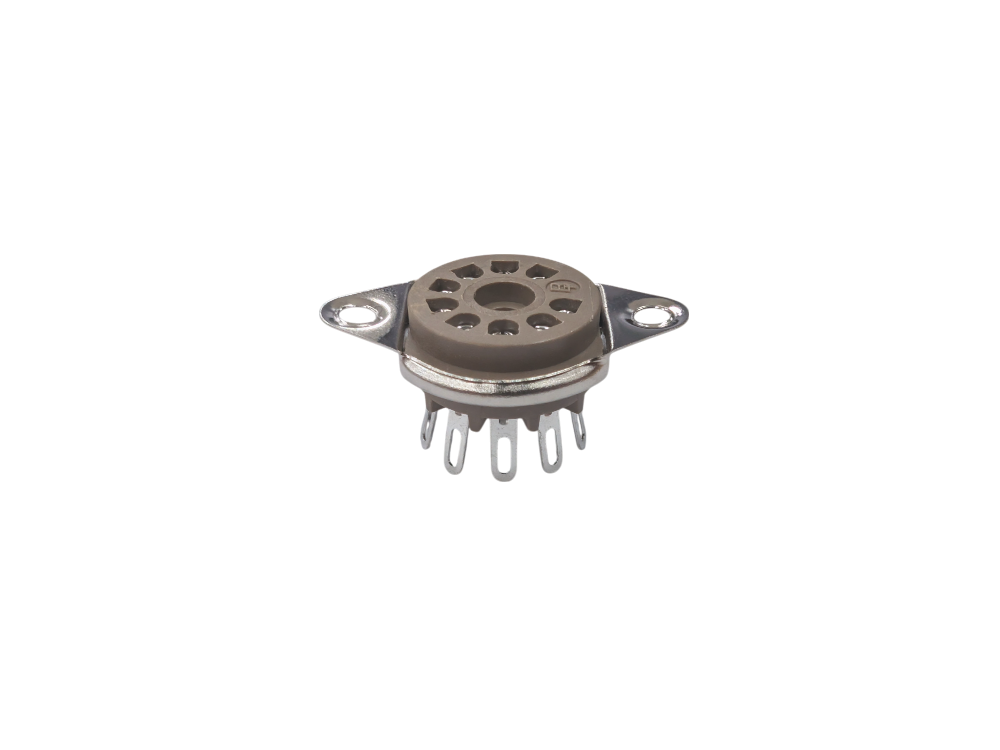

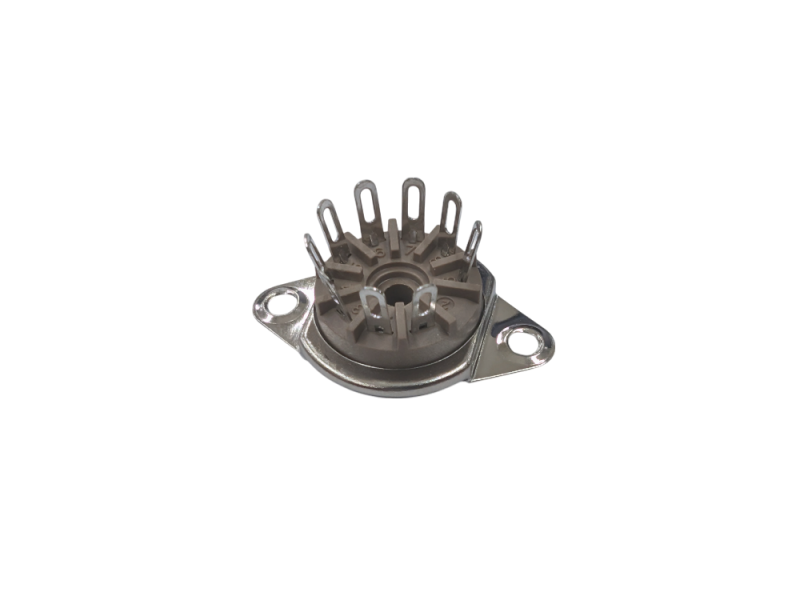

Socket Noval Belton, Chassis VT9-ST-1, Bottom Mount

Mobile Preview: Socket Noval Belton, Chassis VT9-ST-1, Bottom Mount

Description

Type: Noval Socket Belton VT9-ST-1

Version: High quality Micalex socket
Glassfiber filled PPS body, brown
Chassis mount, Bottom Mount
Termination Style: solder lugs
for Tube Type: 12AX7, 12AT7, 12AU7, EL84, EZ81, EL844 etc.

Manufacturer

Herstellerinformationen | Manufacturer Information
Belton Engineering Co.,LTD,
Unit 1208,Daerung Technotown 8,
481-11 Gasan-Dong,
Geumcheon-Gu, Seoul,
KR
https://belton.co.kr/

EU Wirtschaftsakteur | EU Economic Operator
Tube-Town GmbH, Rumbergring 37, 66969 Lemberg, Germany, info@tube-town.de
