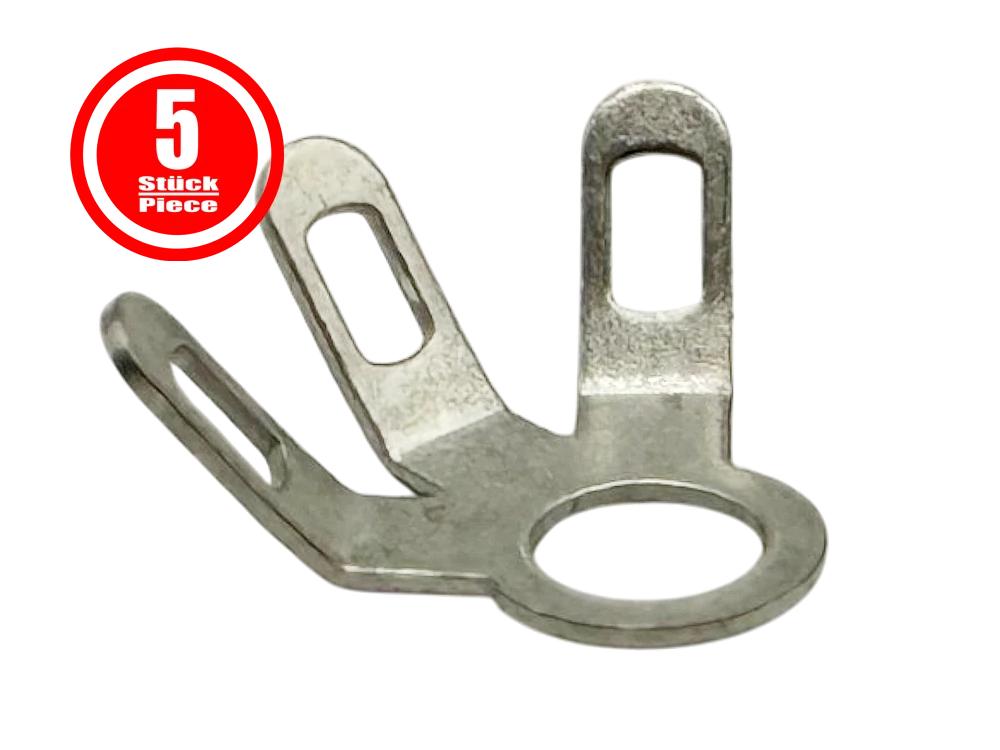

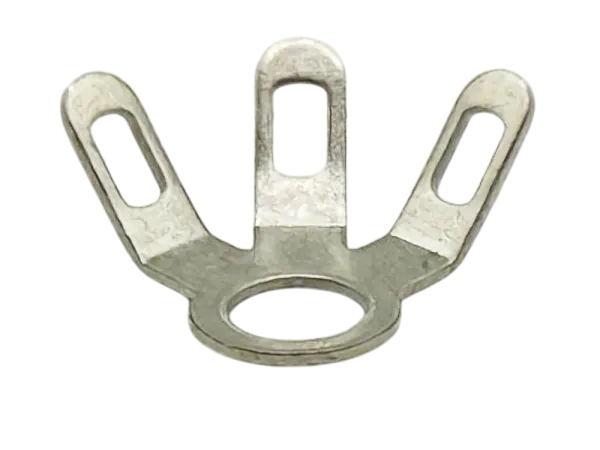

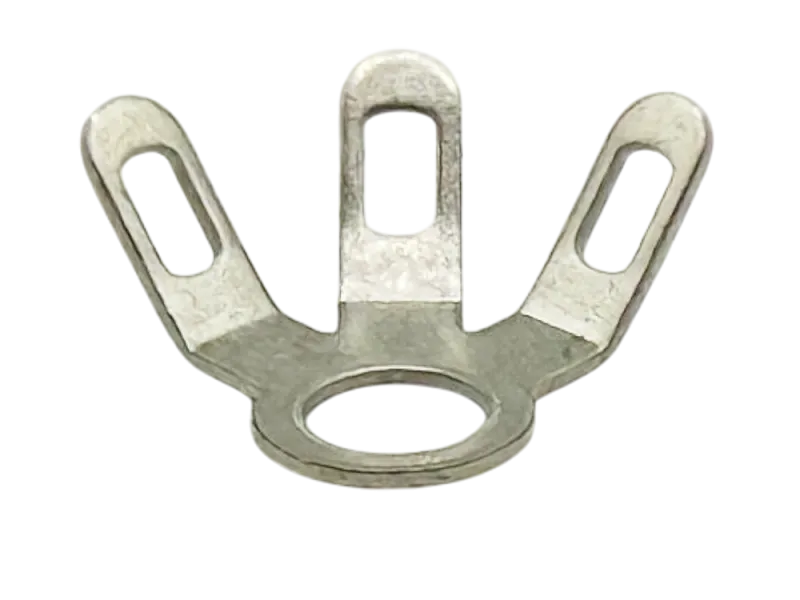

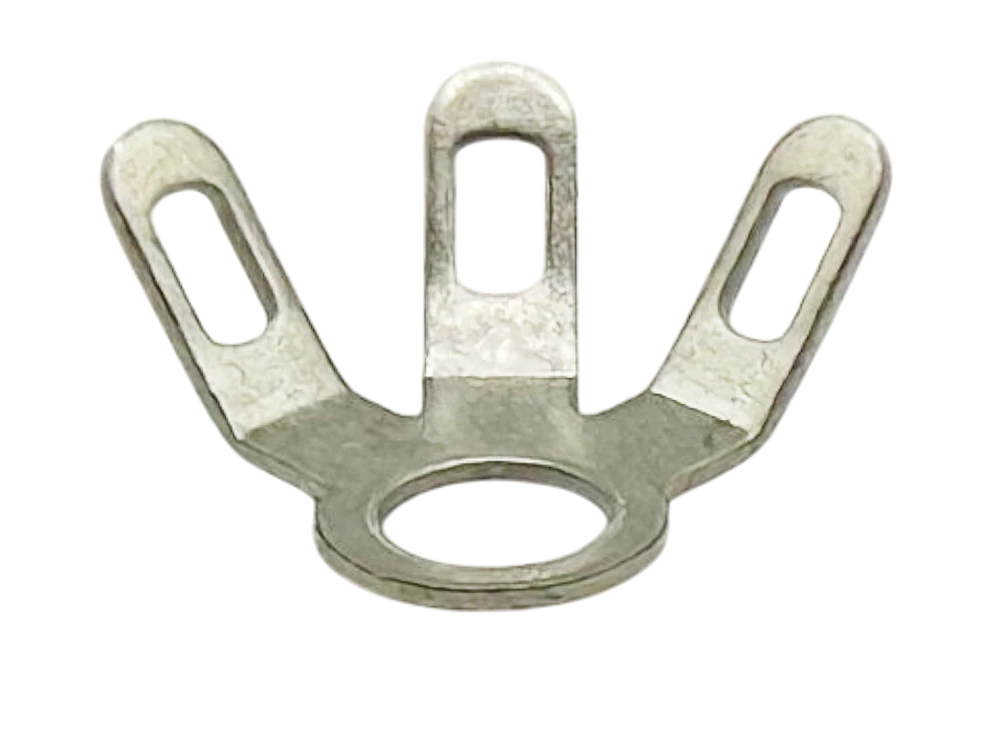

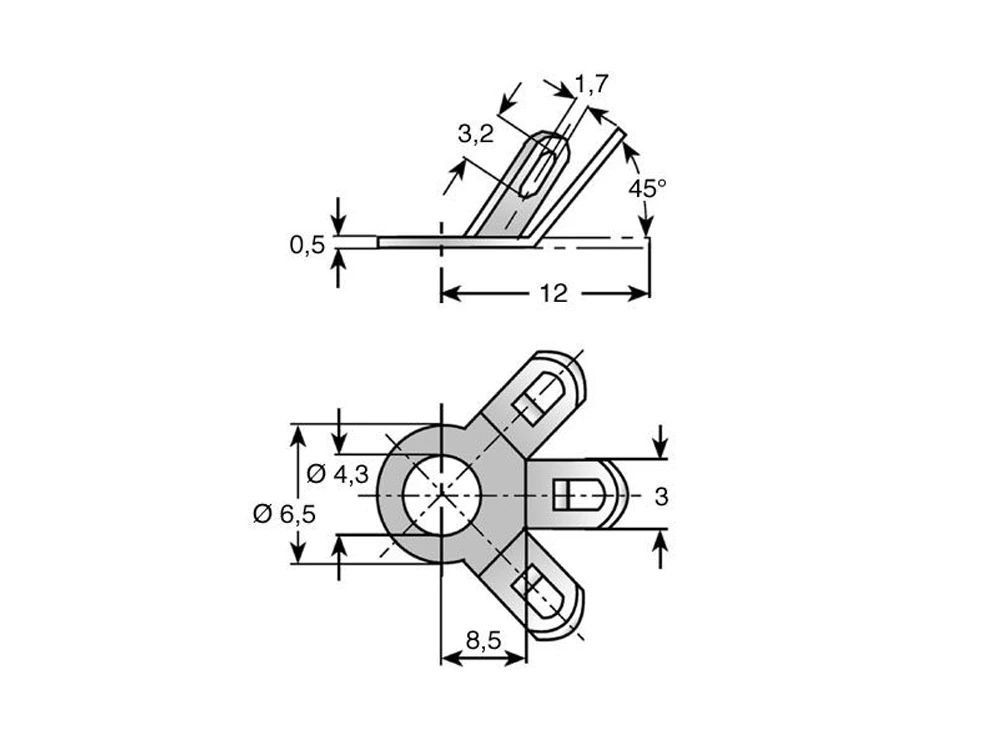

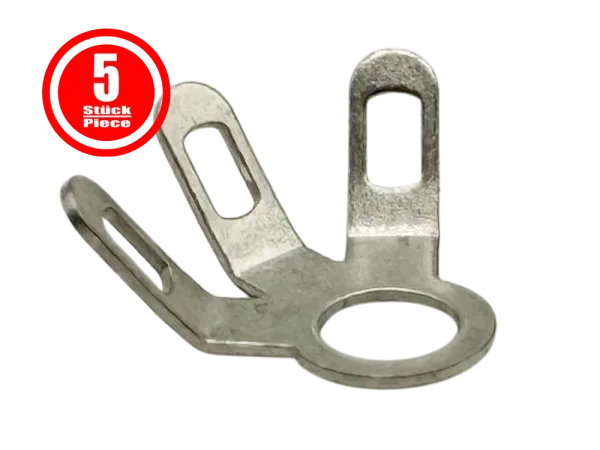

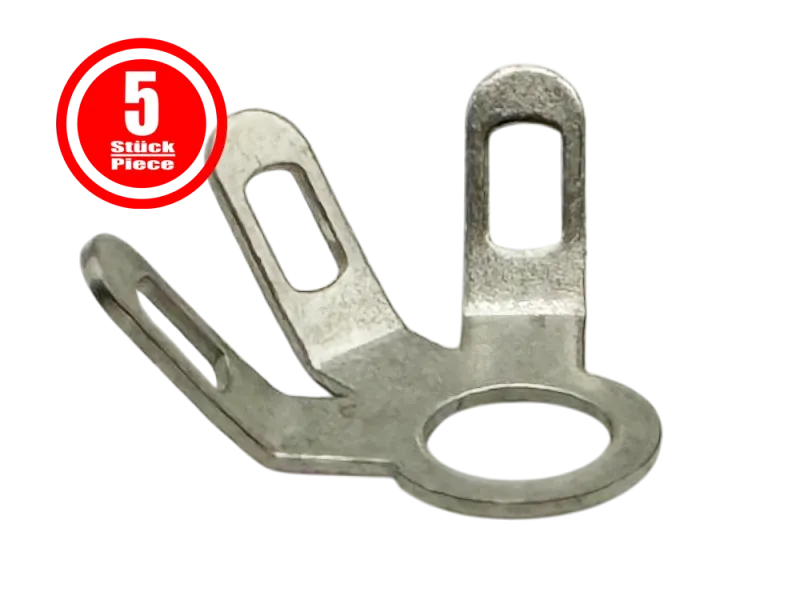

Soldering Lug M3, 3 lugs, angled - Pack of 5

Width approx. 135 cm
Price per running meter
Color reproduction depends on the computer monitor and may vary
Supplied as one continuous piece when ordering more than 1 m

Material:

• 80% PVC film
• 20% polyester-cotton fabric
• REACH compliant

Please note!
When ordering more than 1 m of Tolex and selecting Deutsche Post / DHL Paket or Express as the shipping method, the Tolex will be cut to a width of approx. 115 cm. This is due to the maximum permitted parcel length of 120 cm for these shipping services.
To receive the full roll width, GLS or ExprexxXL must be selected as the shipping method.

Noval Socket Ceramic Chassis mount

• w/mounting bracket
• solder lugs
• for 12AX7, EL84 and similar

Tube-Town EZ-Board #080

• Drills: 6 x 30
• Size: 60 x 300 mm
• Diameter drill: 2,8 mm
• Material: 2 mm
• No drilling needed! Ready for use.

The EZ-Board an be used as an Eyelett-Board without the need to install any Eyeletts or it can be used with Turrets type 1509-4 or TT Type 32.

Files:

• Application Notes Turret-PCB

• Turrets
• for 3 mm Boards
• nickel-plated

• Turrets, forked
• for 3 mm Boards
• nickel-plated

Supporting PCB to build a turret socket, components can be mounted directly at the socket.

• Version 2024
• 1,6 mm, black solder mask
• can be used directly as "eylet board"
• turrets for 2mm boards can also be used
• the pin distance is more than 2,5 mm
• conform with actual VDE regulations
• operating voltage 500 V DC
• designed for Belton noval and octal sockets
• with tabs at the side for mounting on an octal socket, these can be snapped off if not needed
• recommended spacer bolts: 30 - 40 mm, M3
• check "accesories" for recommended and fitting parts

Note: The easiest way to assemble the components is when no turrets are used.

Files:

• Application Notes Turret-PCB

Double Relay Switcher for channel switching and similar applications.

The kits comes with all components incl. 6 V Finder relaise but without switches for the front panel.
Works with 6,3 V heater voltage.

Files:

• Datasheet

• Turrets, forked
• for 2 mm Boards
• nickel-plated

The signal lamps for front panel installation are designed for screw mounting with a recommended installation hole of Ø6mm. The sockets can be supplied with an external or internal reflector. The plug insert is removable. Supplied with washer and hexagonal nut.

The signal lamps for front panel installation are designed for screw mounting with a recommended installation hole of Ø8mm. The sockets can be supplied with an external or internal reflector. The plug insert is removable. Supplied with washer and hexagonal nut.

• LED 5,0 mm
• 6000 mcd
• forward voltage 3 V
• blue

Mounting board for LED and dropping resistor

• for easy mounting of the LED and its dropping resistor
• the dropping resistor can be mounted vertical on the backside
