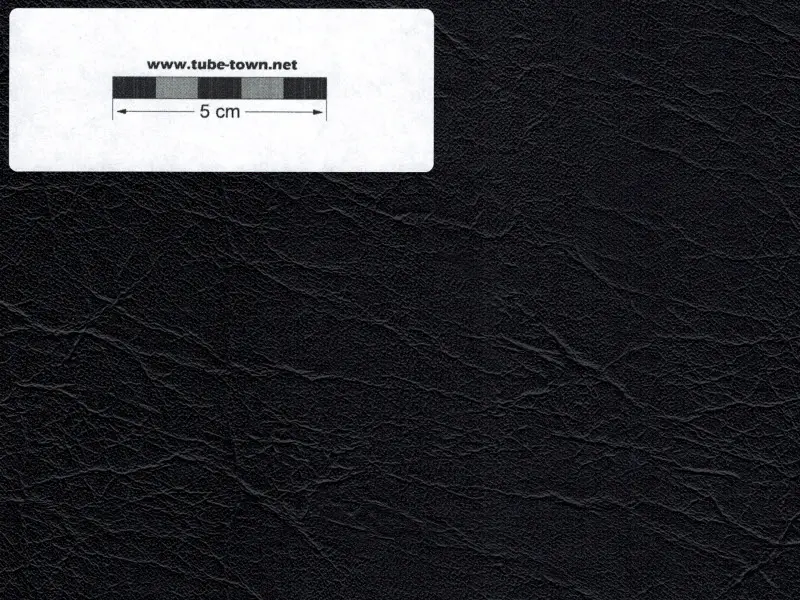

Tolex Mesa-Boogie Style Black / Schwarz

Marshall Style Knob, Gold

• Material: Phenolic
• Shaft Size: 6 - 6,4 mm
• Size: 19,5 x 15,3 mm
• Mounting: Set-Screw, hexagon

The ET90 is our lastest addition to the ET65 lineage.  Taking its core sound from the ET65, the ET90 gives you more all the way around.  We went to larger motor and a beefier voice coil on this model.  The result is more headroom, more power handling and a bigger feel.  If you've been looking for classic British tone with an "open" feel and a lot of power, the ET90 is your new favorite.

Thiele-Small Parameters

• Resonant Frequency (Fs): 100.14 Hz
• DC Resistance (Re): 8.04 Ohm
• Coil Inductance (Le): 0.33 mH
• Mechanical Q (Qms): 6.08
• Electromagnetic Q (Qes): 0.78
• Total Q (Qts): 0.69
• Compliance Equiv. Vol. (Vas): 16.03 cu ft
• Mech. Compliance of Susp. (Cms): 0.08 mm/N
• BL Product (BL): 13.95 T-M
• Diaphragm Mass Inc. Airload (Mms): 29.95 grams
• Surface Area of Cone (Sd): 366.10 cm squared
• Sound Pressure Level (spl): 99.94 db

Tube-Town Black & White, Hiwatt-Style

• Hiwatt-Style, same manufacturer
• Size: ca. 80 x 100 cm (only available in this size)
• Material: 100% treated paper
• Price per pcs.
• Actual shades may vary.

Further information and notes on Grillcloth

• FAQ Grillcloth

Cliff 11607 mono jack

• Jack socket, mono
• switched
• gold plated
• for chassis mounting, 4 solder terminals
• for 6.3 mm jack plug

Files

• Datasheet



Set of metal corners for housing consisting of:

• 8 x Cabinet corner w/ cutaway 3 leg, black (4020b)
• Powder Coated black
• Internal radius: 12 mm
• 24 x Screws, flat head, black

Dish - Punched for 4 x 1/4" Jack Connectors

• Material: 1.2 mm Steel, black powder coated.
• Size: 78 x 88 mm
• Fixing holes Ø 10 mm

Width ca. 135 cm
Price per linear meter.
Actual shades may vary.
We ship the tolex as one piece if you order more than 1 meter.

Material:
80% PVC Film
20% Poly-Cotton Fibre

REACH compliant

Please note !
when you order more than 1 m and select Deutsche Post / DHL Parcel (Not DHL Express) we need to cut the width of the tolex to ca. 115 cm. Otherwise it is not possible to ship the tolex with DHL because the parcel length would exceed the maximum parcel length.

Dish - Punched for 2 jacks. Material: 1.2 mm Steel, black powder coated.

Cutout 65 x 106 mm. Fixing holes Ø 5 mm. Weight: 125g
