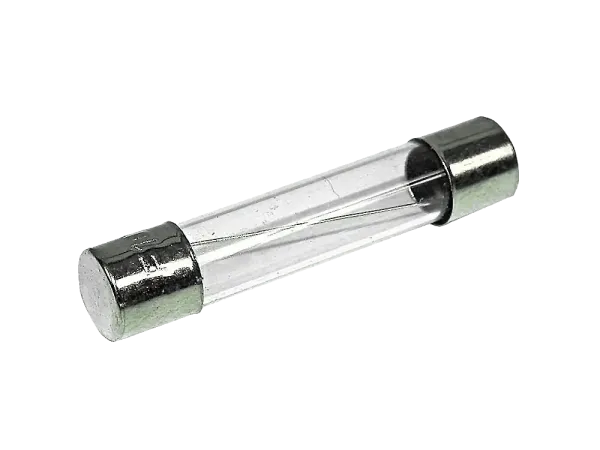

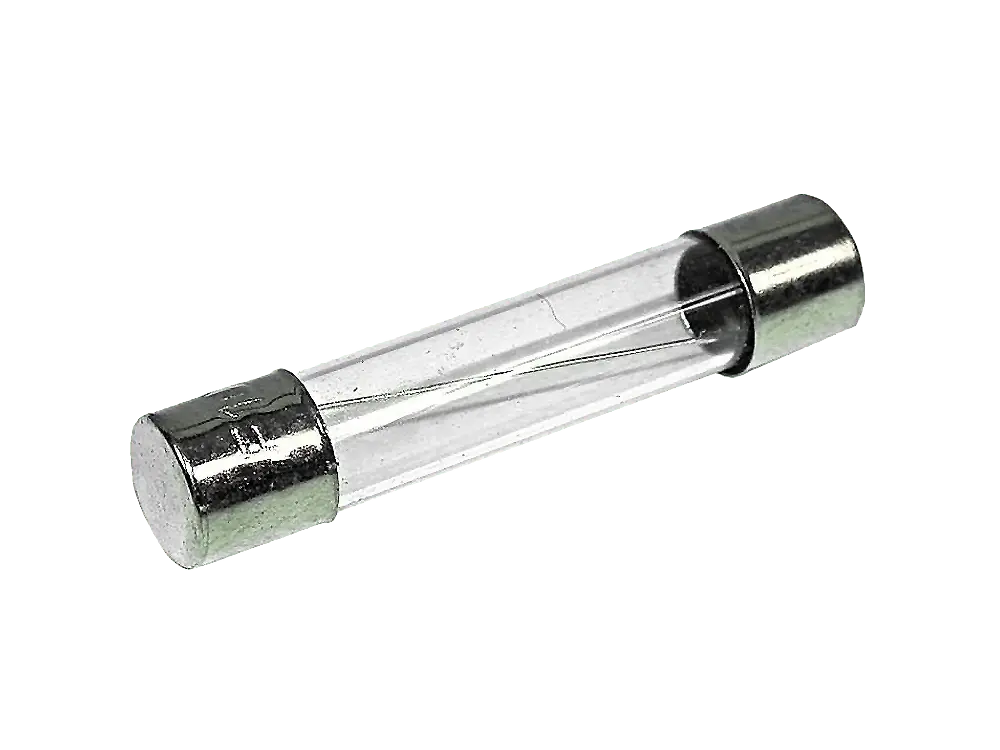

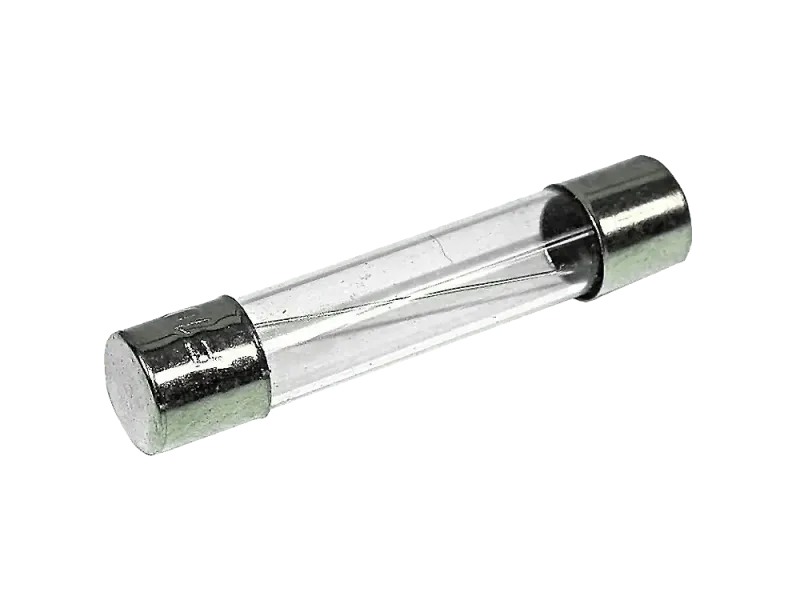

Fuse 1.0 A slow blow, Pack of 10

PVC piping for baffles and front panels

• Size 3.1 x 8.5 mm
• 4 m piece

• Color: black
• Size:
  • A: 10 mm
  • B: 12 mm
  • D: 17,5 mm
  • H: 6,8 mm
  • h: 2 mm
• Material: soft PVC,UL 94 V-2
• Operating temperatures: –30 to +60 °C

• Power Rating: 0,25 W
• Voltage Rating: 250 V AC
• Tolerance: 20%
• Shaft: 6,35 mm, Solid Shaft
• Shaft length: 15 mm
• Drill Ø: M8 (7,8 mm)
• Termination: Solder lugs
• Dimension: 24 mm

• Power Rating: 0,25 W
• Voltage Rating: 250 V AC
• Tolerance: 20%
• Shaft: 6,35 mm, Solid Shaft
• Shaft length: 15 mm
• Drill Ø: M8 (7,8 mm)
• Termination: Solder lugs
• Dimension: 24 mm

Cliff 1160 mono jack, vintage-style

• Jack socket, mono
• switched
• for chassis mounting, 4 solder terminals
• for 6.3 mm jack plug
• Used by Marshall and many others

• Datasheet

• up to T 70 °C
• with one fuse holders 5.0 x 20 mm
• Housing: polyamide
• UL 94 V-0, black
• for panel mounting
• Double-pole + protective ground 10 A/250 V
• single-pole fusing with bridge to the fuse holder at the L terminal
• fuse holder terminals for soldering
• Design to IEC/EN 60320-1
• fuse holder to IEC/EN 60127-6
• Certifications: ENEC, Semko, UL, CSA

• Version: High quality Micalex socket
• Chassis mount
• Termination Style: solder lugs
• for Tube Type: EL34, E34L, 6L6, 6V6, 6550, KT66/77/88 etc.

• Type: Noval Socket Belton VT9-ST-C
• Version: Chassis mount
• Termination Style: solder lugs
• for Tube Type: 12AX7, 12AT7, 12AU7, EL84,
•   EZ81, EL844 etc.

2 tubes, matched as pair

JJ 6V6 Double Mica double-layered mica in the upper part of the tube. This stabilizes the tube system and significantly reduces possible vibrations that can occur due to heavy mechanical stress. This version of the JJ 6V6 was specifically designed for use in combo amplifiers.

The JJ6V6 is a beam power pentode with octal base and a maximum plate dissipation of 14W. It has fat low end and full mid tones with very good tone separation and a smooth, clean high end - in general, a very balanced tone.
Currently, the only new production 6V6 which is approved for up to 500V anode voltage in pentode operation.

Files:

• Datasheet
