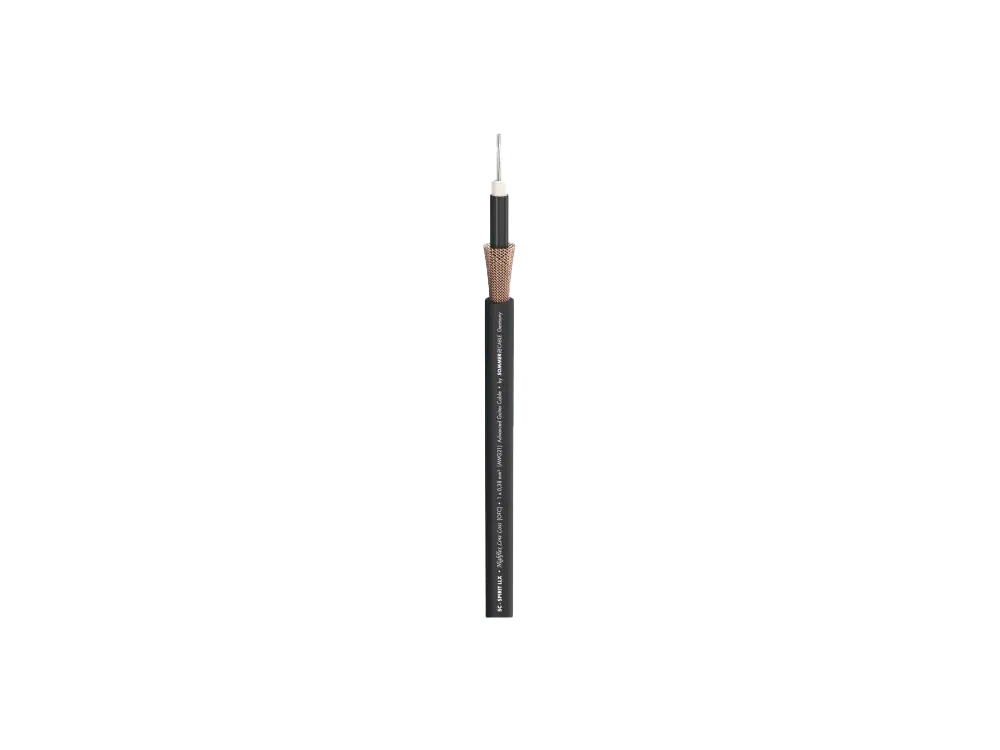

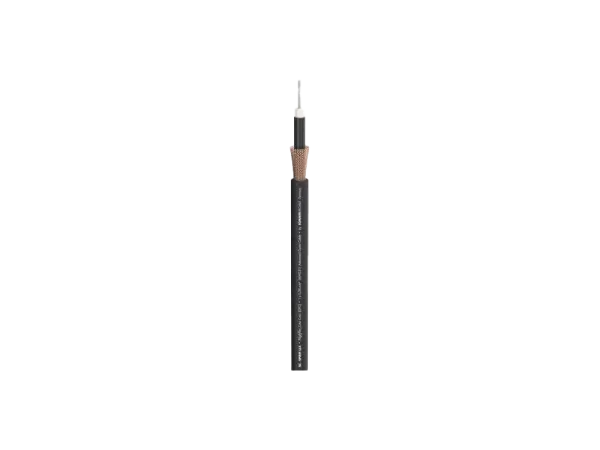

Sommer Cable - SC-SPIRIT LLX LOW LOSS, Instrumenten cable - 5 Meter

• Size: 6.3 mm 1/4"
• Pole: 2-pin, mono
• Design: straight
• Connection type: solder connections
• Housing: metal
• Color: silver
• Special feature: contacts gold-plated
• Cable pickup: max 7 mm
• Manufacturer: HiCon

• Size: 6.3 mm 1/4"
• Poles: 2-pole, mono
• Design: through-coupler
• Housing: metal
• Manufacturer: Rean (by Neutrik)

Files:

• Datasheet

Like a lasso... the guitar players throw the cables around.
That's why especially this cable has to have a very demanding and unique inner life.

Most musicians invest a lot of money in low cost cables, until they finally realise that the cables they just bought are barely good enough for shortwave radio reception or that it even ruins the entire sound image of a very expensive instrument. We have distanced ourselves from cheap products and offer a top quality cable at a fair price.

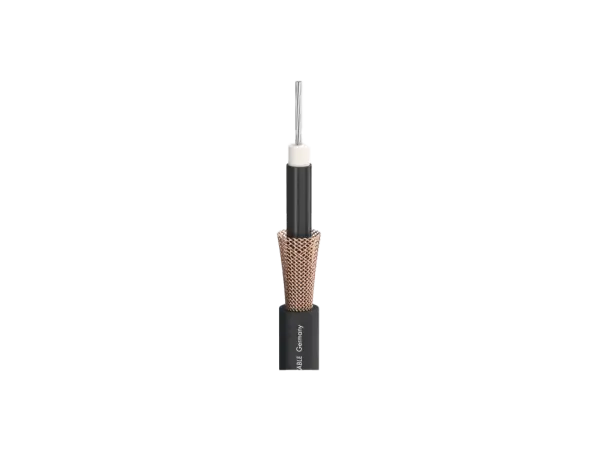

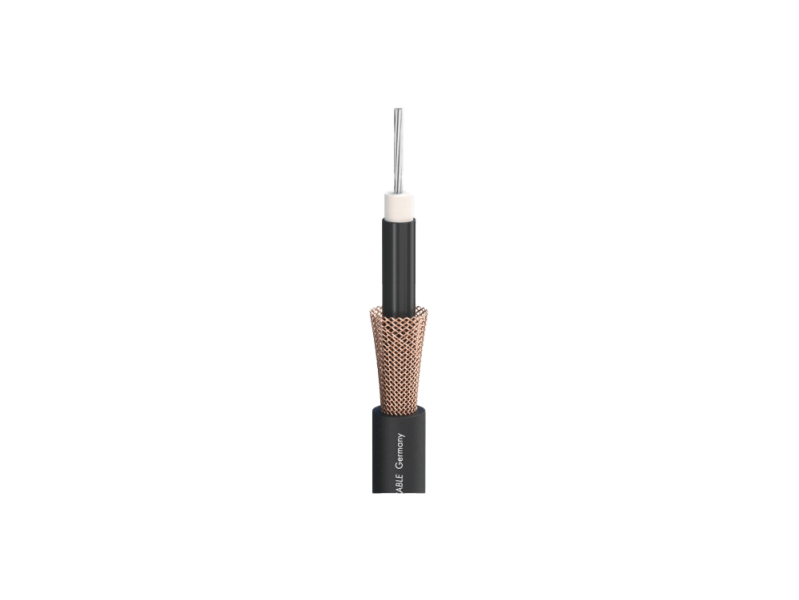

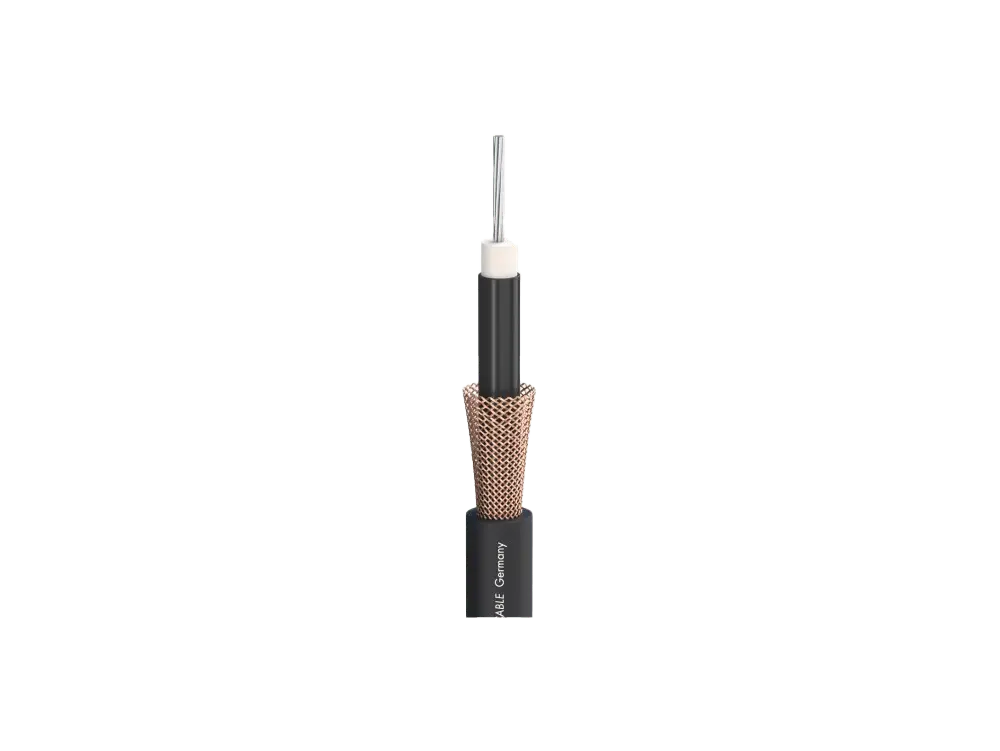

SC-SPIRIT has a thick insulation between wires and shiedling. This improves the capacitive values and ensures loss-free high rendition, even with longer cables. To avoid crackling and hum interference we use a special conductive carbon shield and copper braided shield. When soldering make sure that the carbon shield and the inner conductor do not touch.
Your audience will be surprised at the sound of this cable!

THE ADVANTAGES:

• Enormously powerful and clear sound image for bass, guitar, and keyboard due to the special stranding and a wire diameter of 0.50 mm² or 0.75 mm²
• Triple shielding due to the combination of double copper spiral shielding and conductive carbon shielding
• Loss free transmission due to the low capacity
• Very flexible and easy to wind due to the use of fine individual stranding
• Durability and robustness due to a special high quality PVC-mixture for the jacket
• Strain relief and good protection against bending due to the thick PVC-jacket

• High quality guitar cable for studio and stage
• Unbalanced cable for keyboards, samplers, mixing boards, etc.
• Connection of stereo video recorder and DAT-recorder

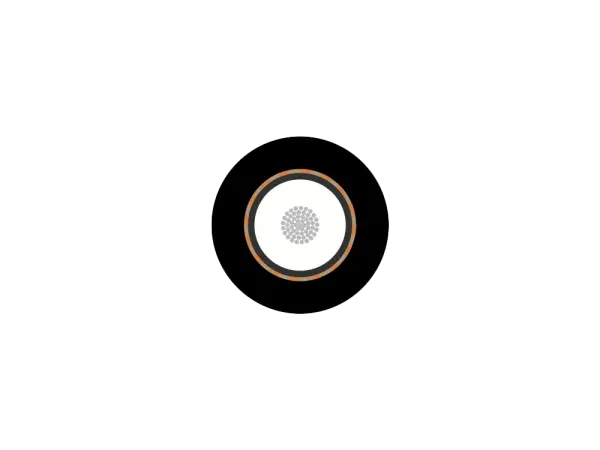

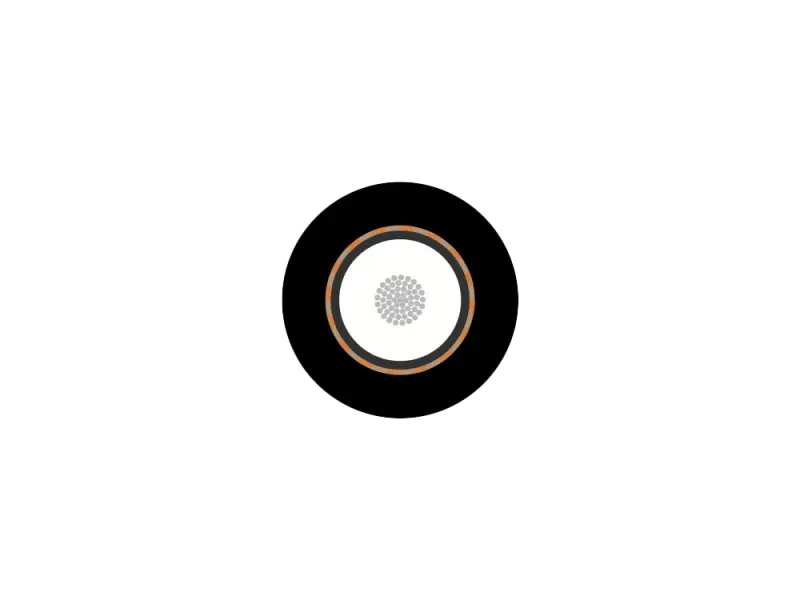

• Construction LI2Y(LS)CY1x0,50mm²
• Jacket, diameter PVC 7,0 mm
• AWG 21
• Inner conductors 1 x 0,50 mm²
• Copper strand per conductor 28 x 0,15 mm
• Conductor insulation PE 2,4 mm
• Shielding copper braiding tin-plated + semiconductor
• Shielding factor 100 %
• Temperature range min. -30 °C
• Temperature range max. 70 °C
• Fire load per m 0,26 kWh
• Weight per 1 m 66 g
• Color black

• Capac. cond./shield. per 1 m 78 pF
• Cond. resistance per 1 km 38,2 Ohm
• Insulation resist. per 1 km > 1 GOhm

SC-SPIRIT BLACK ZILK

Self-respecting musicians...
rock with one of the most interesting guitar cables ever made. This soft, highly flexible guitar cable
with its very attractive finish stands out by outward and inner values. It is sheathed by a thick 7.2 mm jacket
in a velvety, semi-transparent BLACK ZILK jacket, which glides on the the floor as lightly as a feather.
We use concentrically stranded litz wires of oxygen.free class Nò Cile copper (OFC 99.9999%) and a GAS-
INJECTED PE insulation which ensures a low-loss, neutral transmission.

The stranding angle of the shielding screen has been chosen with care so that hardly any friction points
will ocour at the overlying sleeve protection of the connector, giving the cable an extra long life.

With DIY configuring please bear in mind that the black carbon screen(on the white insulation) is conductive
and must therefore be removed to avoid any earthing contact with the inner conductor.

PRODUCT ADVANTAGES:

• Semi-transparent soft jacket design ensures a high number of bending cycles
• Gorgeous velvet look with soft touch feeling
• Dual shielding by flat helical Cu mesh and carbon semiconductor
• High bending cycles
• Zero-twist winding

• High-end guitar cable for pure transmission even over longer distances
• perfect for the unbalanced studio cabling

• Construction LI2Y(LS)DY 1x0,25mm²
• Jacket, diameter PVC 7,2 mm
• AWG 24
• Inner conductors 1 x 0,25 mm²
• Copper strand per conductor 32 x 0,10 mm
• Conductor insulation Foam/skin-PE
• Shielding helical Cu screen + semiconuctor
• Shielding factor 100 %
• Temperature range min. -30 °C
• Temperature range max. 70 °C
• Fire load per m 0,26 kWh
• Weight per 1 m 64 g

• Capac. cond./shield. per 1 m 80 pF
• Cond. resistance per 1 km 90 Ohm
• Insulation resist. per 1 km > 1 GOhm
