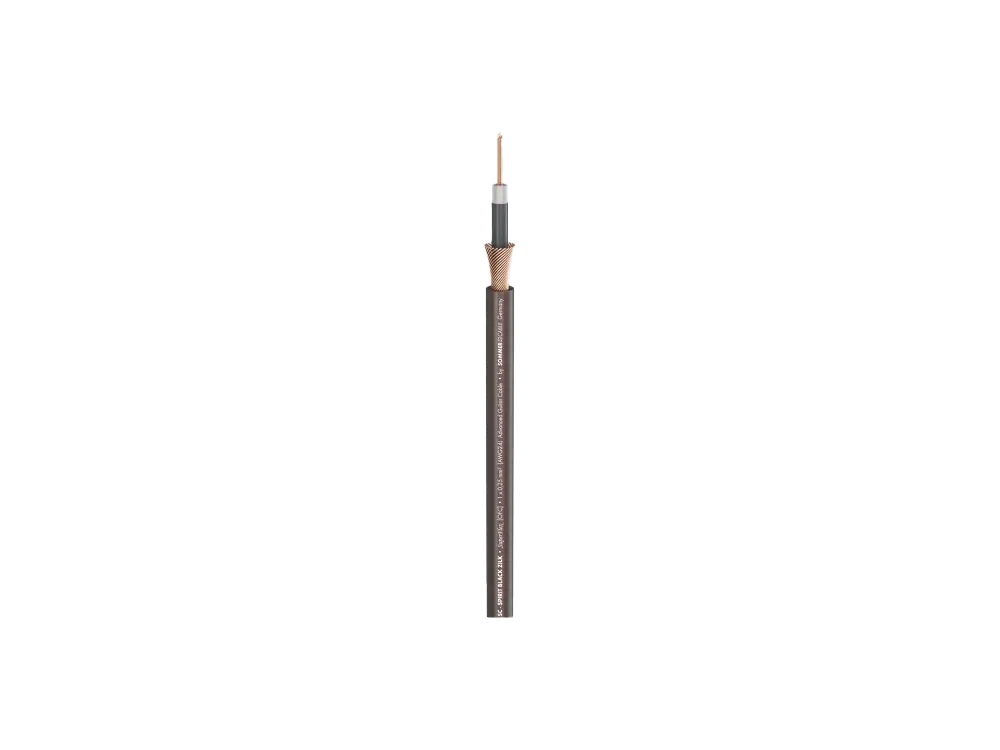

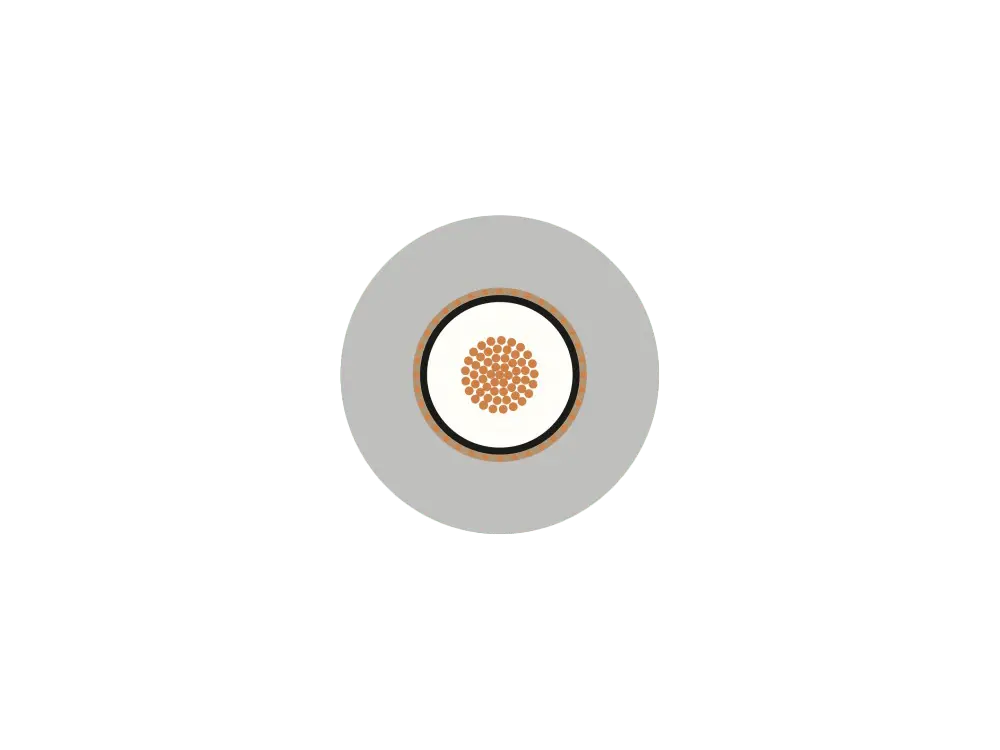

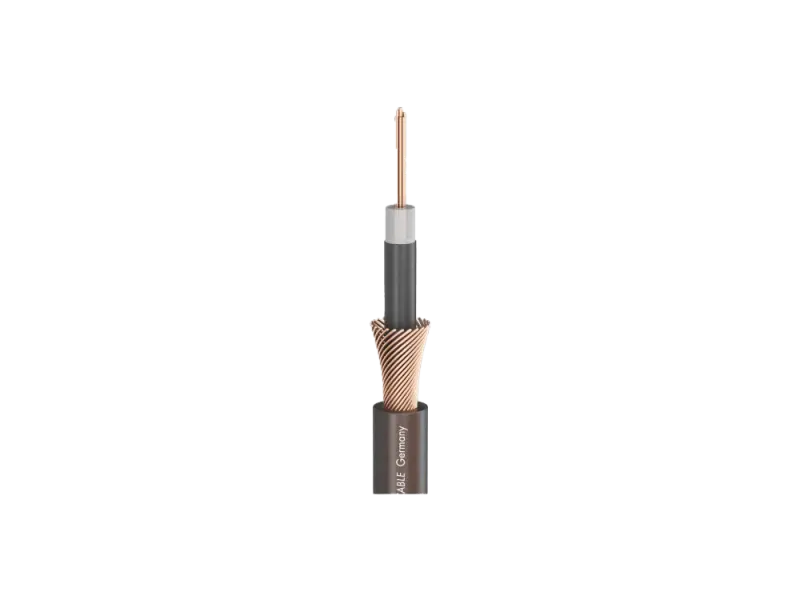

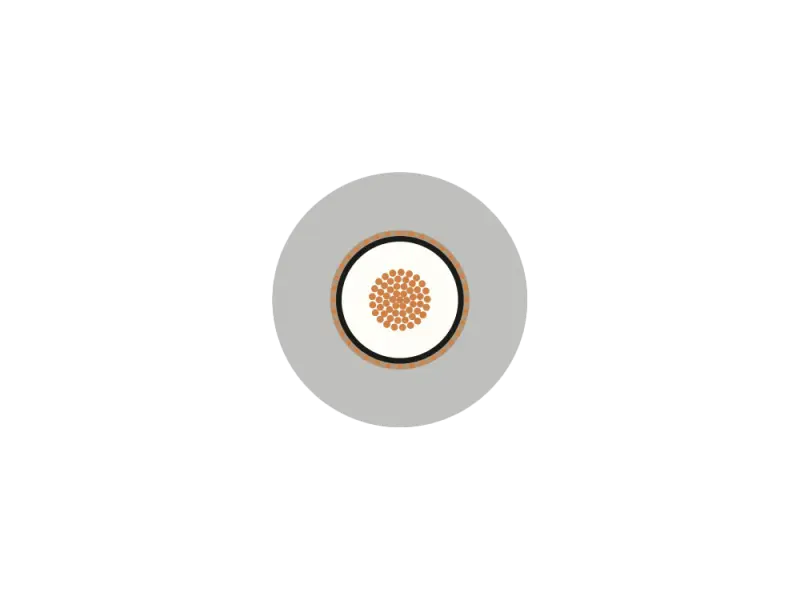

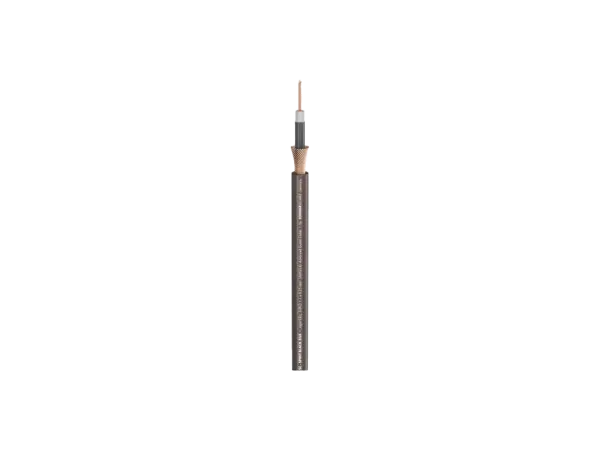

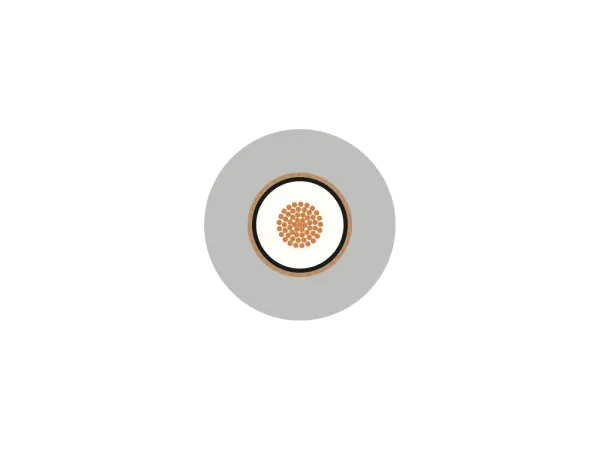

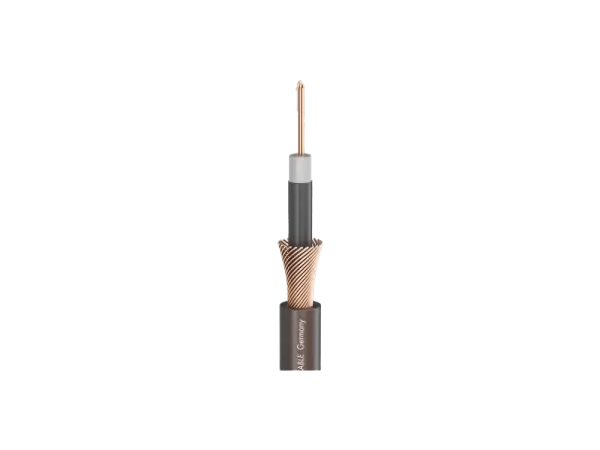

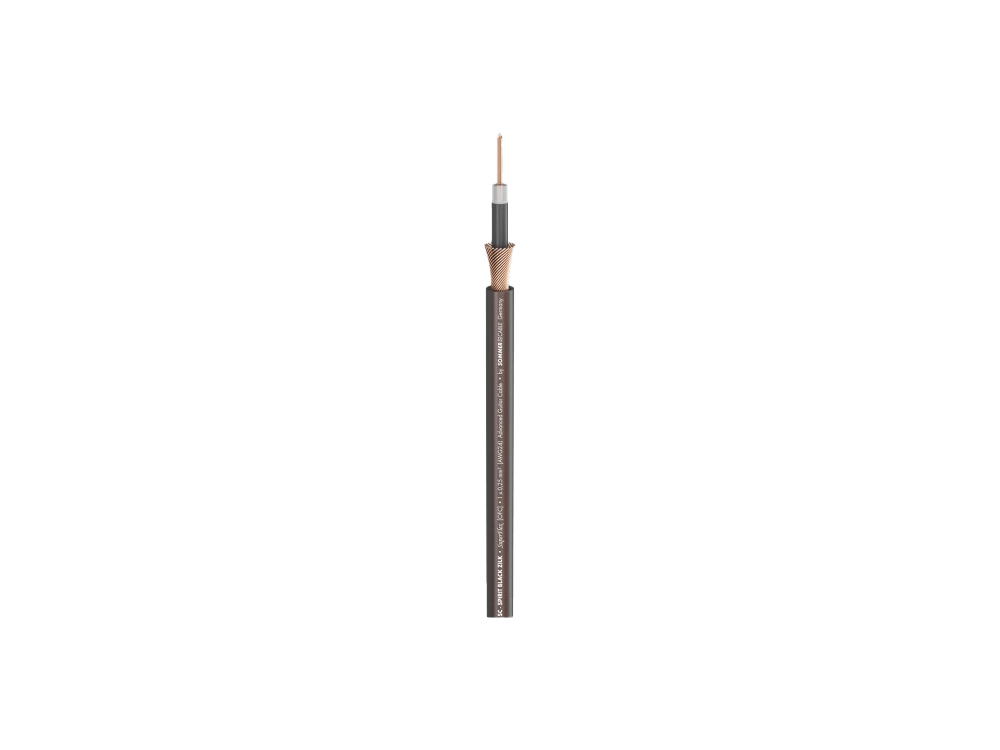

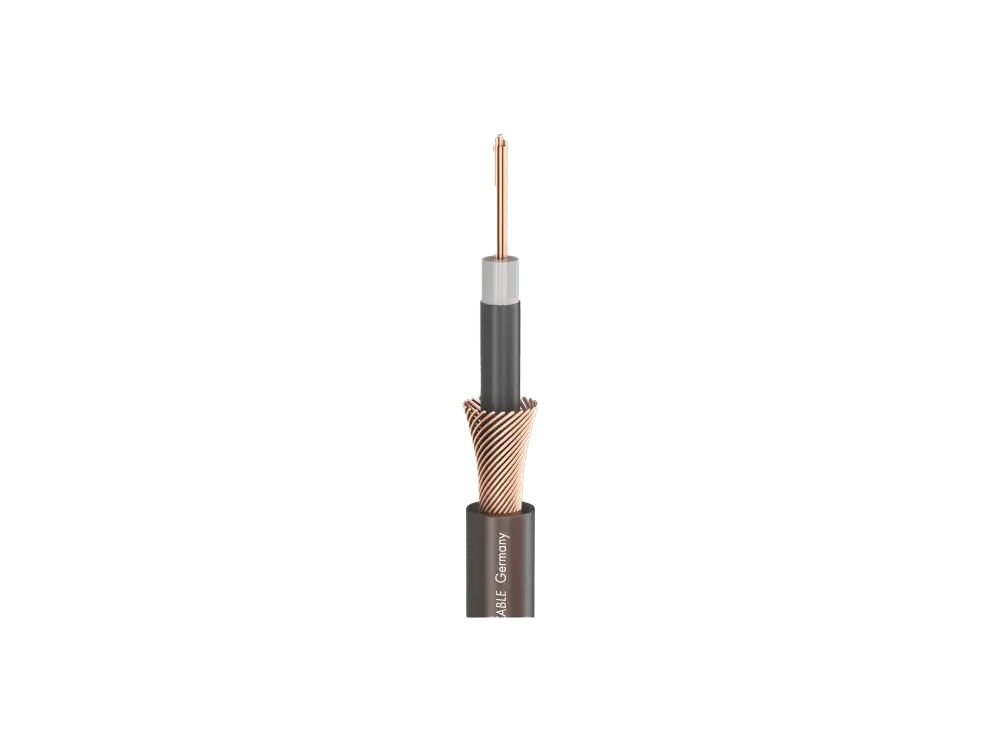

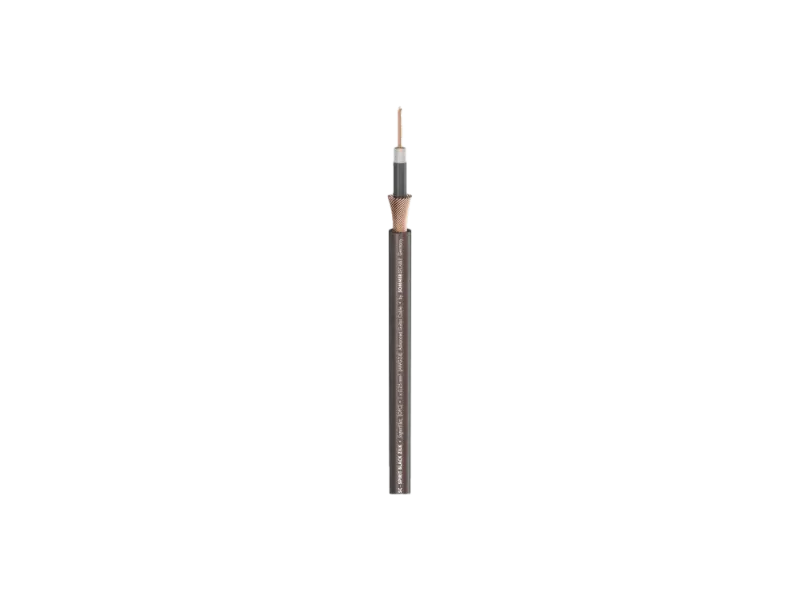

Sommer Cable - SC-SPIRIT BLACK ZILK, Instrument cable - 5 Meter

• Size: 6.3 mm 1/4"
• Pole: 2-pin, mono
• Design: straight
• Connection type: solder connections
• Housing: metal
• Color: silver
• Special feature: contacts gold-plated
• Cable pickup: max 7 mm
• Manufacturer: HiCon

TT-Chassis Aluminium - Typ 040

Chassis for the PX18/PI18 kit, fits in all of our Standard Smallhead and 18W Headcabs and Combos

• Size : 430 x 170 x 65 mm
• Material: 2 mm Aluminium
• Made in Germany
• fits Alpha 3/8" Potentiometer (Intemnumber p38-*)
• Mounting: with cage nuts (not included)

• Datasheet

Custom Shop Faceplate, Transply, laser engraved

• Max. Width: 600 mm
• Material:
  • 1,5 mm Transply all Colors starting with #C
  • 0,8 mm Transply all Colors starting with #D
• Working area: see option list
• Colors: see option list
• Engraving: Yes
• Cutting: Yes
• Resolution: max. 500 dpi
• Machining: Laser

Important:

• We will not produce faceplate which contain copyright-protected elements like logos or names !
• Minimum size of an plate: 5 x 5 cm
• Smaller objects should be connected to larger objects otherwise they can get lost. Example: connect the i-dot with the rest of the lettering for a cut-out lettering.
• Minimum distance between two blades: 3 mm
• Bitmaps and Inkscape: If possible DO NOT use bitmaps, because this causes many problems: the PDF file could be corrupt or the quality of the finished product is bad etc.. Bitmaps should always be converted to vector graphics before they are used in the layout. There are numerous online converters which convert bitmaps (PNG, JPG etc.) to SVG. Use them, convert the Bitmap and avoid problems.

How does it work ?

First of all you should read the documents and infos on the TT LaserShop Pages !

a) Select the required size, material and color combination

Hint: Several objects can be placed on a work surface, so cost-efficient material processing is possible. Example: two plates with a size of 55 x 490 mm (front and back plate) can be placed on a work space H2 with the overall size of 150 x 600 mm and can be ordered together. The configurations and optimizations have to be present in the submitted data.

b) Submit the order through the online shop.

c) Prepare the data according to our specifications. You can UPLOAD the finished data below on the page or sent it to us after completion of the order by e-mail (info at tube-town.de).

d) That's it. The rest is our job.


Note on the Parameter "Plates per Sheet"
The number of plates or logos per sheet. The more plates are on one sheet the longer the runtime is. We can make a maximum of 40 plates per sheet.

Note on "Logo-Option"
If your data contains large areas which need to be engraved (mostly seen on logos or plates for stomp-boxes) then you should check this option then we will engrave the plates twice to make sure that the quality is a as good as possible.
In principle, however, it should be avoided to use large, monochrome areas because one will always see small lines from the laser engraver.


 !! IMPORTANT: WHEN CREATING THE PDF FILE, MAKE SURE TO CONVERT THE FONTS TO CURVES. !!
Overview of the requirements click here

• Size: 6.3 mm 1/4"
• Pole: 2-pin, mono
• Design: angled
• Connection type: solder connections
• Housing: metal, extra flat
• Color: silver
• Cable pickup: max 7 mm
• Manufacturer: HiCon

TT PoS100

Power: 100 W RMS
Damping: 0 - 100%
Impedance: 4, 8, 16 Ohm
Line-Out

Please note in advance:  The PoS is a resistive attenuator, which is used for power reduction and is connected between amplifier output and loudspeaker cabinet. It is NOT a reactive load. For this purpose the Tone-Hound must be used.

The schematic and layout plan for this kit will be sent by email together with the invoice, usually on the same day the order is sent.

The PoS100 attenuator is the steady further development of the PoS50 and provides a simple construction and simple handling together with a high power rating. The Pos100 can be used with a load of 4, 8 or 16 ohm and has a maximum power rating of 100 W.
Another addition is the available Line-Out which can be used to directly process the output signal.
The attenuator gets build in a compact chassis of 2 mm aluminium plates.
This kit comes with all items needed to build the PoS100, aluminium chassis, black faceplates, knobs, screws and schematic and layout.

The new version offers the following additional options:

• Selection of the adjustment range (Range): this effects the resolution of the load potentiometer. High initial damping allows easier fine tuning of the final volume. With a lower basic attenuation the adjustment range is wider and covers a larger volume spectrum

• Selection of the control behaviour (Log/Lin): depending on the amplifier, the control behaviour of the load potentiometer can be adapted

A customer has made a recording with his Marshall and PoS100 and has put it online. You can see the video on YouTube.

FAQ: Can I use the PoS100 as dummy-load ?

Yes, but you must connect a "load" to the PoS100. This must NOT be a speaker-cab ! Just use a power resistor with 8 Ohm, mount it onto a heat sink and connect it with a jack than you can use the PoS as a Dummy-Load too.

Files:

• Datasheet (EN)
