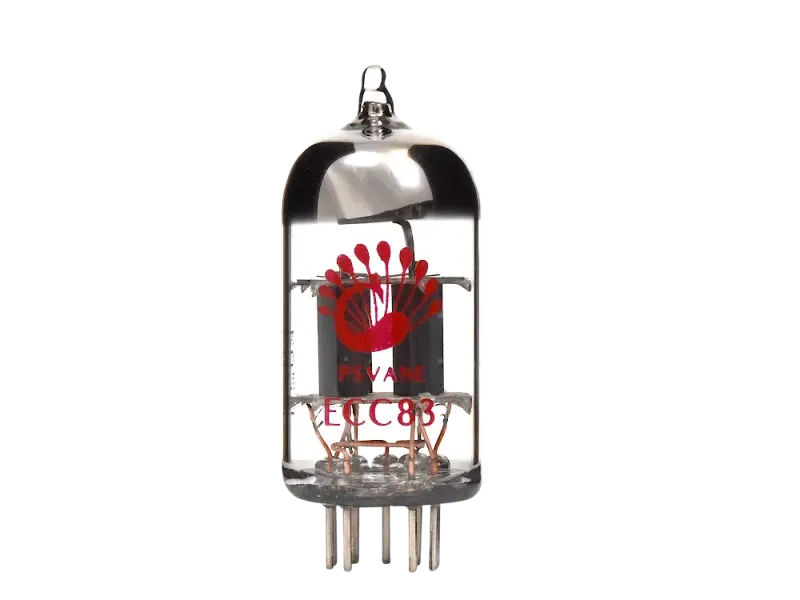

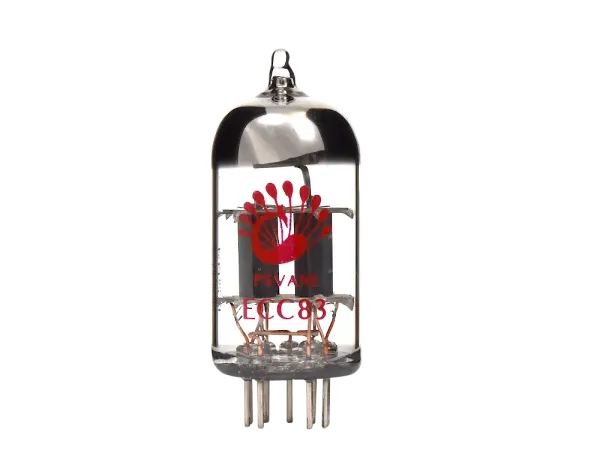

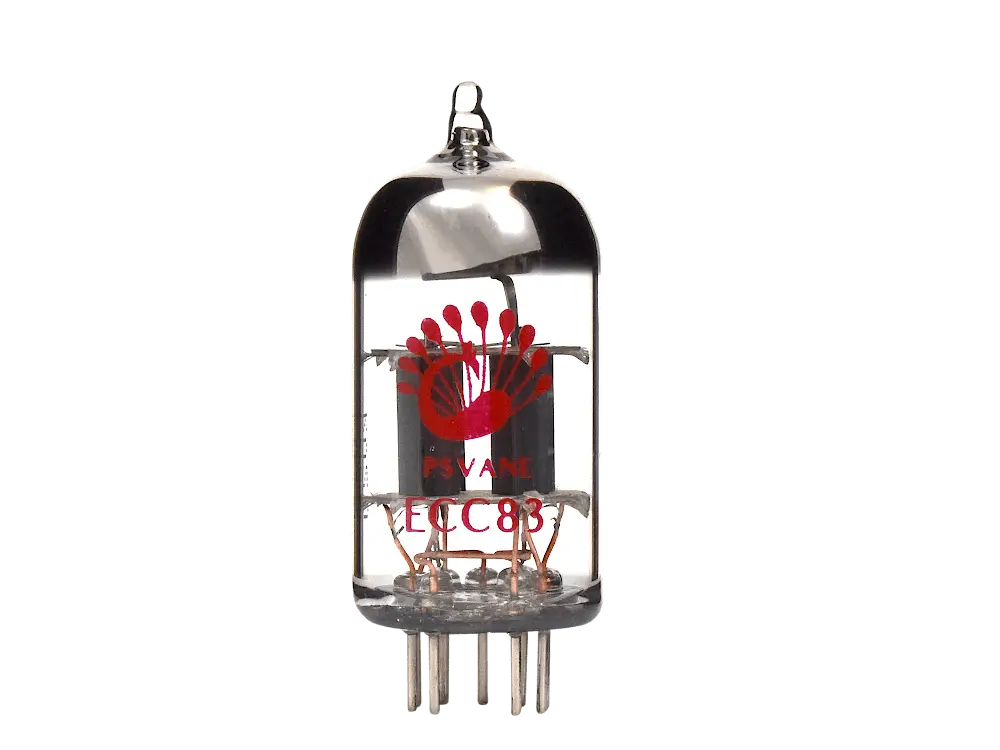

Psvane 12AX7 / ECC83 - Classic Series

Psvane 12AX7 / ECC83 preamp tube from the Classic series with red logo.
Dropin replacement for all 12AX7, ECC83 and 7025 tubes.

What you should know about Psvane tubes

Psvane Standard Series (red logo)

This is the standard series of tubes for everyday use and should also meet the majority of requirements.

Psvane S-Art High-End Series (gold logo, gold contacts)

The Art-Series was launched in 2020 and is reportedly produced on machines that were taken over from Fullmusic. According to the manufacturer, for these tubes higher quality materials are used, which should lead to a better quality. This series is intended specifically for high-end users.

Psvane itself was created from a spin-off of Shuguang and produces a large part of the tubes on machines which were taken over by Guiguang in 2011.

Tube-Town Rating (August 2021)

In subjective comparison to other preamp tubes from Chinese production, the Psvane preamtubes do sound smoother and less aggressive, which may be due to the somewhat recessed top end. Bass is tight but not obtrusive, even at high overdrive.
The tubes in our test all exhibited very low noise floor and low microphonics.
In the measured values (emission measurement, statically measured), the tested tubes were quite close to the ideal value (e.g. 1.2 mA for 12AX7) and thus belong to the preamp tubes from current production with a relatively high emission. This is of minor importance if the tube is used for voltage amplification (which is certainly the case in 99% of the cases), but there are always customers who prefer preamp tubes with high emission values. The Psvane tubes are likely to appeal in this respect.

More information about amplifier tubes can be found in our Tube FAQs and info pages

Manufacturer

Herstellerinformationen | Manufacturer Information
Psvane
Room101,A12 Building,
Jiahai Industrial Park
Zhongqing Road
Kaifu District,Changsha City,Hu'na
China
http://www.psvane.com/

EU Wirtschaftsakteur | EU Economic Operator
Tube-Town GmbH, Rumbergring 37, 66969 Lemberg, Germany, info@tube-town.de

Customer reviews

Essential information about customer reviews We do not verify that the published reviews come from such consumers who have actually used or purchased the rated goods or services. All reviews, i.e. positive and negative, are published. No reviews that are unobjective, offensive or unrelated to the product will be published.

Unfortunately there are no reviews yet. Be the first who rates this product.

Needed for:

TT 12AX7 / ECC83 Classic V1

TT Selection: Balanced
Both systems with balanced gain

The TT12AX7 impresses with its fine and detailed reproduction of the highs, which is maintained even at high amplification levels. Due to a higher H3 part, the TT12AX7 sounds significantly cleaner than many other 12AX7/ECC83 tubes, which makes the bass range appear much tighter. We therefore especially recommend this tube for styles such as clean, crunch, and metal, where high amplification and clear transparency are required.

Electrical Characteristics

Heater voltage (Uf): 6.3V or 12.6V
Heater current (If): 300mA at 6.3V, 150mA at 12.6V
Anode voltage (Ua): Maximum 300V
Grid voltages (Ug1): -2V (typical)
Grid voltages: -50V to 0V
Anode current (Ia): 1.2mA (typical)
Anode power dissipation: Maximum 1W per triode
Anode resistance (ra): 62.5kΩ
Amplification factor (μ): 100
Transconductance (S): 1.6mA/V
Input capacitance (Cin): 1.6pF
Output capacitance (Cout): 1.6pF

Mechanical Characteristics

Socket: B9A (Noval)
Number of pins: 9

Pin Configuration

1 Anode (Triode 1)
2 Grid (Triode 1)
3 Cathode (Triode 1)
4 Heater (f)
5 Heater (f)
6 Anode (Triode 2)
7 Grid (Triode 2)
8 Cathode (Triode 2)
9 Center Heater (f)

Application Notes

Heater operation: The tube can be operated with 6.3V or 12.6V, depending on the circuit design.
Grid resistors: It is recommended to use grid resistors of at least 1MΩ to ensure stable functionality.
Coupling capacitors: Capacitors with low capacitance (typically 0.1µF) are recommended to minimize high-frequency interference.

24,95 €

TT 12AX7 / ECC83 Classic

Tube-Town 12AX7 / ECC83 Preamp-Tube

The TT12AX7 impresses with its fine and detailed reproduction of the highs, which is maintained even at high amplification levels. Due to a higher H3 part, the TT12AX7 sounds significantly cleaner than many other 12AX7/ECC83 tubes, which makes the bass range appear much tighter. We therefore especially recommend this tube for styles such as clean, crunch, and metal, where high amplification and clear transparency are required.

Electrical Characteristics

Heater voltage (Uf): 6.3V or 12.6V
Heater current (If): 300mA at 6.3V, 150mA at 12.6V
Anode voltage (Ua): Maximum 300V
Grid voltages (Ug1): -2V (typical)
Grid voltages: -50V to 0V
Anode current (Ia): 1.2mA (typical)
Anode power dissipation: Maximum 1W per triode
Anode resistance (ra): 62.5kΩ
Amplification factor (μ): 100
Transconductance (S): 1.6mA/V
Input capacitance (Cin): 1.6pF
Output capacitance (Cout): 1.6pF

Mechanical Characteristics

Socket: B9A (Noval)
Number of pins: 9

Pin Configuration

1 Anode (Triode 1)
2 Grid (Triode 1)
3 Cathode (Triode 1)
4 Heater (f)
5 Heater (f)
6 Anode (Triode 2)
7 Grid (Triode 2)
8 Cathode (Triode 2)
9 Center Heater (f)

Application Notes

Heater operation: The tube can be operated with 6.3V or 12.6V, depending on the circuit design.
Grid resistors: It is recommended to use grid resistors of at least 1MΩ to ensure stable functionality.
Coupling capacitors: Capacitors with low capacitance (typically 0.1µF) are recommended to minimize high-frequency interference.

19,50 €

TT 12AX7 / ECC83 Classic V1

TT Selection: V1 - Low Noise
This tube is selected for sensitive input stages (V1)

The TT12AX7 impresses with its fine and detailed reproduction of the highs, which is maintained even at high amplification levels. Due to a higher H3 part, the TT12AX7 sounds significantly cleaner than many other 12AX7/ECC83 tubes, which makes the bass range appear much tighter. We therefore especially recommend this tube for styles such as clean, crunch, and metal, where high amplification and clear transparency are required.

Electrical Characteristics

Heater voltage (Uf): 6.3V or 12.6V
Heater current (If): 300mA at 6.3V, 150mA at 12.6V
Anode voltage (Ua): Maximum 300V
Grid voltages (Ug1): -2V (typical)
Grid voltages: -50V to 0V
Anode current (Ia): 1.2mA (typical)
Anode power dissipation: Maximum 1W per triode
Anode resistance (ra): 62.5kΩ
Amplification factor (μ): 100
Transconductance (S): 1.6mA/V
Input capacitance (Cin): 1.6pF
Output capacitance (Cout): 1.6pF

Mechanical Characteristics

Socket: B9A (Noval)
Number of pins: 9

Pin Configuration

1 Anode (Triode 1)
2 Grid (Triode 1)
3 Cathode (Triode 1)
4 Heater (f)
5 Heater (f)
6 Anode (Triode 2)
7 Grid (Triode 2)
8 Cathode (Triode 2)
9 Center Heater (f)

Application Notes

Heater operation: The tube can be operated with 6.3V or 12.6V, depending on the circuit design.
Grid resistors: It is recommended to use grid resistors of at least 1MΩ to ensure stable functionality.
Coupling capacitors: Capacitors with low capacitance (typically 0.1µF) are recommended to minimize high-frequency interference.

24,95 €
