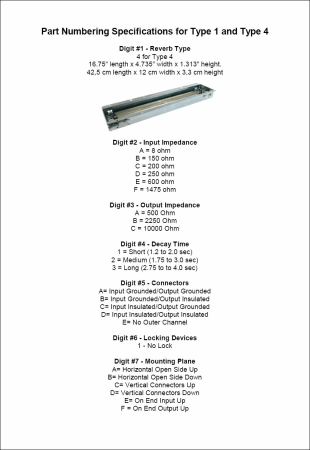

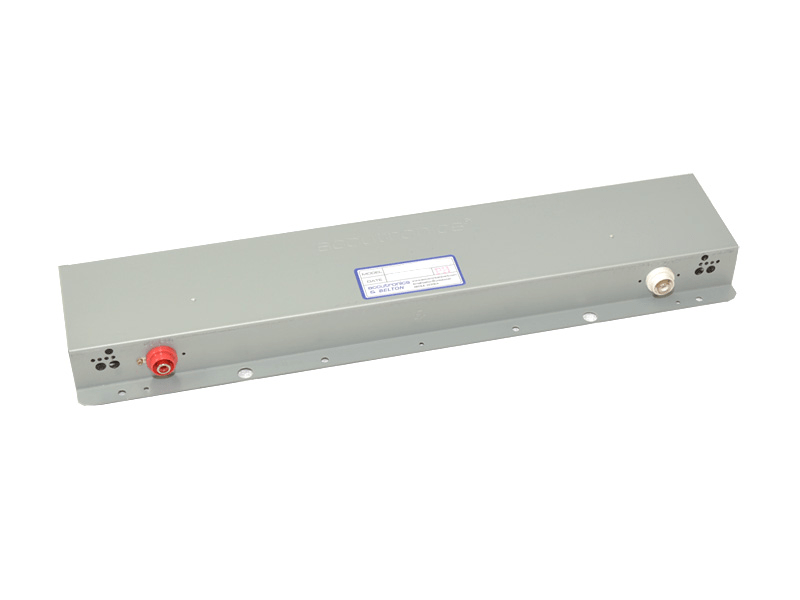

Accutronics Reverb Tank 4AB3C1B

The LNDVerb kit is based on a classic Fender reverb circuit, but uses LND 150 Mosfets instead of tubes. These can be operated at voltages as high as 500 V, to get as close as possible to the characteristics of real tubes.

The kit can be integrated into an existing amplifier or can be build as standalone unit like the Fender tube reverb.

The unit needs less than 10 mA current, so a VPump for example can be used as power supply in a standalone build. If it gets integrated into an existing amplifier the already present power supply of the amp can be used to supply the needed voltage for the unit without the need to upgrade the power transformer.

A reverb transformer of the type 125A20B or similar and a reverb tank are necessary to operate the LNDVerb. These are both not included in the kit.

The needed RCA phone sockets and potentiometers are included in the kit.

Further informations and examples of the finished unit can be found in the PDF below.

Matching parts are linked below and can be ordered with the unit if needed.

Files:

• Datasheet



Surf at the maximum !

Set of componentes for building the TT Surfmate. Please visit the >>Project page for more infos about the amp.

INCLUDED:

• Transformers (Power and Output)
• Resistors
• Capacitors
• Jacks
• Light
• Wires
• Board
• Switche
• PSU
• Tubes
• Fuses & Fuesholder

NOT INCLUDED:

• Knobs
• Chassis
• Faceplate
• REVERB TANK

To build this project knowledge in electric engeneering, experience with high voltage, and the reading and understanding of schematics and dealing with measurement device is highly recommended .
There is NO step-by-step guide for beginners. The circuit and layout plan includes all relevant information. If you don't understand it than don't build it.

Superflat 6.3 mm jack plug, massive pin with gold-plated tip, solder version, black metal housing, 90° angled, moisture-repellent insulation, cable Ø 4.0 - 6.4 mm, with clamping strain relief, ideal for space-saving cabling of effects pedal boards.

• Size: 6.3 mm 1/4"
• Pole: 2-pin, mono
• Design: angled
• Connection type: solder connections
• Housing: metal, extra flat
• Color: silver
• Cable pickup: max 7 mm
• Manufacturer: HiCon

• Contacts: gold-plated
• Connection type: solder contacts
• Color: black
• Cable diameter: 7 mm
• Housing: steel

• Size: 6.3 mm 1/4"
• Poles: 2-pole, mono
• Design: right angle
• Connection type: solder connections
• Housing: metal
• Color: silver
• Cable entry: max 7 mm
• Manufacturer: Rean (by Neutrik)

Files:

• Datasheet

• Size: 6.3 mm 1/4"
• Poles: 2-pole, mono
• Design: straight
• Connection type: solder terminals
• Housing: metal, large
• Color: black
• Cable outlet: max 9 mm

Files:

• Datasheet

Were raw force reigns...

the sound technicians are at work and do not have the time to handle cables with tender love and care. This robust cable is especially intended for speakers and satifies all special technical demands. The oxygen-free copper strand provides better sound and more durability.
All PVC-versions are easy to wind. Versions SP215 and SP225 are now available with highly flexible 0.15 mm copper stranding!
New are the versions in FRNC and E30 (IEC 228, IEC 332-/1, IEC 332-3 Cat C, IEC 60331, IEC 61034-1/2, IEC 60754-2)

THE ADVANTAGES:

• Flexible and easily windable
• Small diameter
• Great durability through the use of a special jacket mixture
• Very affordable

THE APPLICATION:

• All types of sound systems
• For fixed installation
• Wiring of HiFi-systems

TECHNICAL DATA:

• Construction (2LIY1.50mm²)Y
• Diameter 6,8 mm
• AWG 16
• No. of conductors 2 x 1,5 mm²
• Jacket material, insulation PVC
• Copper strand per conductor 84 x 0,15 mm
• Conductor insulation, diameter 2,62 mm
• Temperature range min. -30 °C
• Temperature range max. 70 °C
• Fire load per m 0,28 kWh
• Weight per 1 m 78 g
• Color dark gray

ELECTRICAL DATA:

• Capac. cond./cond. per 1 m 150 pF
• Cond. resistance per 1 km < 13 Ohm
• Insulat. resistance per 1 km > 5 MOhm

Kontaktspray - 200 ml

The T6-Oszillin contact cleaner is specially formulated to clean both fine and coarse mechanical components. This 200 ml spray is designed to repel water and prevent moisture-related ignition issues in items such as batteries or motors. It improves the conductivity of switches, relays, and contacts, providing long-lasting protection. Additionally, it safeguards damaged precious metal layers from corrosion and removes old, hardened lubricants such as oils and greases without leaving any discoloration thanks to its colorless and odorless formula.

Specifications

• Volume: 200 ml

Attention: No shipping with FedEx possible.

Files:

• Safety Datasheet



4 tubes, matched as quad

JJ 6V6 Double Mica double-layered mica in the upper part of the tube. This stabilizes the tube system and significantly reduces possible vibrations that can occur due to heavy mechanical stress. This version of the JJ 6V6 was specifically designed for use in combo amplifiers.

The JJ6V6 is a beam power pentode with octal base and a maximum plate dissipation of 14W. It has fat low end and full mid tones with very good tone separation and a smooth, clean high end - in general, a very balanced tone.
Currently, the only new production 6V6 which is approved for up to 500V anode voltage in pentode operation.

Files:

• Datasheet
